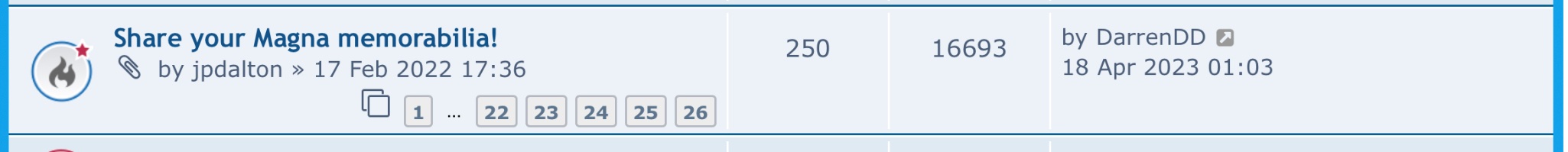

Darren - I appreciate the feedback! And thank you for being the 250th response to this thread!! That along with nearly 17,000 views is far more interest than I could have hoped for when I started it.
.
I look forward to seeing more of this community’s finds as well - keep ‘em coming!
John Dalton
Massachusetts
*****************************************
1948 10E, S/N 5052 (restored)
1950 10ER, S/N 26473 (restored)
1954 Mark 5, S/N 263334 (functionally restored)
1954 Mark 5, S/N 263705 (restored/PowerPro)
c1959 Mark 2, S/N 81940 (undergoing restoration)
jpdalton
Gold Member
Posts: 296
Joined: Sun Jun 12, 2011 7:36 am

Re: Share your Magna memorabilia!

Post by jpdalton »

Onboard Instructions

Here are a couple of examples of Magna using the plastic cover of their products - in these examples, a Greenie bandsaw cover and a Mark 2 belt cover - as the foundation for their stick-on instruction sheet for quick reference.

The Mark 2 example in particular is one that is rarely seen, due to the relatively few of those machines having been produced, and the far fewer of those belt covers having survived (as part of the overall cost-cutting effort of that system to get it to an affordable price point, the cover was made of very thin - and unfortunately, brittle - plastic).
.
John Dalton
Massachusetts
*****************************************
1948 10E, S/N 5052 (restored)
1950 10ER, S/N 26473 (restored)
1954 Mark 5, S/N 263334 (functionally restored)
1954 Mark 5, S/N 263705 (restored/PowerPro)
c1959 Mark 2, S/N 81940 (undergoing restoration)
User avatar
chapmanruss
Platinum Member
Posts: 3332
Joined: Tue Aug 26, 2014 8:16 pm
Location: near Portland, Oregon

Re: Share your Magna memorabilia!

Post by chapmanruss »

Unfortunately, in the case of the label inside the belt cover on the Mark 2 that chart was not repeated in the Owner's Guide.

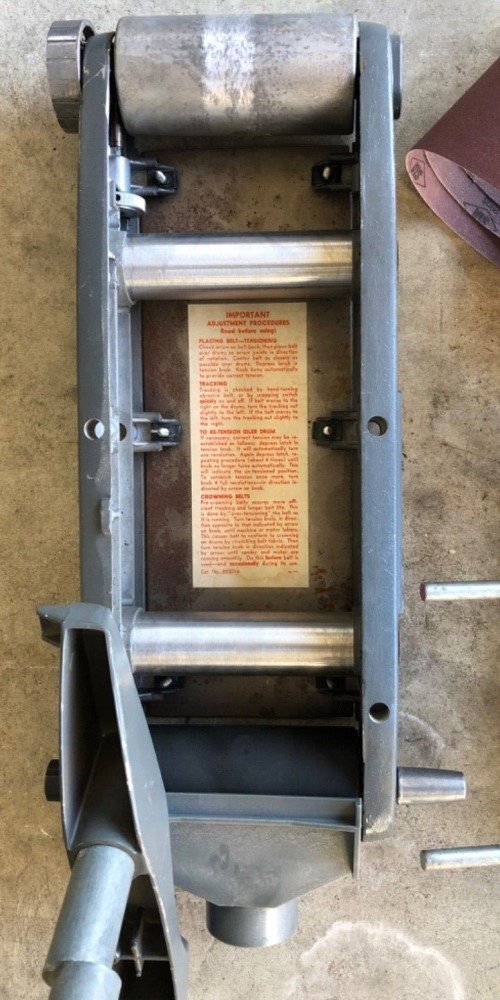

The Belt Sander had an instruction label on the back side of the Backup Plate. It is shown below on a December 1984 Belt Sander.

_
Label Dec 84.jpg
Label Dec 84.jpg (112.78 KiB) Viewed 1129 times
.
For anyone wanting to add or replace that Belt Sander Label the PDF below is a replica I made. Simply print on 8-1/2" x 11" self-adhesive label paper.

_
Belt Sander plate label.pdf
(77.33 KiB) Downloaded 81 times
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
jpdalton
Gold Member
Posts: 296
Joined: Sun Jun 12, 2011 7:36 am

Re: Share your Magna memorabilia!

Post by jpdalton »

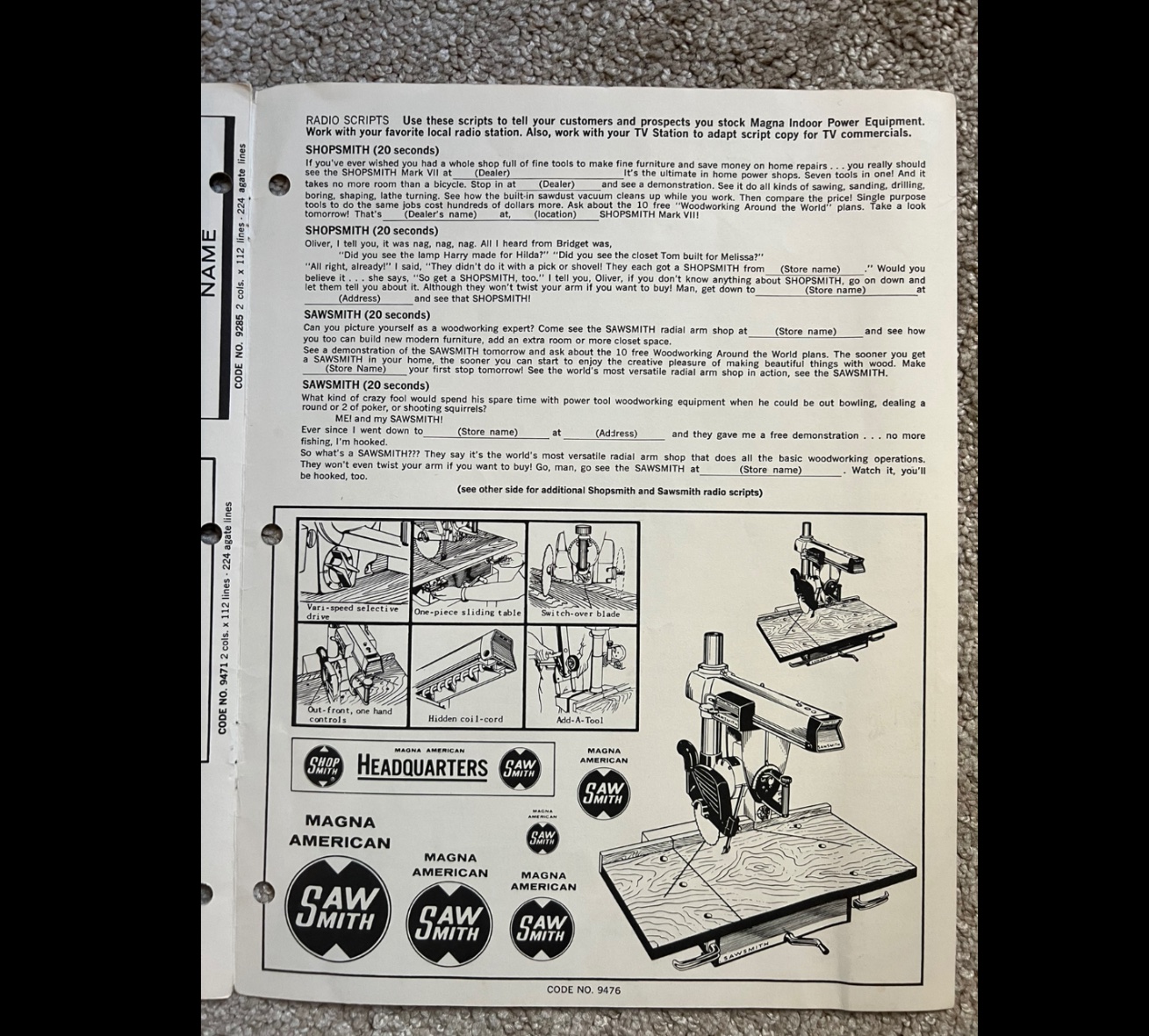

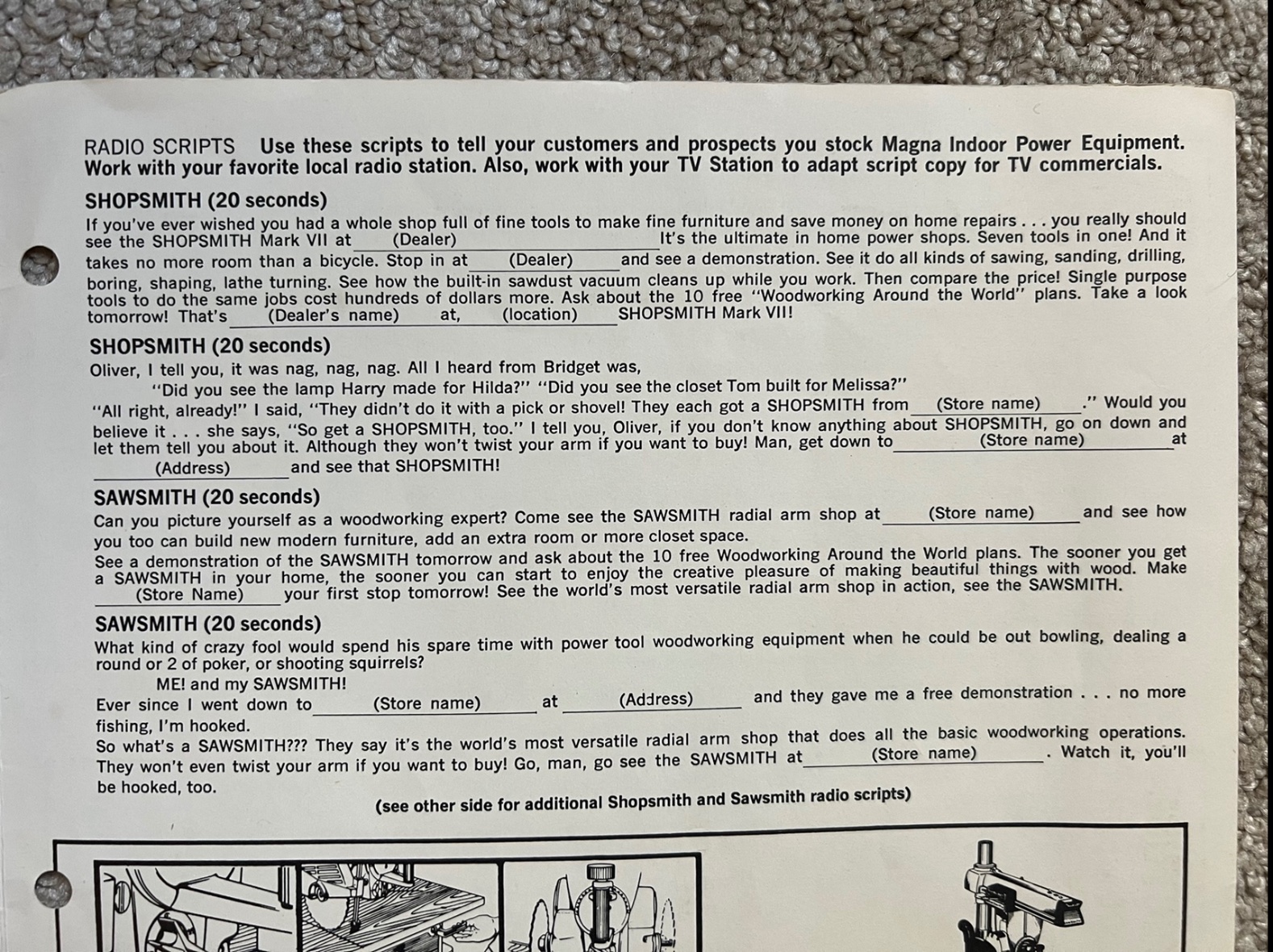

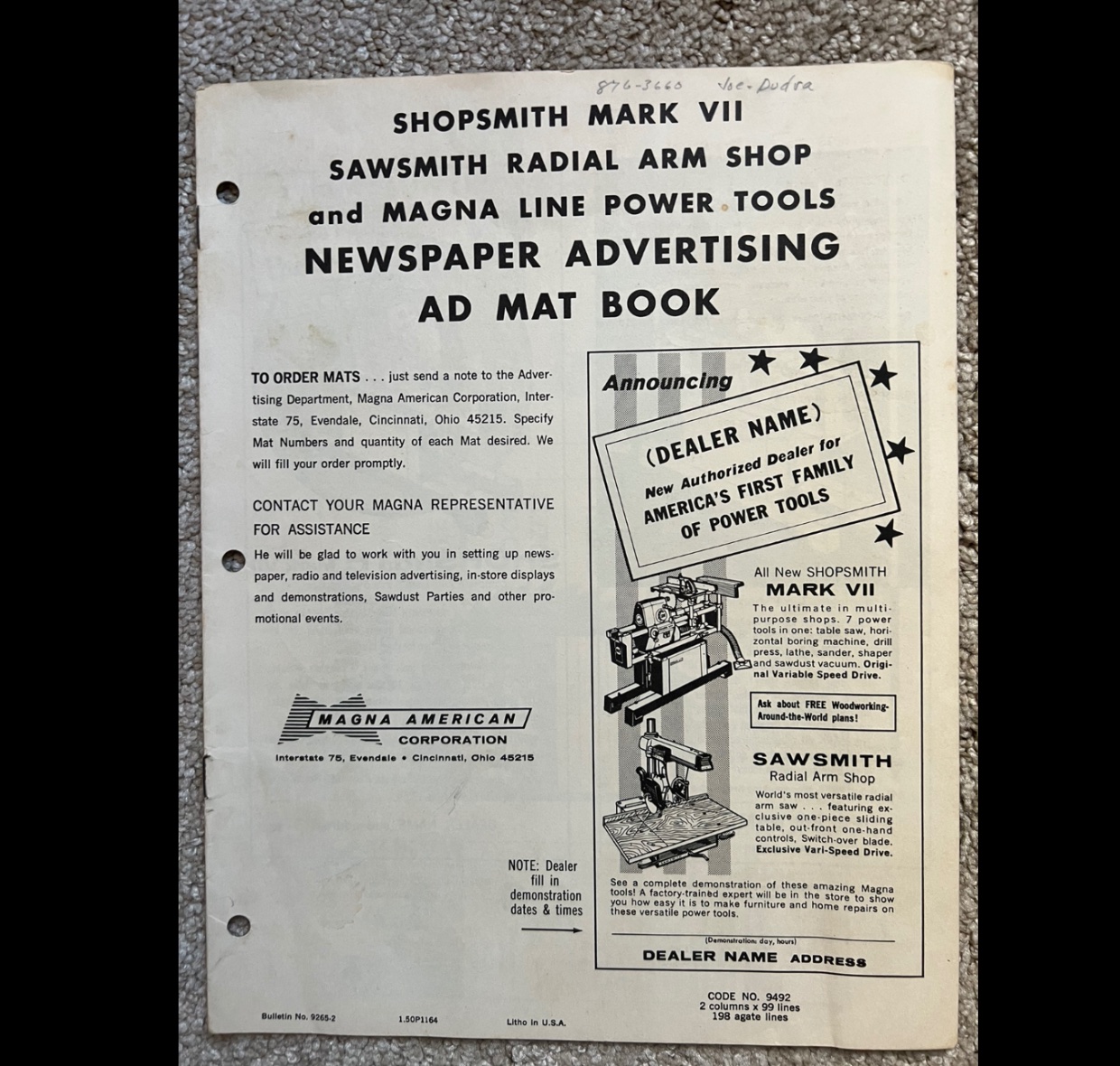

Mark VII Advertising Mat Book

This is an item that was supplied by Magna American to independent dealers to help with their local advertising campaigns for the Mark VII, Sawsmith, and Magna Line tools. These contained full print ad layouts (just fill in your own business name and location), logos and other graphics for custom print ads, and even some scripts for radio spots. Hilarious!
.
John Dalton
Massachusetts
*****************************************
1948 10E, S/N 5052 (restored)
1950 10ER, S/N 26473 (restored)
1954 Mark 5, S/N 263334 (functionally restored)
1954 Mark 5, S/N 263705 (restored/PowerPro)
c1959 Mark 2, S/N 81940 (undergoing restoration)
jpdalton
Gold Member
Posts: 296
Joined: Sun Jun 12, 2011 7:36 am

Re: Share your Magna memorabilia!

Post by jpdalton »

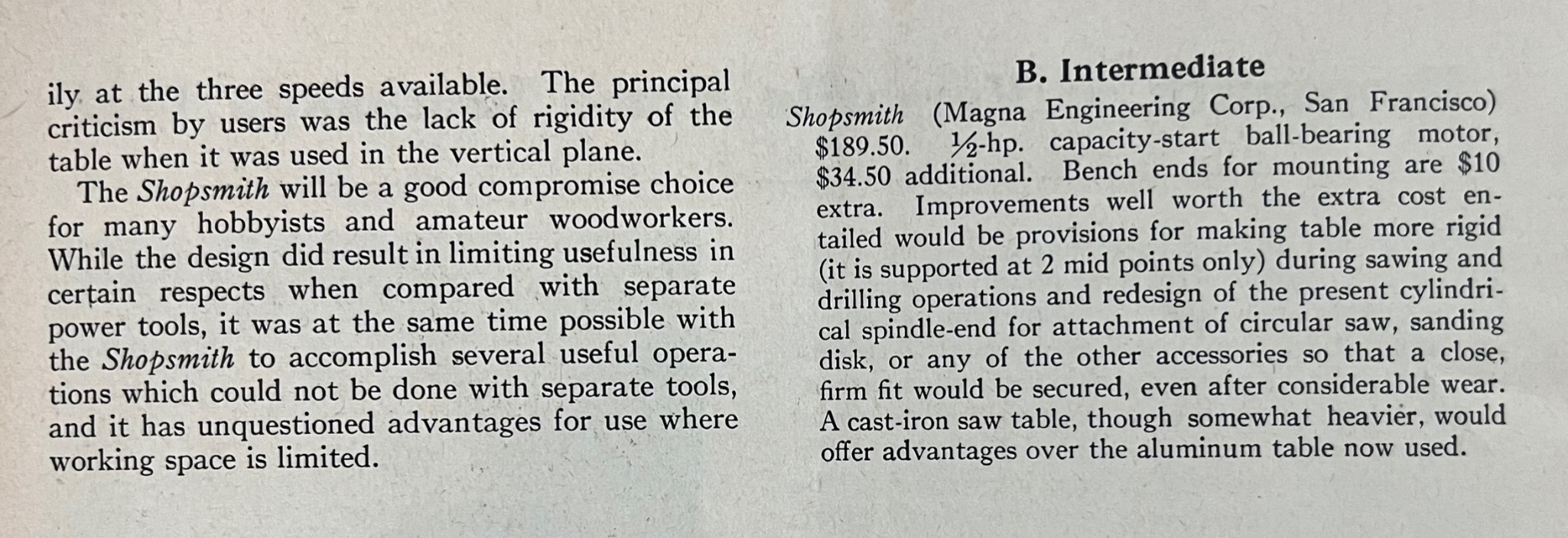

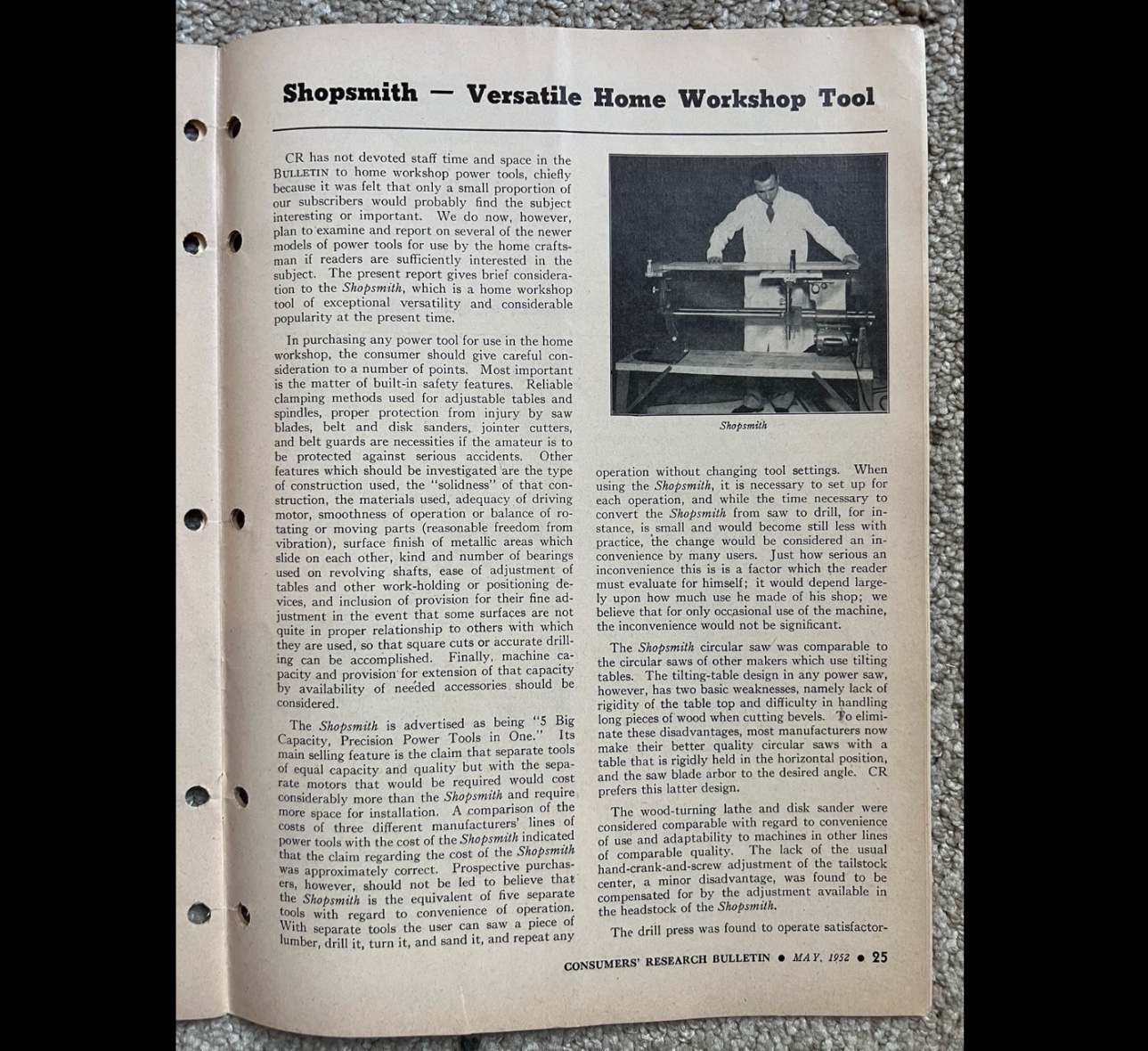

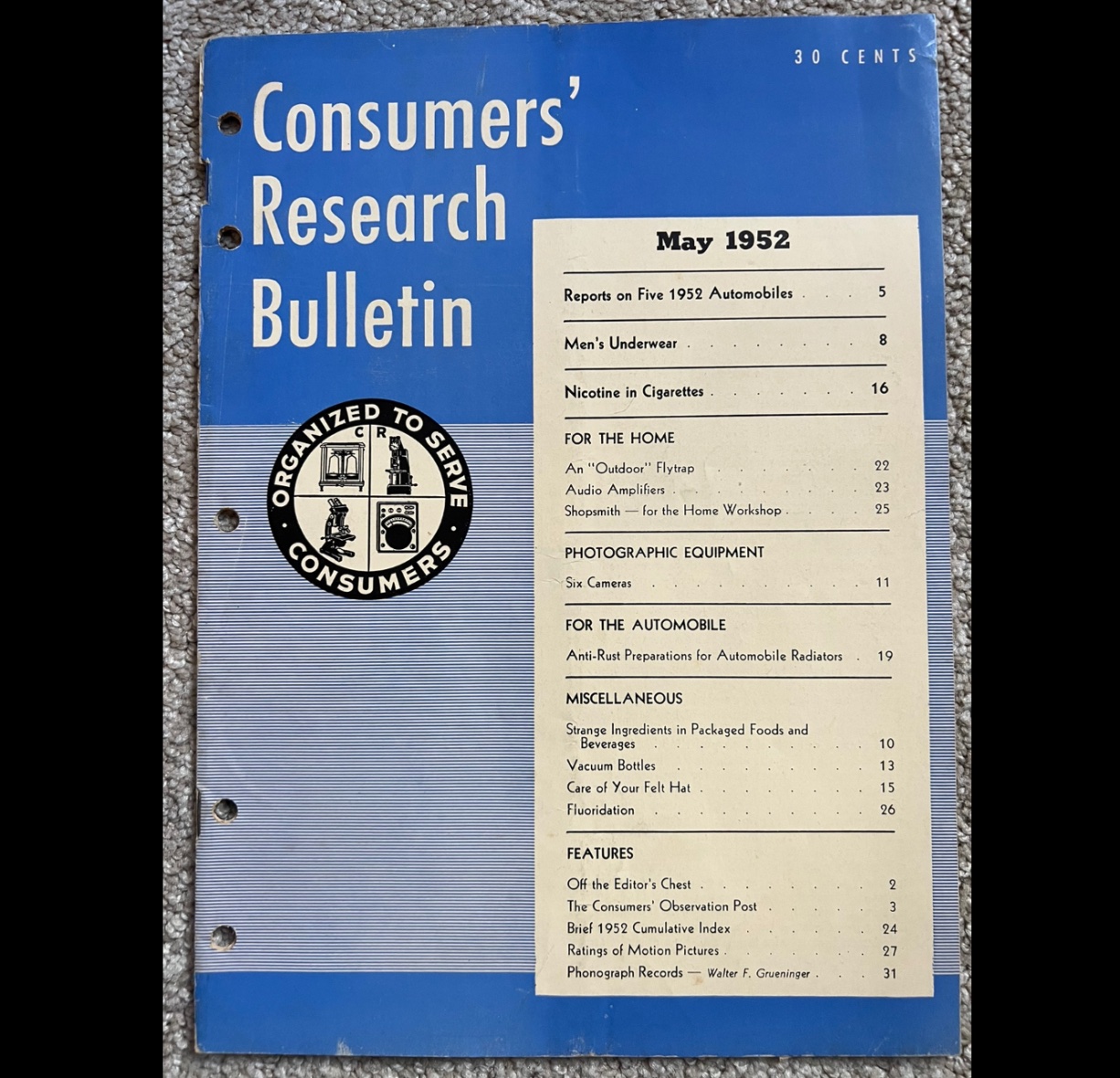

Consumers’ Research Bulletin article on the 10-ER

This is a 1952 publication similar to today’s Consumer Reports (Consumers’ Research apparently being the precursor in the family tree - https://en.m.wikipedia.org/wiki/Consumers%27_Research). At that time, Shopsmiths had gained a level of popularity that warranted inclusion here.

They certainly don’t pull off the lab-coat-and-necktie look in the workshop like Mr. DeCristoforo!
.
John Dalton
Massachusetts
*****************************************
1948 10E, S/N 5052 (restored)
1950 10ER, S/N 26473 (restored)
1954 Mark 5, S/N 263334 (functionally restored)
1954 Mark 5, S/N 263705 (restored/PowerPro)
c1959 Mark 2, S/N 81940 (undergoing restoration)
User avatar
chapmanruss
Platinum Member
Posts: 3332
Joined: Tue Aug 26, 2014 8:16 pm
Location: near Portland, Oregon

Re: Share your Magna memorabilia!

Post by chapmanruss »

I find it interesting that even though the article was from May 1952 the picture shows an early Model 10ER with the larger Base and 4 bolt Headrest. In 1952 the Model 10ER would have the smaller Base, a 2 bolt Headrest and single wedge locks for the Headstock and Carriage.

Additionally, I cannot understand why it was listed as only three speeds, 875, 1750 & 3500 RPM's (as per the Owner's Guide) when it is easy to reposition the pulley alignments to allow for 4 additional speeds. The Owner's Guide only covers using the 2" to 4", 3" to 3" and 4" to 2" pulley combinations and ignores the protentional of using the 2-3 and 3-4 pulley combinations to get the 4 additional speeds as shown in the chart from the PDF below.

_
Table of Speeds Model 10s.pdf
(182.91 KiB) Downloaded 83 times
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
HopefulSSer
Gold Member
Posts: 344
Joined: Sun Oct 03, 2021 6:07 pm
Location: NC

Re: Share your Magna memorabilia!

Post by HopefulSSer »

chapmanruss wrote: Tue May 02, 2023 12:15 pm I cannot understand why it was listed as only three speeds, 875, 1750 & 3500 RPM's (as per the Owner's Guide) when it is easy to reposition the pulley alignments to allow for 4 additional speeds.
_
Table of Speeds Model 10s.pdf
I would imagine they felt uncomfortable discussing any method of use not explicitly endorsed by the manufacturer...
Greenie SN 362819 (upgraded to 510), Bandsaw 106878, Jointer SS16466
User avatar
JPG
Platinum Member
Posts: 34331
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Re: Share your Magna memorabilia!

Post by JPG »

My self. I consider the skewing of the belt to attain those additional speeds to be not very realistic. It also requires readjustment of the motor mount height / belt. Possible - yes.
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
jpdalton
Gold Member
Posts: 296
Joined: Sun Jun 12, 2011 7:36 am

Re: Share your Magna memorabilia!

Post by jpdalton »

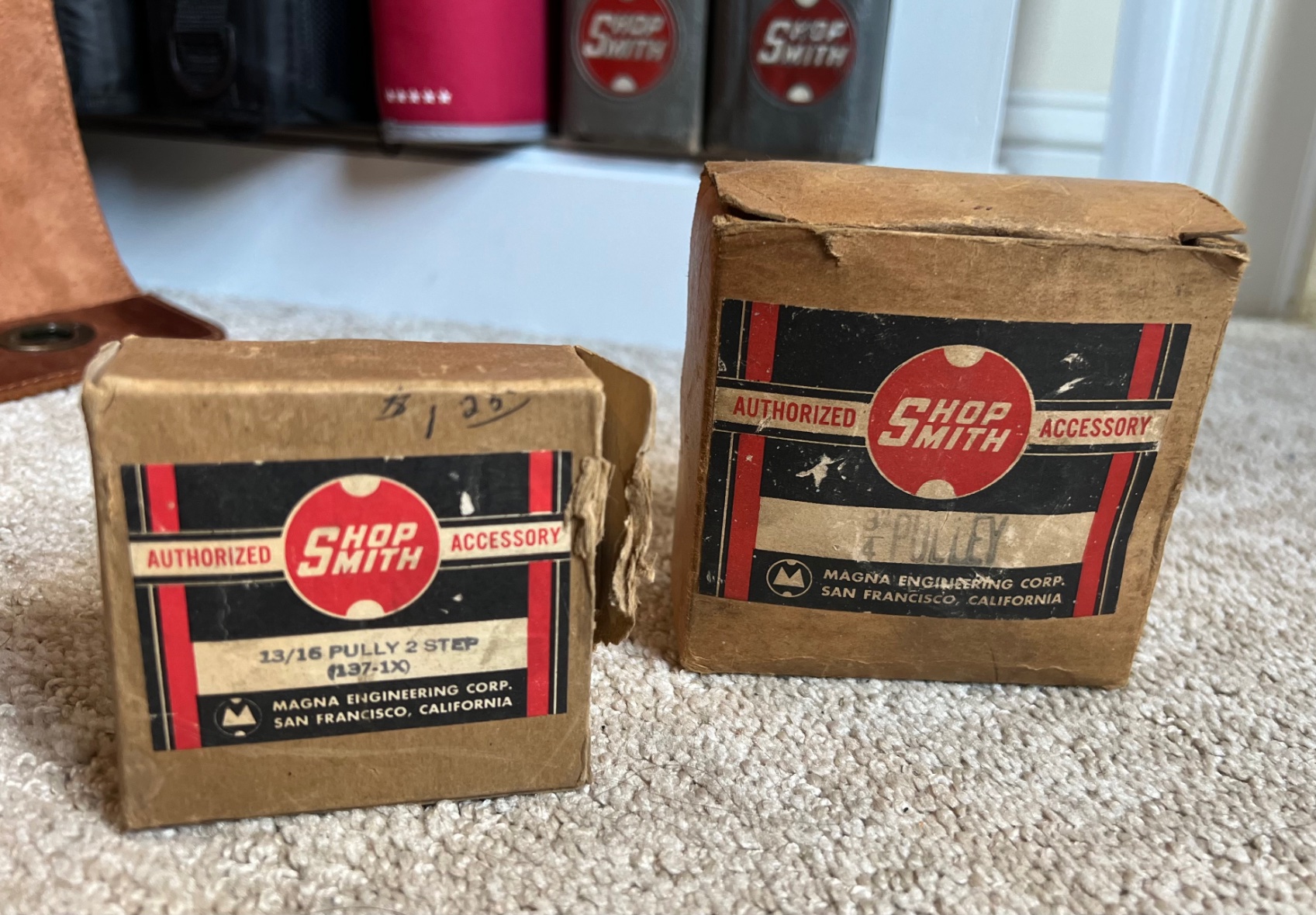

Early Magna Accessory Packaging Style?

These are a bit of a mystery to me… Picked them up in a couple of online auctions sometime ago. I wasn’t necessarily attracted to the accessories themselves, but the packaging of each was very unusual!

One is a standard, 3-position motor pulley (labeled ‘3/4” PULLEY’), while the other is the alternative, 2-position headstock pulley (labeled “13/16 PULLY [sic] 2 STEP (137-1X)”) used to increase depth of cut on the 10-E/ER.

They’re both fairly early Magna vintage (company location is listed as San Francisco on the labels), but any other details are unclear. Anyone recognize these and have more of the story of their origin?
.
