What am I doing wrong?

Forum for people who are new to woodworking. Feel free to ask questions or contribute.

Moderator: admin

Sdwatt
Bronze Member
Posts: 4
Joined: Tue Sep 19, 2023 3:19 pm

What am I doing wrong?

Post by Sdwatt »

Hi - I’m COMPLETELY new to woodworking but I managed to get my hands on a Mark V 500. I’ve oiled and done my best to align everything, but I have a few questions.

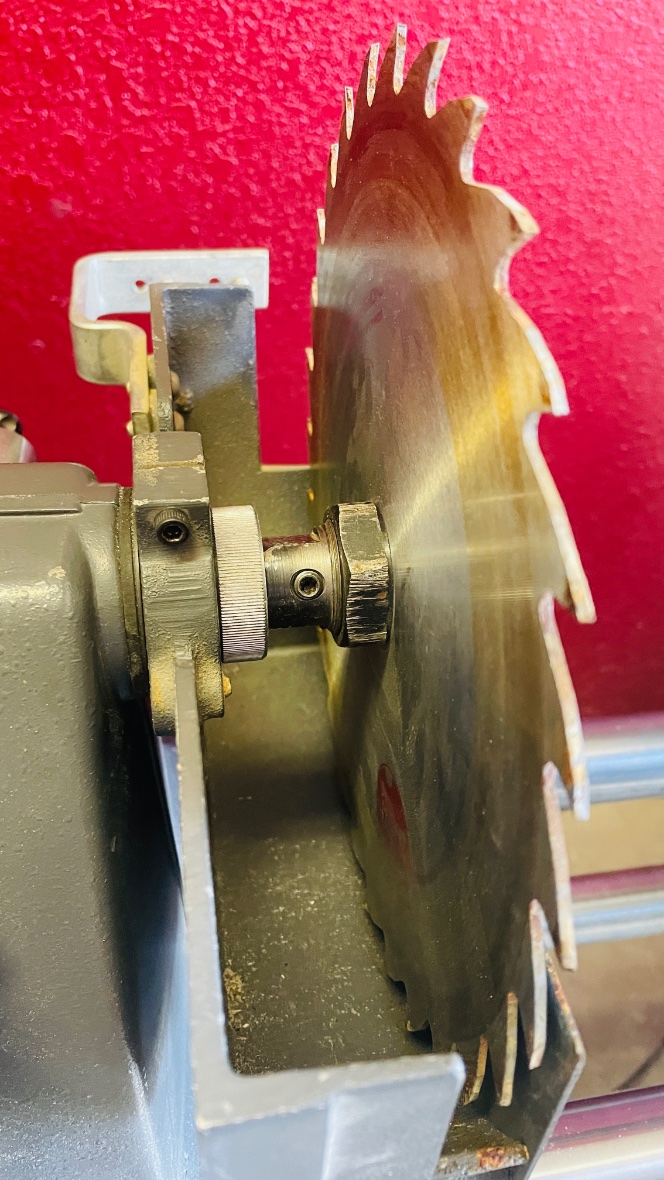

1. I’m having trouble with the table saw setup. When I have the lower saw guard and the saw all the way on the spindle (see picture 1),

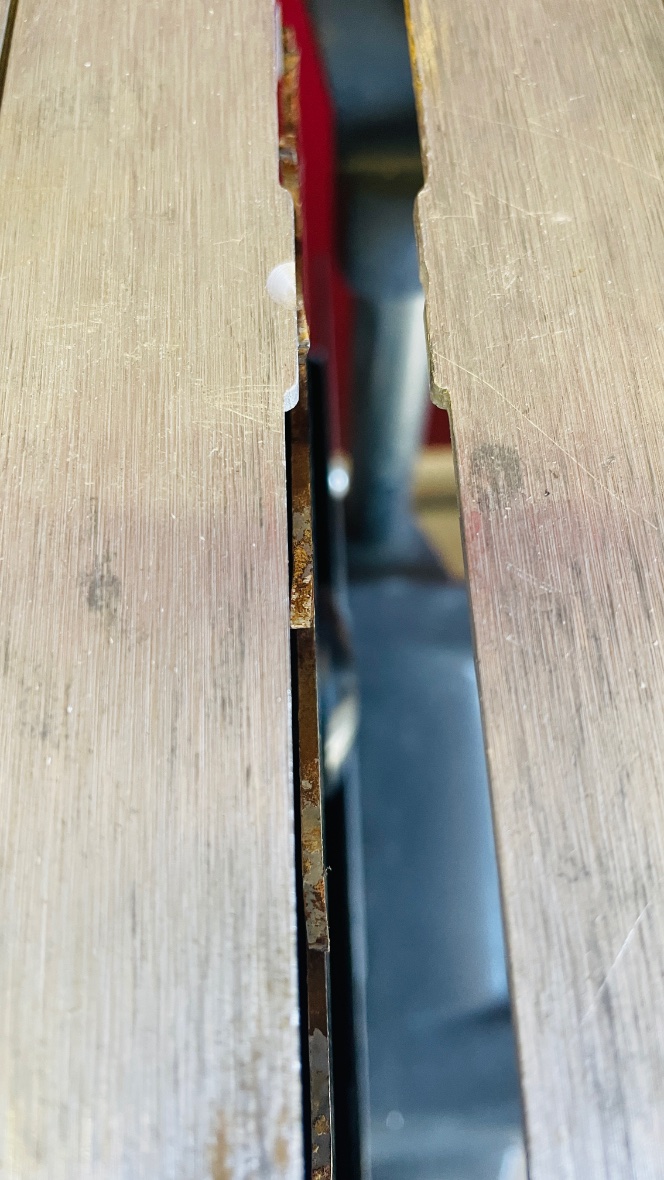

then when I slide the table over the saw and try to lower it down, it is not quite far enough to the right to go into the slot in the table (see pic 2).
What do I have set incorrectly or how to I align these? I couldn’t find a solution to this in the manuals.

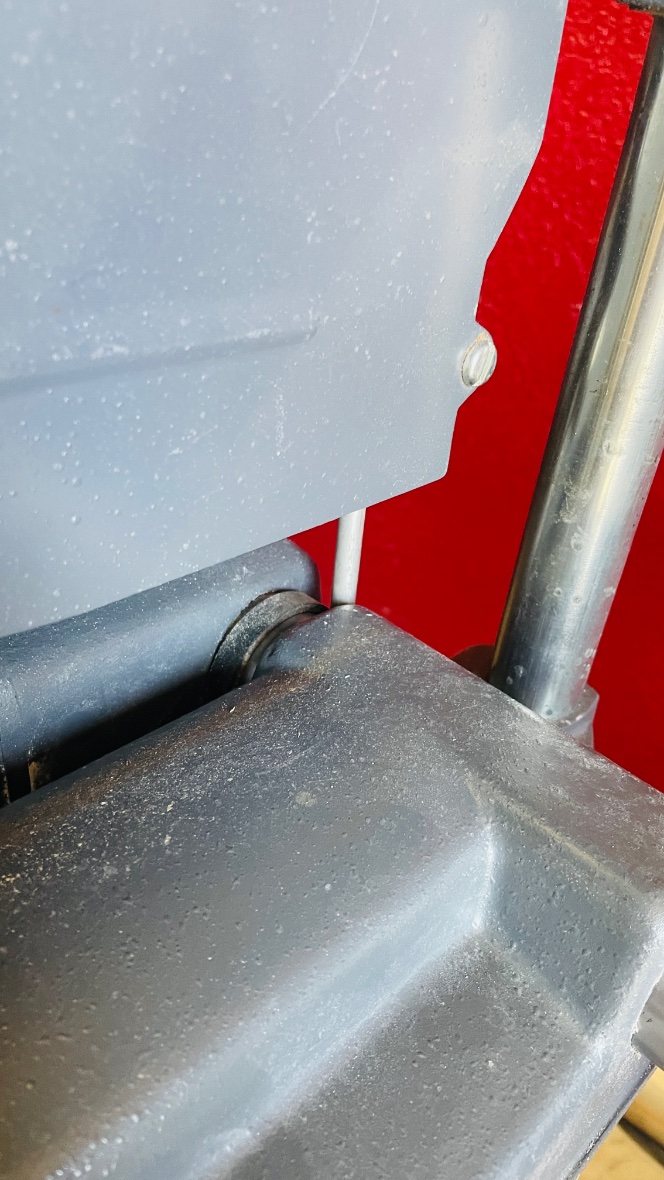

2. Also, does the rubber gasket stopper go between the head stock and the lower saw guard or between the lower saw guard and the table (see pic 3 - which side of the vertical metal bar does the rubber thingy go on? )

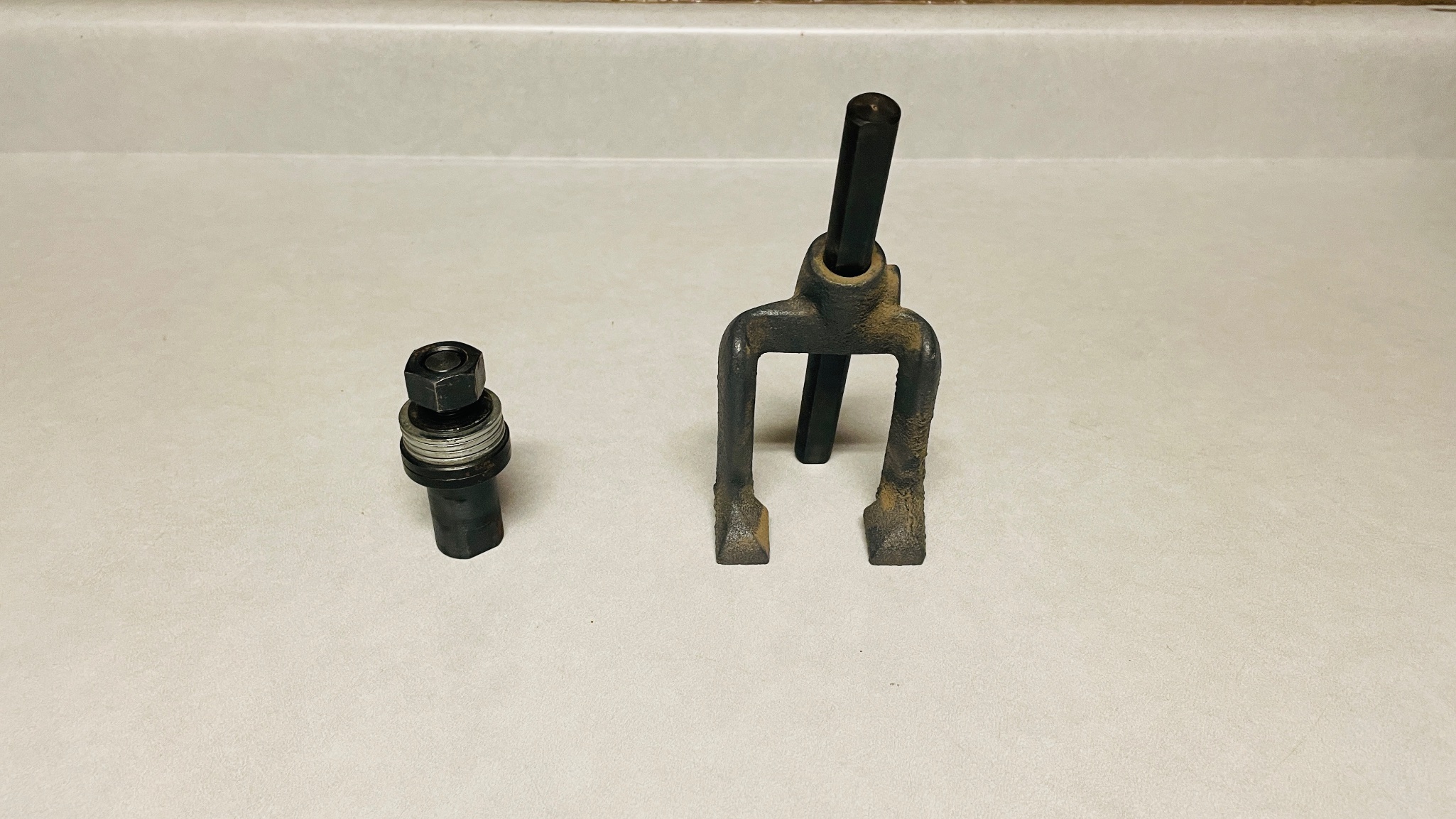

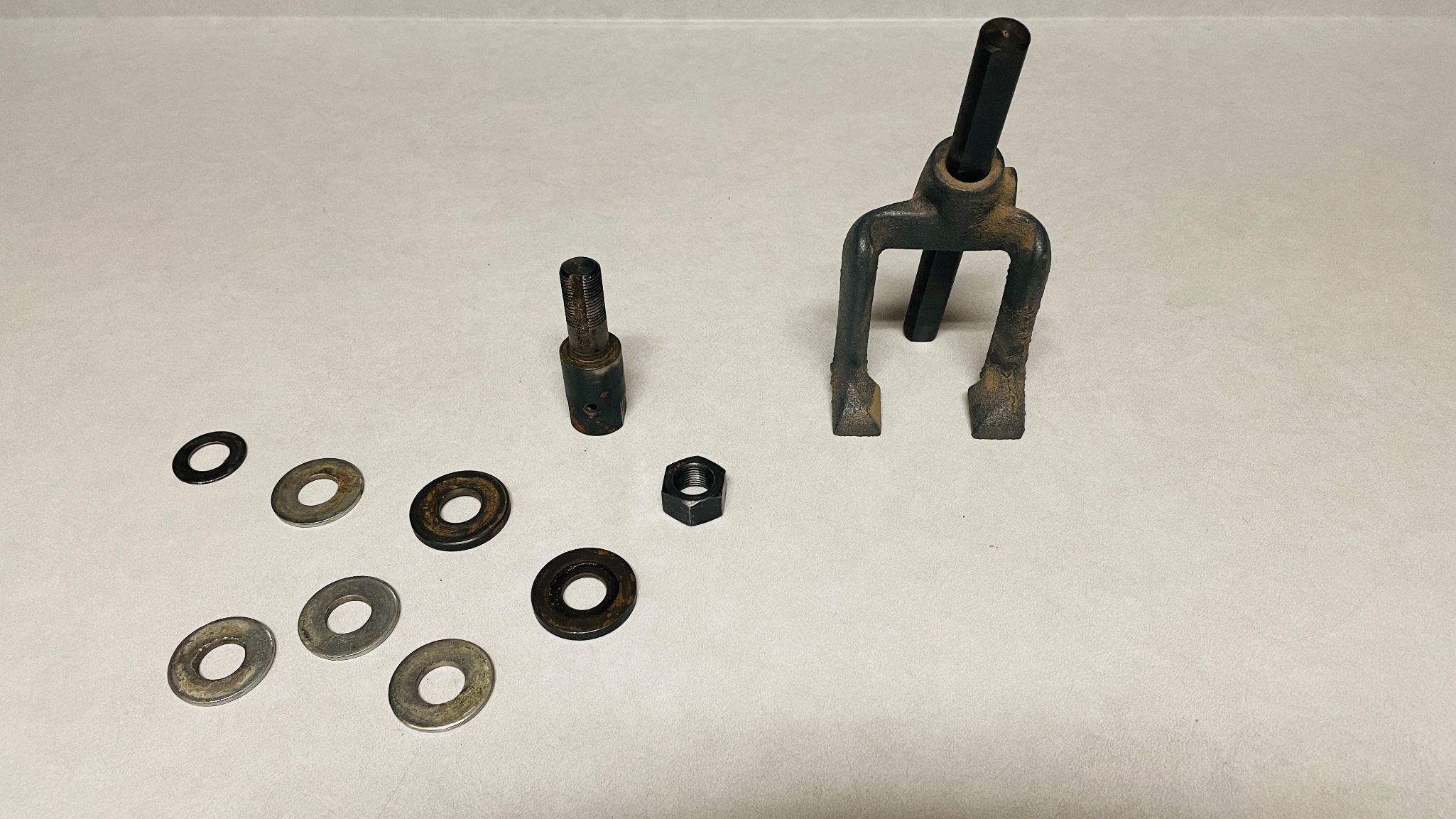

3. The system came with a few accessories and pieces/parts. Can anyone tell me what the two objects in pic 4 & 5 are? (Pic 5 has the left object undone. There were quite a few washers on it.
User avatar
JPG
Platinum Member
Posts: 34529
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Re: What am I doing wrong?

Post by JPG »

Mystery parts:

1/2" shaper arbor with non-oem washers.

Mortising hold down.

Saw blade should be near centered in the slot if the 3/8" spacer is between the headstock and the carriage and the quill is correctly assembled. The rubber ring is a cushion for the stop ring when the quill is fully retracted. There should be a clear area on the end of the quill housing that the lower saw guard is attached. The knurled collar should be secured on a short tapered flat and the blade arbor secured on a longer tapered flat both on the quill shaft. Is it possible the collar is secured incorrectly on the longer tapered shaft? Proper assembly includes pushing the collar inward while also pulling outward on the quill shaft. This eliminates play between the internal bearing and the collar. Make sure the set screws are centered(radially) on the flats.
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Matanuska
Gold Member
Posts: 93
Joined: Sun Jan 02, 2022 8:07 pm
Location: Dallas, Texas

Re: What am I doing wrong?

Post by Matanuska »

Could it be the wrong saw blade arbor? I know there are at least a couple of versions.
1985 Mark V upgraded to 520 PowerPro. Shopsmith cast iron table bandsaw, jointer, belt sander, and 60's vintage 610 jigsaw SPT's. Makita 2040 15" planer, JessEm Mast-R-Lift II router table.
User avatar
JPG
Platinum Member
Posts: 34529
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Re: What am I doing wrong?

Post by JPG »

That arbor is correct for a Mark 5/Mark V 500.
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
BigSky
Gold Member
Posts: 475
Joined: Mon Apr 07, 2008 10:16 am
Location: MT

Re: What am I doing wrong?

Post by BigSky »

Should there be a rubber spacer on the upper way tube? I ask because I have no experience with a 500.

Just slide the carriage far enough to position the blade in the slot where you want it.
Last edited by BigSky on Thu Sep 21, 2023 7:33 am, edited 1 time in total.
DLB
Platinum Member
Posts: 1956
Joined: Fri Nov 08, 2019 11:24 am
Location: Joshua Texas

Re: What am I doing wrong?

Post by DLB »

JPG wrote: Tue Sep 19, 2023 9:54 pm ... The knurled collar should be secured on a short tapered flat and the blade arbor secured on a longer tapered flat both on the quill shaft. Is it possible the collar is secured incorrectly on the longer tapered shaft?...
In the first picture, we can see the arbor setscrew but not the setscrew for the knurled collar. That is abnormal for sure. They are normally aligned with one another because that is the way the two tapered flats in the quill spindle are made. This is not necessarily the cause of the problem, but should be corrected.

- David
User avatar
JPG
Platinum Member
Posts: 34529
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Re: What am I doing wrong?

Post by JPG »

AMEN!

Good catch.
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10
E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
br549
Platinum Member
Posts: 621
Joined: Sun Nov 30, 2014 8:51 am
Location: Midway between Houston/Galveston, TX

Re: What am I doing wrong?

Post by br549 »

Sdwatt wrote: Tue Sep 19, 2023 3:38 pm 2. Also, does the rubber gasket stopper go between the head stock and the lower saw guard or between the lower saw guard and the table (see pic 3 - which side of the vertical metal bar does the rubber thingy go on? )

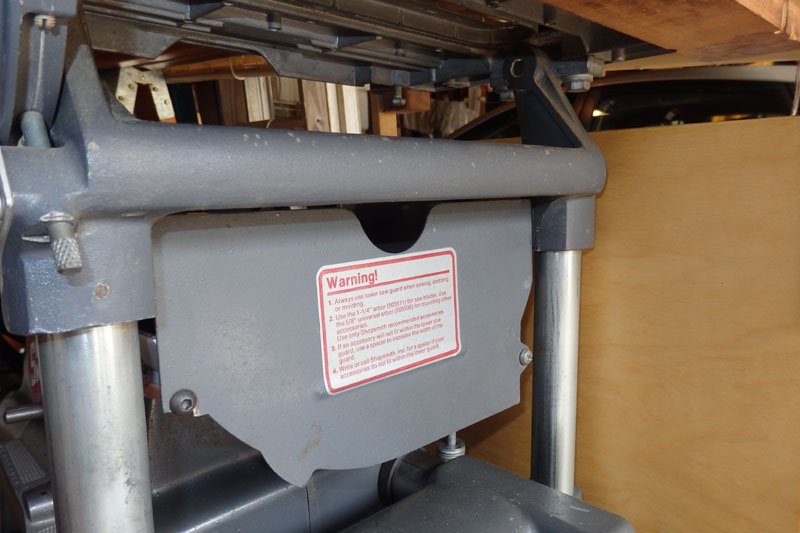

I didn't see anyone else answer this question, so I'll try. I'm not 100% sure, but I think the purpose of that screwed in rod is to act as a "stop" when installing the lower guard, so that the top of the lower guard is parallel to the underside of the table support tie bars. If you extend the quill, then the rubber spacer should probably be on the left side of the rod, near the headstock. I typically extend my quill a little, just so I can get the lower guard to go on without the bump in the lower guard casting for the dust port hitting the headstock. In the picture attached you can see where I experimented using multiple washers and a threaded bolt to act as a stop to achieve the top of the guard parallel to the tie bar. The saw guard is a tight fit between the table legs, and being parallel helps it fit better (especially if you use the 1.25" spacer all of the time like I do).
Attachments
lower guard parallel to tie bar.JPG
lower guard parallel to tie bar.JPG (64.08 KiB) Viewed 3249 times
User avatar
chapmanruss
Platinum Member
Posts: 3410
Joined: Tue Aug 26, 2014 8:16 pm
Location: near Portland, Oregon

Re: What am I doing wrong?

Post by chapmanruss »

Sdwatt,

I don't have a 500 at this time so I can't take any picture to show how it should look. From what I see in your picture of the Carriage it should be against the spacer on the Way Tube and the Spacer against the Headstock. That is a spacer designed to quickly and correctly position the Headstock and Carriage to set the Saw Blade in the Table Slot when all things are correctly positioned. The pin coming down below the Lower Saw Guard is there to help align it but should not keep the Carriage and Headstock from both being in contact with the Spacer. The picture showing the Arbor has it likely mis-aligned to the tapered flat in the spindle as David pointed out. The Arbor should be slid completely to the left on the Spindle. If these adjustments do not help let us know and we will help trouble shoot the possible problem further.
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
User avatar
JPG
Platinum Member
Posts: 34529
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Re: What am I doing wrong?

Post by JPG »

I think we need to see a pix without the saw arbor mounted.
╔═══╗
