vertical lock screw doesn't aline to recess in drill press mode
Posted: Fri Oct 13, 2023 3:59 pm
by PAULSCOOTER

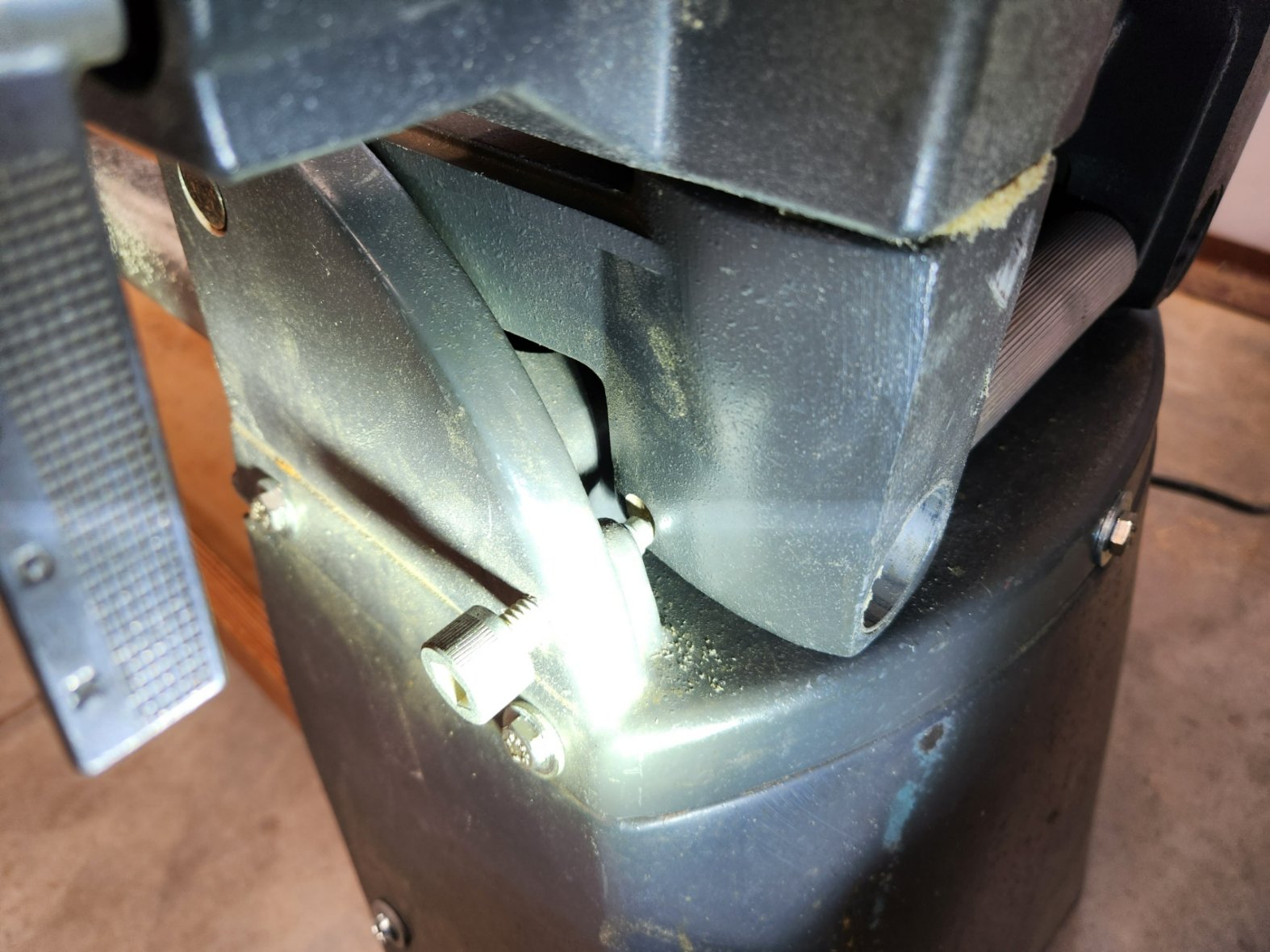

The screw that hold the head in the drill press position doesn't go into he recessed hole. It just touches the frame at the edge of the hole. I don't see any adjustments.
- 1.jpg (236.93 KiB) Viewed 16098 times
Re: vertical lock screw doesn't aline to recess in drill press mode
Posted: Fri Oct 13, 2023 4:37 pm
by algale
That's exactly how it is supposed to work. Don't feel bad, 90% of new Shopsmith owners think there's something wrong.
Re: vertical lock screw doesn't aline to recess in drill press mode
Posted: Fri Oct 13, 2023 8:19 pm
by Mike907
New machines come with this tag:
viewtopic.php?t=19609&start=10
Mike
Re: vertical lock screw doesn't aline to recess in drill press mode
Posted: Fri Oct 13, 2023 8:33 pm
by PAULSCOOTER
OK, thanks. It seems Odd they design it that way. It must seem odd to many others if they had to attach that special tag.
Re: vertical lock screw doesn't aline to recess in drill press mode
Posted: Fri Oct 13, 2023 11:50 pm
by JPG
Not understanding the design intent is what causes those 90+% to think something is wrong. The offset is so that the lock screw contacts a slope that provides increasing interference IF the assembly moves towards falling back down to horizontal.
Re: vertical lock screw doesn't aline to recess in drill press mode
Posted: Sat Oct 14, 2023 9:30 am
by PAULSCOOTER
thanks
Re: vertical lock screw doesn't aline to recess in drill press mode
Posted: Sat Oct 14, 2023 3:06 pm
by bainin
Not sure I understand that argument about interference- wouldn't a thru-hole pin do the same thing?
Re: vertical lock screw doesn't aline to recess in drill press mode
Posted: Sat Oct 14, 2023 6:11 pm
by jsburger
A through hole pin would work but the tolerances would have to be much tighter to prevent movement and to insure the pin would go in the hole. With this design just tightening the knob eliminates the need for precise tolerances and provides the same result..
Re: vertical lock screw doesn't aline to recess in drill press mode
Posted: Sat Oct 14, 2023 9:32 pm
by BuckeyeDennis
jsburger wrote: Sat Oct 14, 2023 6:11 pm
A through hole pin would work but the tolerances would have to be much tighter to prevent movement and to insure the pin would go in the hole. With this design just tightening the knob eliminates the need for precise tolerances and provides the same result..
A better result, actually, IMHO. With the offset design, there is
zero slop/play — it’s locked up tight. With a through pin, you could never achieve that.
Re: vertical lock screw doesn't aline to recess in drill press mode
Posted: Sun Oct 15, 2023 12:04 pm
by bainin
Ah I see- thanks ! It does work-I'm not advocating for a change- just curious
b
