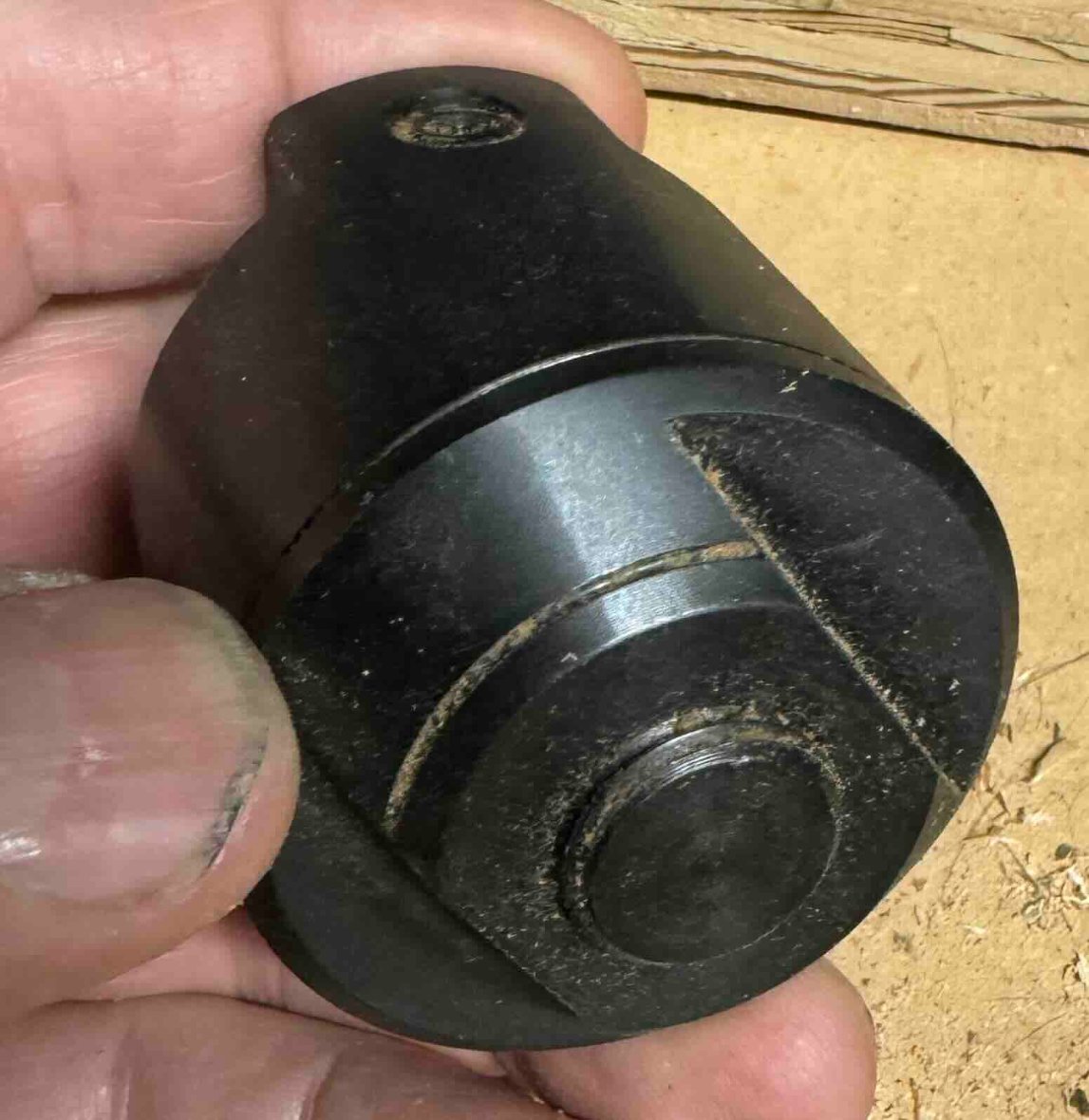

I found this adapter in the parts I acquired when I purchased a used ShopSmith Mark V 510.
Does anyone know what this tool is for?
It clearly fits on the 5/8 spindle shaft but what is it for?
TIA
- UnknownTool.jpg (174.95 KiB) Viewed 26393 times
What is this tool for?
Moderator: admin
What is this tool for?
New Forum User here....
I found this adapter in the parts I acquired when I purchased a used ShopSmith Mark V 510.
Does anyone know what this tool is for?
It clearly fits on the 5/8 spindle shaft but what is it for?
TIA
I found this adapter in the parts I acquired when I purchased a used ShopSmith Mark V 510.
Does anyone know what this tool is for?
It clearly fits on the 5/8 spindle shaft but what is it for?
TIA
Mark V 510 | Bosch Compound Miter Saw | Bosch Router w/ Rockler router lifts (2) | Laguna 16" bandsaw | Grizzly 8" jointer | Laguna SuperMax 19/38 drum sander with Stockroom Supply Hook-Look upgrade | SawStop cabinet saw | Grizzly Scroll Saw | Ryobi mini bandsaw | Ryobi belt / disc sander | Harbor Freight benchtop drill press, strip sander
-
JPG
- Platinum Member
- Posts: 35428
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: What is this tool for?
5/8" saw arbor.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
chapmanruss
- Platinum Member
- Posts: 4184
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: What is this tool for?
Cheechako,
Welcome to the Shopsmith Forum.

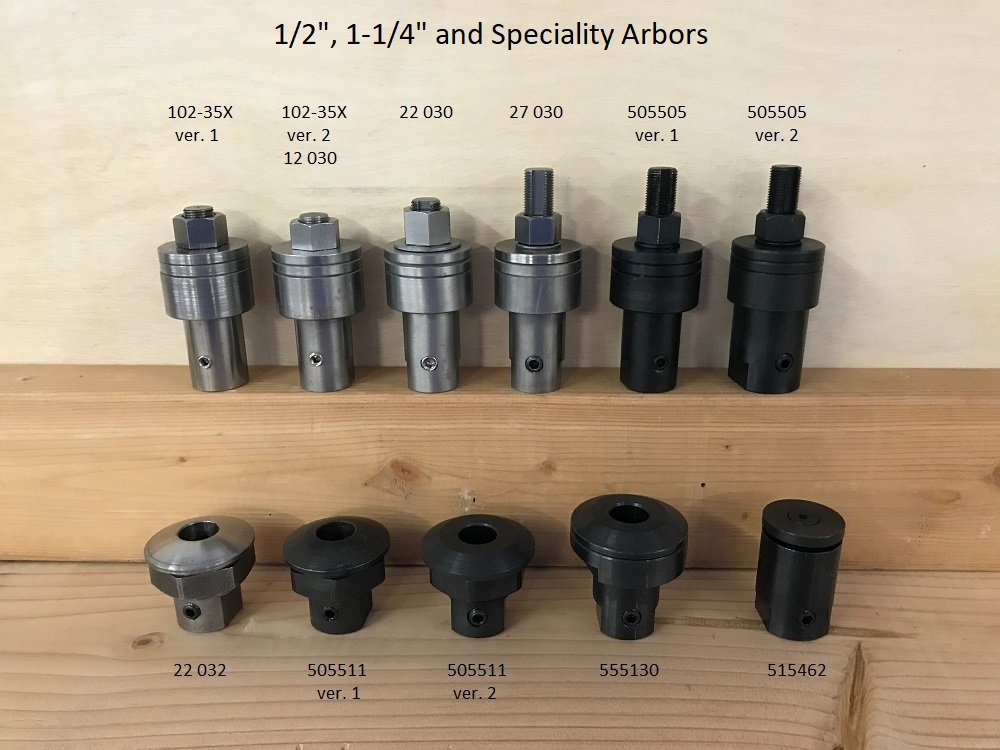

As JPG said it a 5/8" Saw Blade Arbor. It allows you to use Saw Blades from other manufacturers that have a 5/8" Arbor hole as opposed to the 1-1/4" Arbor Shopsmith Saw Blades. It is one of many Arbors that have been available over the years to use on the Shopsmith tools. The pictures below show the different Arbors and yours is the one on the lower right in the first picture.
