Band Saw Adapter to 4" Vac

[bainin]

I have always been annoyed that my 4" dust collector tube requires reduction to 2" for the Shopsmith Accessories. Not that i think this is limiting
the dust collection, but I didn't like needing 4" to 2" adaption .

I figured I'd start with the easy one and convert the bandsaw adapter to 4" . My kid recently upgraded his 3D printing capabilities and I took advantage.

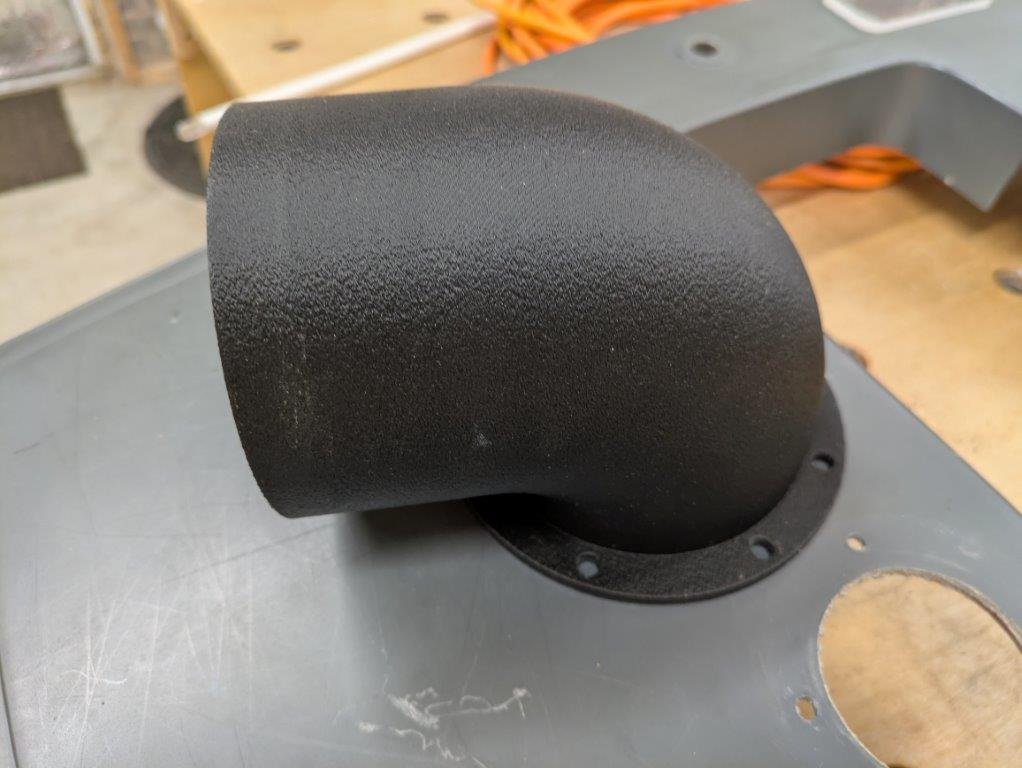

Heres the new adapter compared to the existing 2" port opening. Printing has come a long way..adapter is solid and a nice texture has been added.
He will be adjusting the screw holes and added a slightly smaller diameter to the hose mounting section.

bs adapter 1.jpg (84.43 KiB) Viewed 69 times

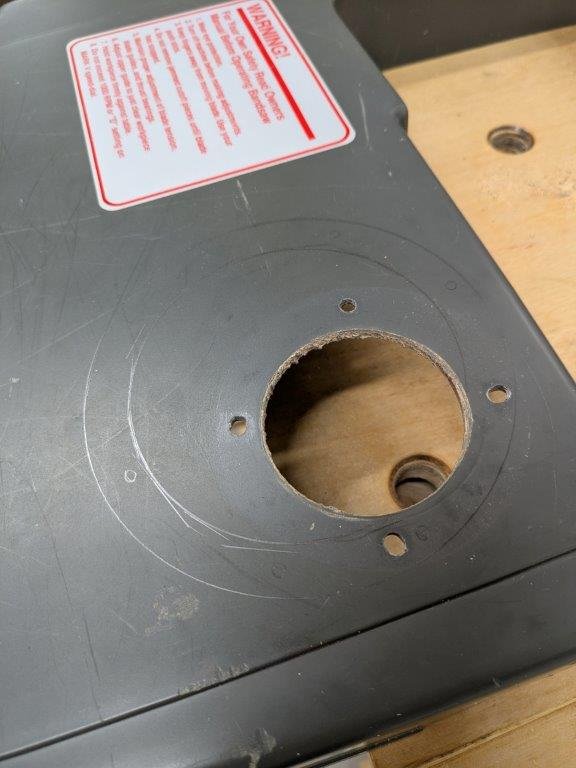

Sketch of how big the adapter will be..i chose to use at least one of the existing screw holes from the 2" .

bs adapter 2.jpg (54.94 KiB) Viewed 69 times

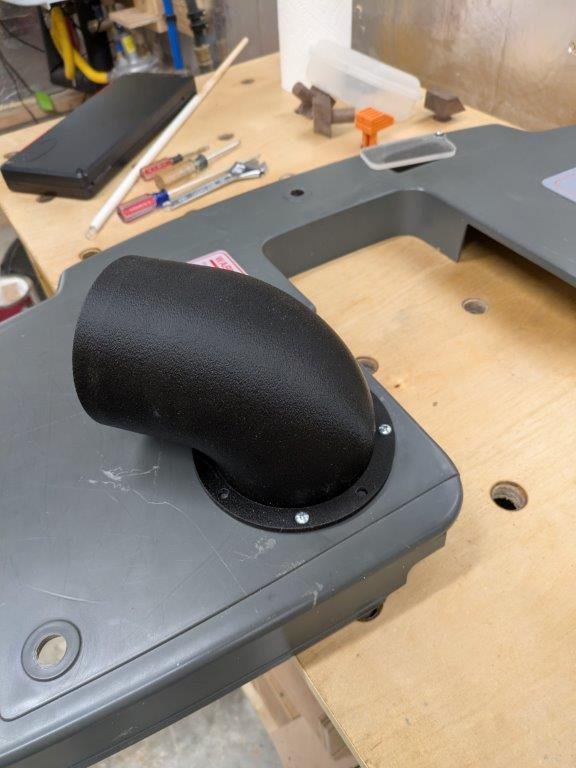

Mounting outside

bs adapter 3.jpg (60.25 KiB) Viewed 69 times

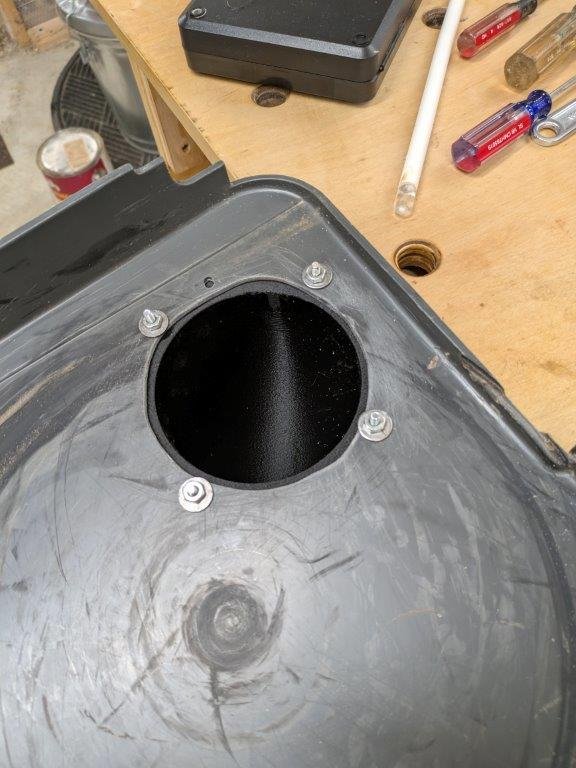

Mounting inside

bs adapter 4.jpg (75.8 KiB) Viewed 69 times

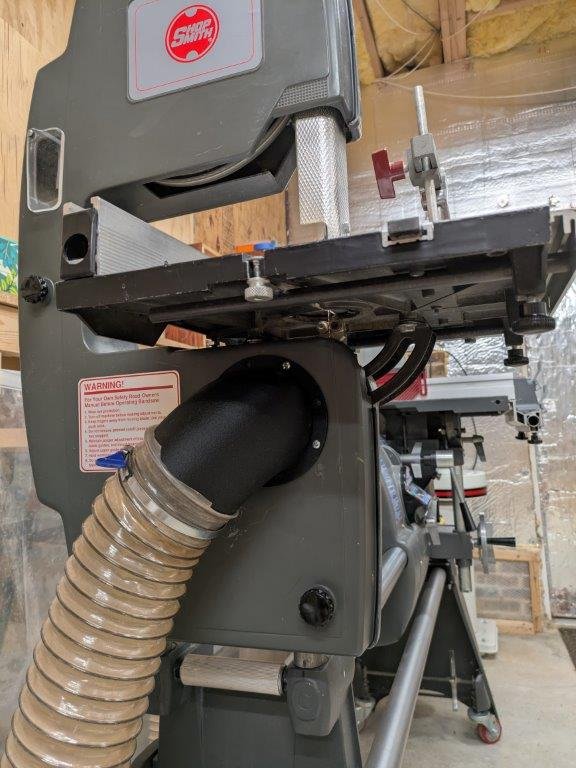

Hookup

bs adapter 5.jpg (83.35 KiB) Viewed 69 times

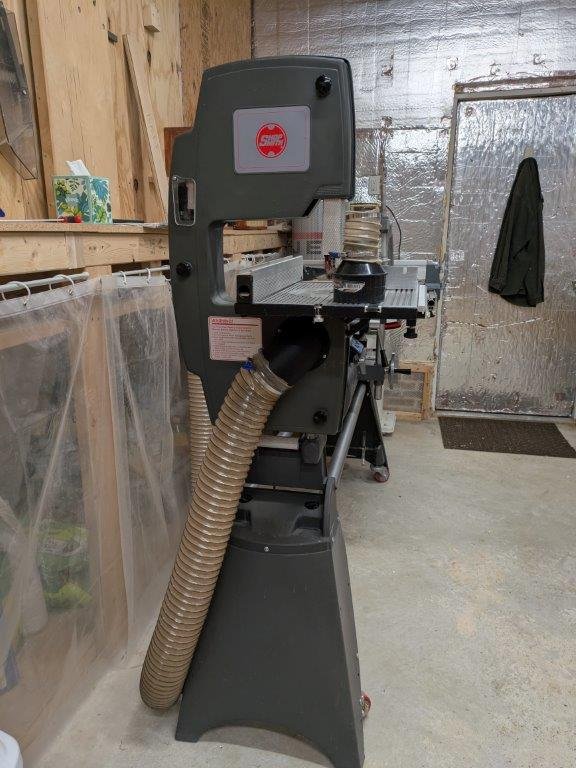

Full View- my old 4" to 2" adapter is sitting on the bandsaw table.

bs adapter 6.jpg (85.44 KiB) Viewed 69 times

I haven't had time yet to run the saw and see if collection is improved/reduced or no change.
Will report back once I have tried.

b
