Miter Gauge Parts
Posted: Sat Mar 28, 2015 11:35 am
by davemcghee
I noticed that my miter gauge has a bent or broken part. The pin that you push to set at 90° and 45° stops is bent or broken and cannot be pushed in or out without tremendous force. I know this should be easier. Is there a replacement part for this or does someone have an extra part I can buy from them that works?

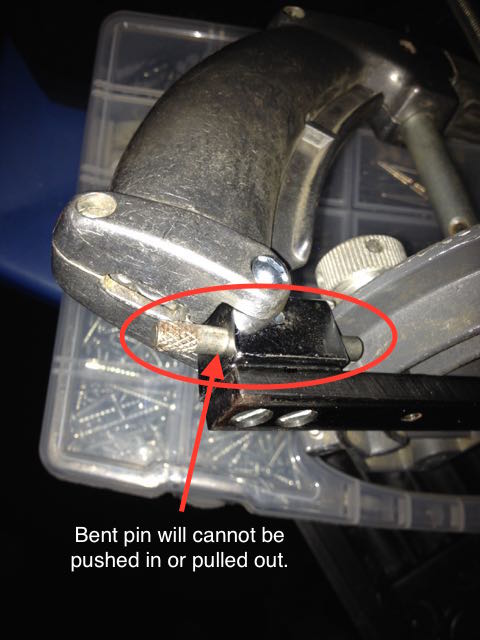

- IMG_2752.jpg (50.65 KiB) Viewed 5272 times
Re: Miter Gauge Parts
Posted: Sat Mar 28, 2015 2:19 pm
by Gene Howe
You'll have to remove it to replace it. I'd try straightening it once I got it out.
Re: Miter Gauge Parts
Posted: Sat Mar 28, 2015 2:55 pm
by Mike907
Looks like it not available separately, part 276A, but is available in the block, part 276.
http://www.shopsmith.com/service/mark/m ... s_list.htm
Mike
Re: Miter Gauge Parts
Posted: Sat Mar 28, 2015 2:57 pm
by JPG
Gene Howe wrote:You'll have to remove it to replace it. I'd try straightening it once I got it out.
Me Too. BTDT
There are two versions. The older version is bigger.
IIRC it is the same as the table tilt stop pin.
Re: Miter Gauge Parts
Posted: Sun Mar 29, 2015 12:18 am
by rjent
Absolutely try to straighten it out. The one that came with the 500 was bent as well. It works perfect now. I had to do a lot of "repair" on the miter to get it to work, but it is fine now ... FWIW
Re: Miter Gauge Parts
Posted: Sun Mar 29, 2015 10:14 am
by BuckeyeDennis
+1 on having successfully straightening one.
