2 X 4 Mini Project.
Posted: Sun Nov 29, 2015 3:36 pm
by JPG
Been some interest in magnificent 2 x 4 projects lately. Here is a teeny one.
It's purpose will be revealed later.
Feel free to post a guess.
Re: 2 X 4 Mini Project.
Posted: Sun Nov 29, 2015 4:04 pm
by ERLover
Glass coasters?
Re: 2 X 4 Mini Project.
Posted: Sun Nov 29, 2015 4:43 pm
by roy_okc
Speed control?
Re: 2 X 4 Mini Project.
Posted: Sun Nov 29, 2015 5:01 pm
by rjent
ShopSmith for President button?
Re: 2 X 4 Mini Project.
Posted: Sun Nov 29, 2015 5:14 pm
by algale
Cover plate for an access hole on the headstock? Curious what the material is that was used for the logo.
Re: 2 X 4 Mini Project.
Posted: Sun Nov 29, 2015 5:42 pm
by roy_okc
Drawer pull?
Re: 2 X 4 Mini Project.
Posted: Sun Nov 29, 2015 5:47 pm
by rjent
algale wrote:Cover plate for an access hole on the headstock? Curious what the material is that was used for the logo.
I'll bet you nailed it!
Maybe on a Mark VII?
Re: 2 X 4 Mini Project.
Posted: Sun Nov 29, 2015 6:39 pm
by JPG
Material question - Photo paper. That is a photo.
MVII headstock is close(after all the logo is specific to a Mark VII).
The photo is of the headstock access hole cover.
One who has been paying attention to certain recent posts by me will know!!!
I have not taken a pix of the 'reveal' yet.
Re: 2 X 4 Mini Project.
Posted: Mon Nov 30, 2015 9:47 pm
by dlbristol
I have been off the forum again for a while, and this is one of the things I enjoy most about this place. No big deal, just fun. Thanks JPG.
Re: 2 X 4 Mini Project.
Posted: Mon Nov 30, 2015 10:33 pm
by JPG
It definately will go on the Mark VII. Headstock? No.

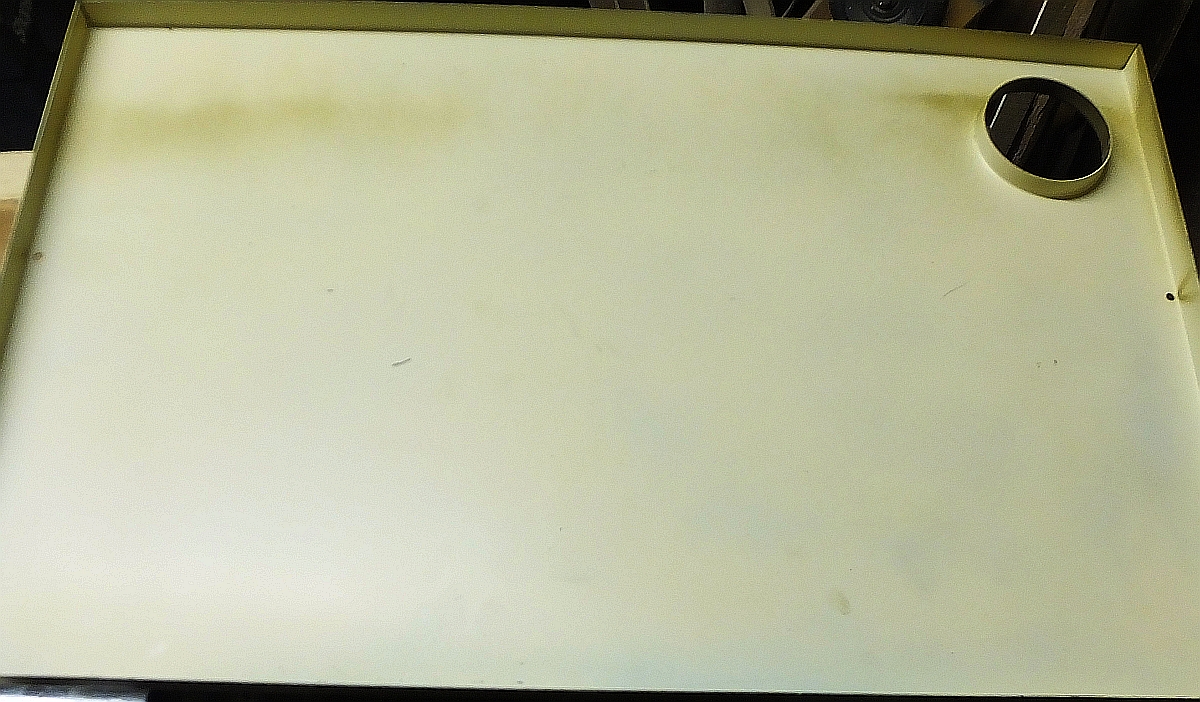

A 'unique' feature of the Mark VII was the motor driven vac. A forerunner of the DC 3300. The bag however was paper and installed in the box like base. The vac hose was connected through a hole in the rear cover.
- 2x4 Mystery reveal back.jpg (643.44 KiB) Viewed 8438 times

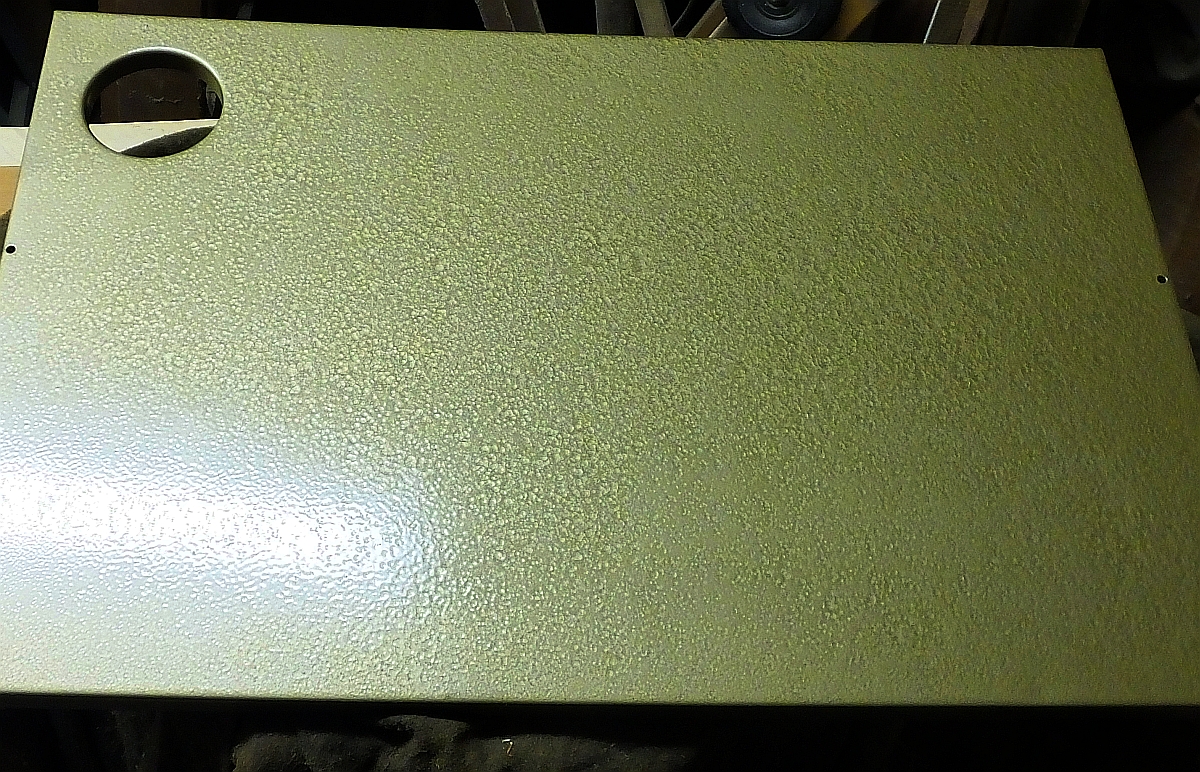

From the exterior.
- 2x4 Mystery reveal front.jpg (888.44 KiB) Viewed 8438 times

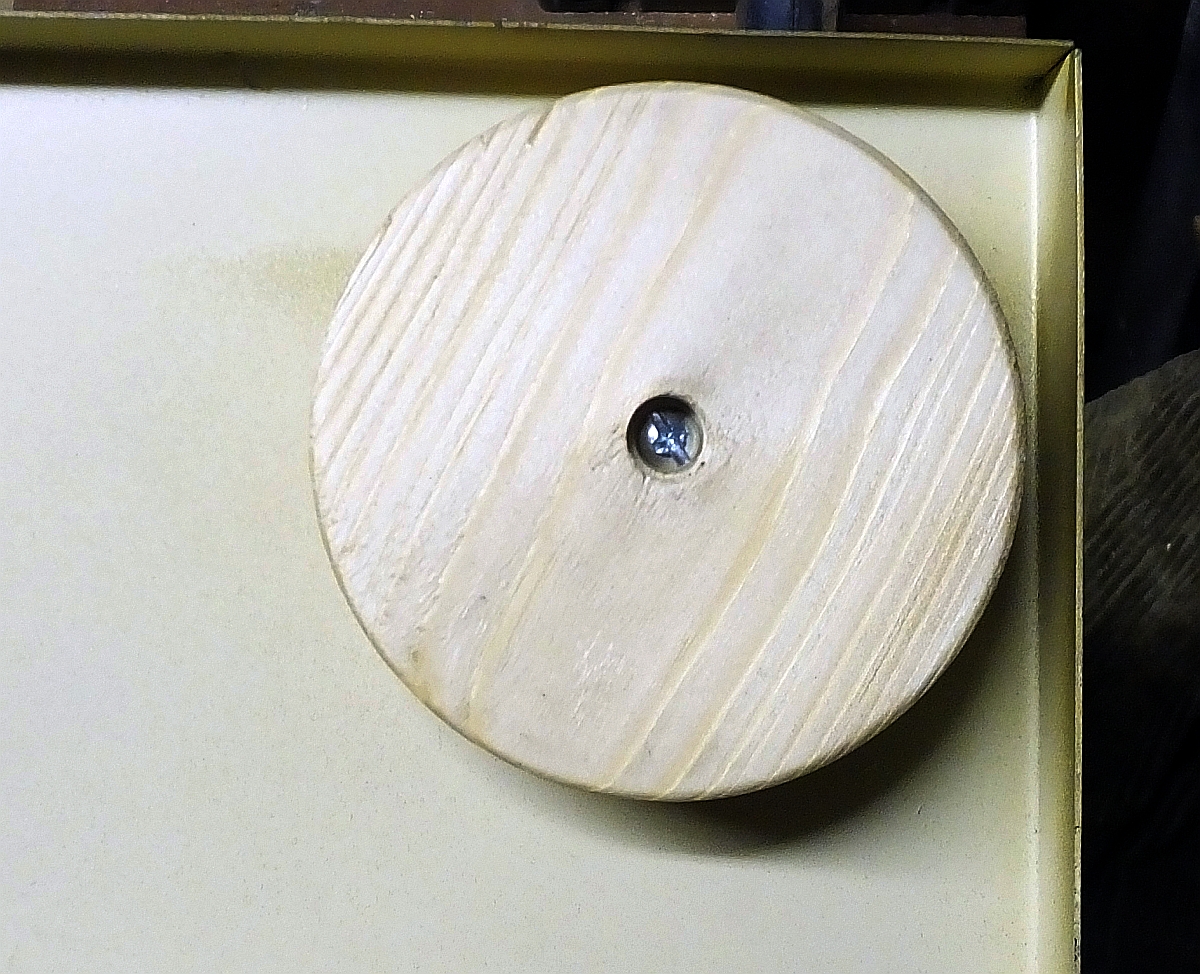

Back piece mounted from the inside.
- 2x4 Mystery reveal rear.jpg (871.48 KiB) Viewed 8438 times

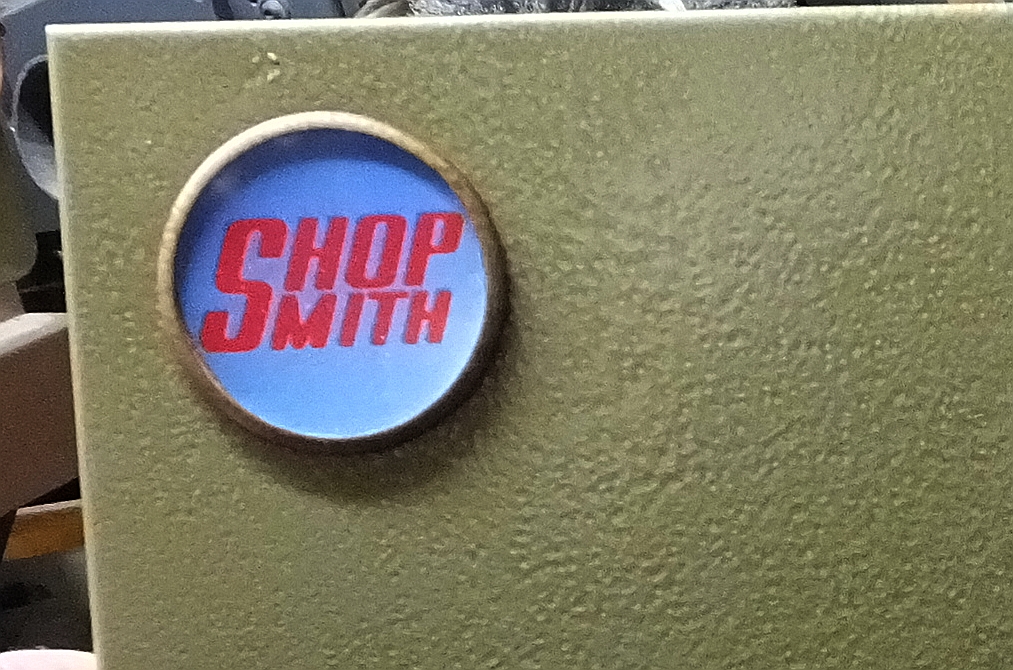

Finally the real purpose.
- 2x4 Mystery reveal face.jpg (535.6 KiB) Viewed 8438 times
It is merely a hole plug.
I am not satisfied with the photo print. Color is not right. That blueness should be light gray.
I almost destroyed it by deciding to deepen the inside tapered ring. The painted part ended rolling across the floor(I cut all the way through). It is glued back on. Hopefully it will hold. The logo print and plastic cover is held on by the inside of the ring being tapered(larger than the outer diameter).
