I'm fairly new to wood working and recently became a SS owner. I just received the 5/8 dado arbor and attempted to install an 8" Irwin dado set. However, I was not able to fit all of the spacers and chippers on the arbor. I was only able to get up to 1/2" thick. Is this a normal issue or am I over looking something. Thanks in advance!

Posted: **Sun Jan 15, 2017 10:28 pm**

bcs wrote:I'm fairly new to wood working and recently became a SS owner. I just received the 5/8 dado arbor and attempted to install an 8" Irwin dado set. However, I was not able to fit all of the spacers and chippers on the arbor. I was only able to get up to 1/2" thick. Is this a normal issue or am I over looking something. Thanks in advance!

You are overlooking something. Any 5/8 dado blade fits just fine on the SS arbor. SS sells standard dado sets that fit their arbor.

Posted: **Sun Jan 15, 2017 10:34 pm**

Any idea of what I could be overlooking?

Posted: **Sun Jan 15, 2017 10:46 pm**

[quote="bcs"]I'm fairly new to wood working and recently became a SS owner. I just received the 5/8 dado arbor and attempted to install an 8" Irwin dado set. However, I was not able to fit all of the spacers and chippers on the arbor. I was only able to get up to 1/2" thick. Is this a normal issue or am I over looking something. Thanks in advance![/quote

Let us start by making sure we are discussing the same arbor. Is this what you have?

http://www.shopsmith.com/ownersite/cata ... oarbor.htm

If it is, then take the nut, washer and all of the spacers off of the atbor. As I restack the dado set on the arbor, I attempt to to have a similar thickness of spacers on each side of the dado set. Use enough spacers so that after you install the washer and nut there are only a few threads left visible on the arbor shaft.

You should be using ONLY the number of spacers required (along with your dado stack) to occupy those threads.

Posted: **Sun Jan 15, 2017 10:51 pm**

bcs wrote:Any idea of what I could be overlooking?

The large "spacer/washer" and the thinner washers. They are not all required for every set up. If you want a full 3/4" you need to remove the thick spacer/washer.

Posted: **Sun Jan 15, 2017 10:52 pm**

dusty wrote:
bcs wrote:I'm fairly new to wood working and recently became a SS owner. I just received the 5/8 dado arbor and attempted to install an 8" Irwin dado set. However, I was not able to fit all of the spacers and chippers on the arbor. I was only able to get up to 1/2" thick. Is this a normal issue or am I over looking something. Thanks in advance![/quote

Let us start by making sure we are discussing the same arbor. Is this what you have?

http://www.shopsmith.com/ownersite/cata ... oarbor.htm

If it is, then take the nut, washer and all of the spacers off of the atbor. As I restack the dado set of the arbor, a attemp to to have a similar thickness of spacers on each side of the dado set. Use enough spacers so that after you install the washer and nut there are only a few threads left visible on the arbor shaft.

You should be using ONLY the number of spacers required (along with your dado stack) to occupy those threads.

Yes, that is the arbor that I have. I was able to fit 3 spacers, both chippers and both outside blades(enough for a 1/2" dado). I was hoping to be able to get up to 3/4", but I can't make it fit.

Posted: **Mon Jan 16, 2017 12:02 am**

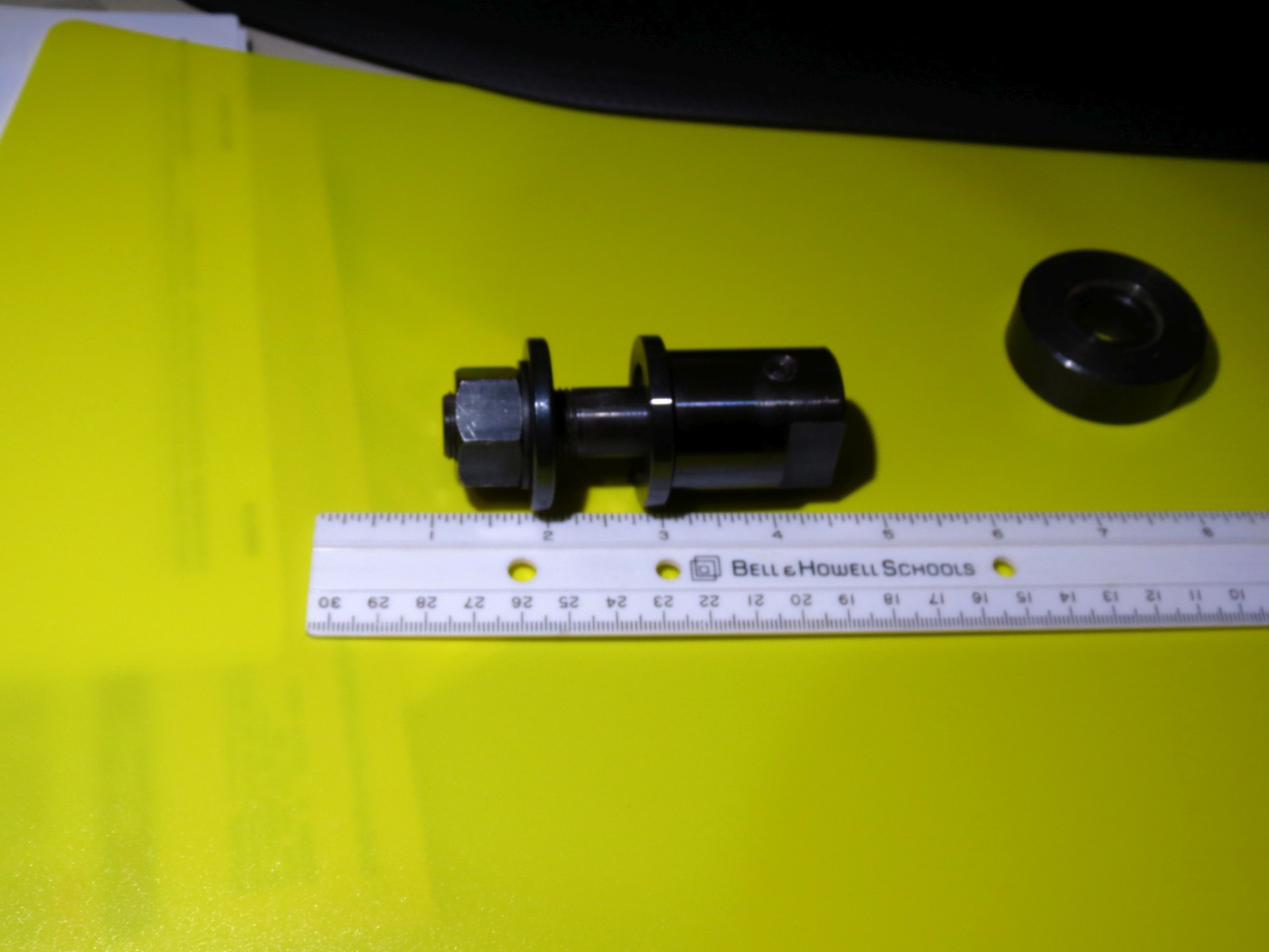

The arbor will allow more then 3/4" when set up like this:

: IMG_3453sc.jpg (164.69 KiB) Viewed 19331 times

Note the large spacer is not needed or used in this case.

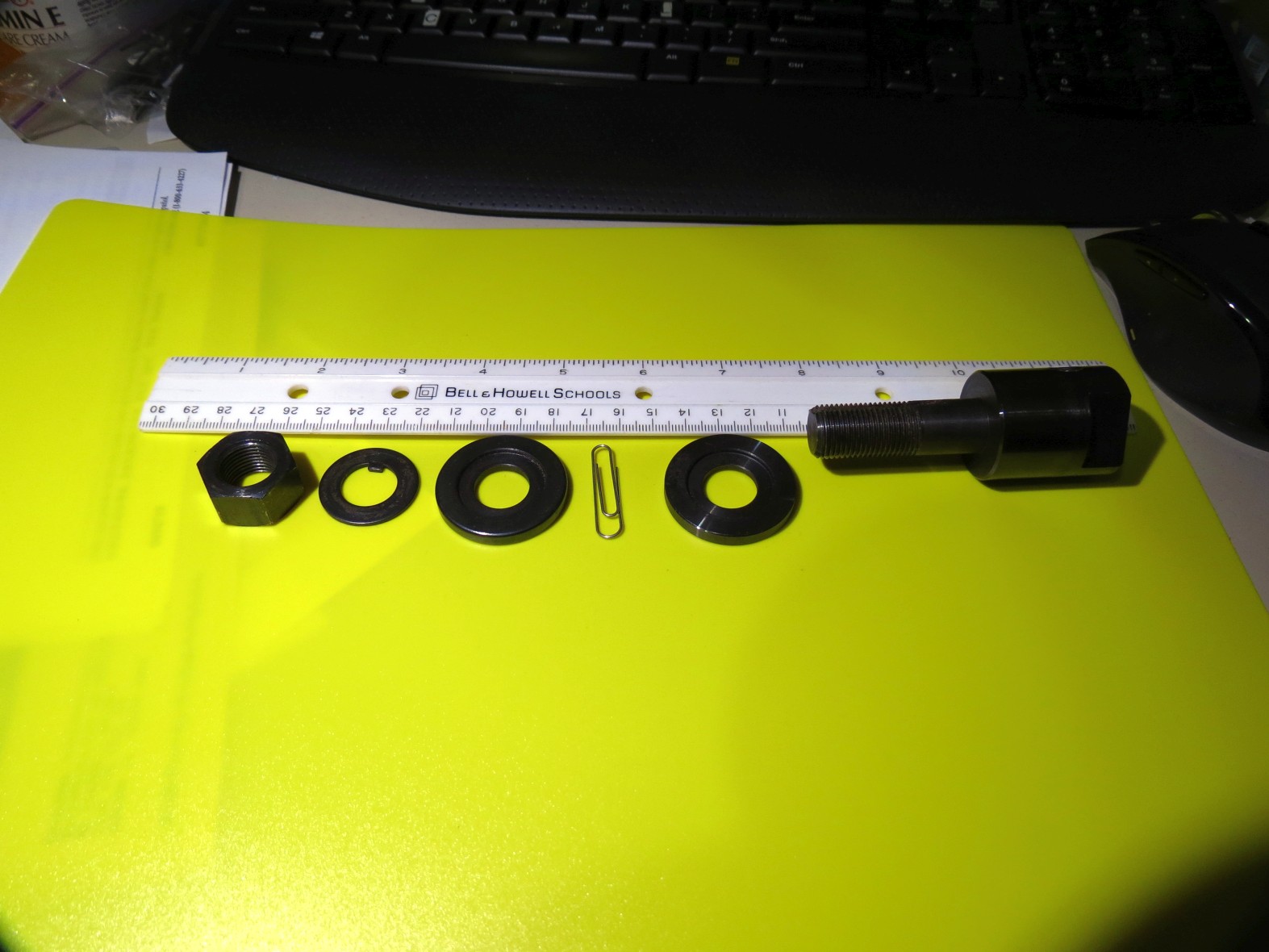

The arrangement from left to right is the nut, the keyed washer(you MUST have this in place), one of the thinner washers with the indented part facing the blade, the blade is where the paper clip is. The other thin washer also has to have the indent facing the blade. The arbor should fit just about any stacked set up to 15/16" if I remember right.

: IMG_3454sc.jpg (237.9 KiB) Viewed 19331 times

Ed

Posted: **Mon Jan 16, 2017 7:21 am**

I had to do that just this week. I needed to cut a dado just under an inch wide. I simply removed the thick washer and reassembled things so it all fit.

Posted: **Mon Jan 16, 2017 8:41 am**

reible wrote:The arbor will allow more then 3/4" when set up like this:


Note the large spacer is not needed or used in this case.

The arrangement from left to right is the nut, the keyed washer(you MUST have this in place), one of the thinner washers with the indented part facing the blade, the blade is where the paper clip is. The other thin washer also has to have the indent facing the blade. The arbor should fit just about any stacked set up to 15/16" if I remember right.


Ed

^^ Very helpful! Thank you!

Posted: **Mon Jan 16, 2017 1:25 pm**

One other issue to consider is the arbor for the Dado compared to the arbor for the Shaper cutters.

I reworked a Shopsmith document for the cabinet set cutters that helps if you have that arbor as well.

Everett

How to Set-Up and Use Your Shopsmith Complete Cabinet Set Shaper Cutters.pdf: (366.7 KiB) Downloaded 1946 times
