Heads Up - Bargain 'available'

ERLover

I am not sure I would call it a bargain at that price, but. And he does not have the speed changer hooked up right.

http://milwaukee.craigslist.org/tls/5642227801.html

JPG

ERLover wroteI am not sure I would call it a bargain at that price, but. And he does not have the speed changer hooked up right.

http://milwaukee.craigslist.org/tls/5642227801.html

High $, yes but after all it has a complete 4E setup.

So what would you do differently with the Speed Changer?

rpd

JPG wrote
ERLover wroteI am not sure I would call it a bargain at that price, but. And he does not have the speed changer hooked up right.

http://milwaukee.craigslist.org/tls/5642227801.html
High $, yes but after all it has a complete 4E setup.

So what would you do differently with the Speed Changer?

Reverse the motor pulley. ;)

ERLover

JPG wrote
ERLover wroteI am not sure I would call it a bargain at that price, but. And he does not have the speed changer hooked up right.

http://milwaukee.craigslist.org/tls/5642227801.html
High $, yes but after all it has a complete 4E setup.

So what would you do differently with the Speed Changer?

I am not saying it not workable as he has it, but the MS sez it should be this way. I did not see the mounting for the jointer or if I remember right the extra pulley wheel for it, but I am not sure what to look for on that.

http://www.vintagemachinery.org/pubs/338/2714.pdf

ERLover

After relooking at the motor pulley, looks like it is 4 steps, and the far one to the left maybe for the jointer. With the 3 step in proper position.

ERLover

I thought there was a hub to drive the jointer off the HS? Ya this is Skips for a jointer.

http://mkctools.com/sptdriveadapter.htm

JPG

Your turn John.

Set them straight.

I do not have the setup instructions.

FWIW, the pulleys are correct even without the fourth pulley.

ERLover

JPG wroteYour turn John.

Set them straight.

I do not have the setup instructions.

FWIW, the pulleys are correct even without the fourth pulley.

HS pulley is correct, I cant tell about the motor pulley, it does seem to have that extra 4" on the left side.

Johns in Sacramento,CA eating Cheese Cake. I do wait with baited breath. Then there was my recent purchase with that 2 step pulley, that was a learning experience for us ;)

ERLover

As most times JPG you are correct, on the motor pulley/s, there is the 3 step one, set in the correct position for the SC set up. Then an added 4.5 or 5" added to the left of that for what ever reason. I did a bit of photo work, my weak suite, but getting better at it.

rpd

JPG wroteYour turn John.

Set them straight.

I do not have the setup instructions.

FWIW, the pulleys are correct even without the fourth pulley.

Ah. You are correct. And I just got new glasses too. :eek:

JPG

Yes a fourth(5"?) pulley is added to the motor pulley. A belt is run up to the jointer shaft and a small (2"?) pulley. That would yield 4300 - 4400 rpm to the jointer.

We will have to wait for john to recover from the cheesecake to nail the sizes down.

ERLover

JPG wroteYes a fourth(5"?) pulley is added to the motor pulley. A belt is run up to the jointer shaft and a small (2"?) pulley. That would yield 4300 - 4400 rpm to the jointer.

We will have to wait for john to recover from the cheesecake to nail the sizes down.

Your right JPG look at page 28, shows the pulleys for the jointer set up.

https://drive.google.com/folderview?id=0B1p8_ycx_8A0Vk95Wnk1ZVl5eU0&usp=sharing

John, we dont need any freaking Johns, well maybe some jons ;)

JPG

ERLover wrote
JPG wroteYes a fourth(5"?) pulley is added to the motor pulley. A belt is run up to the jointer shaft and a small (2"?) pulley. That would yield 4300 - 4400 rpm to the jointer.

We will have to wait for john to recover from the cheesecake to nail the sizes down.
Your right JPG look at page 28, shows the pulleys for the jointer set up.

https://drive.google.com/folderview?id=0B1p8_ycx_8A0Vk95Wnk1ZVl5eU0&usp=sharing

John, we dont need any freaking Johns, well maybe some jons ;)

Notice the pulley is reversed from the CL ad. Assume the main shaft pulley is also. It should work either way, but I think the page 28 setup is stronger. We still need John!!!

That may be a 6" pulley.

ERLover

JPG wrote
ERLover wrote
JPG wroteYes a fourth(5"?) pulley is added to the motor pulley. A belt is run up to the jointer shaft and a small (2"?) pulley. That would yield 4300 - 4400 rpm to the jointer.

We will have to wait for john to recover from the cheesecake to nail the sizes down.
Your right JPG look at page 28, shows the pulleys for the jointer set up.

https://drive.google.com/folderview?id=0B1p8_ycx_8A0Vk95Wnk1ZVl5eU0&usp=sharing

John, we dont need any freaking Johns, well maybe some jons ;)
Notice the pulley is reversed from the CL ad. Assume the main shaft pulley is also. It should work either way, but I think the page 28 setup is stronger. We still need John!!!

That may be a 6" pulley.

JPG page 28 no SC, so the pulleys would be opposite not the same.

BuckeyeDennis

Since John is busy eating cheesecake ...

jsburger

His set up is absolutely correct. The 3 step pulleys are correct for the speed changer. No ERLover, Skips pulley you referenced is a 10ER head stock pulley for powering all MK V SPT's except the jointer. Remember all SPT's except the jointer are driven by the head stock pulley. On the MK V the jointer is driven by the idler shaft. The 10 ER has no idler shaft.

The 10ER 4E jointer was driven by adding a second pulley outboard of the standard 3 step pulley on the motor shaft. The AO Smith motor shafts are long enough to do that and the 10ER motor mount has slots to adjust the motor right and left to compensate. The 4E jointer is the same jointer as the MK V jointer except it does not have mounting tubes. It was designed to bolt to a hinge plate that attached to the special head rest.

Does anyone have an extra 4E jointer hinge plate? I have 2 jointers and 2 head rests but only one hinge plate.

I think that is a great bargain given speed changer and the complete 4E jointer set up. Besides it looks totally refurbed. I would offer $550 and then $600 to see what happens but at the end of the day I would pay $700 and love the purchase. Check the prices of a 4E and head rest with a hinge plate if you can even find them.

Yes I am in Sac but I have a lap top! :D

jsburger

JPG wroteYes a fourth(5"?) pulley is added to the motor pulley. A belt is run up to the jointer shaft and a small (2"?) pulley. That would yield 4300 - 4400 rpm to the jointer.

We will have to wait for john to recover from the cheesecake to nail the sizes down.

The cheese cake is for my mother inlaw and my daughter inlaw. No recovery needed, :D

I don't have an original motor pulley but I have the jointer pulleys and I think they are 2". Have to check when I get back home at the end of the month'

Skizzity

Here is a bargain.

http://denver.craigslist.org/tls/5643502691.html

Skizzity

Skizzity wroteHere is a bargain.

http://denver.craigslist.org/tls/5643502691.html

Ha. For free doesn't last long.

lyall

to far for me - looks like a good deal

https://bloomington.craigslist.org/tls/5635900484.html

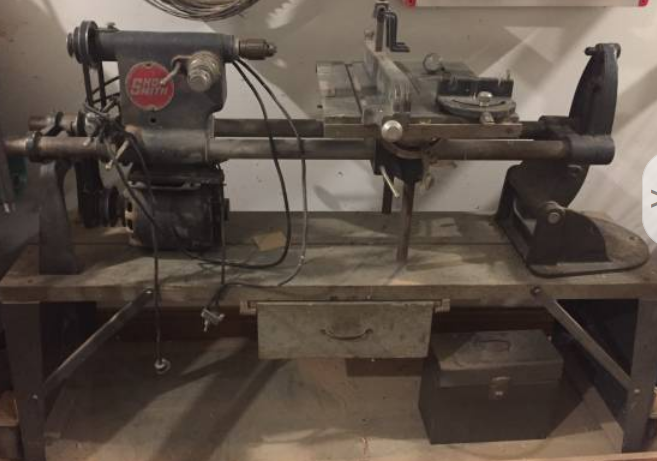

10ER Shop-Smith - $150 (Bloomington, In.)

I have a ShopSmith model 10ER for sale. I received this from a friend who's great grandfather bought new. I have used this tool for several years and it worked well but have almost all tools as standalone and no longer need a conglomerate. This unit is in working condition but is by no means perfect. It has almost all attachments including shaper, scroll saw, shaper bits, sanding disk, extension table and much more. If you are interested in woodworking or classic tools check this unit out. $150.
