Mark VII a start and a long ways to go..

Mike

JPG will check tomorrow

Mike- I can push out a bit, maybe 1/8” no problem 1/4” might be a bit much.

The rest of setup looks normal?

Thank you both it’s a slow crawl to finish line

Mike

JPG- you were right, I pushed collar back, didn’t get 1.125 but got it pretty close. Not sure how you could see that, many thanks.

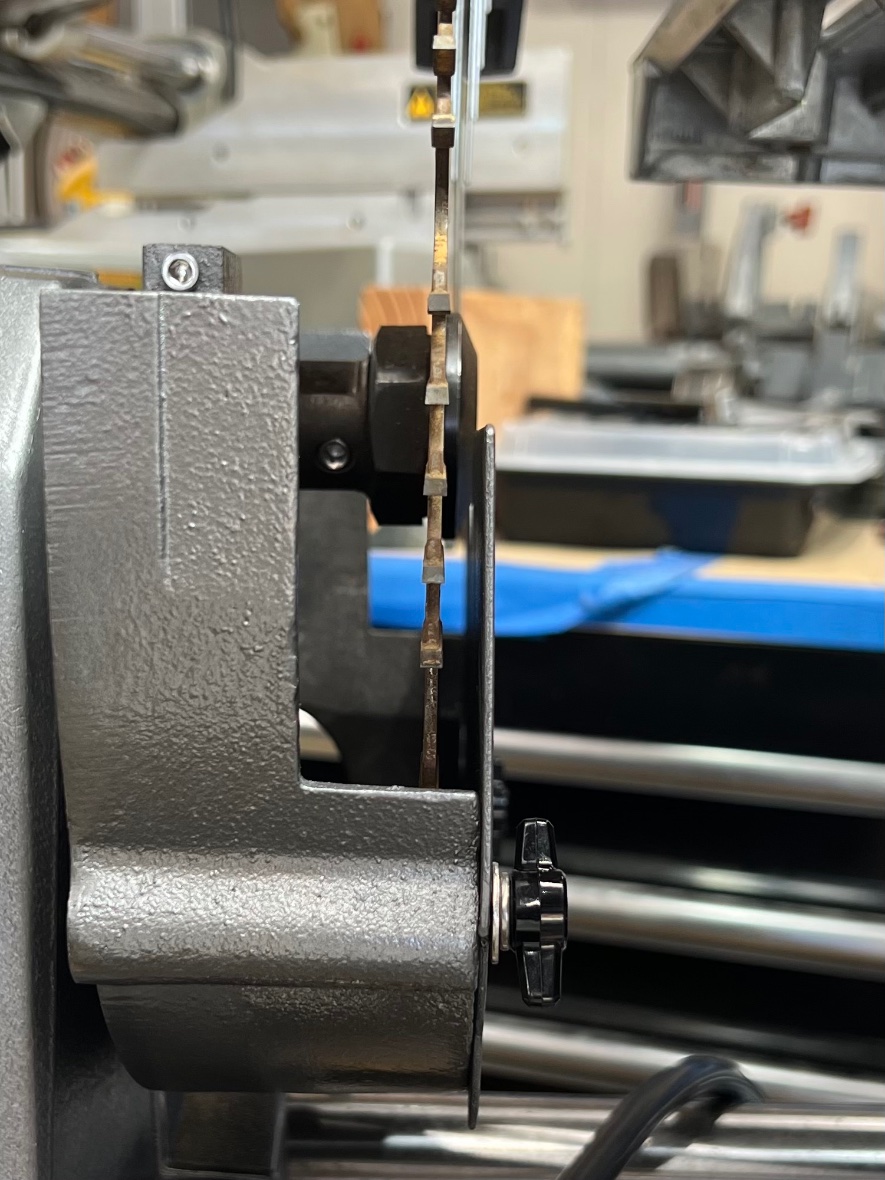

Mike- you were right as well and I thank you as well. Pic below shows the workable solution.

I’m guessing no dado with this set up though I may make an insert.

jsburger

Are you sure you don't have a 510 arbor there. The MK-VII should use a 500 arbor which is shorter. The dado arbor is completely different.

JPG

He has a M5/MVII /500 arbor.

Dado arbor = new ball game!

Mike

Thanks. Not sure on arbor but if I find a shorter one will use it.

Mike

This is the end….my only friend…. Well a little Morrison always puts me in a good mood. I claim this VII did and done. I’m sure I will have some fine tuning and questions. Want to thank everyone for their support.

Without this forum is would still be just a bucket of rust.

A few pics

lahola1

Looks top notch Mike.

I'd be almost afraid to use something that clean and shiny. :)

miken

Yep, gotta agree, amazing results. Give yourself a good pat on the back. Job well done.

Mike

rcsaylor

Wow! Absolutely beautiful. Thank you sharing.

JPG

rcsaylor wrote Wow! Absolutely beautiful. Thank you sharing.

+ ∞

thunderbirdbat

Great transformation.

jsburger

Really nice job!

RFGuy

WOW!!! Just wow. I don't typically read all of the Mark VII threads here. IF it wasn't for this forum, I wouldn't even know what one was since I started my journey on the Mark V. That machine looks incredible restored all by itself, but I have to say that it really pops when viewed in front of the Gladiator cabinets. Phenomenal job. Kudos. :D

Mike

Thank you for the kind compliments. It’s not close to a MickyD but it’s something I can use and enjoy.

I can’t emphasize enough that I would not have started or finished this project without the knowledgeable and experienced individuals on this forum. Thank you all!

Mike

Had 1st issues with the wheel setup. The Tinnerman clips gave way holding one of the casters to the shoe. I pushed it hard thinking I was stuck in a rut and the wheel mount bent as it was folding over. Anyway just posting to say this machine is so easy to work on bottom half. The ability to tilt each way allowed me to put one and at a time on a saw horse and slip it out to work on it. Brilliantly designed. Ended up taking Tinnermans out and using SS screams washers and nuts.

JPG

Screams washer???

Mike

Wasn’t screaming to loud so used SS “screws”, washers and nuts

shipwright

Interesting. I just replaced the tinnermans on my Mark VII headstock as some were missing. I Helicoiled the holes in the casting and installed 10-24 bolts. I did the three on the speed control at the same time. My casters just needed cleaning and lubricating so I don’t remember but there likely isn’t enough thickness to helicoil there.

Anyway if you need tinnermans, they can be robbed from the cast headstock.

JPG

Threaded pop rivets may be a tinnerman nut replacement.

Mike

Both great ideas, I think I only have 2-3 remaining and now have additional methods. Thank my ou both!
