SS Casters are that way around for no particular reason. They were that way 'round when I bought the SS, and they seem pretty convenient that way, because I can drop the SS and connect the dust collector from the back, then go around a work from the front. The cabinet does not interfere with the SS ...

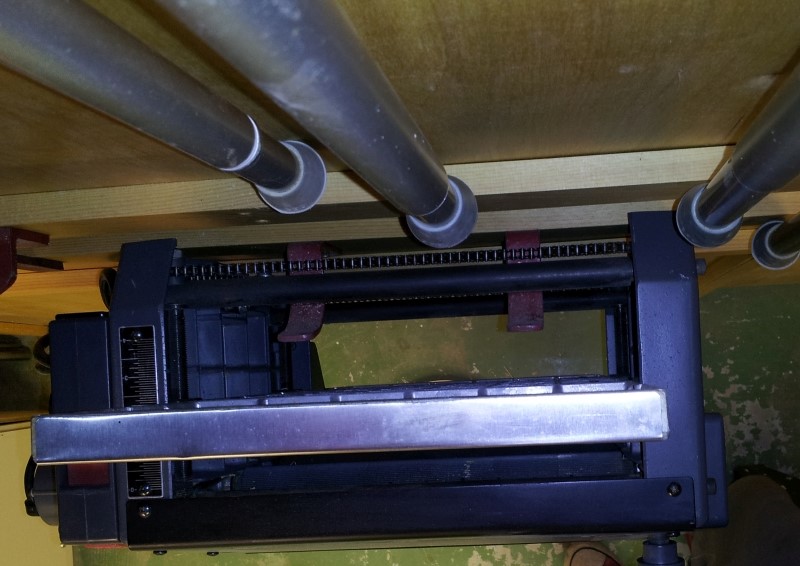

Planer is hung on two simple hooks; hung on it's cross-bar. The next pick is disorienting. Looking down behind the Planer, hung in position.

Yes, the door self-closes. Handy.

Not sure what you mean by casters on backwards? All 4 swivel.

Here is a single-sheet drawing. It's not too detailed, but it should be enough for you to figure it out. The PDF is much clearer than the JPG.

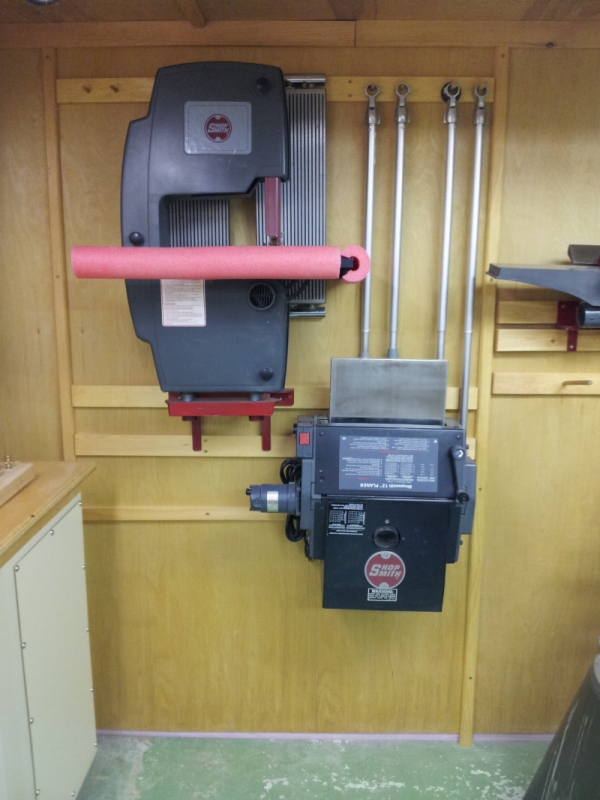

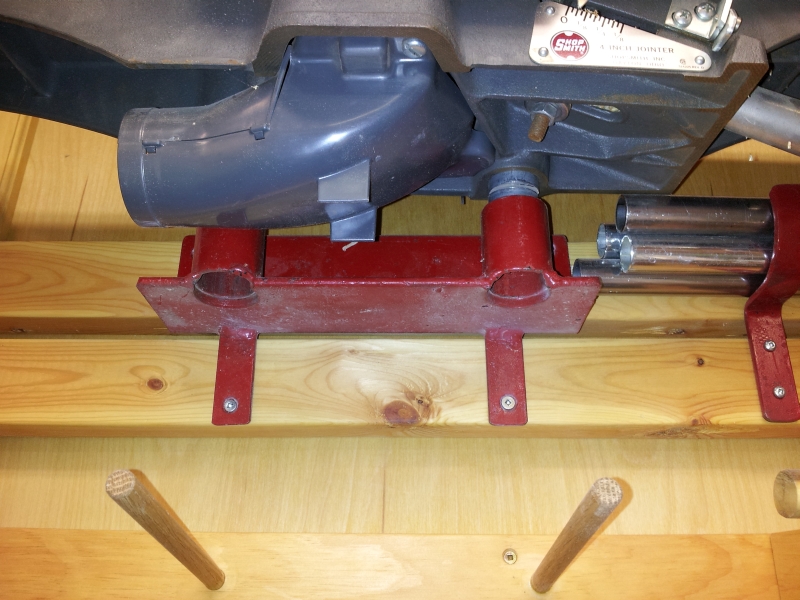

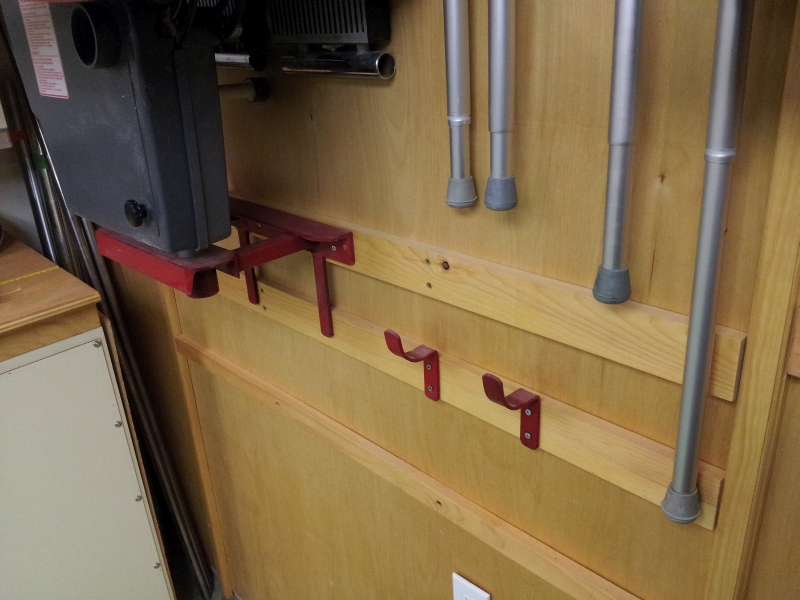

Photos of Bandsaw and Jointer wall brackets. Welded structural steel. Still working on the cabinet drawings...

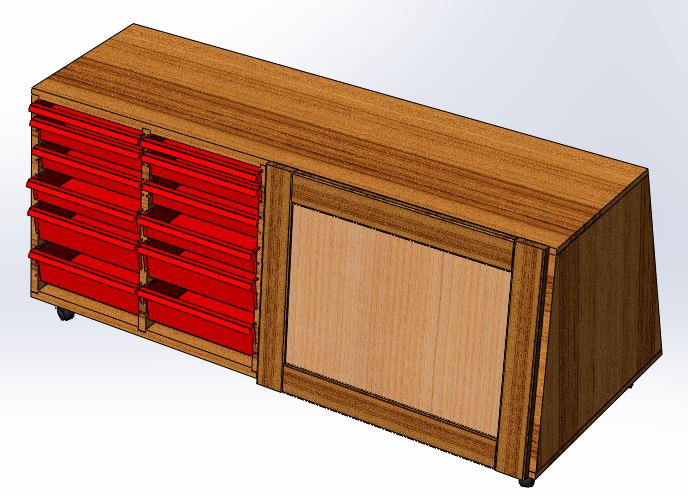

CAD image. 3D CAD file in STEP format.
https://www.dropbox.com/s/c3yxjlx85nh8a ... .STEP?dl=0

You'll have to wait for drawing(s), since I haven't done them yet.

I'll get you some more pics of the wall hangers soon too.

I should be able to scrape-up the basic plans. Drawers are from Lee valley.
Canada http://www.leevalley.com/en/wood/page.a ... 3330,46037
USA http://www.leevalley.com/US/wood/page.a ... 3330,46037

http://www.busybeetools.com/products/sw ... v-csa.html

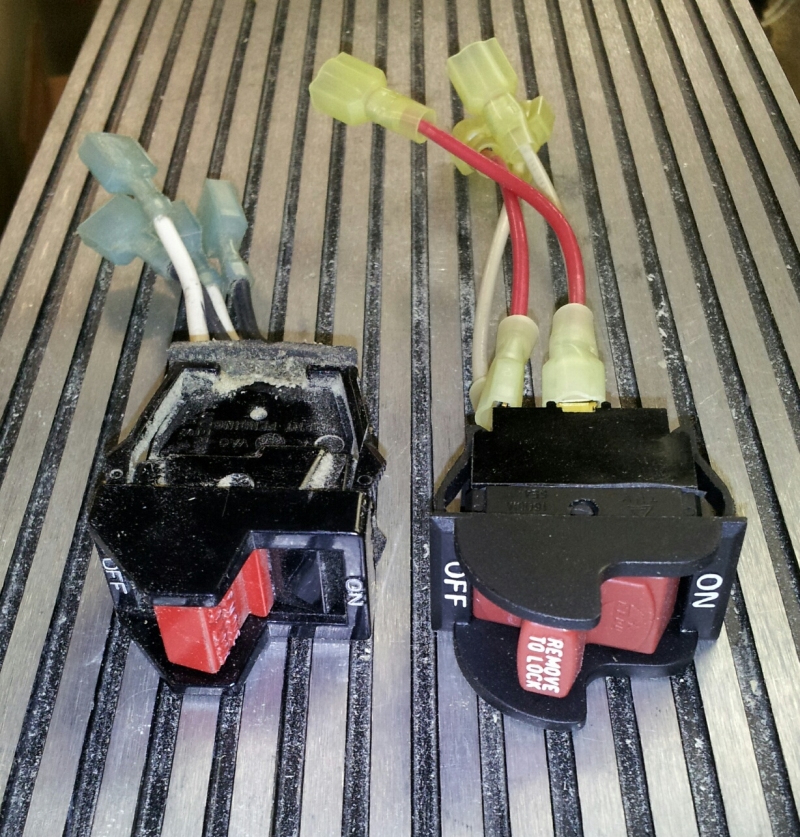

I just replaced the switch on my 510. Found this switch at Busy Bee for $7.99 P/N B2417 Fits perfectly, but I needed to make the pigtails. We'll see how it lasts.

Thanks for the suggestions. I'll let you know which plan I decide to follow, and whether we have any luck attracting bats.
