Memory failing me.....

Post by reible »

I want to look up some parts but I can't recall the right name for them???

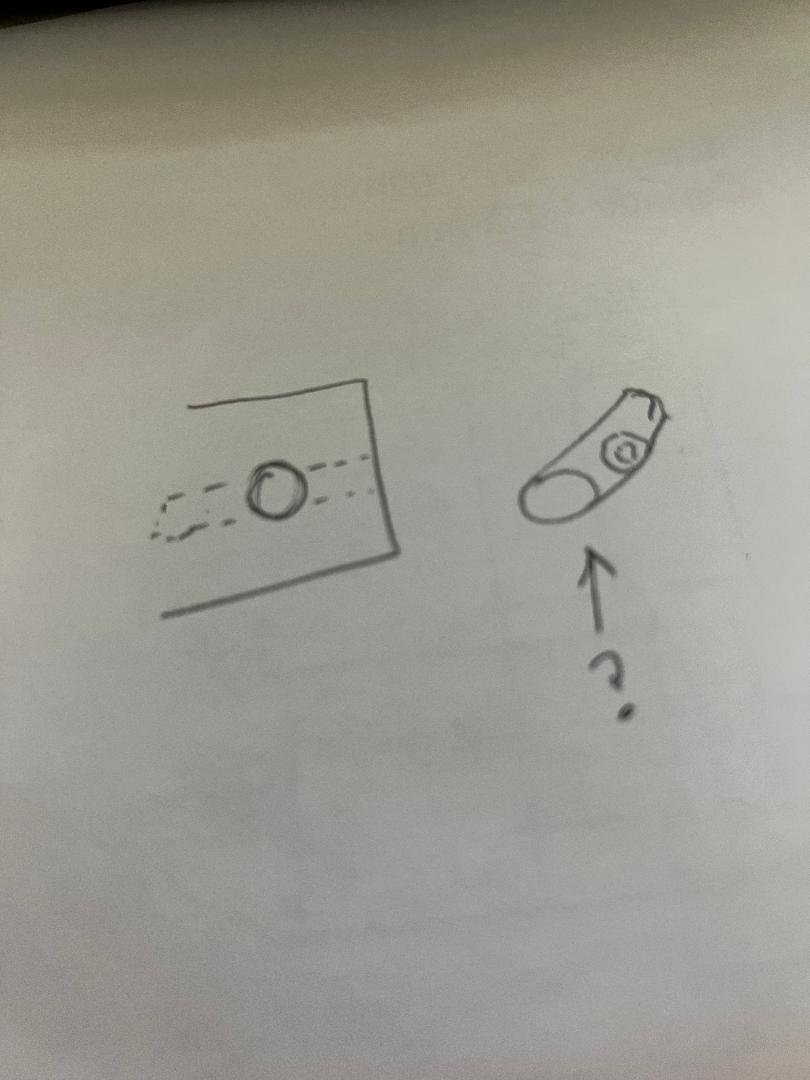

You drill a hole and this cylinder with a threaded hole goes in it. Can't recall what they are called, someone must remember???


Ed
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
User avatar
jsburger
Platinum Member
Posts: 5814
Joined: Fri Jul 21, 2006 4:06 pm
Location: Hooper, UT

Re: Memory failing me.....

Post by jsburger »

Don't know if it has its own unique name but is it a nut for a bed bolt?

https://www.leevalley.com/en-us/shop/ha ... em=05G1701
John & Mary Burger
Eagle's Lair Woodshop
Hooper, UT
rogersk
Gold Member
Posts: 86
Joined: Tue Jun 09, 2015 2:17 pm
Location: Michigan

Re: Memory failing me.....

Post by rogersk »

reible wrote: Sun Dec 05, 2021 2:56 pm I want to look up some parts but I can't recall the right name for them???

You drill a hole and this cylinder with a threaded hole goes in it. Can't recall what they are called, someone must remember???


Ed
I think you're looking for a barrel nut?
Keith
edma194
Platinum Member
Posts: 913
Joined: Fri Jun 19, 2020 4:08 pm

Re: Memory failing me.....

Post by edma194 »

I second 'barrel nut'. Readily available: https://www.lowes.com/pd/Hillman-20-x-5 ... ut/3012559
Ed from Rhode Island

Mark V 510 with PowerPro headstock, Mark V Greenie with 510 headstock, Mark V 500 in progress
Sawsmith 2000 Ultra, 10ER in progress, 10ER undetermined future
rogersk
Gold Member
Posts: 86
Joined: Tue Jun 09, 2015 2:17 pm
Location: Michigan

Re: Memory failing me.....

Post by rogersk »

McMaster-Carr calls them "dowell nuts", where Lowes calls them "barrel nuts". McMaster-Carr shows something different for "barrel nuts". Weird. :confused:
Keith
User avatar
reible
Platinum Member
Posts: 11118
Joined: Thu Jul 20, 2006 12:08 pm
Location: Aurora, IL

Re: Memory failing me.....

Post by reible »

Thank you one and all. With so many names you would think I would have remember at least one of them??

Ed
{Knight of the Shopsmith} [Hero's don't wear capes, they wear dog tags]
edma194
Platinum Member
Posts: 913
Joined: Fri Jun 19, 2020 4:08 pm

Re: Memory failing me.....

Post by edma194 »

I never noticed 'dowel nut' being used before. Searches find them under either name. They are the critical component if you want to make your own Jorgensen style handscrew wood clamps.
Ed from Rhode Island

Mark V 510 with PowerPro headstock, Mark V Greenie with 510 headstock, Mark V 500 in progress
Sawsmith 2000 Ultra, 10ER in progress, 10ER undetermined future
bainin
Gold Member
Posts: 405
Joined: Mon Apr 22, 2019 11:09 pm
Location: NC

Re: Memory failing me.....

Post by bainin »

Doesnt look exactly like your drawing-

https://en.wikipedia.org/wiki/Barrel_nut

AKA steel cross dowel, or dowel nut
User avatar
JPG
Platinum Member
Posts: 32968
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (WILDCAT territory)

Re: Memory failing me.....

Post by JPG »

Some folks have been known to make them(often).
viewtopic.php?f=7&t=24463&hilit=whatsit
viewtopic.php?p=177231#p177231
╔═══╗
