My Latest Project

heathicus · Post by **heathicus** » Thu Jan 05, 2012 10:24 am

shipwright, your work always amazes me!

shipwright · Post by **shipwright** » Thu Jan 05, 2012 11:03 am

holsgo wrote:I never knew the name for that design. Thanks for the tip. I do see it often on many pieces. The sand shading is cool. I've tried it on the classic fans but I need to work on it more. What did you use as a filler between the inlays?

They aren't technically inlays. Inlay is when you insert a small design piece into a solid background. This is marquetry where the whole thing is made up of pieces of veneer which are then applied in one piece to the substrate. The fits are very close but any little gaps are filled with a mixture of sanding dust of the appropriate color and hide glue. Then the marquetry is applied to the substrate with hide glue as well.

Paul M

mbcabinetmaker · Post by **mbcabinetmaker** » Thu Jan 05, 2012 11:10 am

Paul how did you fill the saw kerf after inserting the pin?

mbcabinetmaker · Post by **mbcabinetmaker** » Thu Jan 05, 2012 11:38 am

A nice little video on sand shading for those like myself not familiar with the process.

http://www.youtube.com/watch?v=cwZPgmPCJ6I

shipwright · Post by **shipwright** » Thu Jan 05, 2012 1:12 pm

mbcabinetmaker wrote:Paul how did you fill the saw kerf after inserting the pin?

This is a hinge I developed and posted as a blog on lumberjocks. I thought it must be old news and invented thousands of times before, but it has become one of the most favorited blogs on the site. Who knew?

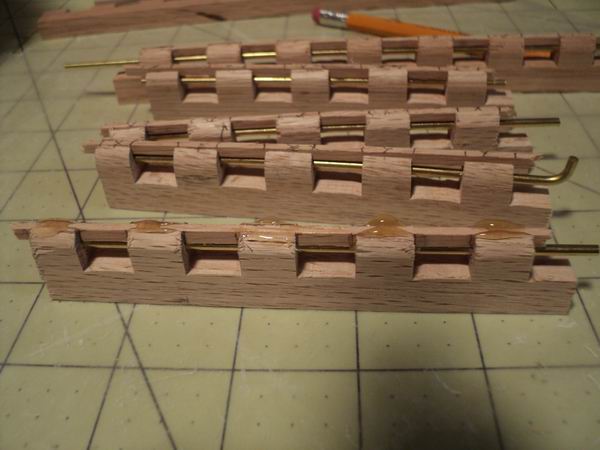

The slots are filled with a little spline, either separately or all at once as below. Let the glue start to set (I use hide glue so that means about a minute) and pull the pin. If you do the one in the photo you just trim out the waste bits with the bandsaw.

[ATTACH]15617[/ATTACH]

The way I originally used it, it has even more features. For instance, on a box it will stop just past 90 degrees and you can have it fully functional and still remove the lid if you leave the lower splines out. Here's a link to the blog. It is in two or three parts. You can move to the next part by clicking the next title at the top right of the page. http://lumberjocks.com/shipwright/blog/series/4096
You don't have to be a member to look, just to comment.

Paul M

mbcabinetmaker · Post by **mbcabinetmaker** » Thu Jan 05, 2012 2:29 pm

Thanks Paul that is the way I had envisioned doing it if I ever make one myself.

I am a member at Lumberjocks but hardly ever visit.

damagi · Post by **damagi** » Thu Jan 05, 2012 3:39 pm

mbcabinetmaker wrote:A nice little video on sand shading for those like myself not familiar with the process.

http://www.youtube.com/watch?v=cwZPgmPCJ6I

Tommy mac did a sand shaded clock in season 2 of his show as well, and I recall the wood whisperer doing a segement on it as well.

joedw00 · Post by **joedw00** » Thu Jan 05, 2012 6:46 pm

mbcabinetmaker wrote:A nice little video on sand shading for those like myself not familiar with the process.

http://www.youtube.com/watch?v=cwZPgmPCJ6I

Thanks Mark. I had no idea what sand shading was. I guess it kind of burns it?

robinson46176 · Post by **robinson46176** » Thu Jan 05, 2012 7:09 pm

shipwright wrote:This is a hinge I developed and posted as a blog on lumberjocks. I thought it must be old news and invented thousands of times before, but it has become one of the most favorited blogs on the site. Who knew?

The slots are filled with a little spline, either separately or all at once as below. Let the glue start to set (I use hide glue so that means about a minute) and pull the pin. If you do the one in the photo you just trim out the waste bits with the bandsaw.

The way I originally used it, it has even more features. For instance, on a box it will stop just past 90 degrees and you can have it fully functional and still remove the lid if you leave the lower splines out. Here's a link to the blog. It is in two or three parts. You can move to the next part by clicking the next title at the top right of the page. http://lumberjocks.com/shipwright/blog/series/4096
You don't have to be a member to look, just to comment.

Paul M

OK... I was thinking 180 degrees off.

I was visualizing cutting a deep kerf for a spline down the back leaving only the front (round) part intact then splining and trimming out. I was picturing a box side etc. with a longish tenon that would serve as a spline. I guess that would work OK???
That picture clears things up.

.

holsgo · Post by **holsgo** » Thu Jan 05, 2012 7:51 pm

Sand shading is very cool. It does burn the wood but does so consistently, so, if one piece is proud of another a plane can then bring them flush without eliminating the shade itself...like if you painted it, the paint would be removed. Does that at all make sense?
Inlays, sorry I thought you laid the pieces into a block, now I can see you really have done it all in marquetry. Inlays were hard enough for me getting the pieces right. Of course, i felt like a pro by the end of the project...its just the beginning of the project was not so much. You really have a cool setup from the looks of your site.
