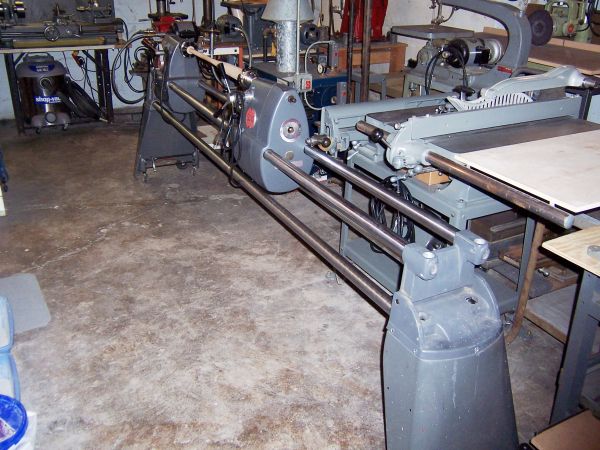

Customized Shopsmith long bed lathe with two fully functional Mark V headstocks. Distance between centers is more than 6 feet, at 75 inches! Great for turning 6' long stock. This lathe was designed for corking baseball bats, but has many other applications for work that cannot be performed on a standard lathe.
Attachments
worlds longest shopsmith.jpg (65.03 KiB) Viewed 20023 times
sammy sosas shopsmith.jpg (33.79 KiB) Viewed 19993 times
This won't last long on CL. The price is definitely right. The application is truly unique and I think ingenious. The history is interesting. Sammy Sosa?
"Making Sawdust Safely" Dusty
Sent from my Dell XPS using Firefox.
Cool idea but I wonder if the bench and way tubes stay straight over that length of if they have some degree of bow, especially with a headstock or other weight out on the middle and/or when the machine is under torque? Seems like they would start to bow at some point when you start getting that long...
Holy cow! This is one of my crazy pipe dream ideas. I just wrote to Doug Reid and told him about my buying a dozen 10E/ER tubes to do some things like trying them in a Mark V or 7 along with my 10E/ERs to also make an extension. I didn't think it would be possible & might require a mid-bench support, but this is wild! I think I just found a use for two of my 510s, although I could put a couple PowerPros on it, as well. A turner's Shopsmith dream on steroids- oh wait… it was related to baseball…<ahem>
Anyone have any idea how this was done? I see what appears to be seams in the third picture, but do you think he used 10E/ER way tubes because they are thicker? I can't imagine buying tubes that long.
I just spoke to the seller and he is waiting for someone to contact him to buy. I asked him how he made the extensions and I'm wondering if anyone can guess? He used Mark V way and bench tubes.
It's actually very obvious after he explained it to me. The part that might give it away is it can be disassembled for shipment and someone would be getting two Mark Vs, and some other things for a great price. All you have to do is travel to Madison, Wisconsin. Road trip anyone? I wish I could except an injury will not permit me to travel/sit that long.
It will tip, however one needs a very tall shop…and probably some outriggers. But horizontal drilling works just fine as depicted in his pics on the Craig's List ad.
One Greenie, Two Mark 7s,Three 510s and much more…
No bites on the last post, so I will try to 'splain what I understand after speaking to the seller. He told me he simply used a tube in the center and then used threaded stock with large washers on each end to pull the way tubes and the bench tubes together to give him a double wide as shown in the pics. He is able to disassemble the tubes which would give a person two Mark Vs- providing he has the remaining legs. I didn't see any tables in the pics.
The ad mentions this Mark V set up can be used as a gun drill lathe. I've read a lot about some people having problems with excessive flex in the Mark V way/bench tubes. I contacted a member of the 10E/ER Yahoo forum who has replaced his thick 10E/ER way tubes which are .22" walls with .25" DOM (drawn over mandrel) tubes which has met his needs. I've read DOM tubes are far superior. The Mark V tubes are roughly .125" which helps keep weight down and the flex is acceptable for most wood workers- including myself.
I have no machining experience, so I will defer to forum members who have experience & get their opinion(s) if any care to share. I am thinking to be able to do any work on gun barrels, one needs a machine that begins with an "S"- like a Southbend. I'm not so sure about a Shopsmith except for maybe a potato gun.
One Greenie, Two Mark 7s,Three 510s and much more…
I am unclear how the counter rotation helps straightness of boring, but minimum effective bit speed would be 1400 rpm.
╔═══╗
