Post by WmZiggy »

nothungry3 wrote:Finally, a positive response!
I have many of the things you define, and am looking hard at a shaper fence.
Do you have to limit your cuts (depth or wood density) due to spindle speed? If so, is this a problem?
I think that with any tool, router, shaper, or SS in this mode, you always have to limit your cut, depending on how big and deep it is, factoring in wood density and characteristics too. For example, cherry will burn very easily, especially with rub collars. Red Oak is hard and will splinter easily, especially when cutting against the grain. White is just hard. Mahagony will burn. I usually cut end grain first, then finish the sides, but I digress.

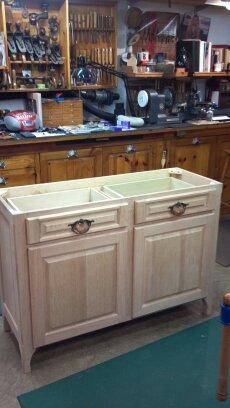

This past winter I built a large hutch, using quarter-sawn oak with floating raised panels in the doors. I decided to use a large (3 inch) 1/2" shank coping router bit to raise the panels. I decided to use my SS for a number of reasons related to control of the panel, ease of vacuum connection under the cutter, and ease of setting up anti-kick back tools. I took several cuts using my depth control to duplicate final settings. Worked great. Here is a pic of the raised panel doors and drawers on the hutch base, cut on my SS. P.S., the Qtr. sawn oak cost $9-10 a bd/ft and the last thing you want to do is screw-it-up.

As you use the SS in this mode, you will learn and become more confident is using it as a shaper and router.

[ATTACH]22639[/ATTACH]
Attachments
Base of Hutch rs.jpg
Base of Hutch rs.jpg (20.39 KiB) Viewed 746 times
WmZiggy
williamz@aol.com

"... and it was after long searching that I found the carpenter's chest, which was indeed a very useful prize to me, and much more valuable than a ship loading of gold." Daniel Defoe, Robinson Crusoe, 1719
User avatar
apexsunguitars
Gold Member
Posts: 107
Joined: Wed Jul 10, 2013 12:18 pm
Location: Porter, TX

Post by apexsunguitars »

deals are to be had on ebay if you are patient, i just picked up a complete set of 1/2" SS router bits plus both 1/2 and 1/4 arbors for 25 bucks after the combined shipping discount. see if the seller will combine the lot otherwise they often sell them piece by piece and thats never a good deal. shaper cutters seem to sell at a premium though
Two each Shopsmith Model 500, 505, 510s. Sawsmith Model 500003. Most of the SPT goodies aside from the compressor and the Planer.
