10ER Shopsmith

2centsworth · Post by **2centsworth** » Tue Jan 14, 2014 8:45 am

Looks better then new. Great Job.

greg1m53 · Post by **greg1m53** » Thu Jan 16, 2014 10:21 pm

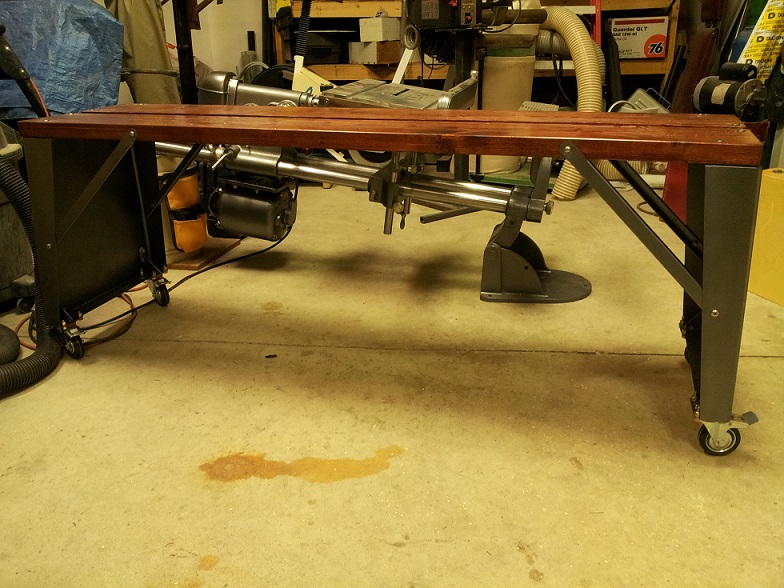

just need my friend to help lift it up and bolt it down, and a few odds and ends

JPG · Post by **JPG** » Thu Jan 16, 2014 11:21 pm

Ahem!:rolleyes:

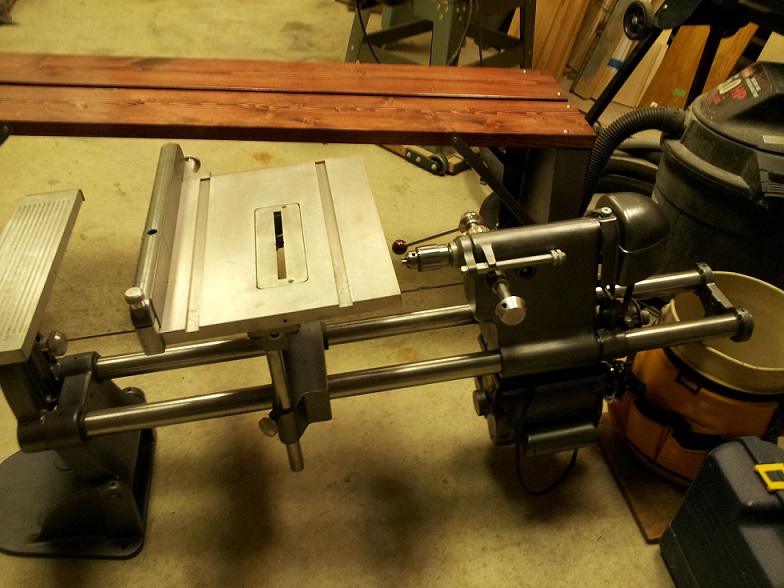

The tailstock is reversed.

The groove for the table mount and knob face the outside. That means the table is also reversed on the mount. . . . And the 2MT socket.

Still very nice. Slick wheels! Good looking 2x6s.

How come ya need a helper?????:D

I do hope you have a tube rest.

greg1m53 · Post by **greg1m53** » Fri Jan 17, 2014 2:22 am

Yeah just have my head other places.
wife has been very sick.
get to that later,
Checked the table, that is the side the holes are for mounting the metal bar slot for the guide, no holes if I reverse it?

skou · Post by **skou** » Fri Jan 17, 2014 4:35 pm

Greg, unbolt the extension table from the cast iron mounting leg. Bolt it back on, backwards, but don't tighten down the bolts.

Now, remove the tailstock, and install it so the groove that the mounting leg mounts on, is on the far right (outside) of the machine. Slide the main table and carriage, down so they line up with the ext table. Make sure the 2 tables line up, and tighten those bolts.

steve

JPG · Post by **JPG** » Fri Jan 17, 2014 5:07 pm

Yeah I shoulda told him the table was backwards on the mounting bracket!:o

greg1m53 · Post by **greg1m53** » Fri Jan 17, 2014 10:23 pm

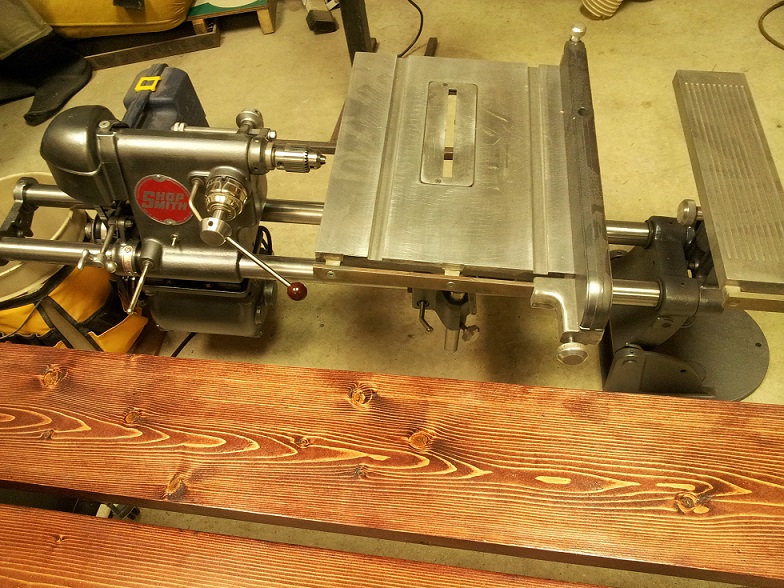

Had some time today.

JPG · Post by **JPG** » Fri Jan 17, 2014 11:30 pm

greg1m53 wrote:Had some time today.

YES!:):):):)

Did you also reverse the MT2 tailstock 'socket'?

I see yer 'helper' 'performed'.

Yer gettin' there splendidly.

greg1m53 · Post by **greg1m53** » Sat Jan 18, 2014 1:23 am

Just took a little while longer than I thought
as I said my mind has not really been on this.
thanks again guys!!
