Drill press position Power Head lift assist fixture
Moderator: admin
Drill press position Power Head lift assist fixture

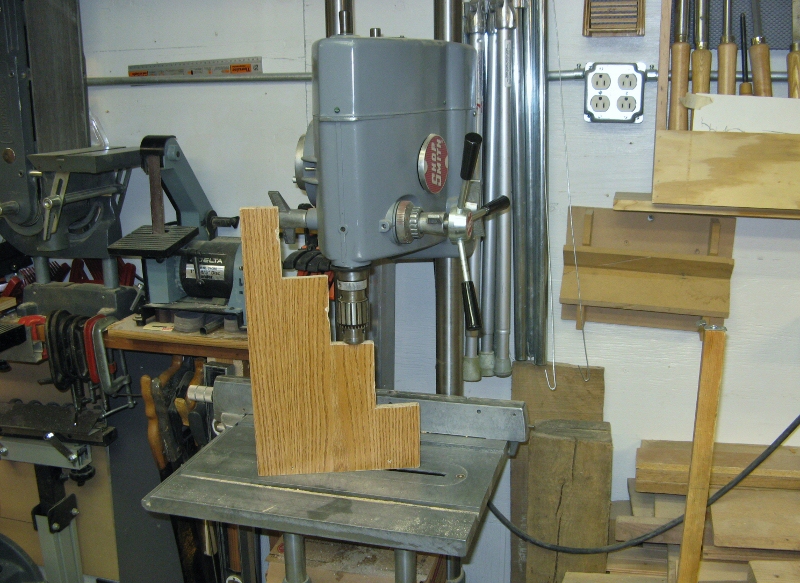

Some time ago I made a dedicated drill press and stuffed it between two piles of junk. This makes it difficult to raise or lower the Power Head. I have been grabbing whatever was handy placing it under the Quill and using the Quill to raise or lower the head. Today I decided to make a head lift assist fixture. The pictures show raising or lowering the head using the fixture by extending or retracting the quill.
Glenn
I create problem solving challenges and opportunities for design modification, not mistakes.
SS 520 born 04/16/03, Power Station mounted Band saw , Scroll saw, Jointer, Belt sander, Overarm router, dedicated Mark V drill press, SS Maxi-clamp system, Shopsmith woodworking bench
I create problem solving challenges and opportunities for design modification, not mistakes.
SS 520 born 04/16/03, Power Station mounted Band saw , Scroll saw, Jointer, Belt sander, Overarm router, dedicated Mark V drill press, SS Maxi-clamp system, Shopsmith woodworking bench
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: Drill press position Power Head lift assist fixture
Interesting approach!
Raising and lowering the table would also work.
I think your method is easier, but requires the 'steps'.
I assume you rarely(if at all) move the table up/down.
Raising and lowering the table would also work.
I think your method is easier, but requires the 'steps'.
I assume you rarely(if at all) move the table up/down.
╔═══╗
