Tontine Cabinet Part 2

[WmZiggy]

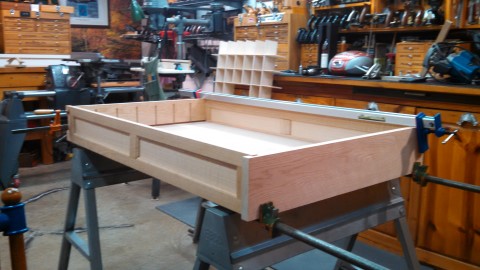

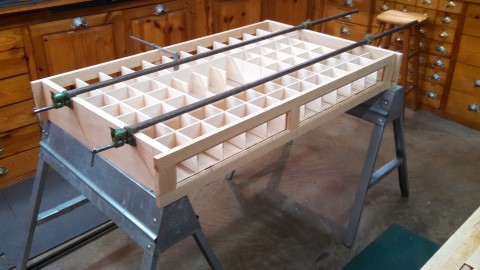

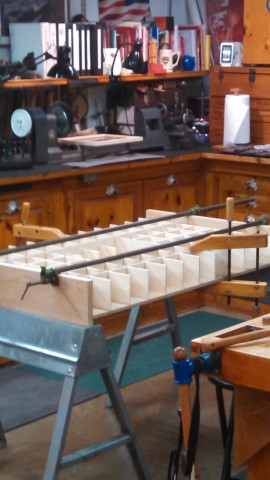

The top and bottom 4/4 red oak was stop dadoed to receive the 1/4 Aspine tops and bottoms. Then it was fitted with sides. I used 1/4" double sided quarter sawn red oak veneer for the floating panels.

IMG_20141215_163433_964 (Mobile).jpg (41.75 KiB) Viewed 2741 times

IMG_20141216_145856_478 (Mobile).jpg (81.91 KiB) Viewed 2741 times

IMG_20141219_120007_403 (Mobile).jpg (88.11 KiB) Viewed 2741 times

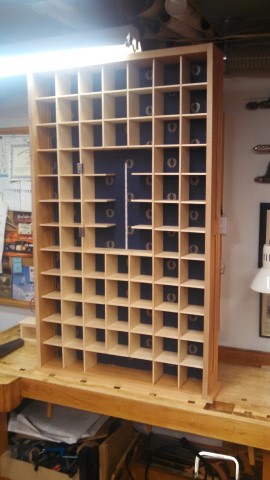

My dear wife wallpapered the MDF with an Air Force blue wallpaper.

IMG_20150104_101608_883 (Mobile).jpg (76.43 KiB) Viewed 2741 times

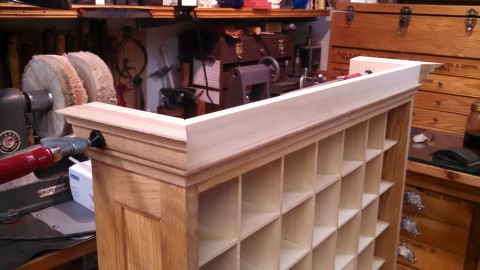

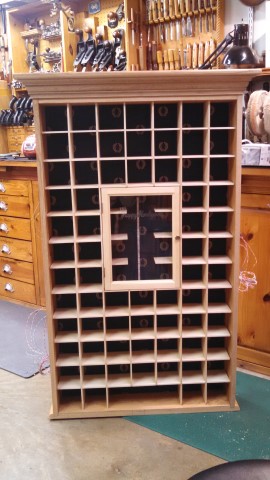

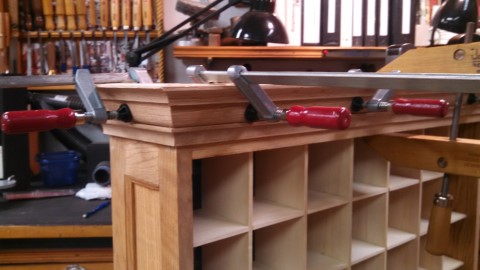

I then created the crown molding. I hand cut using molding planes as well as machined molding using the SS molder to build the crown.

IMG_20150224_120927_311 (Mobile).jpg (80.27 KiB) Viewed 2741 times

IMG_20150224_134129_914 (Mobile).jpg (73.11 KiB) Viewed 2741 times

IMG_20150224_152734_416 (Mobile).jpg (94.72 KiB) Viewed 2741 times

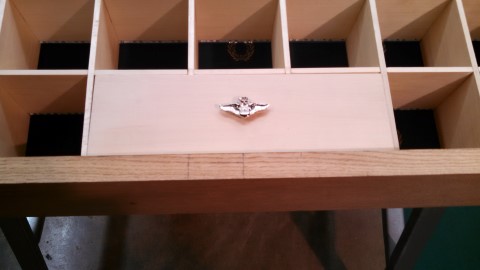

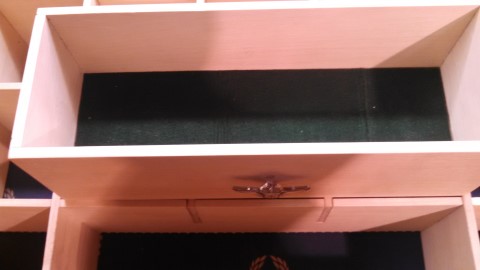

I dovetailed the bottom drawer in 1/4" Aspine with a felt bottom over masonite board bottom. I created a pull from a set of navigator wings, clipping the pins and epoxied a 1/4" oak dowel set in a recess drilled in the back of the wings. Silver, not brass, is the highest ranking metal in the AF, so I used all silver or brushed nickel in the project.

IMG_20150324_133101_686 (Mobile).jpg (44.51 KiB) Viewed 2741 times

IMG_20150228_184113_965 (Mobile).jpg (46.38 KiB) Viewed 2741 times

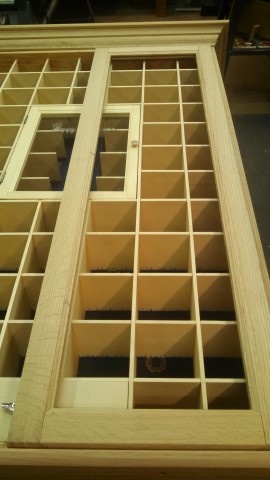

Time to start on the doors.

IMG_20150307_145941_297 (Mobile).jpg (69.21 KiB) Viewed 2741 times

More in Tontine Cabinet Part 3.
