Plane iron sharpening

Post by forrestb »

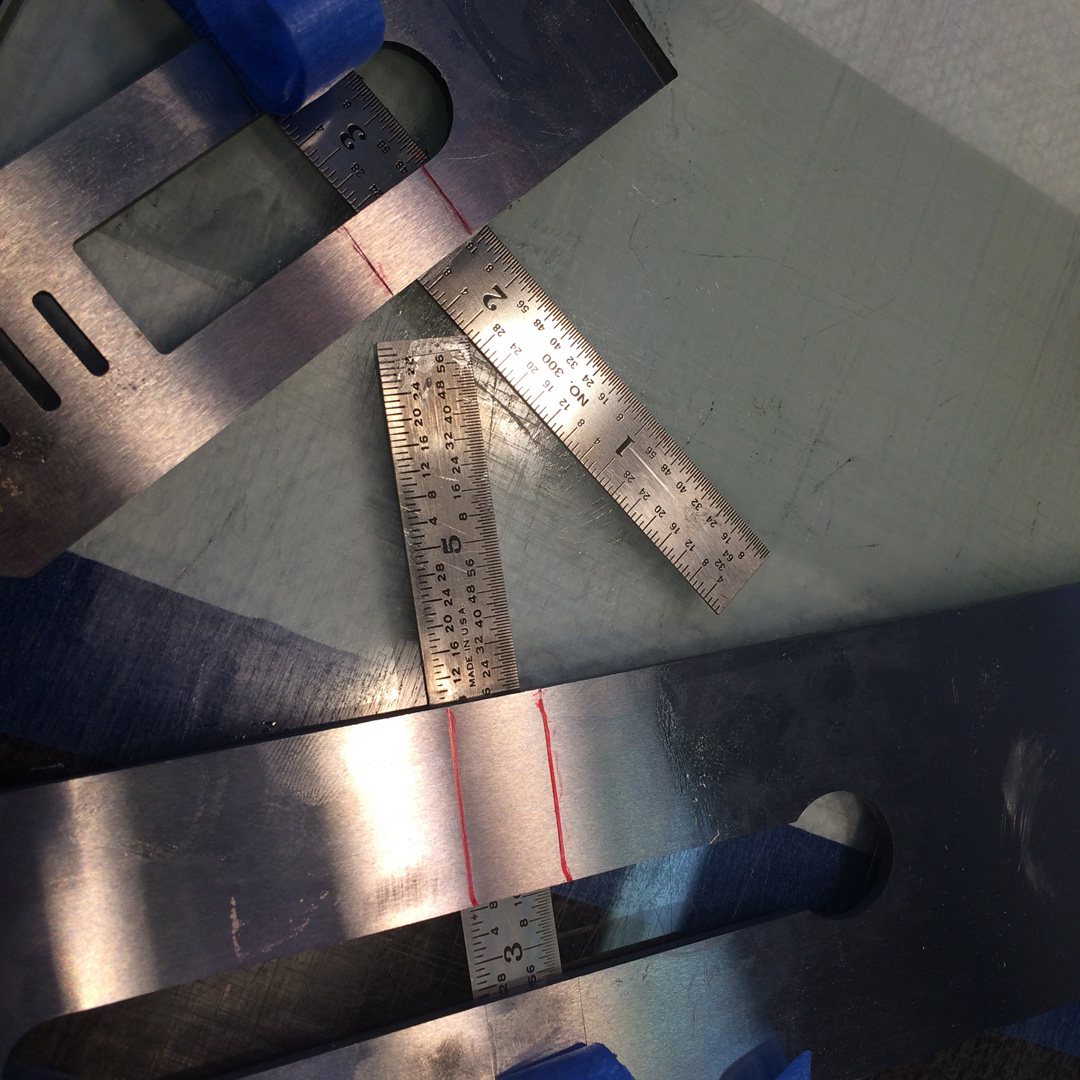

Before honing the bevel, I like to be sure that the back side is flat and polished as many have advised. I attach a 6" rule to the back side so that I only have to polish a small area instead of the whole back. (Different story with chisels, though)

To try to re-polish only the same area each time that I re-hone, I have scribed lines on the front side where the rule should be. I have filled in the carbide scribe lines with red ink so they show in the picture.
Plane irons.jpg
Plane irons.jpg (360.07 KiB) Viewed 1869 times
Forrest
Top
User avatar
beeg
Platinum Member
Posts: 4790
Joined: Sun Oct 14, 2007 2:33 pm
Location: St. Louis,Mo.

Re: Plane iron sharpening

Post by beeg »

You shouldn't have to re-polish the back once ya have it flat.
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.
Bob
Top
User avatar
forrestb
Platinum Member
Posts: 528
Joined: Fri Dec 08, 2006 6:22 pm
Location: Huntington Beach CA

Re: Plane iron sharpening

Post by forrestb »

Hopefully you are right, Bob!

I do it because it is quick and I can assess the tip for any damage. If the backside gets scratched along the way a quick re-polish will show that I need to re-flatten.

Forrest
