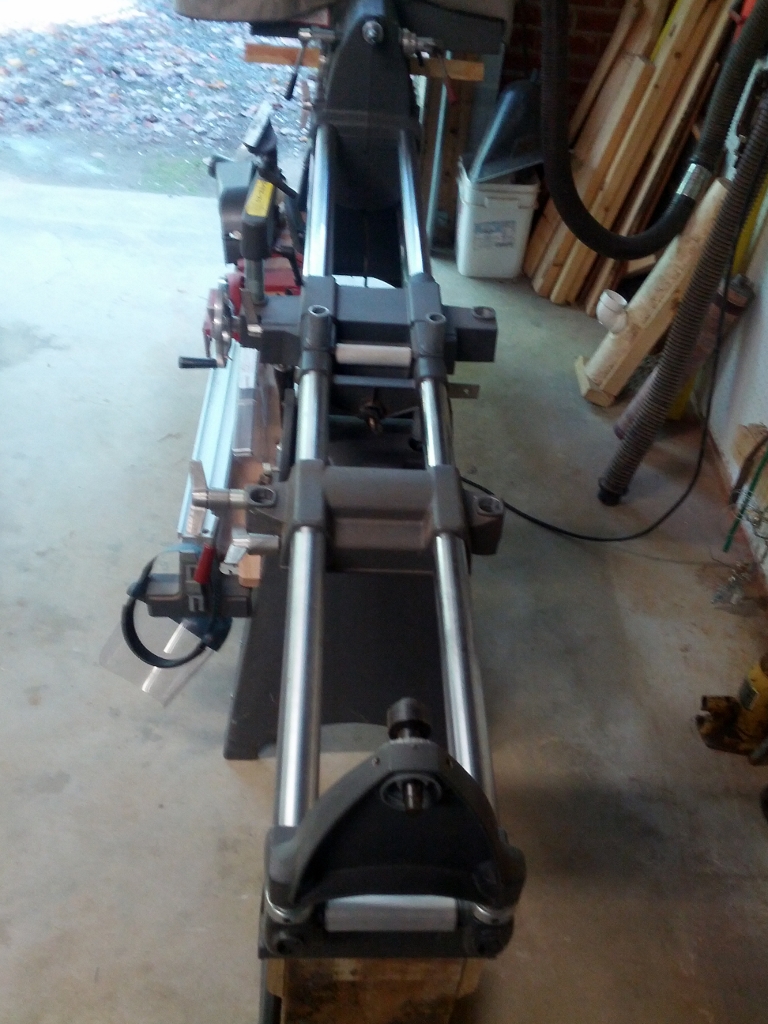

67 1/2 inches center to center using shorty tubes (34")
IMG_20151011_110750 (768x1024).jpg (530.73 KiB) Viewed 2205 times
Yesterday I was going to replace the long tubes on a Mark V that I have for sale on the Greensboro Craigslist with short ones. I welded two 18" tubes together for the bench tubes and wanted to clean them up. My shorty and regular Mark V that I have strapped together for long tubes is at my other shop. So I decided I needed an extension for my 520. Still have to get some decent hardware to put it together with but here's the usable prototype.
67 1/2 inches center to center using shorty tubes (34")
IMG_20151011_110750 (768x1024).jpg (530.73 KiB) Viewed 2205 times

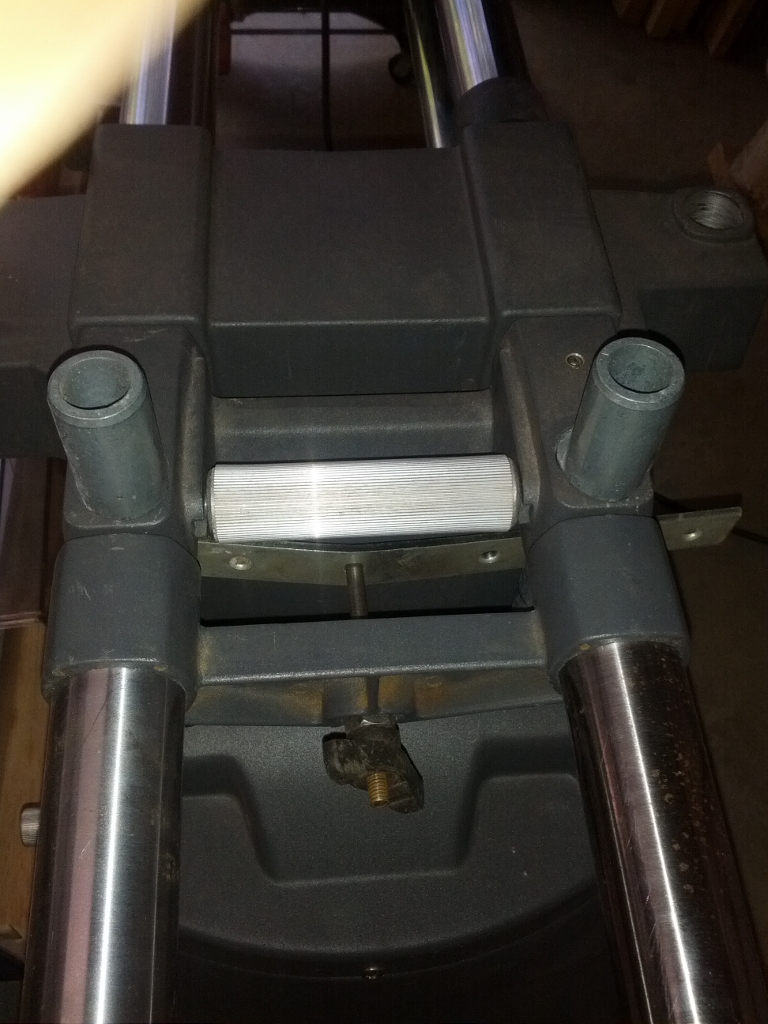

The offset posts and flat steel will be replaced with angle iron and round steel pipe
IMG_20151011_110816 (768x1024).jpg (505.03 KiB) Viewed 2205 times
IMG_20151011_110840 (768x1024).jpg (504.84 KiB) Viewed 2205 times

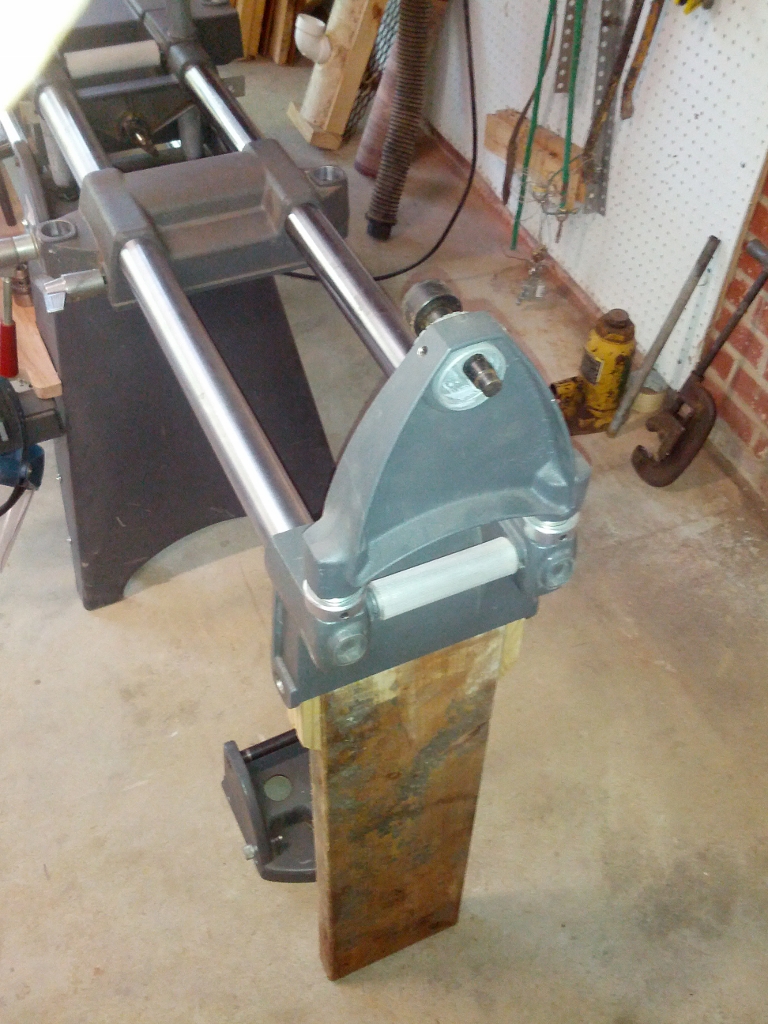

Don't have an extra leg at the moment.
IMG_20151011_111002 (768x1024).jpg (617.15 KiB) Viewed 2205 times
Has anyone found a steel pipe or rod that matches the lathe end support holes without machining?
Mark 7 Power Pro, Mark V 510, Mark VII (early 1960s) Headstock wall mount drill press on Mark 5 way tubes, Mark 5 Shorty with reversible motor, Overhead Pin Router, Power station with band saw, Jointers, Belt Sanders, Strip Sander, Scroll saw, Jigsaw, Shopsmith Lathe Duplicator, Craftsman 2.5 hp 13" Planer/molder, Craftsman 5 hp 12-inch planer molder, myriad Shopsmith accessories, Harbor Freight sawmill with extensions to cut 22' logs.
So how are you going to HEAVILY WEIGHT the tail stock end?
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop. .
.
Bob
Yesterday I was going to replace the long tubes on a Mark V that I have for sale on the Greensboro Craigslist with short ones. I welded two 18" tubes together for the bench tubes and wanted to clean them up. My shorty and regular Mark V that I have strapped together for long tubes is at my other shop. So I decided I needed an extension for my 520. Still have to get some decent hardware to put it together with but here's the usable prototype.
IMG_20151011_110750 (768x1024).jpg
IMG_20151011_110816 (768x1024).jpg
IMG_20151011_110840 (768x1024).jpg
IMG_20151011_111002 (768x1024).jpg
Has anyone found a steel pipe or rod that matches the lathe end support holes without machining?
If the 1 3/4" holes, 1 1/2" EMT.
Interesting!!!!!
Are the SPT tubes irrelevant in your pix, or do they actually do something?
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
For sanding the way tubes weight was irrelevant. I am open for suggestions if it may be needed for heavier items.

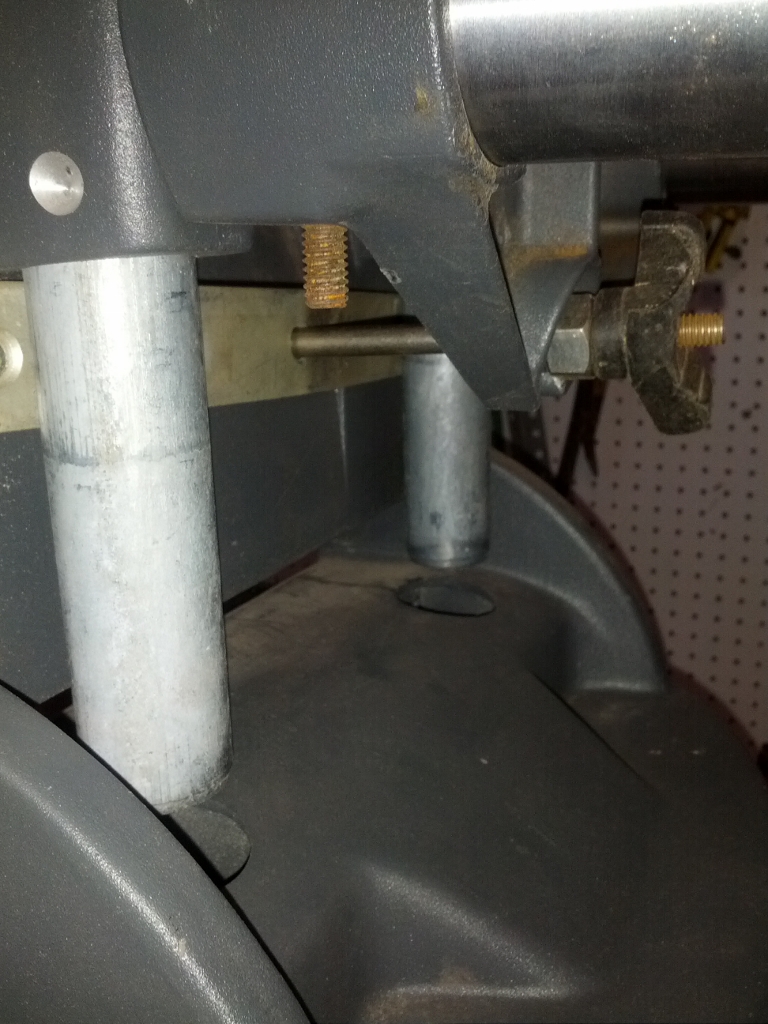

The SPT tubes are the support for the flat bar which with the bolt pulls the tie bar toward the headstock.
