Hands On

[desertdweller1912]

I am looking for a copy of the May/June 1982 issue of Hands On magazine.
Specifically, I am looking for the “Under Mark V storage” article.
I have one page (14), but it's just the cut list.
Any help would be greatly appreciated.

[lyall]

under cabinet SS.doc

(235.5 KiB) Downloaded 985 times

hope this is what you want

[Mike907]

You can also try the revised version in the fifth post on this page.

http://www.shopsmith.com/ss_forum/viewtopic.php?t=5790

Mike

[desertdweller1912]

Thanks for the info, very much appreciated.

[desertdweller1912]

Thanks for the info, very much appreciated. I am going to try the revised version.

[desertdweller1912]

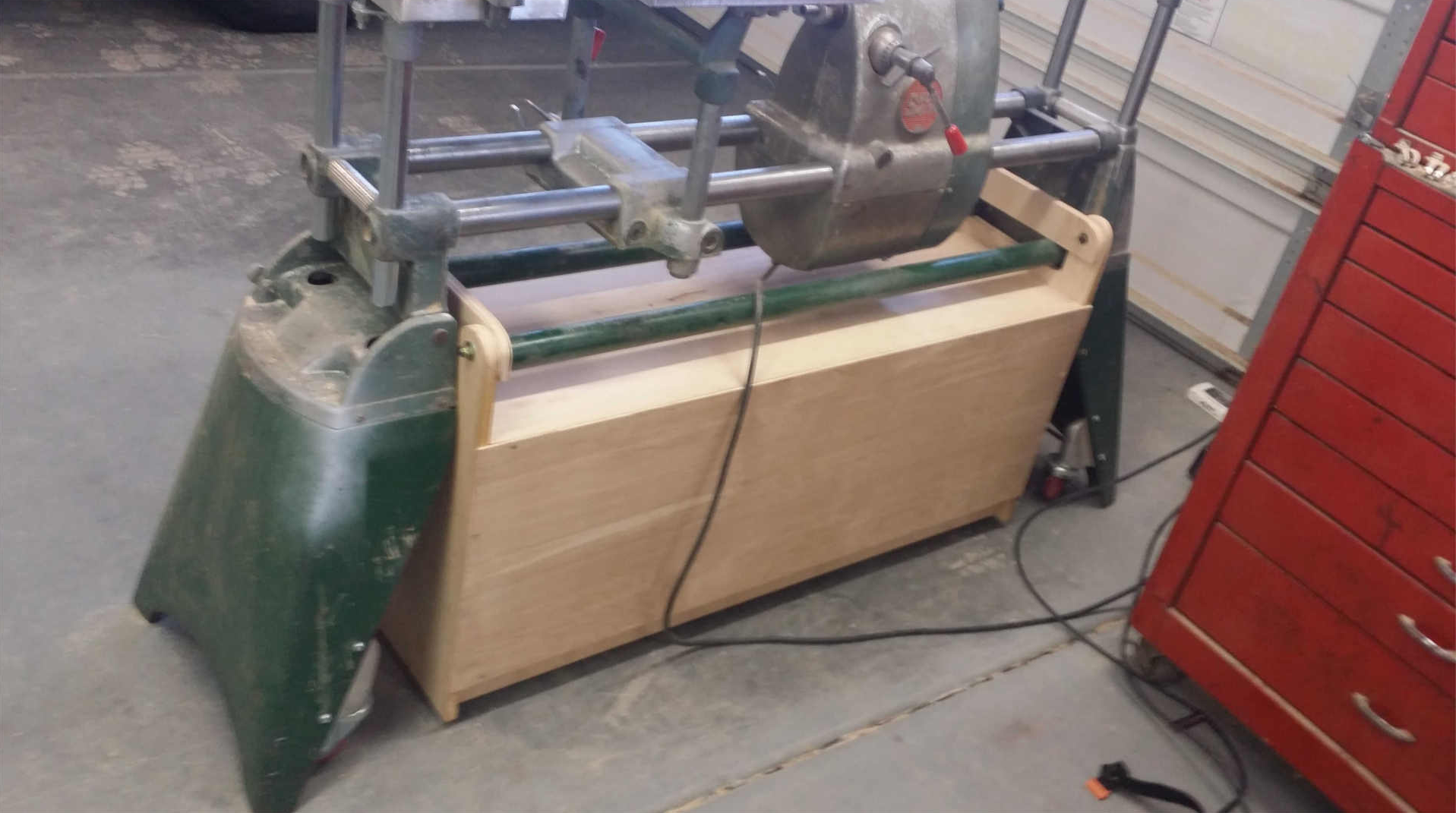

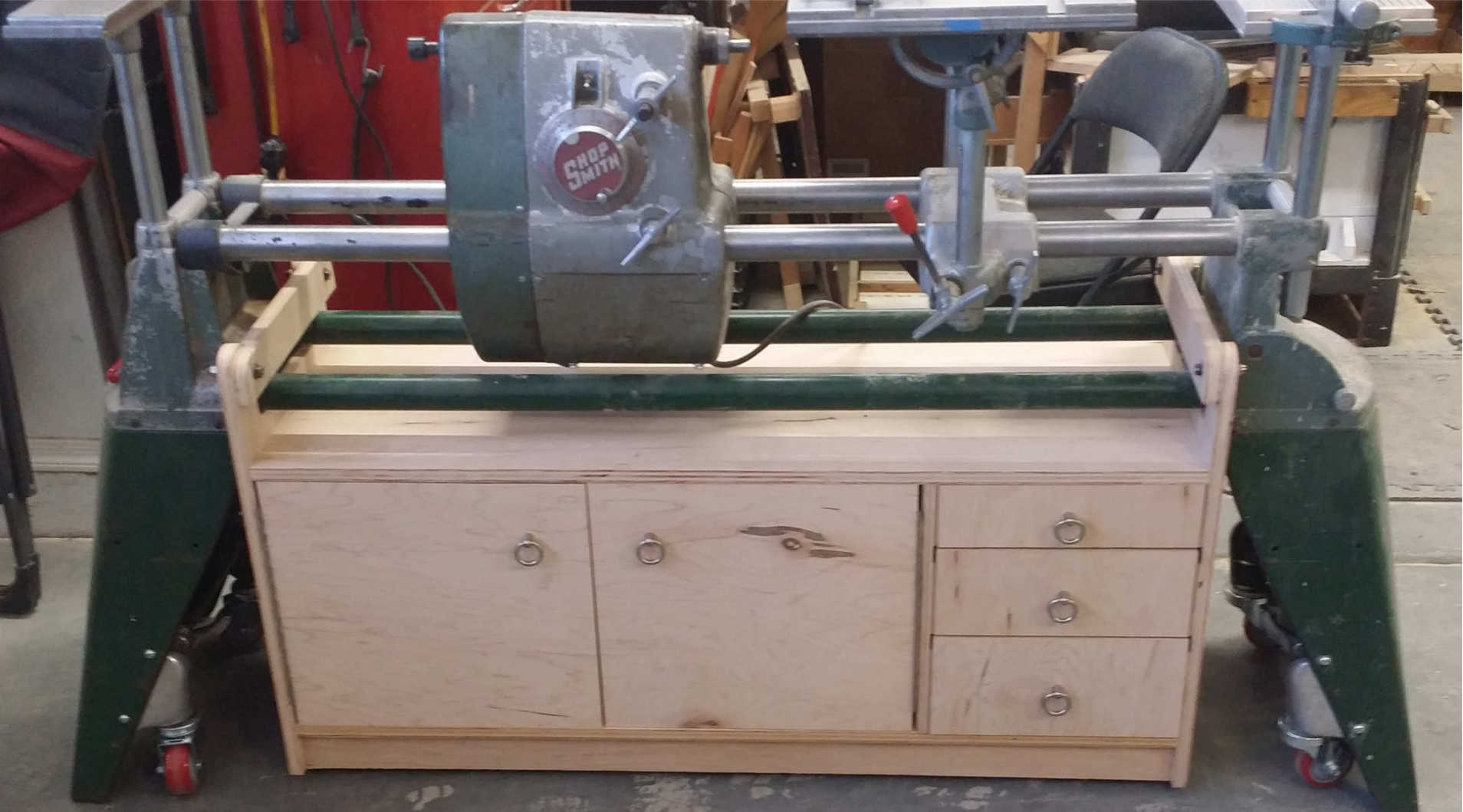

This is my version of the revised under Mark V cabinet as seen on my 1954 Shopsmith.
I used 3/4" maple plywood instead of the 1/2" that was recommended and I used a 14" sheet on the back.
I believe in overkill with somethings, note the 3 stringers on the bottom of the cabinet.
The drawers are 3", 4 1/2" and 6" deep.
I haven't put any shelves behind the doors yet, still working on the layout for saw blades and a rack for the lathe tools.
Thanks to Mike907 and Iyall for the info and ideas.

[Beave2012]

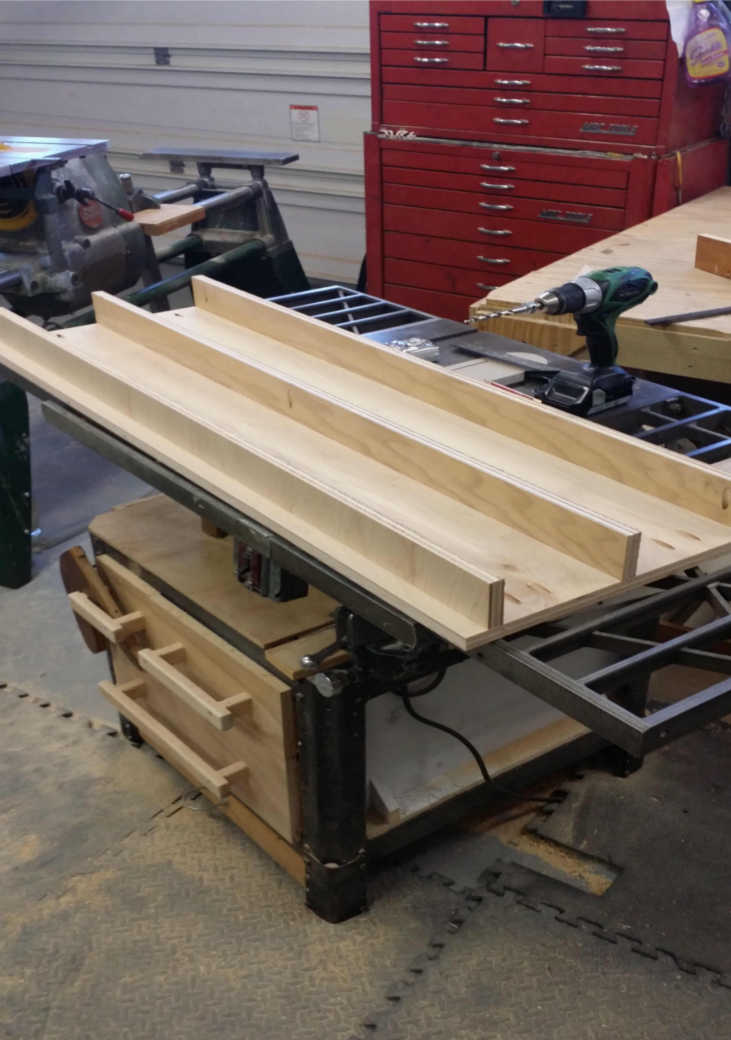

That looks really slick! This was my attempt:

http://www.shopsmith.com/ss_forum/begin ... 16336.html

Turned out nice, but I wish I had gone for drawers in the center area, kind of like yours on the right side.

Also, good call on the 3/4", Nothing like going more secure in my opinion. Go big or go home!

Nice Job

[stephen_a._draper]

The thing I do not like about this cabinet is that your feet run into the cabinet when you get up close to the Mark V; kind of like having kitchen cabinets with no toe kick.

[Beave2012]

The thing I do not like about this cabinet is that your feet run into the cabinet when you get up close to the Mark V; kind of like having kitchen cabinets with no toe kick.

I don't have issues with it. The table doesn't stop at the tubes, so there is a hang over anyways. Essentially a really big toe kick. Now when the table is off for lathe mode, maybe... But I am not a Turner like some here, maybe they can enlighten us.

For nearly a year now with mine I have yet to hinder anything, well, if I close the doors on the cabinet. never once have I had to stand back from it.

For the record mine is on a 520, I guess the 500 could be different.
