Joint-Matic

[reible]

As far as the real Jointmatic parts here are a couple of links that have pictures of mine that could be used as a reference.

http://www.shopsmith.com/ss_forum/viewtopic.php?t=2743

http://www.shopsmith.com/ss_forum/viewtopic.php?t=2737

Ed

[delong94]

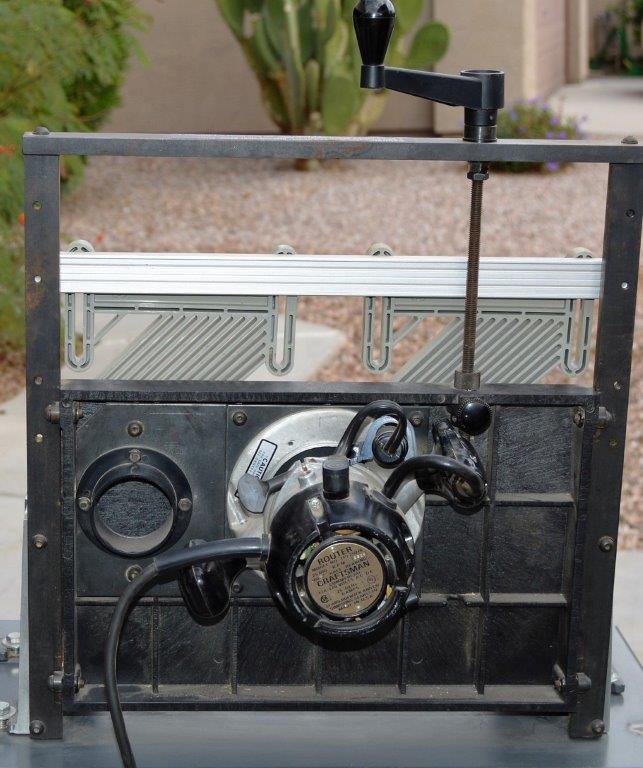

I just picked up a Joint Matic on ebay. Does anyone know if the manual is still available? It looks like it is missing the router bit guard and knob on the feather board. Otherwise it seems to be in good shape. It came with a router and stand. I'll have to ask someone to post their plans for the homemade bevel gauge to make for it. reible... Do you have plans for the one you posted? Thanks. Photos are attached.

Joint Matic 2.jpg (99.84 KiB) Viewed 2531 times

joint matic 3.jpg (83.35 KiB) Viewed 2531 times

Joint Matics.jpg (65.03 KiB) Viewed 2531 times

[lalkie]

I have a joint matic and the piece pictured does not attach to the joint matic. Post a picture of your joint matic to insure we are talking about the same thing. Larry
