Is it also a fact or just another coincidence

Post by dusty »

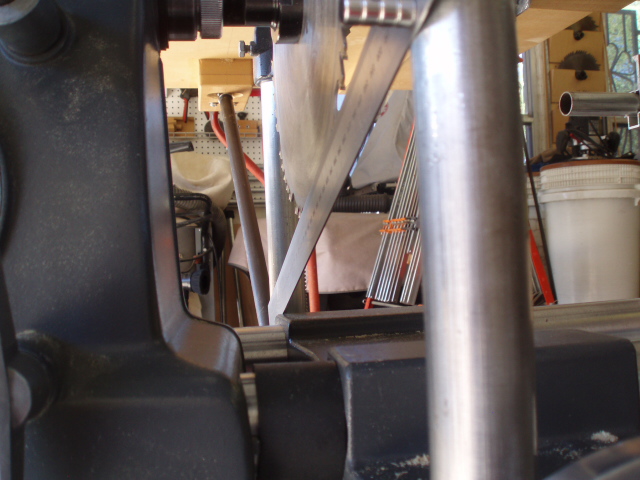

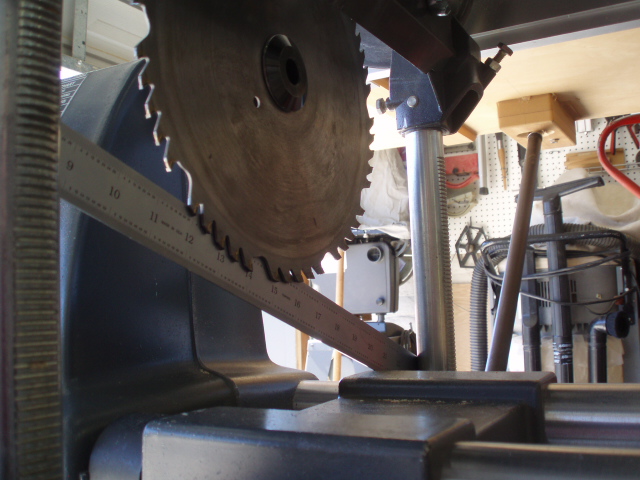

that the left edge of the table tubes align with the left face of the blade (with the quill fully retracted)?
Attachments
Table and Tube Alignment 5292016 010.JPG
Table and Tube Alignment 5292016 010.JPG (142.05 KiB) Viewed 1803 times
Table and Tube Alignment 5292016 012.JPG
Table and Tube Alignment 5292016 012.JPG (151.32 KiB) Viewed 1803 times
"Making Sawdust Safely"
Dusty
Sent from my Dell XPS using Firefox.
Top
User avatar
jsburger
Platinum Member
Posts: 6585
Joined: Fri Jul 21, 2006 4:06 pm
Location: Hooper, UT

Re: Is it also a fact or just another coincidence

Post by jsburger »

dusty wrote:that the left edge of the table tubes align with the left face of the blade (with the quill fully retracted)?

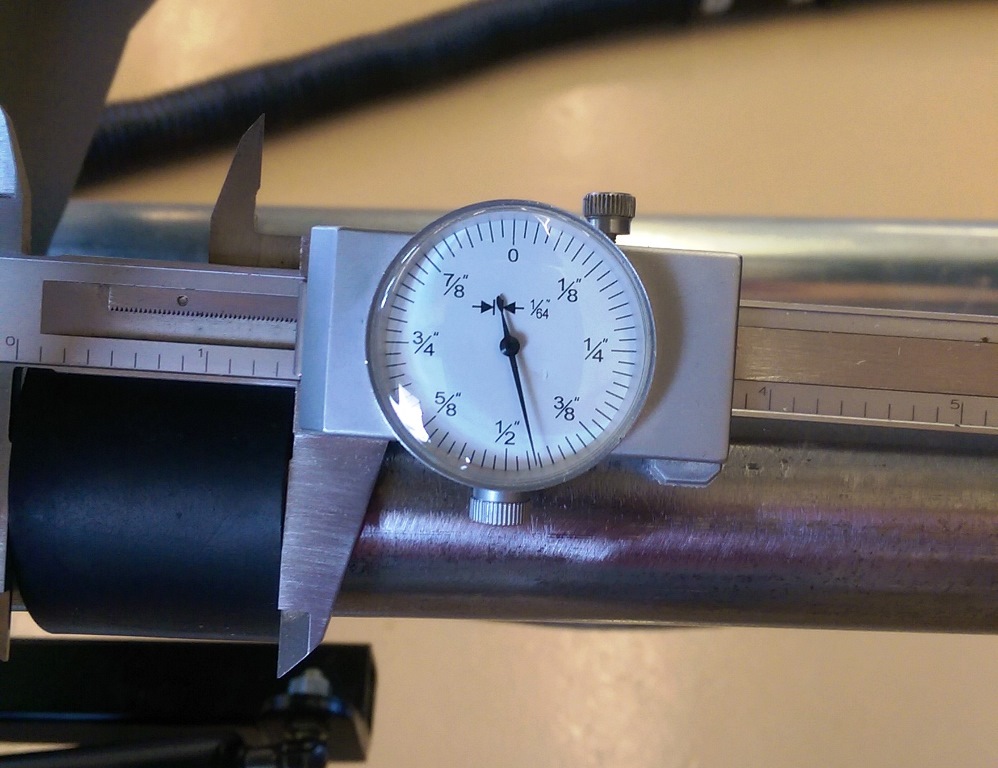

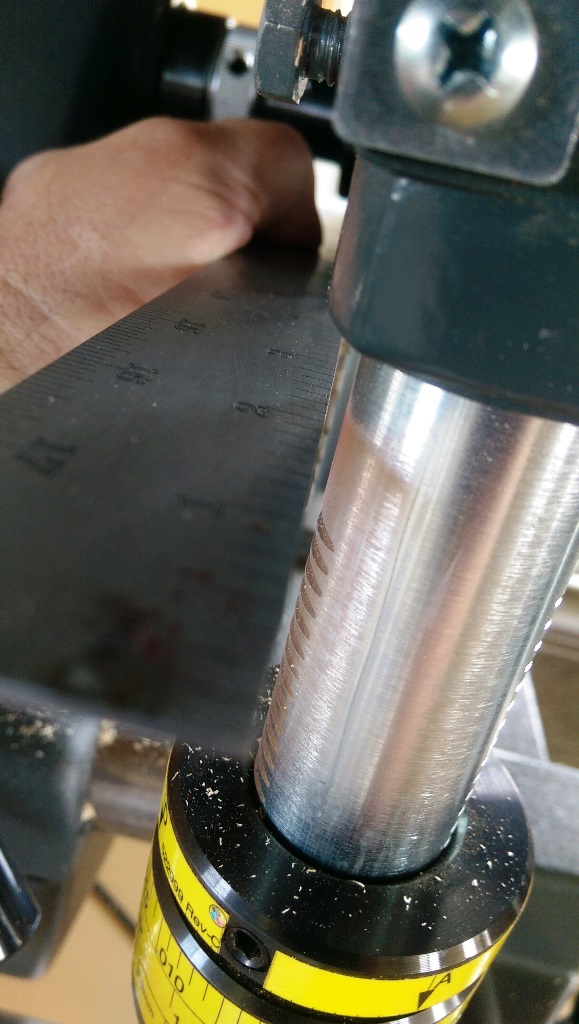

I guess that depends on the length of the spacer on any given machine. The table tubes on my Power Pro do not align with the left side of the blade. Also the blade is to left of center of the slot by about the same amount. My spacer is longer (1 29/64) than the 1 3/8 that we seem to think is the correct dimension.

If the spacer was 1 3/8 then I think the blade would be very close to the center of the slot and the left side of the tubes and blade would be very close in alignment.
Attachments
John & Mary Burger
Eagle's Lair Woodshop
Hooper, UT
