First commisioned project
My pension guy wanted a segmented bowl. He is paying me $125 for it (acyually a donation to the Rotary International Fund)! I figured it will cost me half of that to make it. It will have 457 pieces of wood- maple, walnut and purple heart . I have attached a computer simulated drawing and a photo of where I am now with it. I hope to have a video when done.
I think I've lost my mind!
Can someone rotate the blasted photo?
. I have attached a computer simulated drawing and a photo of where I am now with it. I hope to have a video when done. I think I've lost my mind!
Can someone rotate the blasted photo?
- Attachments
-

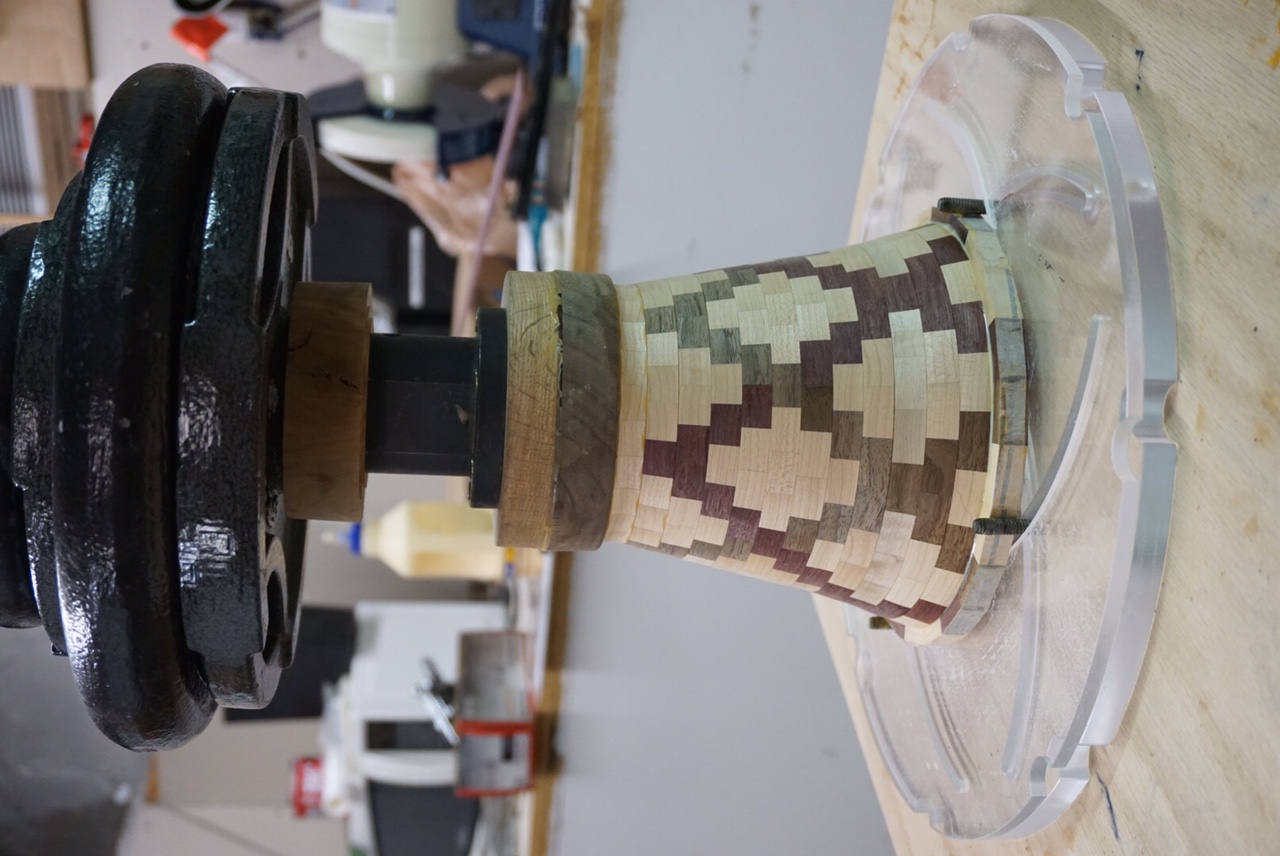

- Six more rings to go!
- Bysko Bowl in progress.JPG (266.42 KiB) Viewed 6606 times
-

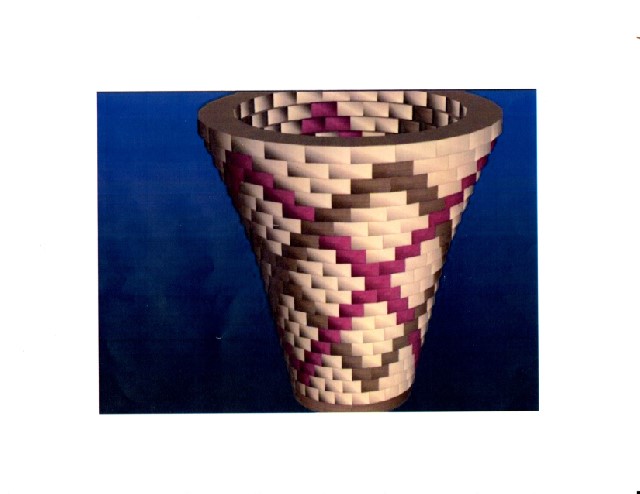

- Computer generated pic
- Bysko Bowl (7).jpg (64.85 KiB) Viewed 6606 times
Chris Neilan
Shopsmith Mark 7, Shopsmith Mark V 1982, shortened, Shopsmith 10 ER; Craftsman table saw (1964); Powermatic 3520B lathe
Shopsmith Mark 7, Shopsmith Mark V 1982, shortened, Shopsmith 10 ER; Craftsman table saw (1964); Powermatic 3520B lathe
Re: First commisioned project
That looks pretty fancy - can't wait to see the finished product!
Ed
Shopsmith: 2 Mark V 510 (1988,1993), bandsaw, jointer, mounted planer, belt sander, scroll saw, strip sander, lathe duplicator, conical disc sander, biscuit joiner, free standing router table with Jointech IPM-1
Other stuff: Bosch glide mitre, Ridgid 13" planer, Rikon drill press, routers, drills, and other toys
Shopsmith: 2 Mark V 510 (1988,1993), bandsaw, jointer, mounted planer, belt sander, scroll saw, strip sander, lathe duplicator, conical disc sander, biscuit joiner, free standing router table with Jointech IPM-1
Other stuff: Bosch glide mitre, Ridgid 13" planer, Rikon drill press, routers, drills, and other toys
-
ERLover
- Platinum Member
- Posts: 3914
- Joined: Mon Aug 31, 2015 10:19 pm
- Location: Greenie and Goldie Country not to metion the WI Badgers!
Re: First commisioned project
Chris N, you do beautiful work!!! It will be fine after all and done.
KNOWLEDGE AND EXPERIENCE EQUALS WISDOM. Albert Einstein
The Greatness officially starts
Greenie, Grayling, SS stand alone BS and BS SPT, jointer and belt sander, 3 Ers with Speed Changers. I think those 3 cover my ER needs, and space for them.
The Greatness officially starts
Greenie, Grayling, SS stand alone BS and BS SPT, jointer and belt sander, 3 Ers with Speed Changers. I think those 3 cover my ER needs, and space for them.
Re: First commisioned project
That will be gorgeous, Chris. That guy's getting a bargain.
-
ChrisNeilan
- Platinum Member
- Posts: 1463
- Joined: Sun Oct 27, 2013 5:30 pm
- Location: Waterford, Connecticut
- Contact:
Re: First commisioned project
Mis-calculated, only 434 pieces!
Chris Neilan
Shopsmith Mark 7, Shopsmith Mark V 1982, shortened, Shopsmith 10 ER; Craftsman table saw (1964); Powermatic 3520B lathe
Shopsmith Mark 7, Shopsmith Mark V 1982, shortened, Shopsmith 10 ER; Craftsman table saw (1964); Powermatic 3520B lathe
Re: First commisioned project
That's ok Chris. Math can be a problem, sometimes.
-
br549
- Platinum Member
- Posts: 657
- Joined: Sun Nov 30, 2014 8:51 am
- Location: Midway between Houston/Galveston, TX
Re: First commisioned project

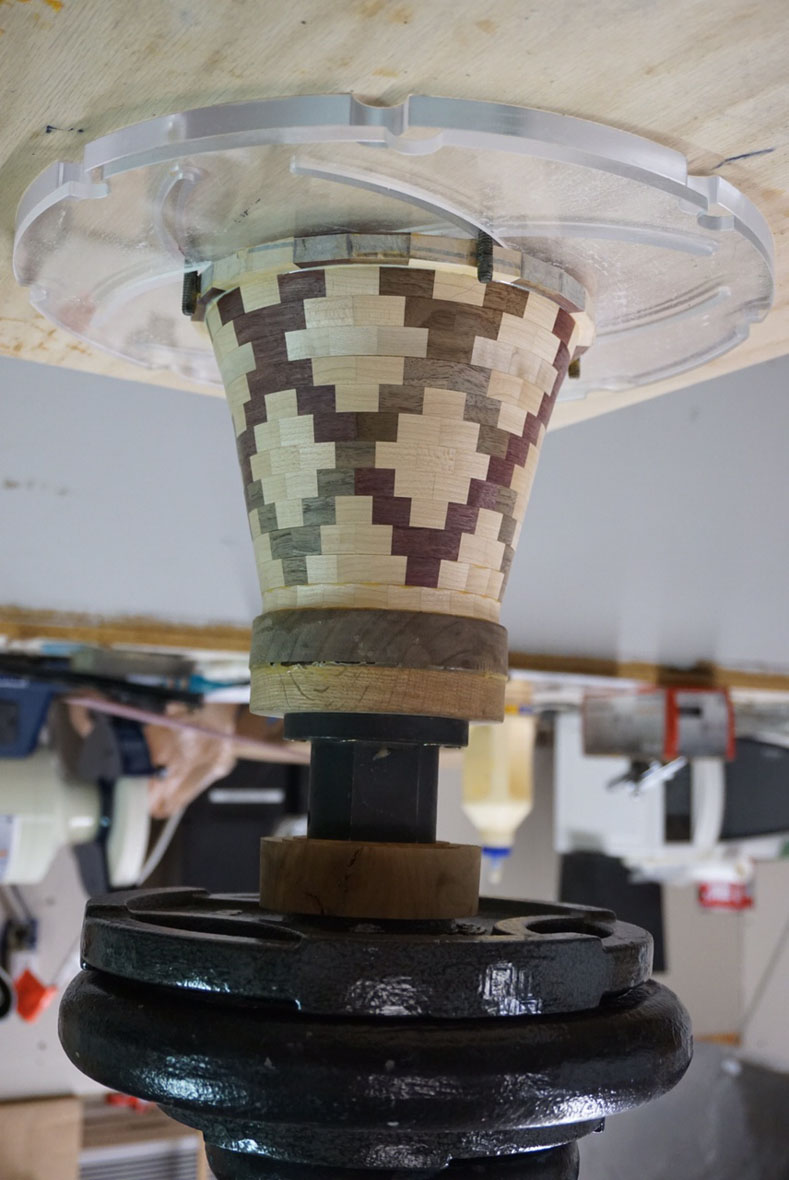

While this is 180 degrees opposite of how the photo was taken, this puts it in same orientation as your computer generated sketch. It is going to be beautiful!ChrisNeilan wrote: ...Can someone rotate the blasted photo?
- Attachments
-
- Bysko Bowl in progress.JPG (149.33 KiB) Viewed 6532 times
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Re: First commisioned project
...

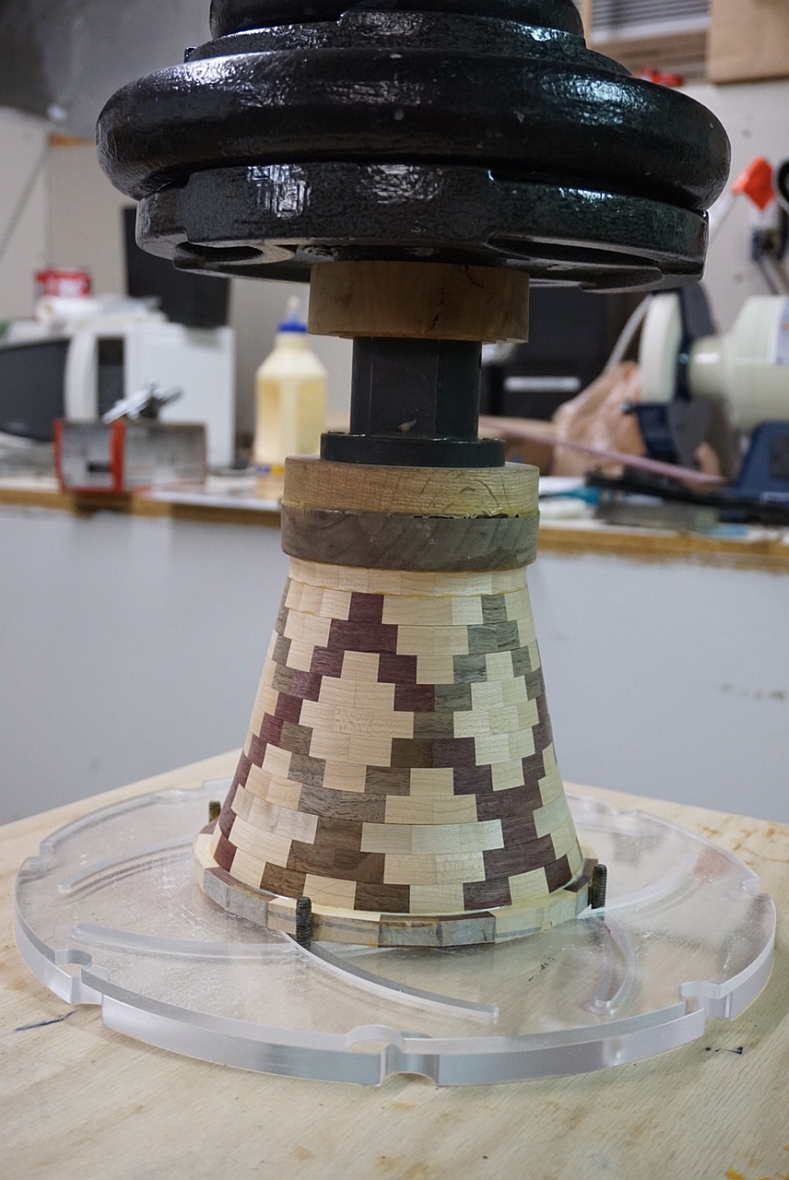

- rotated.jpg (559.75 KiB) Viewed 6519 times
╔═══╗
