Today in the shop (Lathe chuck and jaw drawer divider)"

[reible]

My shop is pretty much in a constant state of flux. I have had issues with keeping my lathe jaws in order and somewhat organized. That is no longer totally the case. Today's project took care of at least some of that.

I started with making some sketchup drawings exploring layouts of the various items I wanted in the drawer. After several attempts and a couple of changes to what I could fit in I was able to find something that looked like it should be what I need.

Since I have a Shaper Origin this seemed like a good project to use it on. I'm also beta testing a sketchup plug in that generates the files that Shaper likes. So I was actually doing several projects at the same time.

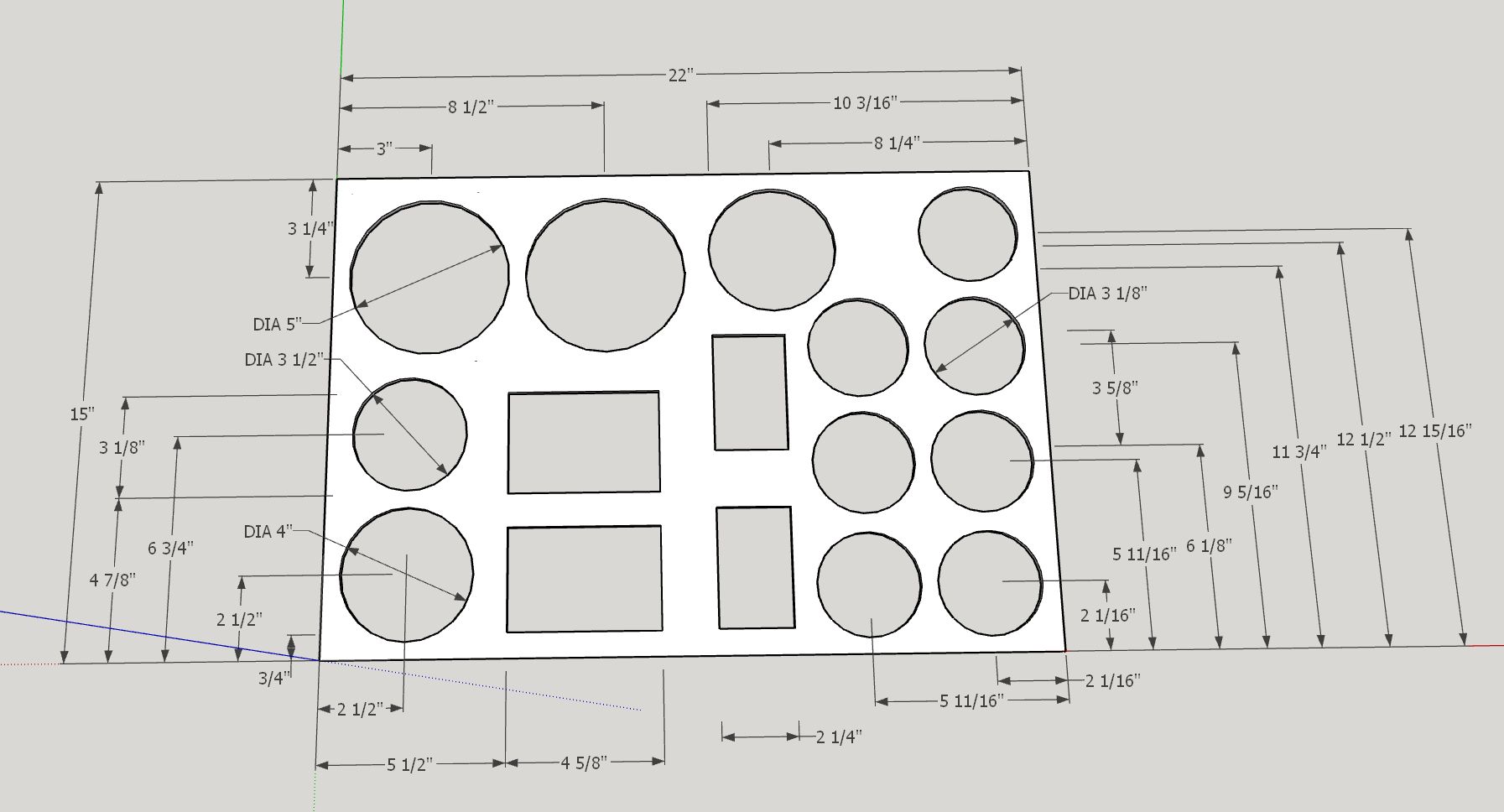

This is the sketchup drawing for the drawer divider I wanted to make:

ScreenHunter 69.jpg (112.41 KiB) Viewed 13335 times

I used 1/4 nominal MDF, actually ran about .22". I used some double sided tape to tape the board to some of that pink foam insulation sheet that I like to cut on. What was interesting is that the shaper can set the depth of cut such that I could cut through the material but less then the thickness of the tape.... so the bit doesn't even touch the pink insulation.

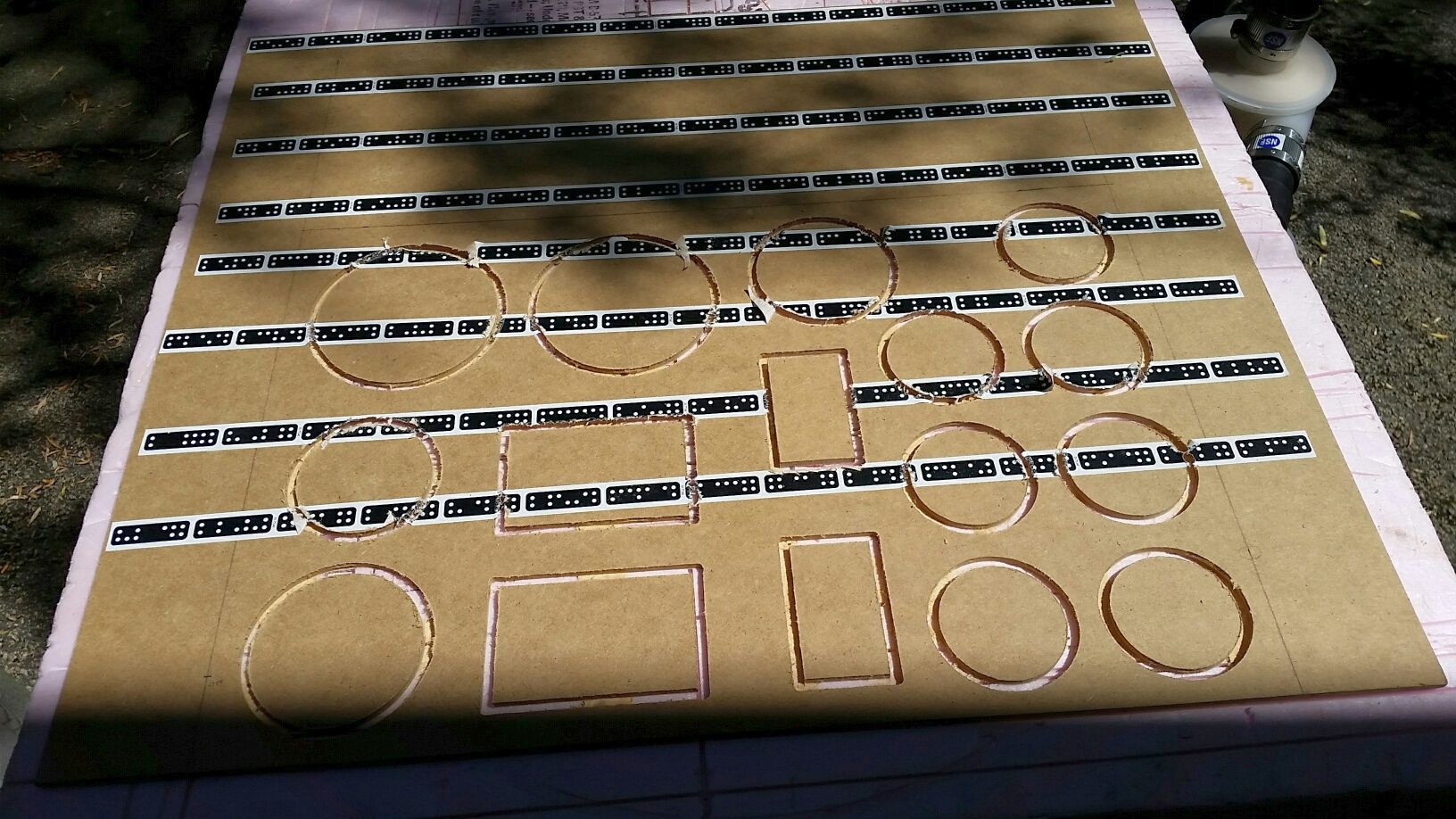

I didn't take many photos but this is what the board looked like after the routing had been done:


Just after this I used my guided saw system to cut the board to size. Yes I could have used the router but why??

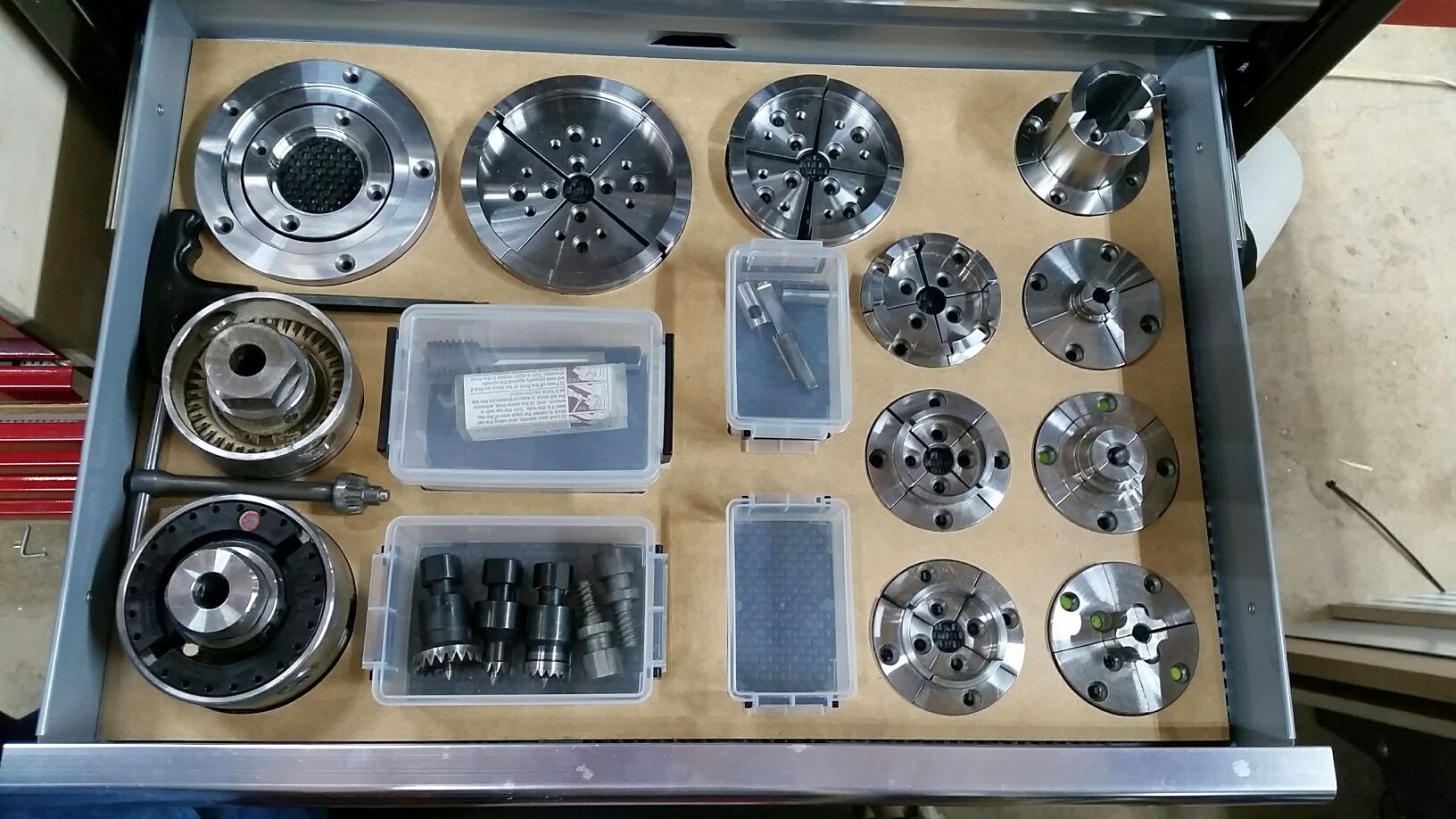

Then I emptied the drawer and put the insert in and filled it up. The end results looks like this:


So one down and hundreds to go.........

Ed
