A couple of SO jigs
Moderator: admin
A couple of SO jigs

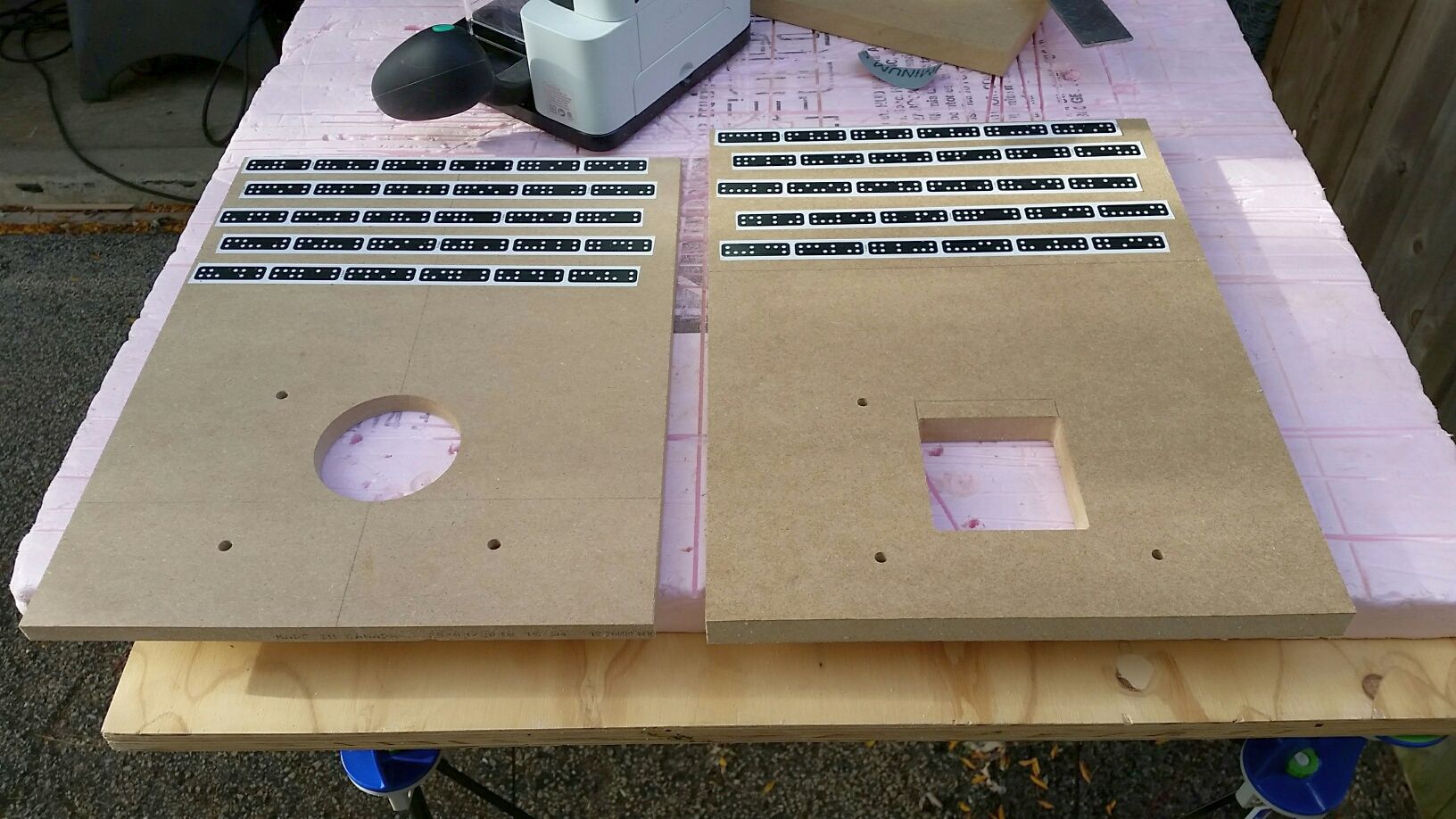

Used the SO to make them, just some scraps of MDF about 12" by 15"-16".

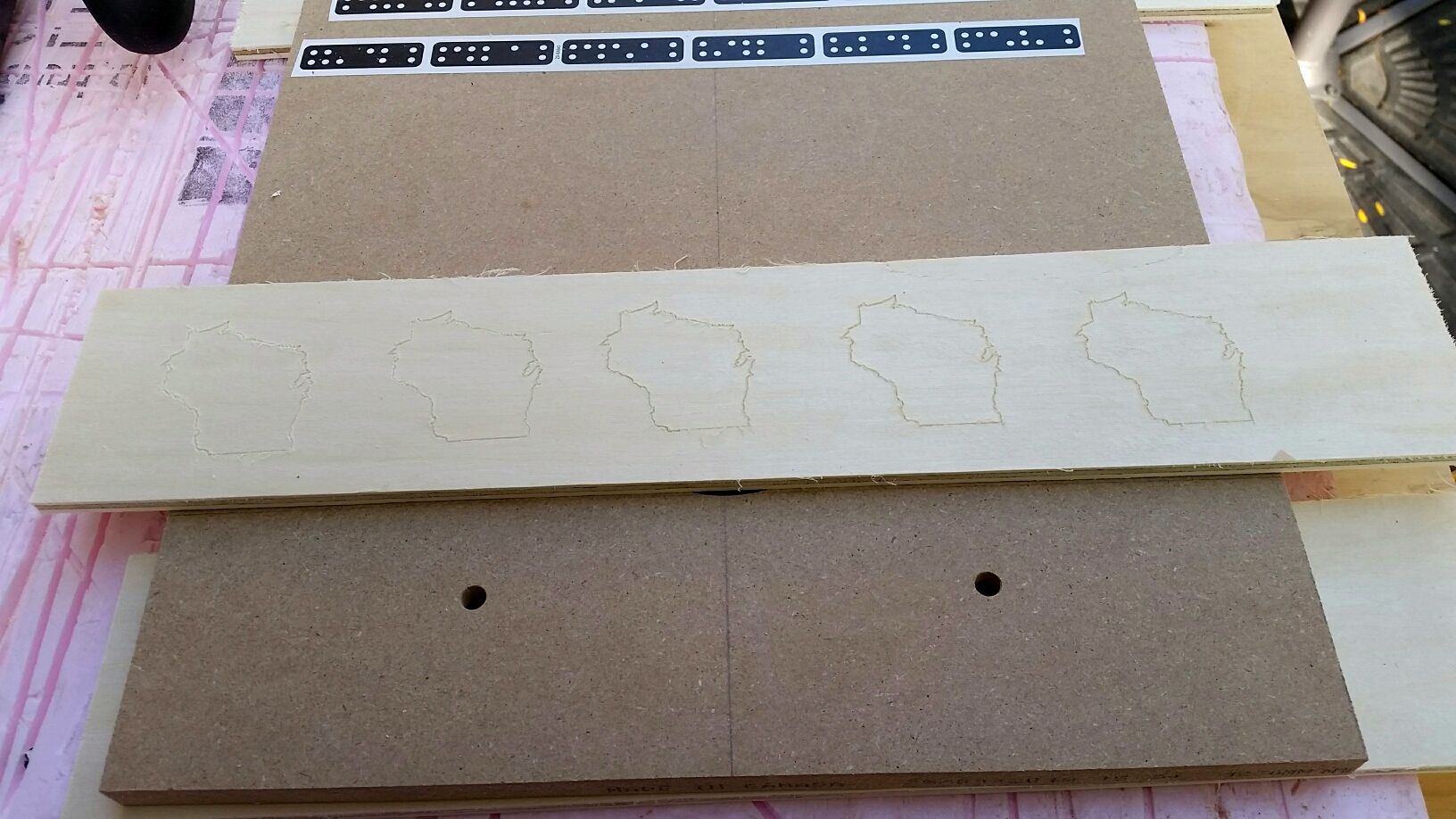

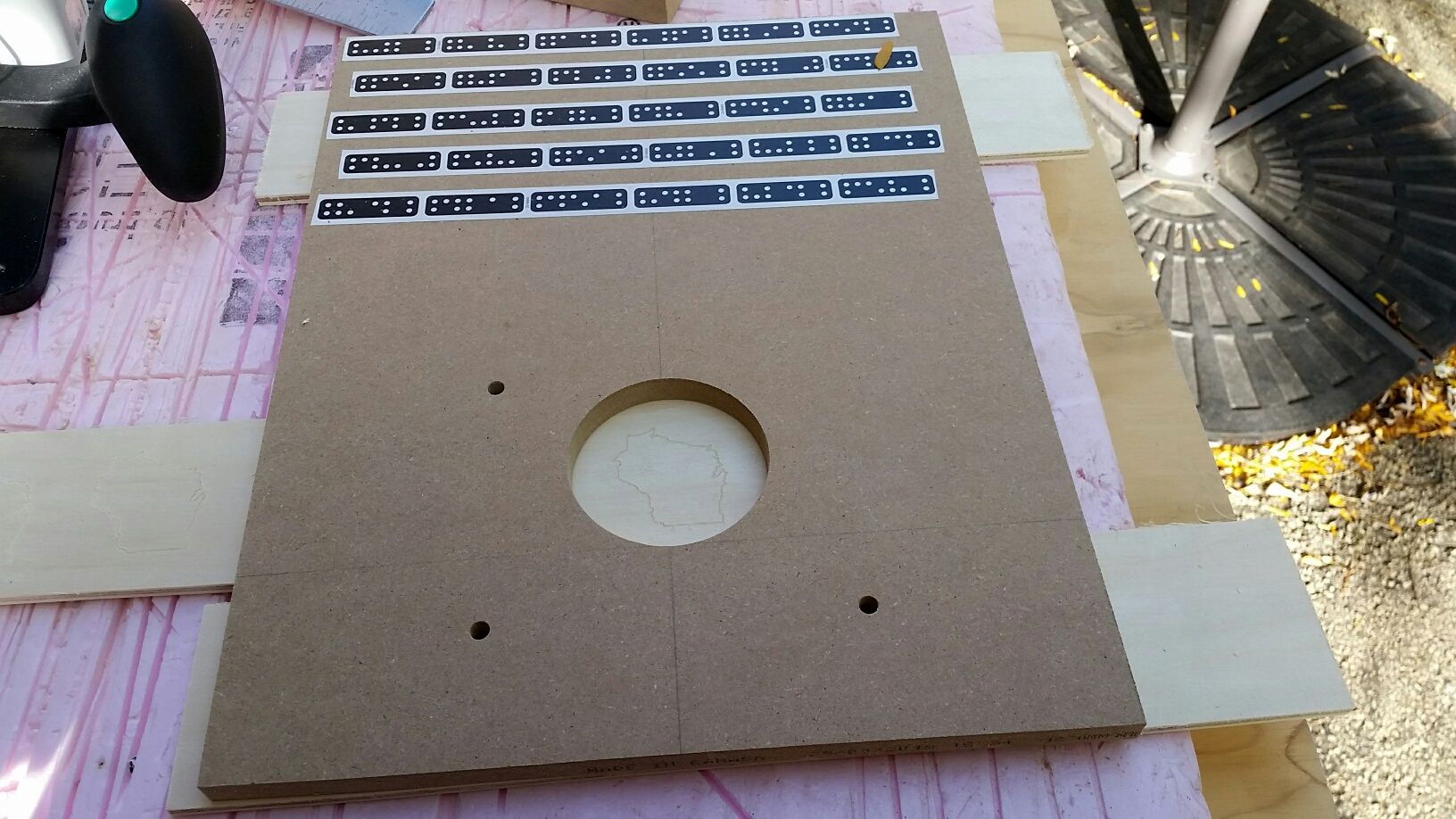

The jig sits on the work piece for doing things like engraving. Here was my proof of concept test:
Since the work piece was a cut off I had to add some other cut offs to get it to sit flat but that could let me use up these smaller pieces.
Nothing earth shacking but I think this will be very useful for me.
Ed
The jig sits on the work piece for doing things like engraving. Here was my proof of concept test:
Since the work piece was a cut off I had to add some other cut offs to get it to sit flat but that could let me use up these smaller pieces.
Nothing earth shacking but I think this will be very useful for me.
Ed
