An arbor question for you knowledgeable SS'ers.
I recently acquired a box of Shopsmith/Magna parts. Included is a half inch arbor with no square shoulders to hold the arbor while tightening the nut. Perfectly smooth...it does have the 5/8 bore for the spindle...anyone heard of or seen one of these? Thanks for any help. Rocky
1/2" arbor with no shoulders for tightening
Moderator: admin
Re: 1/2" arbor with no shoulders for tightening
rockb wrote:An arbor question for you knowledgeable SS'ers.
I recently acquired a box of Shopsmith/Magna parts. Included is a half inch arbor with no square shoulders to hold the arbor while tightening the nut. Perfectly smooth...it does have the 5/8 bore for the spindle...anyone heard of or seen one of these? Thanks for any help. Rocky
Yes, they were made by Magna. There are lots of them out there. Not sure when this changed. Maybe early on with the Magna MK 5. Chapmanruss will reply with the change over.
Russ!!!
John & Mary Burger
Eagle's Lair Woodshop
Hooper, UT
Eagle's Lair Woodshop
Hooper, UT
-
chapmanruss
- Platinum Member
- Posts: 4545
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: 1/2" arbor with no shoulders for tightening
John,
You knew I would have the answer or a least part of it.
The original 1/2" (P/N 102-35X) and 5/8" (P/N 126-1X) Arbors that Magna Engineering made for the Model 10E did not have the wrench cuts in the base. It's why you see most of them with some kind of wrench marks on the base. Magna realized it would be beneficial to have the wrench cuts in the base to make tightening and loosening the nut easier. As to when this happened I am unsure but the May 1949 catalog still shows the original version although they didn't always use a picture of the newest versions in the catalogs. As Magna was getting ready to introduce the Mark 5 they changed the 1/2" (new P/N 22 030) and 5/8" (new P/N 22 031) Arbors which added the "keyed" washer and went from a 1/4" set screw to the 5/16" set screw used on almost everything to this day.
You knew I would have the answer or a least part of it.
The original 1/2" (P/N 102-35X) and 5/8" (P/N 126-1X) Arbors that Magna Engineering made for the Model 10E did not have the wrench cuts in the base. It's why you see most of them with some kind of wrench marks on the base. Magna realized it would be beneficial to have the wrench cuts in the base to make tightening and loosening the nut easier. As to when this happened I am unsure but the May 1949 catalog still shows the original version although they didn't always use a picture of the newest versions in the catalogs. As Magna was getting ready to introduce the Mark 5 they changed the 1/2" (new P/N 22 030) and 5/8" (new P/N 22 031) Arbors which added the "keyed" washer and went from a 1/4" set screw to the 5/16" set screw used on almost everything to this day.

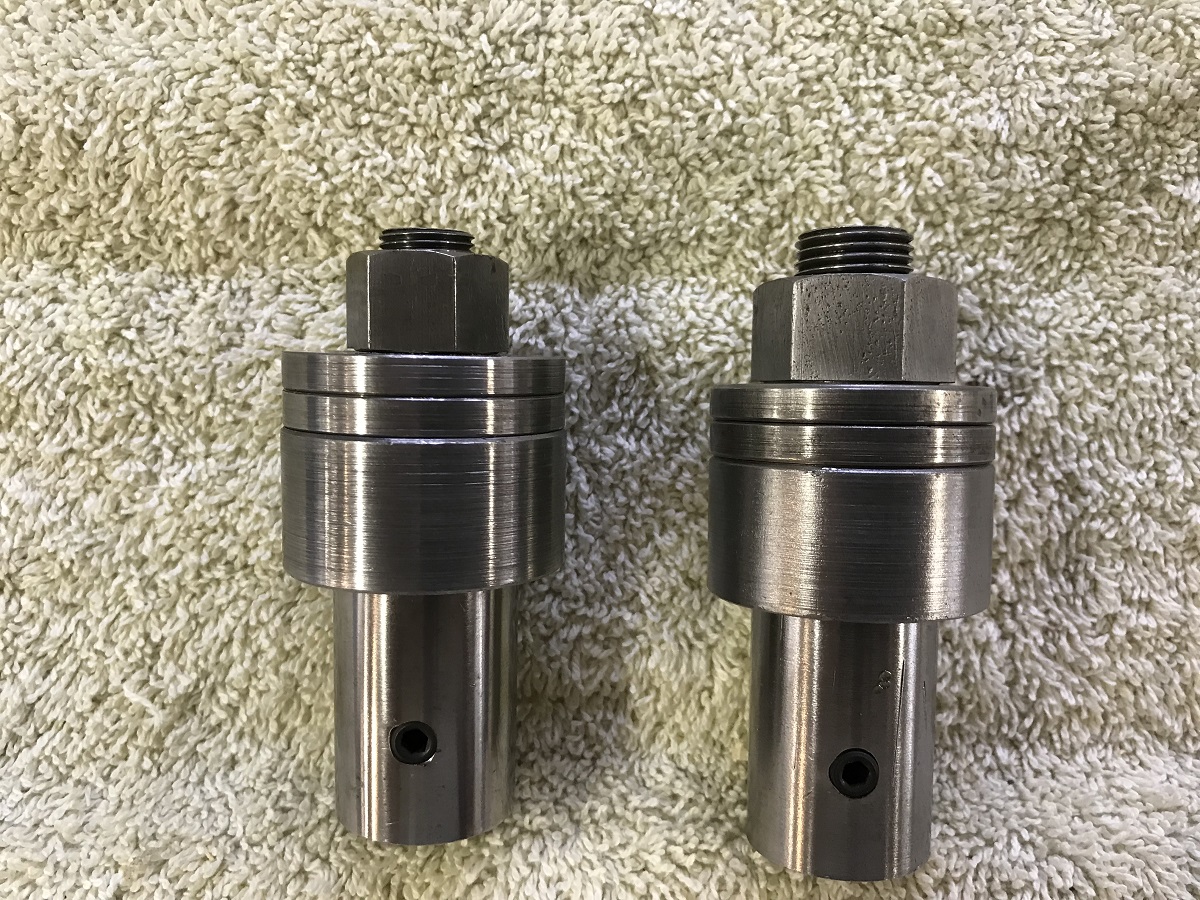

- Original version of the 1/2" & 5/8" Arbors
- 102-35X and 126-1X r.jpg (551.05 KiB) Viewed 8073 times
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's, 2 Power Stations & Crafter's Station
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's, 2 Power Stations & Crafter's Station
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored.
Re: 1/2" arbor with no shoulders for tightening
Thank you John and Russ. Very informative...I knew I was asking the right group. : )
