10ER coming Apart

Forum for Maintenance and Repair topics. Feel free to ask questions or contribute.

Moderator: admin

Post Reply
Charger1966
Gold Member
Posts: 26
Joined: Wed Nov 18, 2020 11:02 am

Re: 10ER coming Apart

Post by Charger1966 »

Well look at that. The picture didn't make it into the mix. LOL. Never mind then.
Top
User avatar
rpd
Platinum Member
Posts: 3045
Joined: Tue Apr 05, 2011 3:22 am
Location: Victoria, B.C.

Re: 10ER coming Apart

Post by rpd »

Charger1966 wrote: ↑Wed Dec 16, 2020 5:00 pm Well look at that. The picture didn't make it into the mix. LOL. Never mind then.
:D :D :D

Also note the benefits of Gale's Law.
Gale's Law: The bigger the woodworking project, the less the mistakes show in any photo taken far enough away to show the entire project!
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
Top
Charger1966
Gold Member
Posts: 26
Joined: Wed Nov 18, 2020 11:02 am

Re: 10ER coming Apart

Post by Charger1966 »

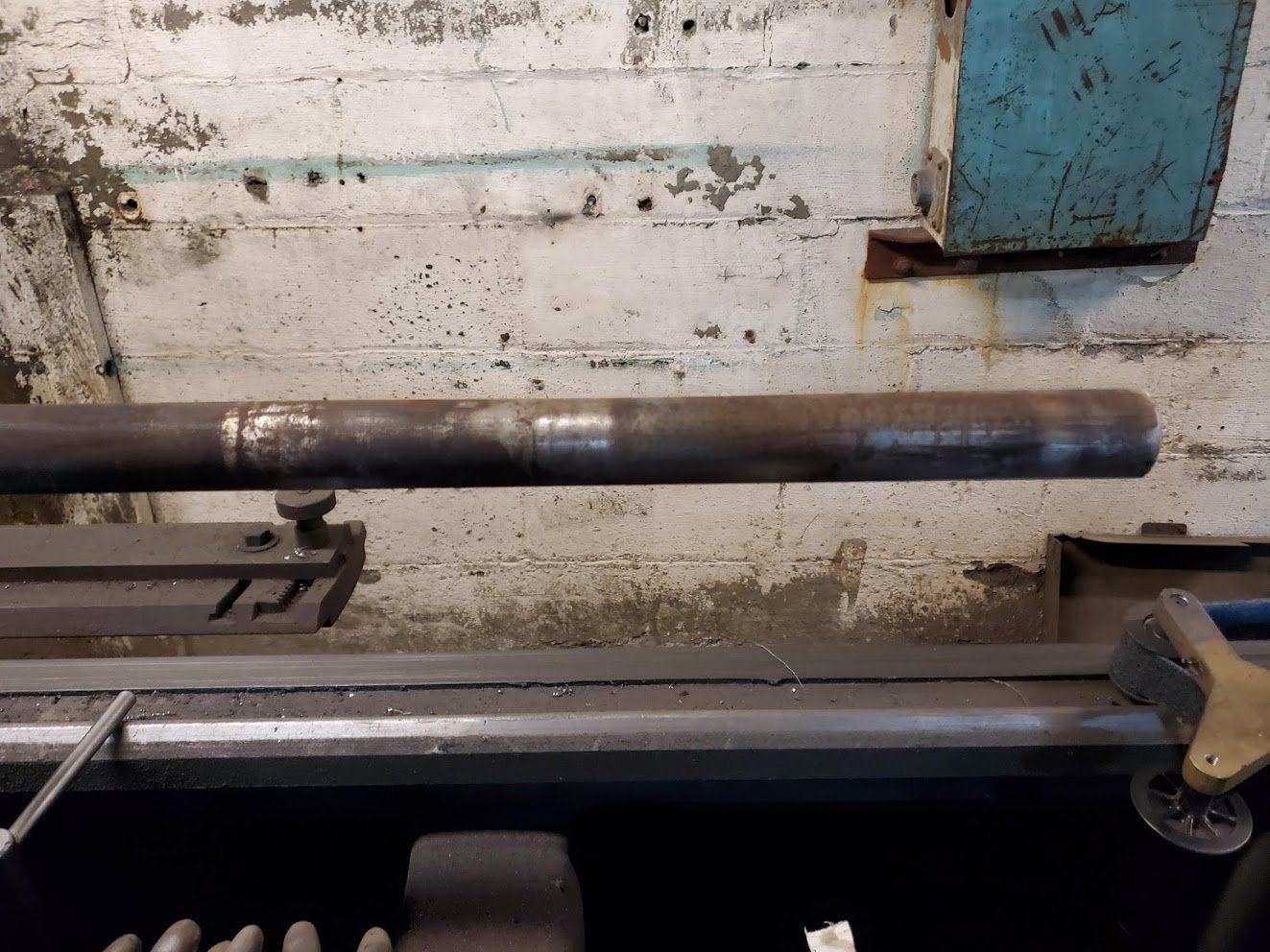

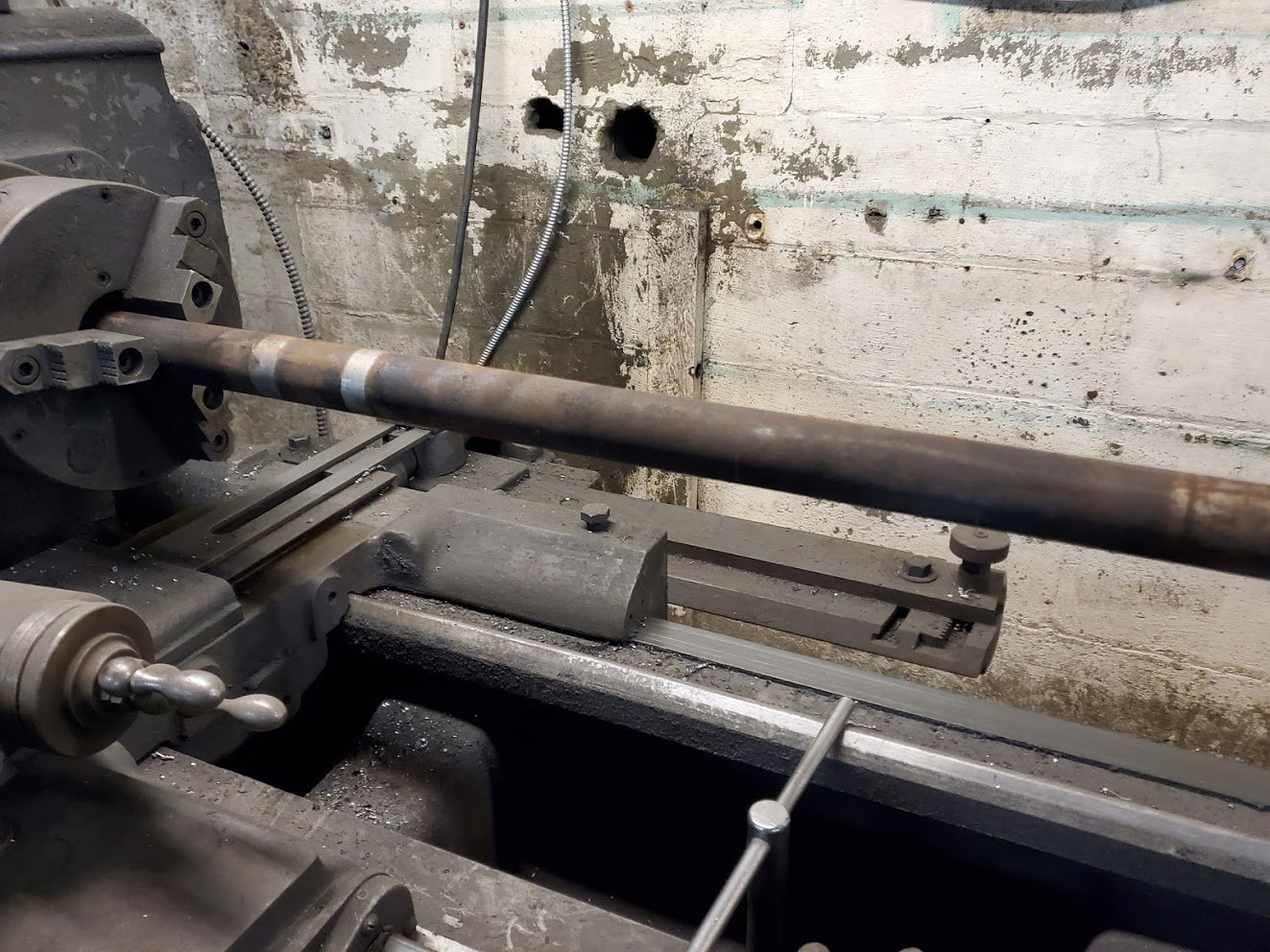

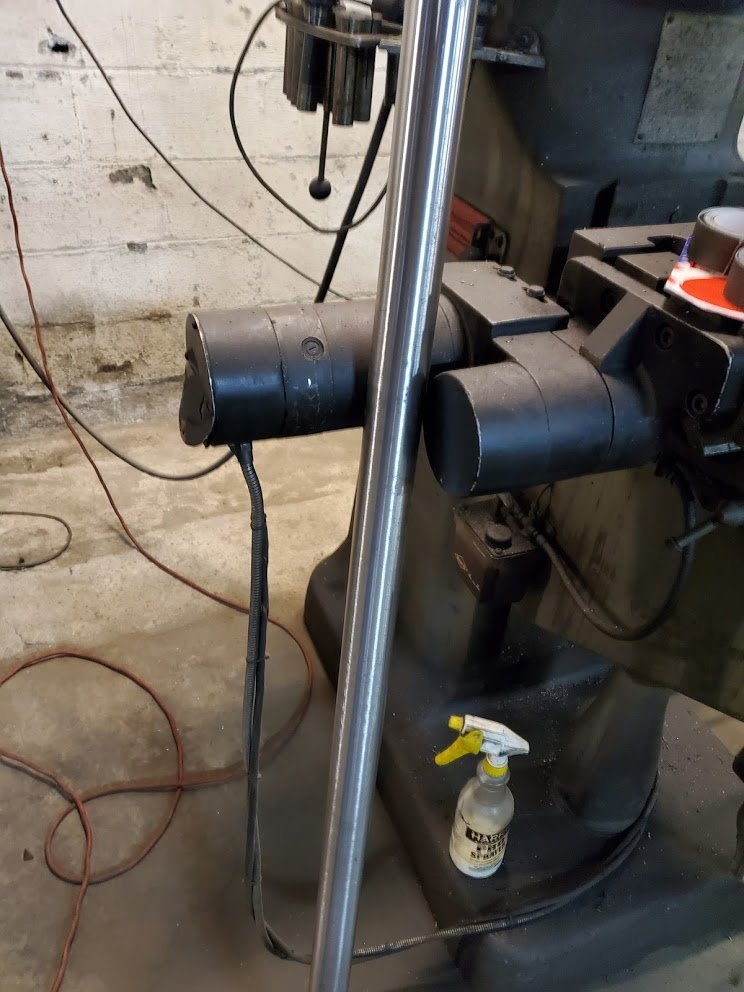

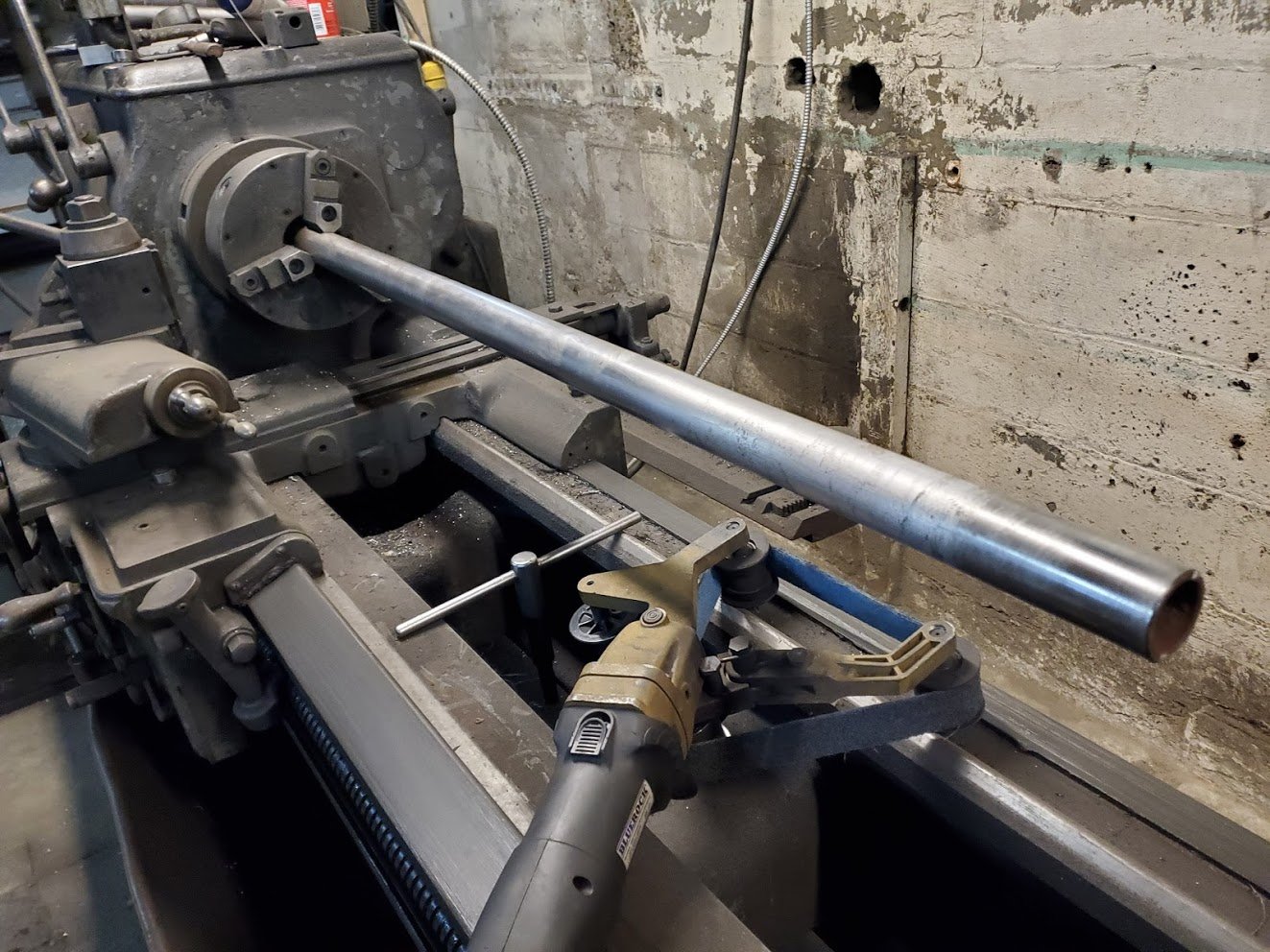

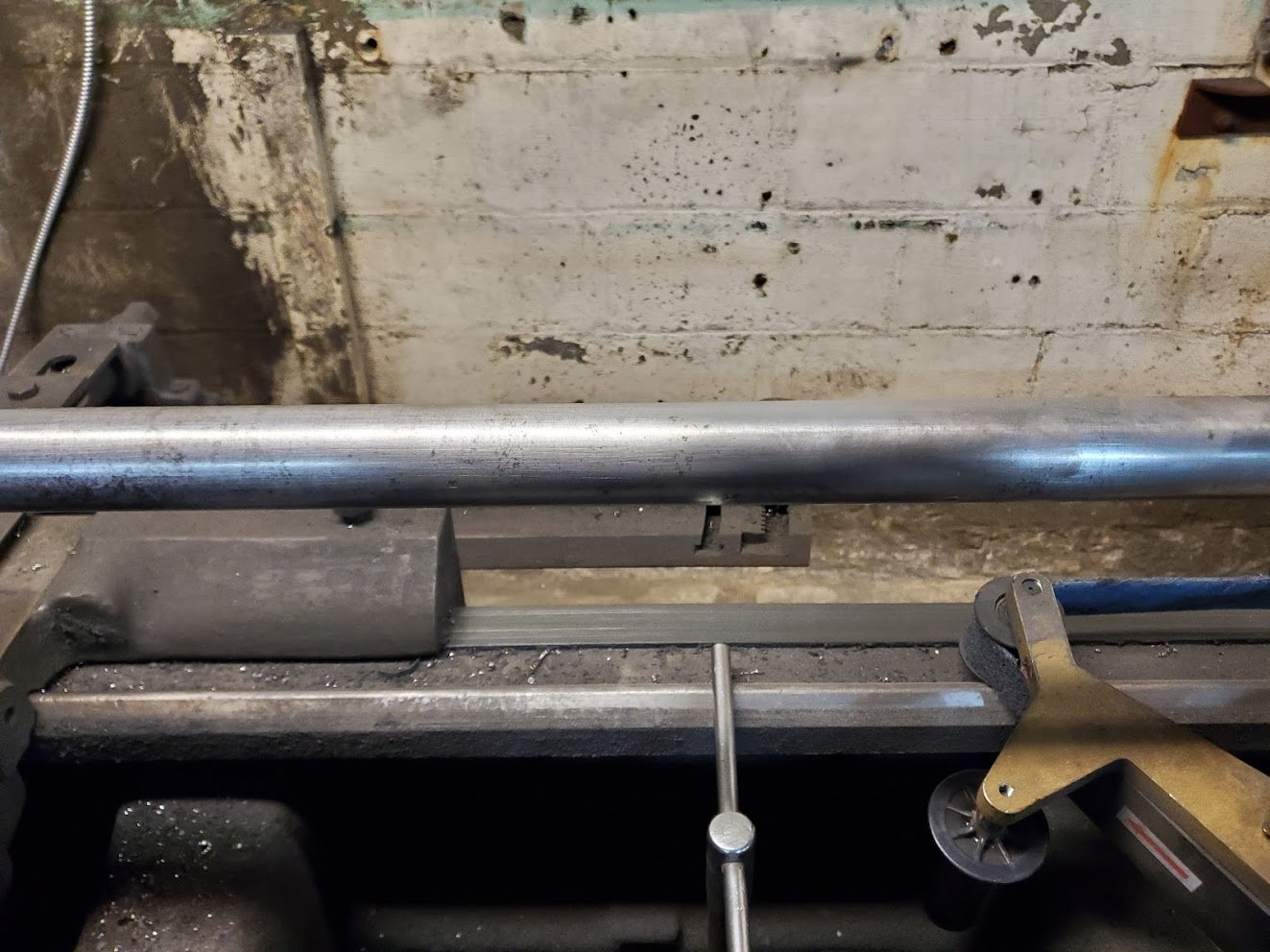

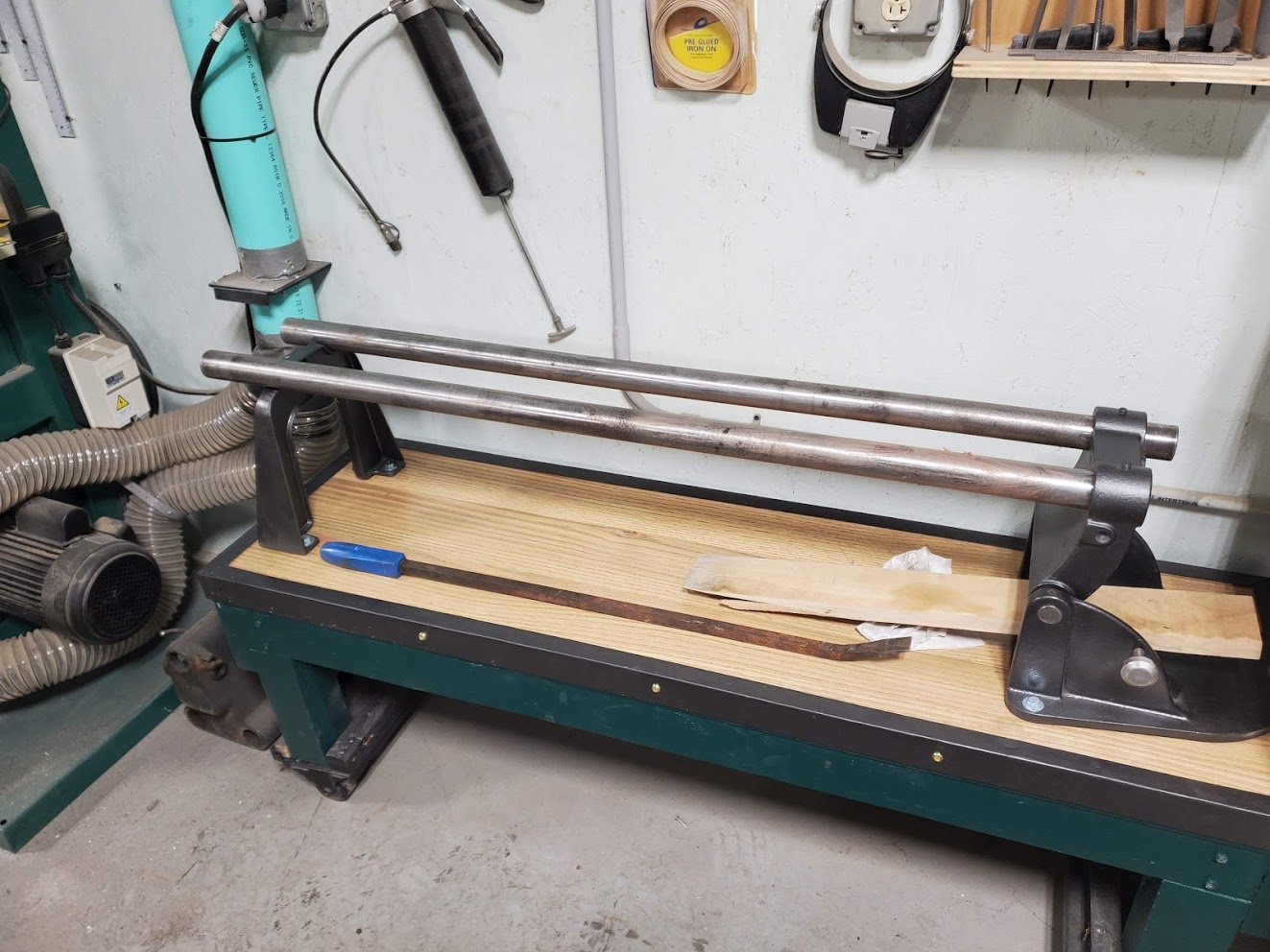

Very good day today. I was able to get over to the machine shop and cleanup the way tubes that I have. The one set looks really great, the set that was on my father's machine not so much. From a distance they look OK but there is extensive pitting in both tubes. I expected some but what can I say it was in Three ( 3 ) fires in the past 70 some years. I just set them in place and got wax onto them. Tomorrow I will do final assembly. Yippy!!!!!!!!!!!! The pics are before and after. More pics after it is all assembled. Later Guys.
Top
Charger1966
Gold Member
Posts: 26
Joined: Wed Nov 18, 2020 11:02 am

Re: 10ER coming Apart

Post by Charger1966 »

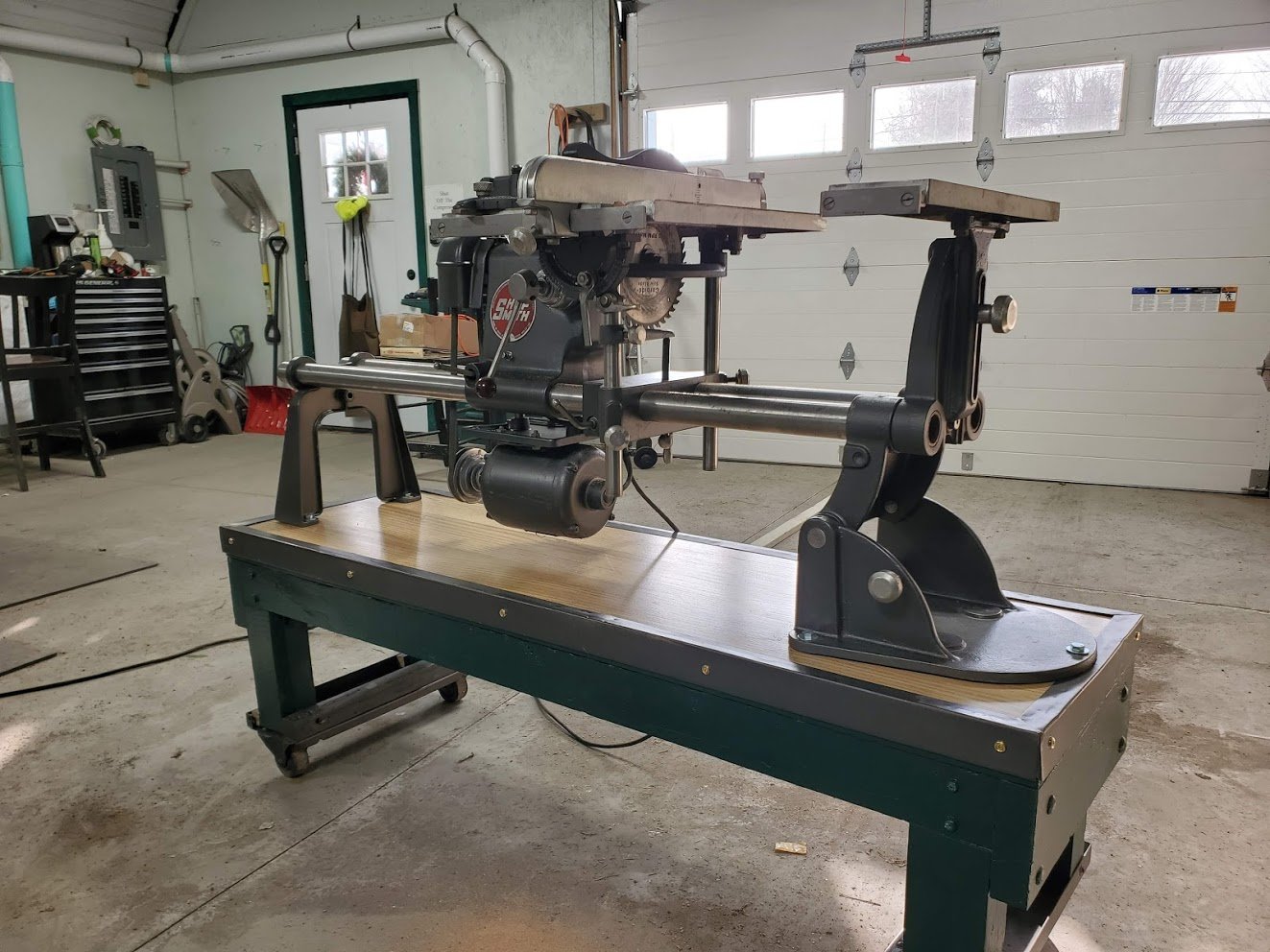

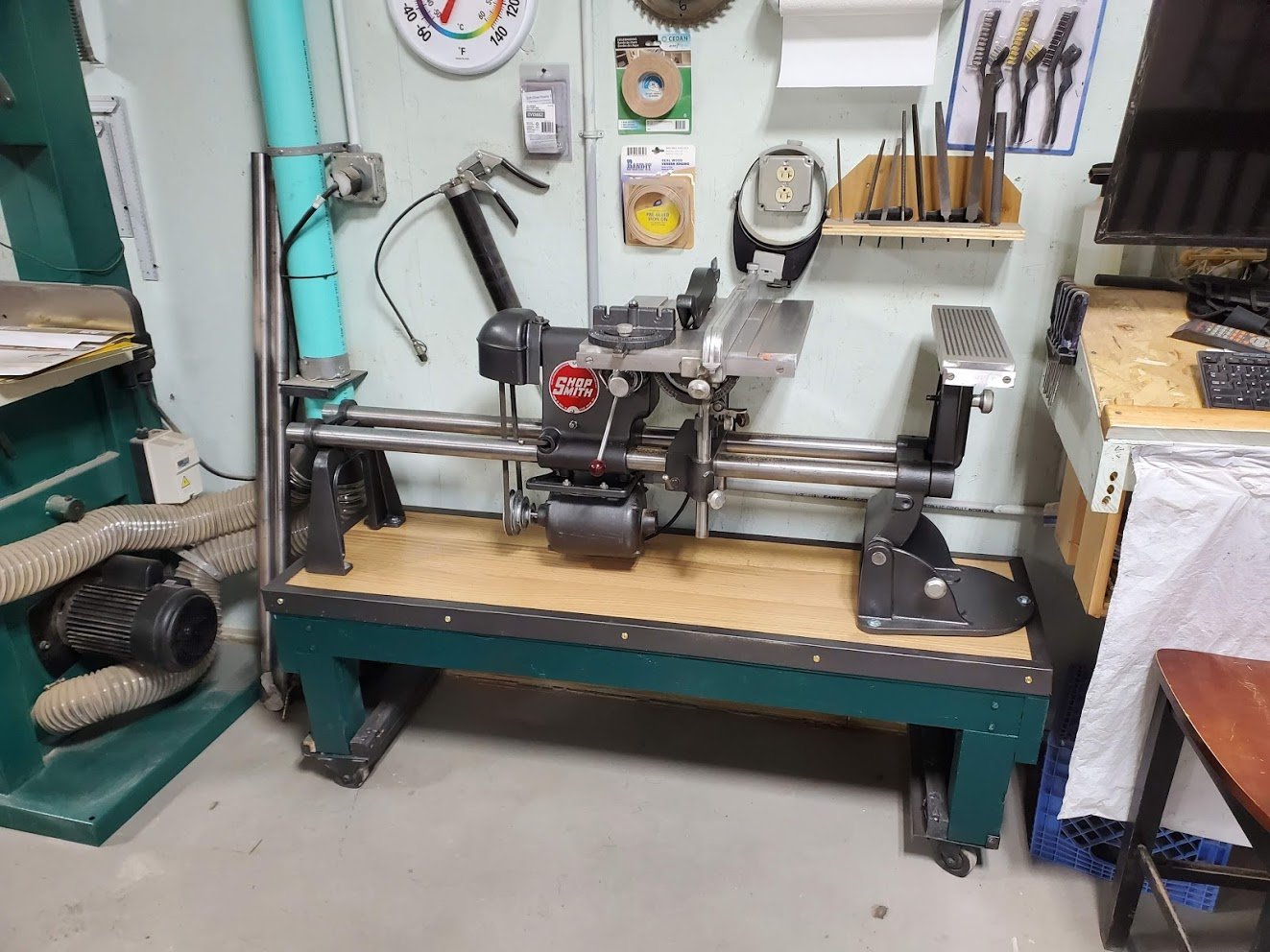

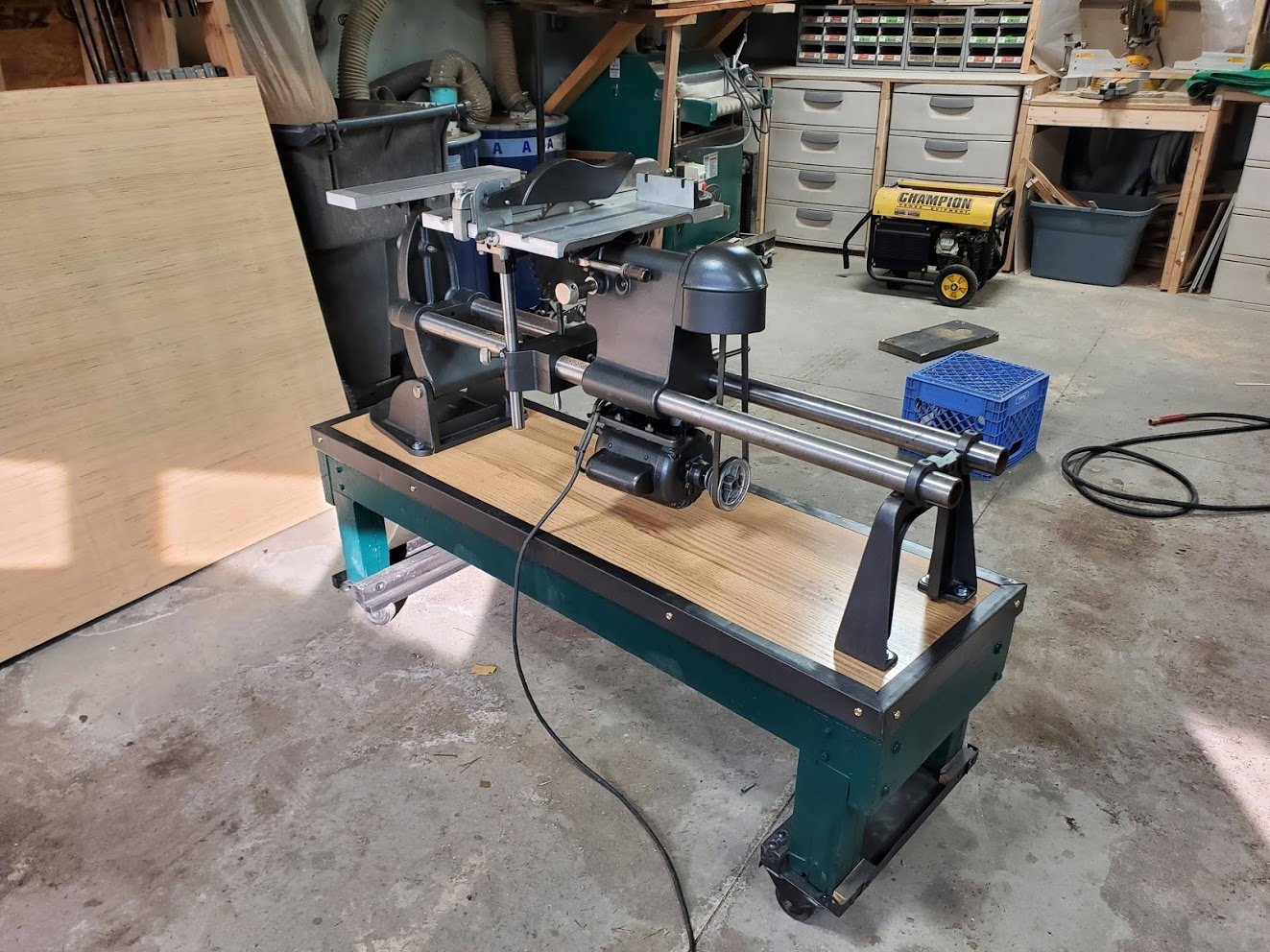

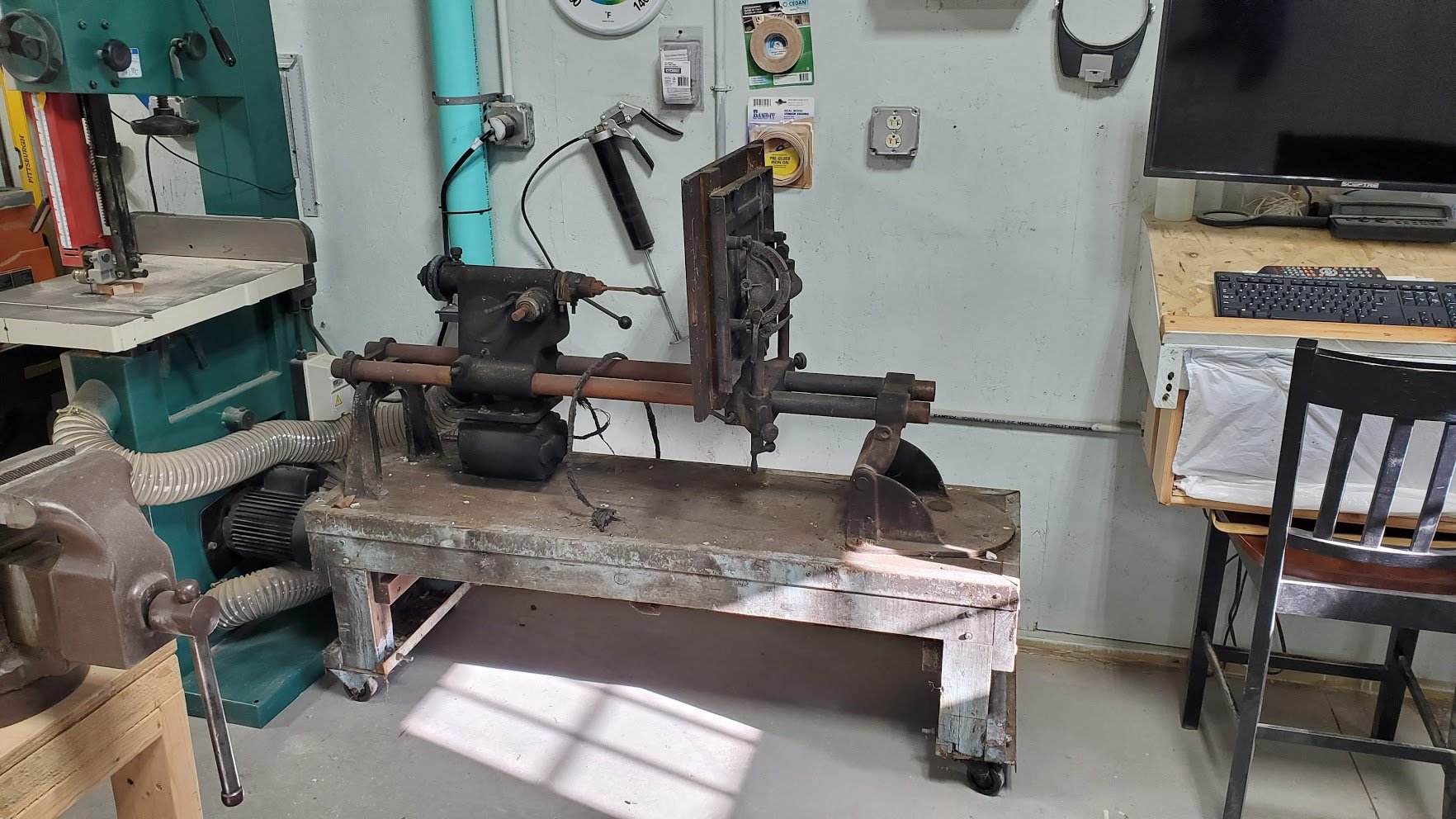

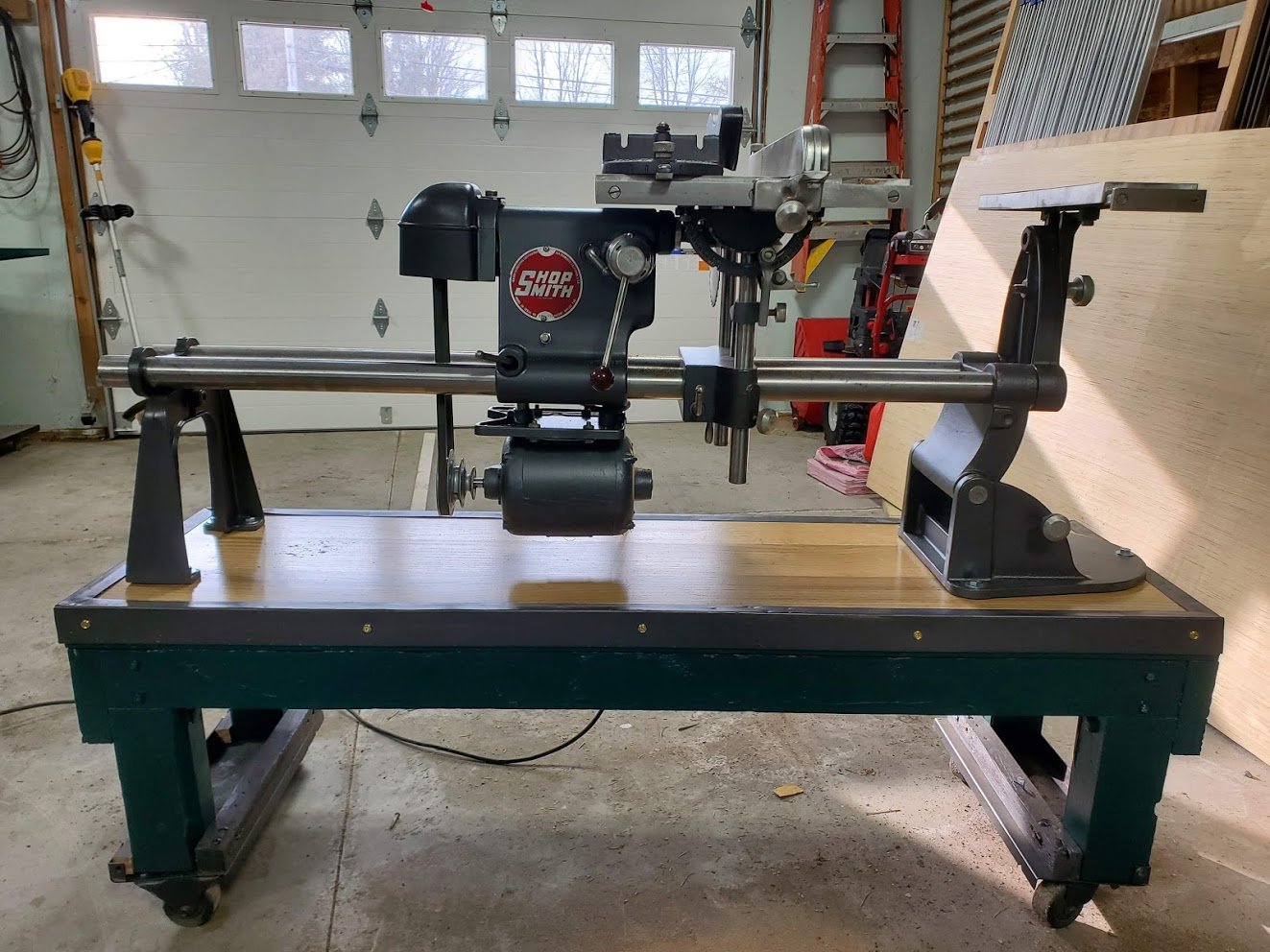

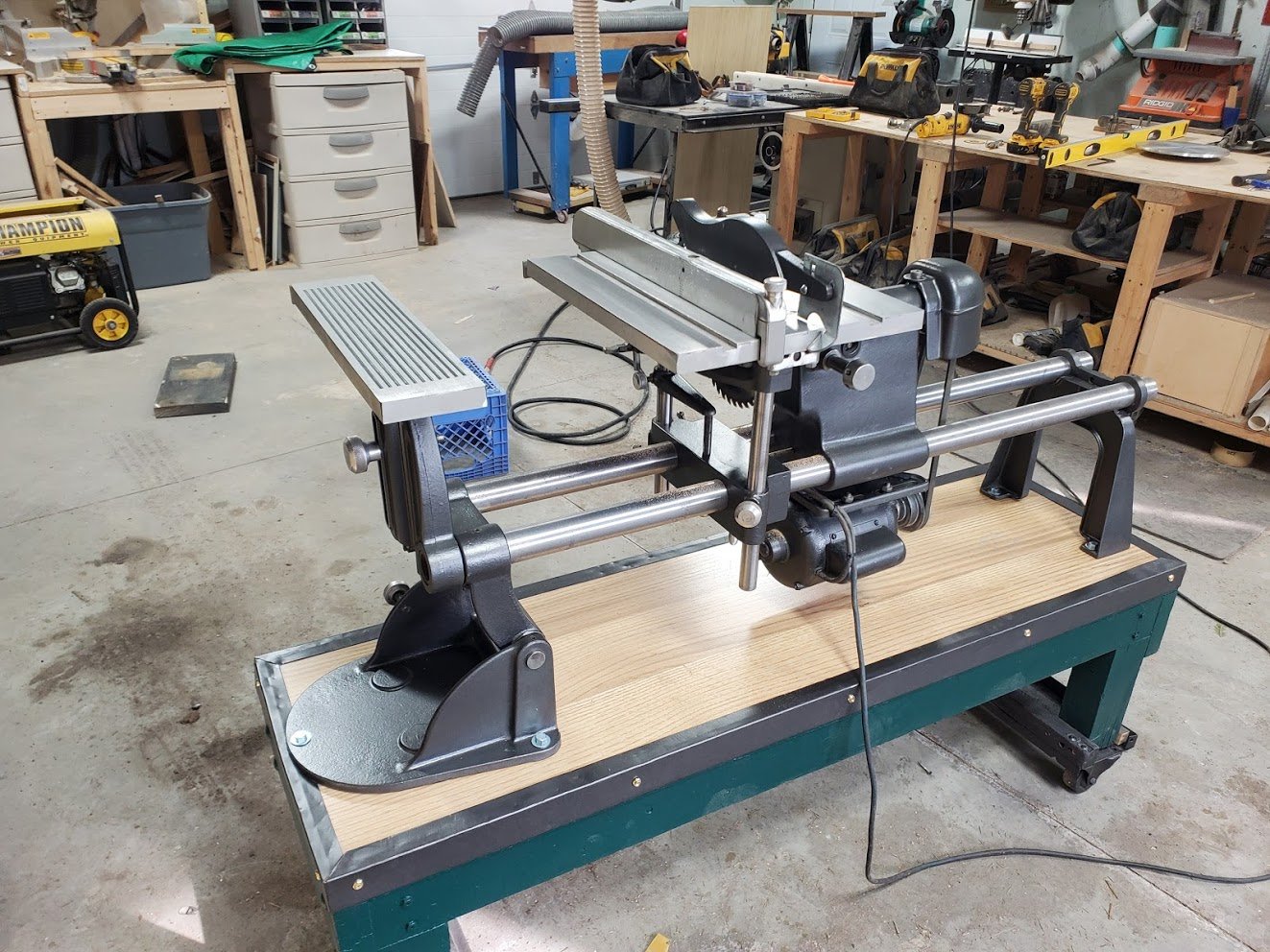

OK Guys and Gals, my Shopsmith is now completed except for a few little things I want to clean up and paint. Enjoy the pictures. I also posted a before picture. Thanks for all your help and knowledge in helping me get this far. Merry Christmas Everyone.
Attachments
Top
User avatar
JPG
Platinum Member
Posts: 35451
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Re: 10ER coming Apart

Post by JPG »

Your garage is just to damn small!!!
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Top
Charger1966
Gold Member
Posts: 26
Joined: Wed Nov 18, 2020 11:02 am

Re: 10ER coming Apart

Post by Charger1966 »

JPG wrote: ↑Tue Dec 22, 2020 6:22 pm Your garage is just to damn small!!!
I'm sorry but when I was building it in 2018 I couldn't go any larger due to $$$$$ constraints. LMAO. I know what you mean. LOL
Top
User avatar
jsburger
Platinum Member
Posts: 6553
Joined: Fri Jul 21, 2006 4:06 pm
Location: Hooper, UT

Re: 10ER coming Apart

Post by jsburger »

Very nice job! :D
John & Mary Burger
Eagle's Lair Woodshop
Hooper, UT
Top
User avatar
BuckeyeDennis
Platinum Member
Posts: 3802
Joined: Tue Jul 24, 2012 10:03 pm
Location: Central Ohio

Re: 10ER coming Apart

Post by BuckeyeDennis »

Merry Christmas, Charger, you’ve done your Dad proud! :) :cool:
Top
User avatar
rpd
Platinum Member
Posts: 3045
Joined: Tue Apr 05, 2011 3:22 am
Location: Victoria, B.C.

Re: 10ER coming Apart

Post by rpd »

Wow, that is spectacular. :)
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
Top
User avatar
chapmanruss
Platinum Member
Posts: 4216
Joined: Tue Aug 26, 2014 8:16 pm
Location: near Portland, Oregon

Re: 10ER coming Apart

Post by chapmanruss »

Wonderful job on the restoration of your father's Model 10ER. It's amazing what these tools can go through and still come out looking great. Enjoy your "new" Shopsmith.
Russ

Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Top
