Universal arbor observations

Post by larryhrockisland »

Thanks to Russ for the post identifying Shopsmith arbors, viewtopic.php?p=260771#p260771. I think I have a 505506 version 2 and version 4.
IMG_2657 (Custom).JPG
IMG_2657 (Custom).JPG (355.78 KiB) Viewed 1347 times
The next picture adds a 555608 to the mix just to compare the left side blade registration to the headstock, whether a standard blade or dado set. Registrations are the same.
IMG_2686 (Custom).JPG
IMG_2686 (Custom).JPG (339.65 KiB) Viewed 1347 times

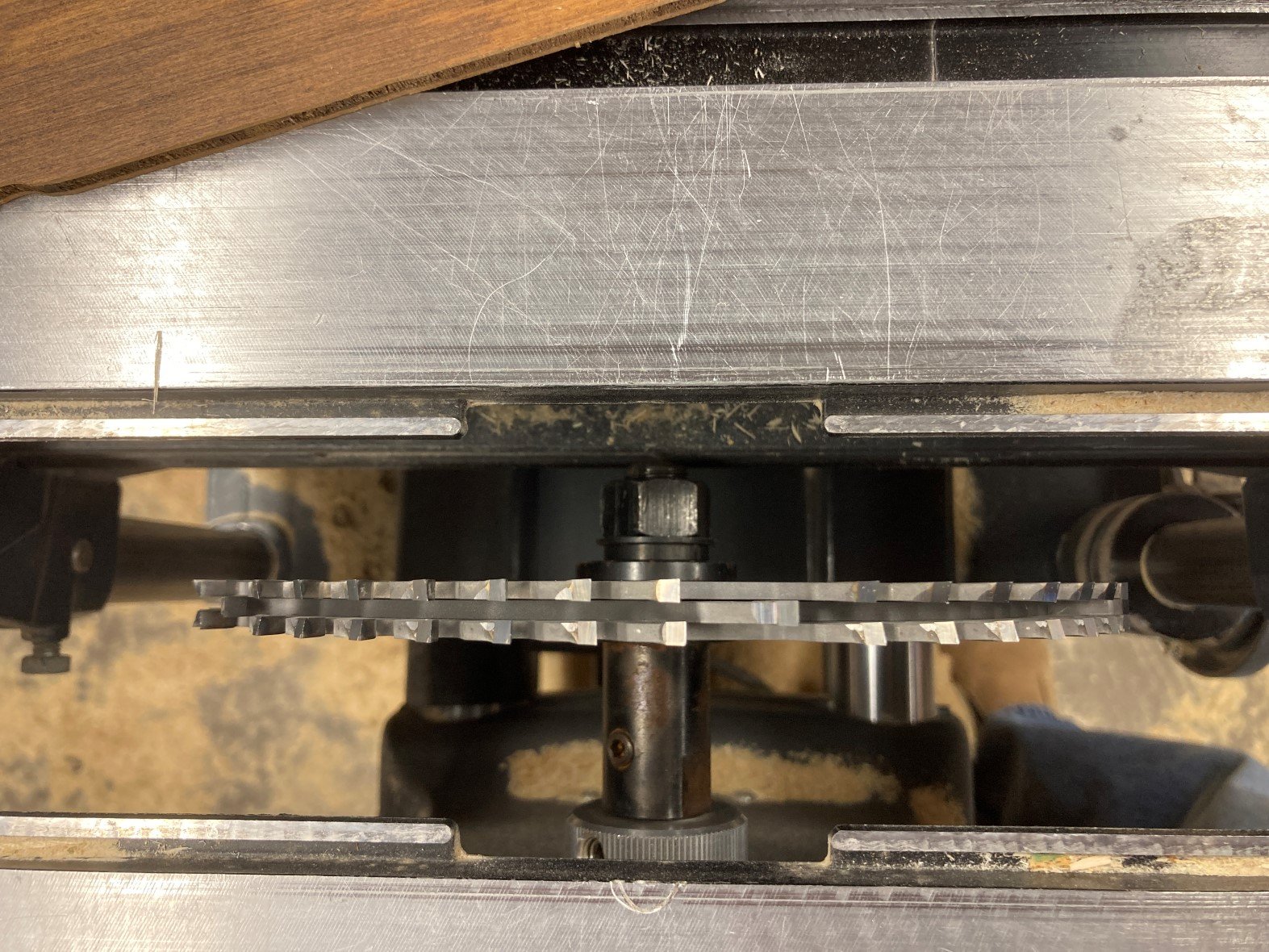

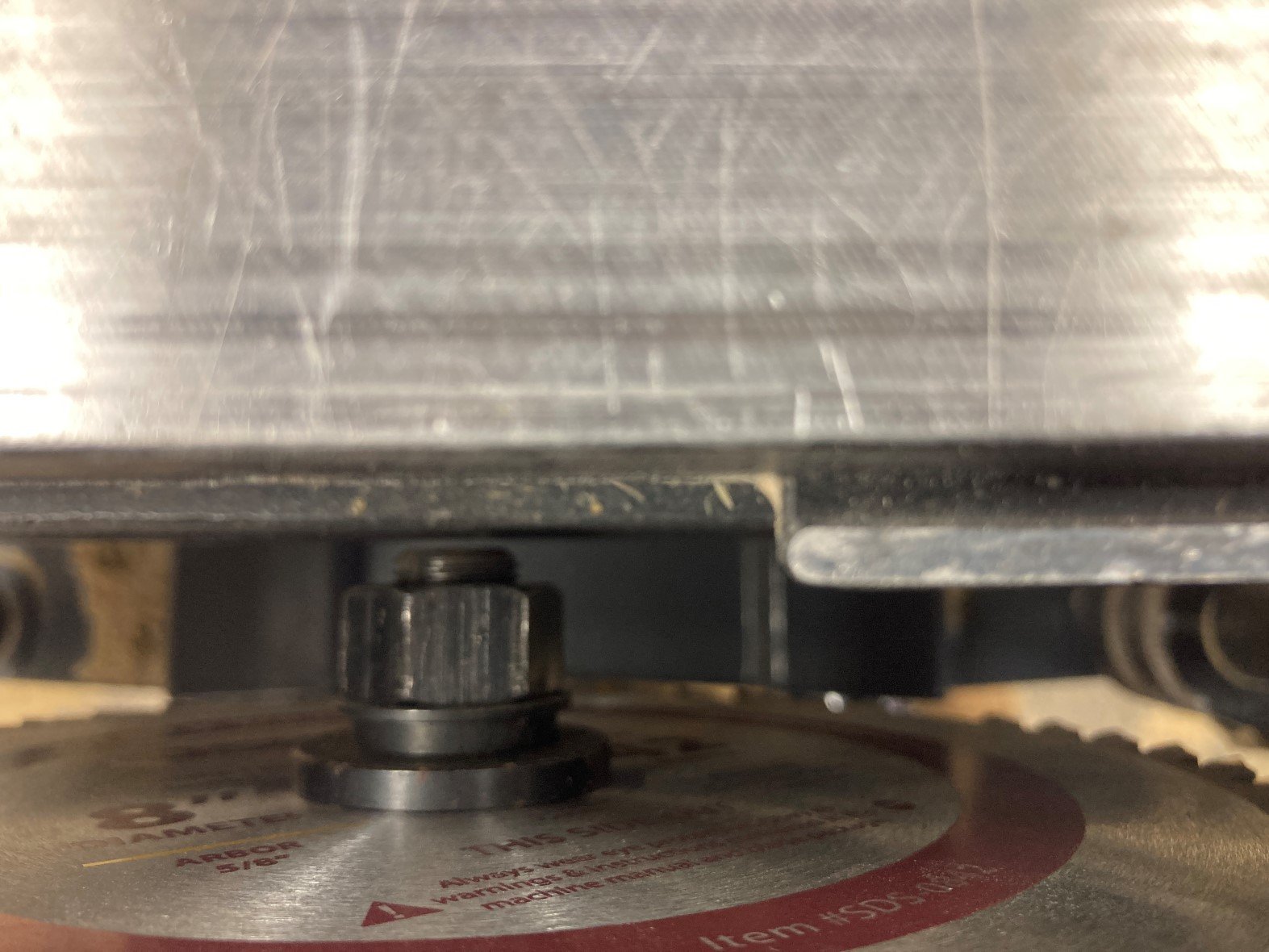

The universal arbor version 2 will clear the tie bar when the headstock is against the rubber bumper but the version 4 will not and has to be manually adjusted. This is not a problem unless you made your zero clearance insert using version 2 and then use version 4 the next time around like me :o . I didn't get a picture of version 4 mounted. I also believe any of the universal or dado arbors have to be set manually on Mark 5/500's. As a side note I noticed my 10ER universal arbors do not seat fully on the Mark 5 and up models, they bottom out on the shaft before seating against the spindle knob.
IMG_2665 (Custom).JPG
IMG_2665 (Custom).JPG (220.31 KiB) Viewed 1347 times

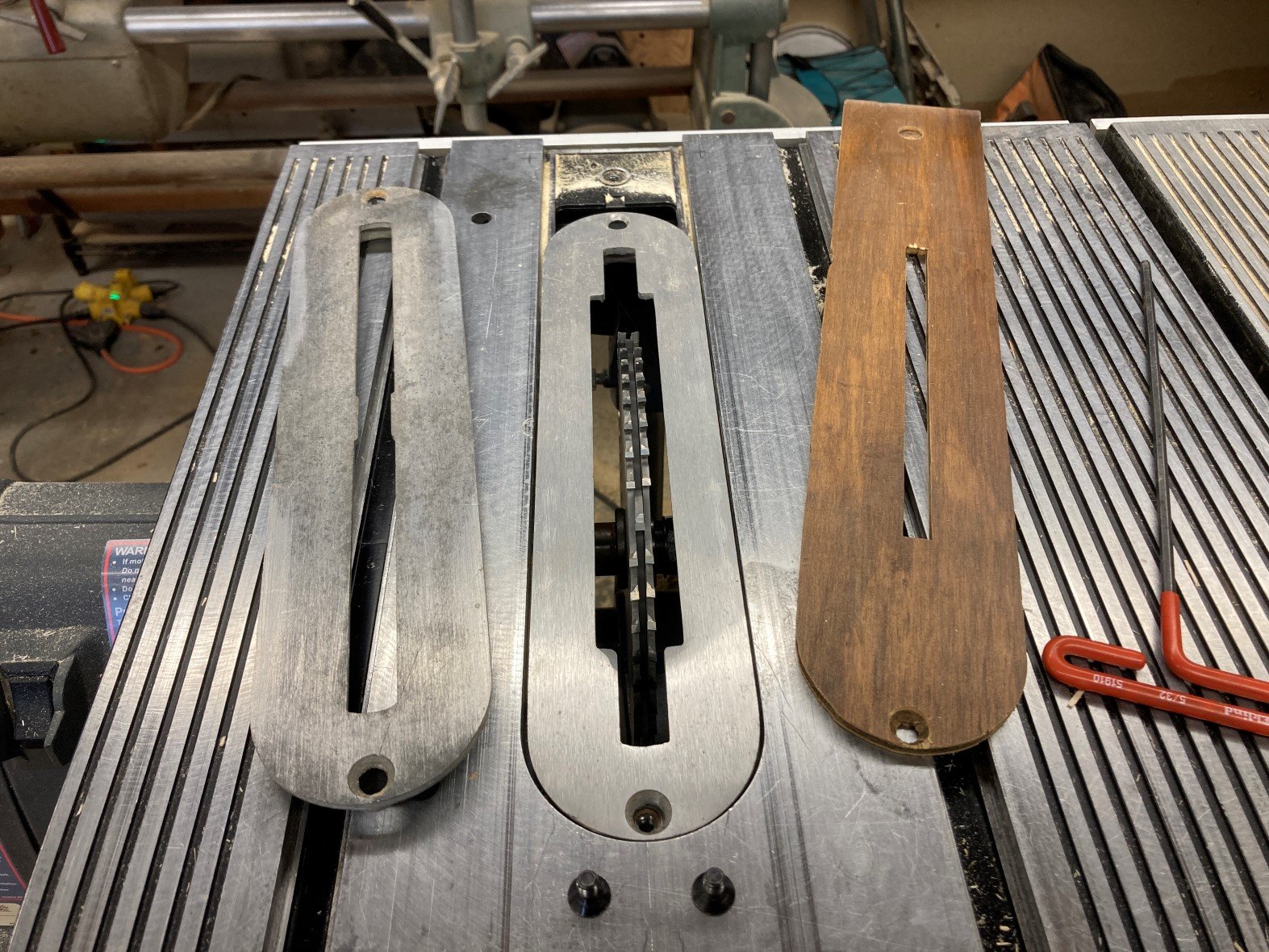

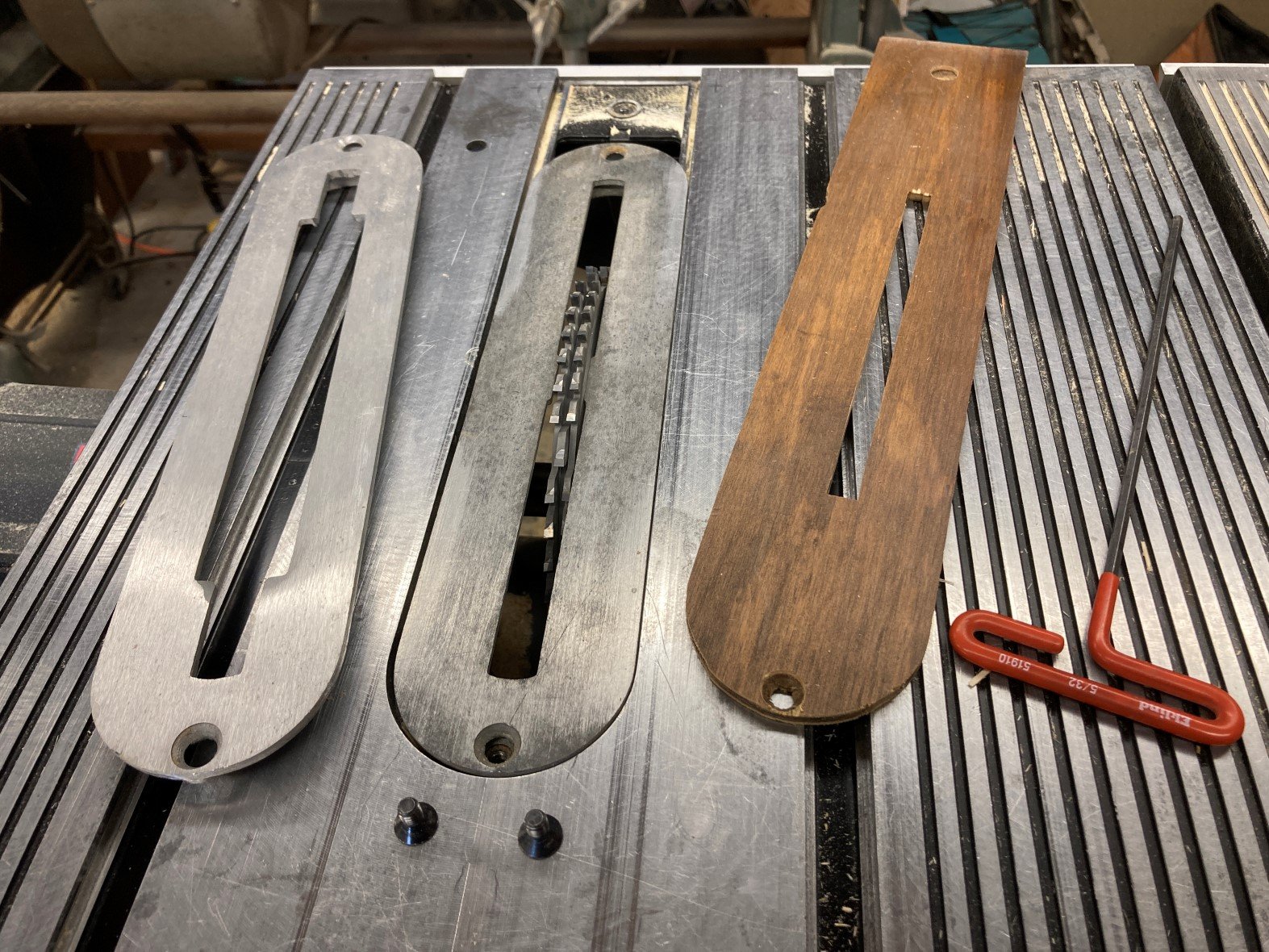

I don't have or can't find my 520 dado insert so I used my 500 stuff for the pictures. This is bumped against the rubber stop and using the universal arbor version 2. I know the dado set is rubbing the right side of the tablesaw insert but a regular blade would fit without issue. I usually use my own zero clearance inserts anyway. Back to setting up my dado for box joints
IMG_2672 (Custom).JPG
IMG_2672 (Custom).JPG (482.68 KiB) Viewed 1347 times
IMG_2673 (Custom).JPG
IMG_2673 (Custom).JPG (496.31 KiB) Viewed 1347 times
