A-34 Jigsaw Mounting Bolt
Moderator: admin
Re: A-34 Jigsaw Mounting Bolt
Thanks again folks!
Bill
Shopsmith 10ER that belonged to my dad and that I used growing up. Unknown if he was the original owner. Missing original logo plate so unknown serial number.
Shopsmith 10ER that belonged to my dad and that I used growing up. Unknown if he was the original owner. Missing original logo plate so unknown serial number.
-
chapmanruss
- Platinum Member
- Posts: 4233
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: A-34 Jigsaw Mounting Bolt
In my first post here, I showed a picture of the Mounting Bolt and Spacer. The picture below includes a non-OEM Mounting Bolt I received with a Jig Saw. It is the one on the left. You can see the difference in the overall length of the bolt and the length of the threaded end. This bolt can be used but does require washers to use as spacers. Without spacers the bolt does come in contact with the Drive Sleeve Spacer inside the Headstock before the Jig Saw is tightly mounted. This non-OEM Bolt can easily be spotted, when seen on its own, by the difference in the bolt's smooth sided head.
_
_
- Mounting Bolts.jpg (336.22 KiB) Viewed 159 times
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Re: A-34 Jigsaw Mounting Bolt
So now that I have a bolt thanks to a kind soul, I have a new problem. One of the leveling set screws is seized completely.
The slotted head is chewed up a bit so I’m concerned about using too much force on it. I’ve treated it with penetrating oil several times and used a rubber mallet to try loosening it, all to no avail. I am extremely hesitant to try drilling it out because I’m certain to damage the threads at the very least.
Does anyone have a suggestion as to how to get this thing out?
The slotted head is chewed up a bit so I’m concerned about using too much force on it. I’ve treated it with penetrating oil several times and used a rubber mallet to try loosening it, all to no avail. I am extremely hesitant to try drilling it out because I’m certain to damage the threads at the very least.
Does anyone have a suggestion as to how to get this thing out?
Bill
Shopsmith 10ER that belonged to my dad and that I used growing up. Unknown if he was the original owner. Missing original logo plate so unknown serial number.
Shopsmith 10ER that belonged to my dad and that I used growing up. Unknown if he was the original owner. Missing original logo plate so unknown serial number.
-
chapmanruss
- Platinum Member
- Posts: 4233
- Joined: Tue Aug 26, 2014 8:16 pm
- Location: near Portland, Oregon
Re: A-34 Jigsaw Mounting Bolt
Bill,
Can you post a picture of the Set Screw in the Main Frame? I may have suggestions based on what I see. In the meantime, continue with the penetrating oil.
Can you post a picture of the Set Screw in the Main Frame? I may have suggestions based on what I see. In the meantime, continue with the penetrating oil.
Russ
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Mark V completely upgraded to Mark 7
Mark V 520
All SPT's & 2 Power Stations
Model 10ER S/N R64000 first one I restored on bench w/ metal ends & retractable casters.
Has Speed Changer, 4E Jointer, Jig Saw with lamp, a complete set of original accessories & much more.
Model 10E's S/N's 1076 & 1077 oldest ones I have restored. Mark 2 S/N 85959 restored. Others to be restored.
Re: A-34 Jigsaw Mounting Bolt
I will post a photo this evening when I get home. Thanks, Russ.
Bill
Shopsmith 10ER that belonged to my dad and that I used growing up. Unknown if he was the original owner. Missing original logo plate so unknown serial number.
Shopsmith 10ER that belonged to my dad and that I used growing up. Unknown if he was the original owner. Missing original logo plate so unknown serial number.
Re: A-34 Jigsaw Mounting Bolt

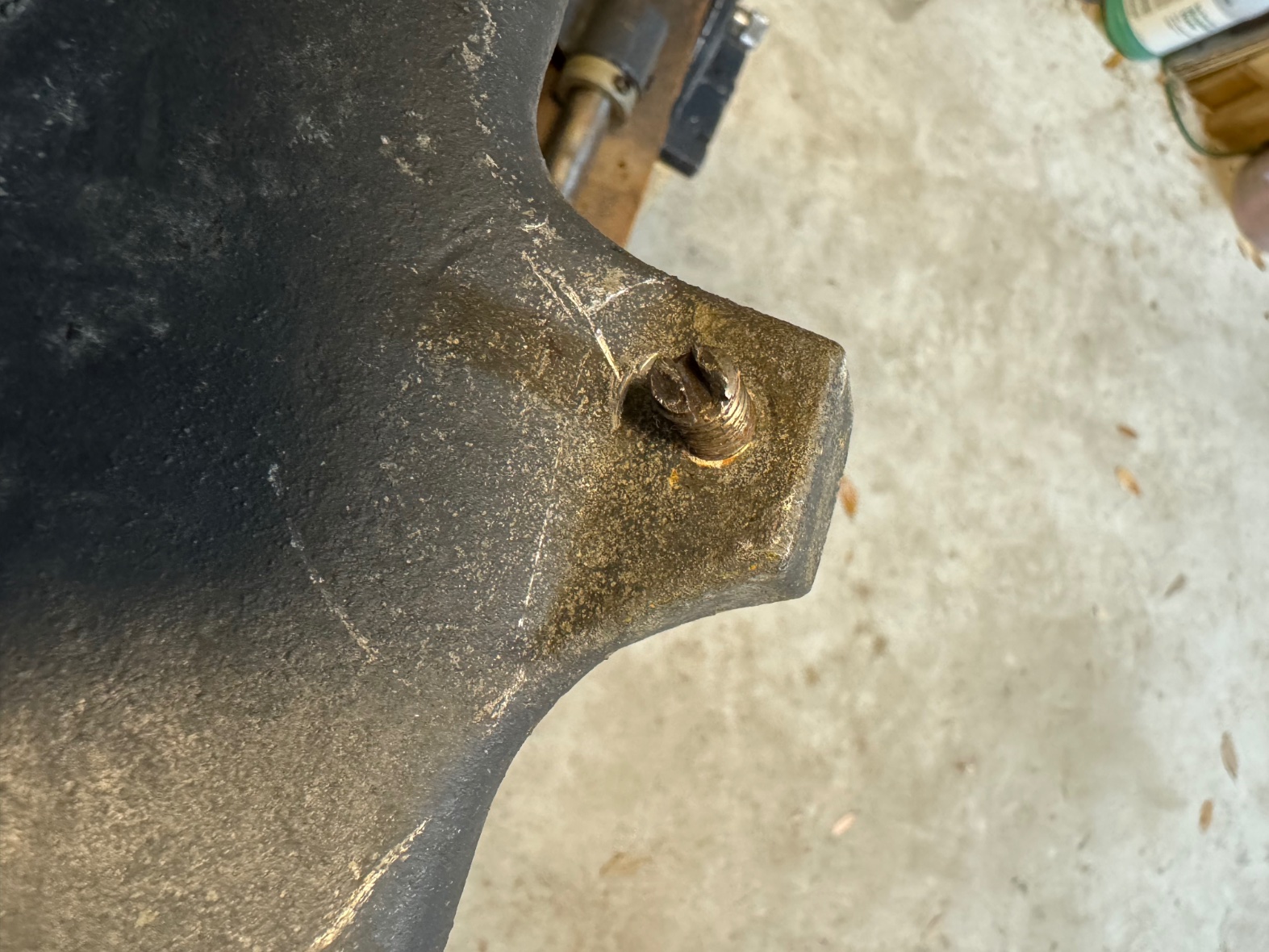

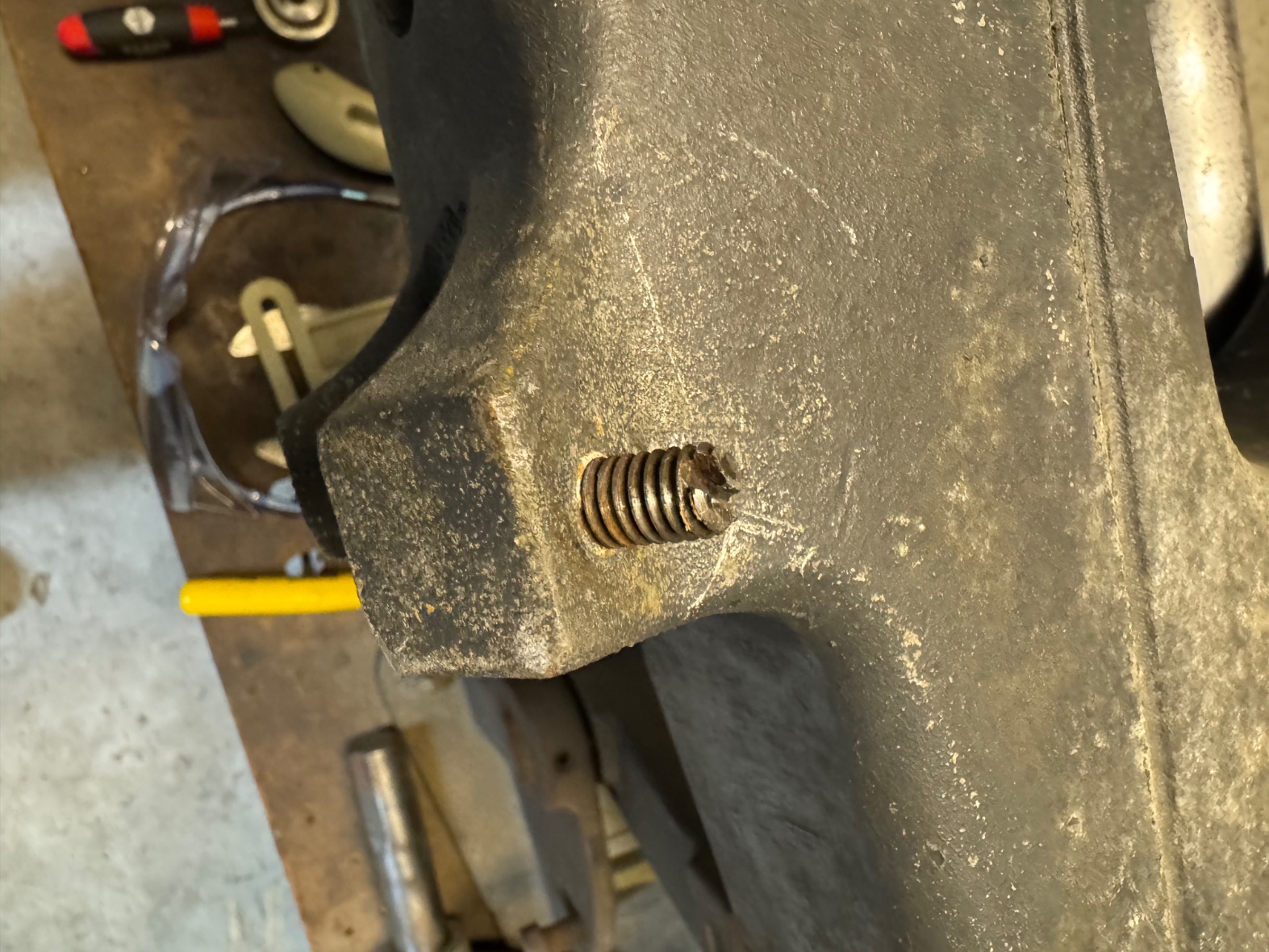

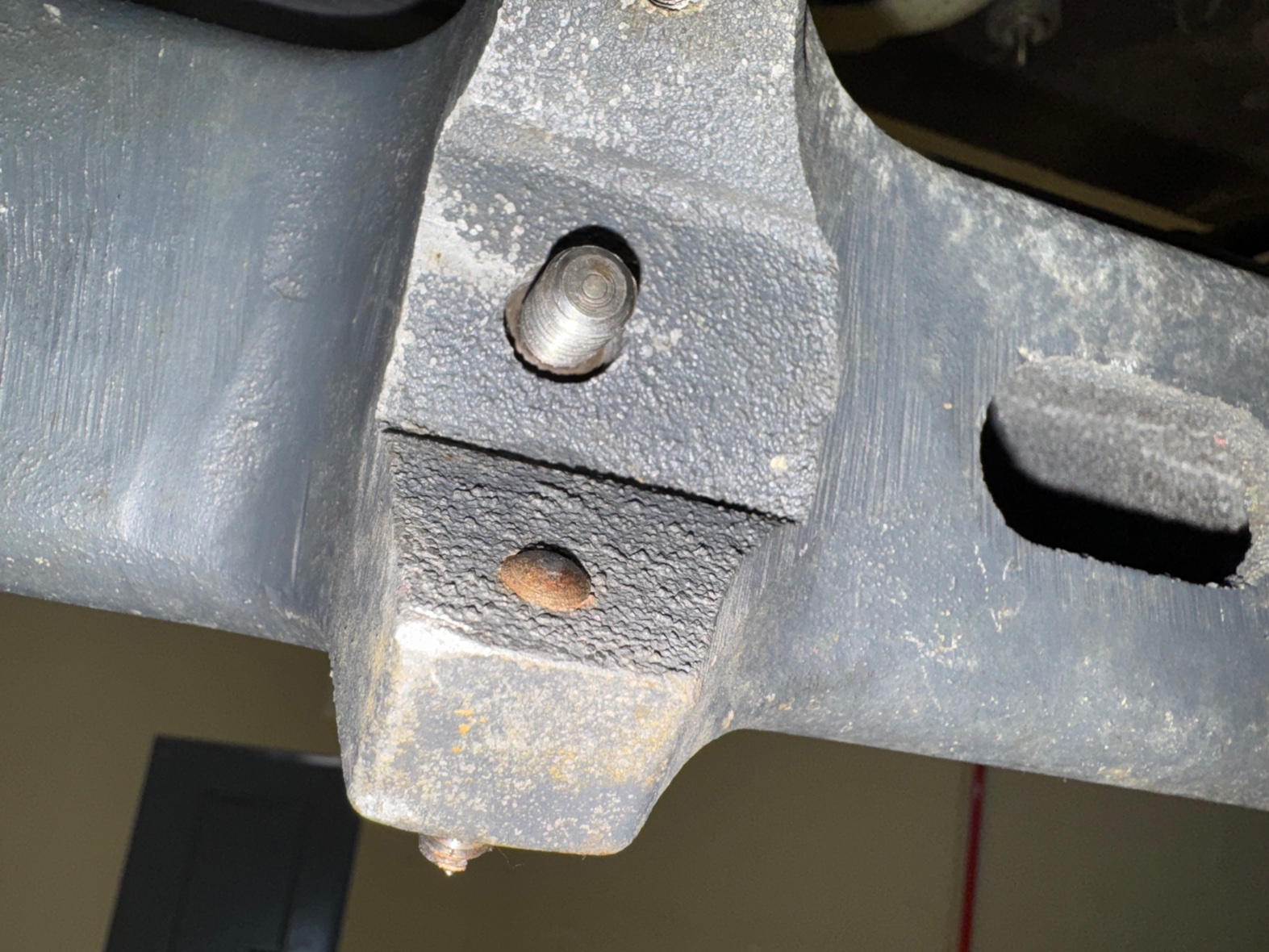

Here are a couple of different angles of the top and one of the bottom.
