Headstock Reassembly Upper Shaft(B)

[JPG]

This thread shows a method of reassembling the upper shaft into the headstock. This thread is the last of two.

[ATTACH]4991[/ATTACH]

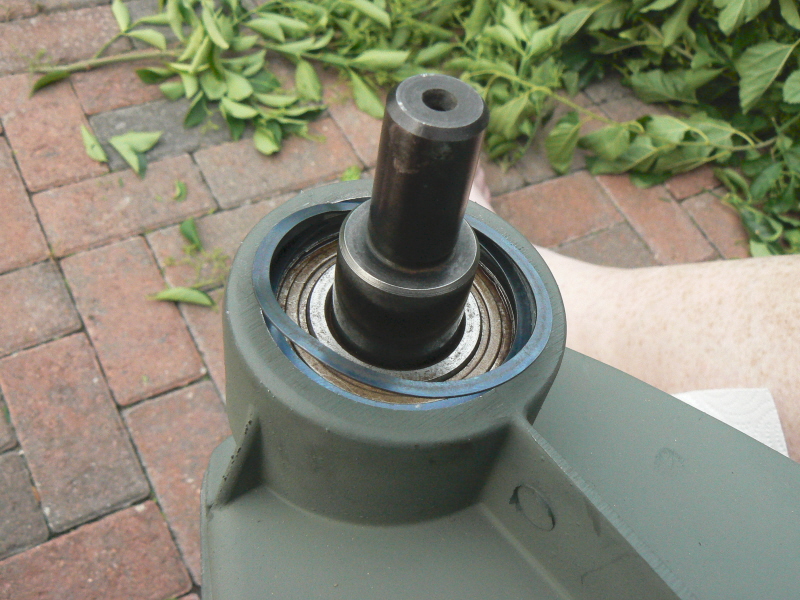

Make sure the shaft and bearings are seated all the way into the headstock. The back edge of the rear bearing should just clear the front edge of a groove at the back of the bore. Start the retaining spring into this groove. Start with the end and rotate it around while applying pressure so the end inserted does not come out.

[ATTACH]4992[/ATTACH]

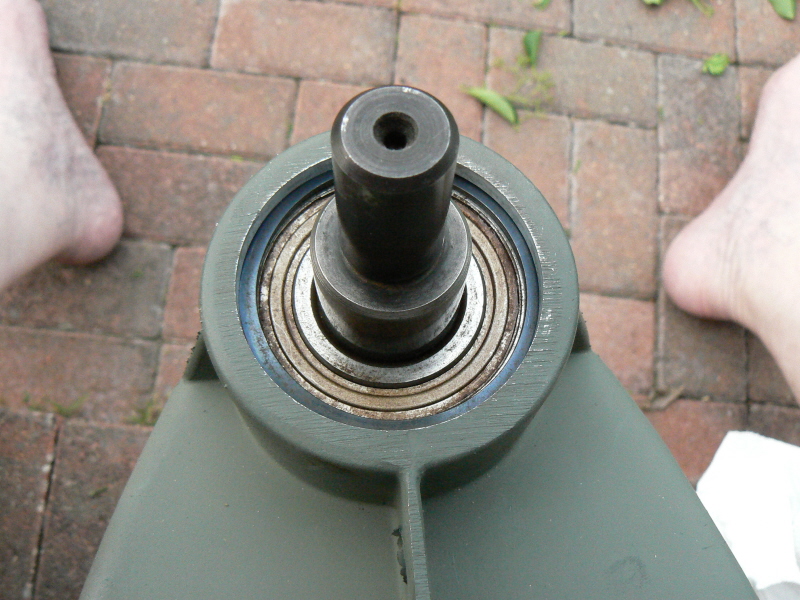

This shows the retaining spring completely installed. Make sure the entire spring seats into the groove.

This thread is intended to be ONE of several showing reassembly of a disassembled headstock. A single thread titled Headstock Reassembly https://forum.shopsmith.com/viewtopic.php?t=3765 links to all of these threads. These threads will be edited as necessary to correct any errors or confusion.

This is the last thread of 2 showing upper shaft reassembly.
