10" Blade Storage

dholtby · Post by **dholtby** » Sat Jul 28, 2007 12:17 am

A few years ago (2-3) I saw a home made blade storage unit for safely storing ShopSmith 10" saw blades with arbors attached. Is there any chance anyone remembers seeing this and have an idea where I might find at least a picture of same?

a1gutterman · Post by **a1gutterman** » Sat Jul 28, 2007 1:26 am

Hi dholtby,

I recall seeing, on this forum, a thread, that included a post, that even had at least one picture, of the saw blade holder that you described. There may even have been plans with it. I just did a search through the forum and could not locate it. It may be in a thread that has a title unrelated to the blade rack. (A very good example of why new threads should be started when a new subject is introduced) If I remember correctly, it hangs on the wall with seperate slots for each blade that overlap each other, sort of like a bill holder or magazine rack. Too bad this forum doesn't have a search engine to look for stuff in itself.

If you take the time to go through every thread:eek: , I am sure that you will find it!:)

dusty · Post by **dusty** » Sat Jul 28, 2007 6:16 am

It is here on this forum. Finding it is the trick. I have and will continue to look. I even thought I remembered who posted but I can't find it.

Incidently, there is a search engine.

scottss · Post by **scottss** » Sat Jul 28, 2007 11:30 am

Here is a picture of mine. Sorry I can't find the plans right now.

alancooke · Post by **alancooke** » Sat Jul 28, 2007 11:36 am

I just bought a magazine from LOWE'S: 'Best ever Tips, Jigs & Organizers'.
Page 61 has just the blade organizer you described including pictures and dimensions. It holds blades, arbors and table inserts. Looks very simple. 3 pieces of wood, some saw cuts, and a few dowels!

This was put out by the editors of Woodmagazine so it might be on their web site http://www.woodmagazine.com

charlese · Post by **charlese** » Sun Jul 29, 2007 7:34 pm

dholtby wrote:A few years ago (2-3) I saw a home made blade storage unit for safely storing ShopSmith 10" saw blades with arbors attached. Is there any chance anyone remembers seeing this and have an idea where I might find at least a picture of same?

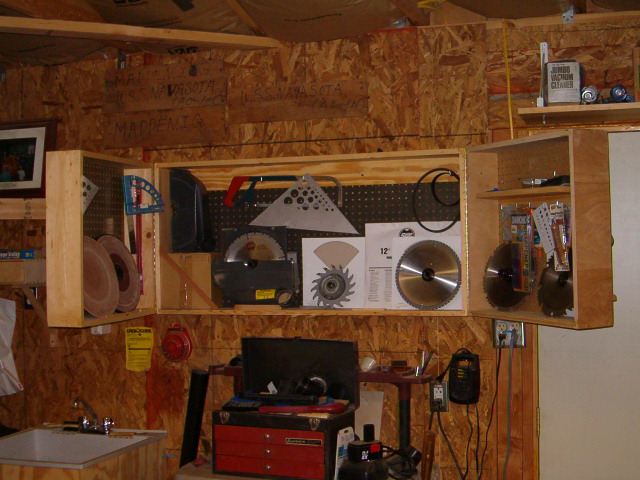

Here's a pix of mine. It is the Shopsmith "Workbench on a Wall" plan. As you can see it easily holds 5ea. saw blades with arbors, 2ea disk sanders (one conical - one flat), a supply of sanding disks and a bunch of other stuff. There are little cleats to make sure the blades do not jump loose in an earthquake. The thing I like about it the most is - when I want to change blades, I get the new blade and can put the used one it its place. (No, I didn't build the workbench part of the plan.[ATTACH]363[/ATTACH]

james.miller · Post by **james.miller** » Sun Jul 29, 2007 11:46 pm

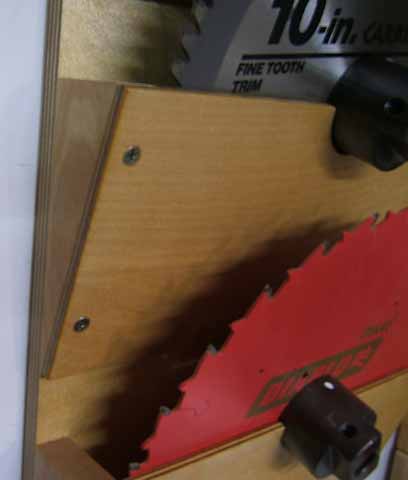

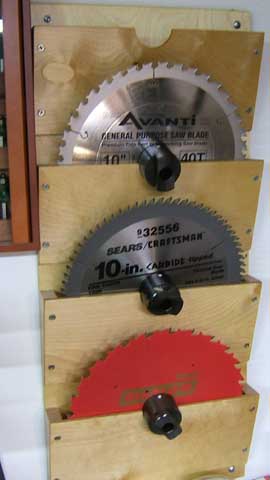

Here are photos of the blade holder I built, I like it because it hangs on the wall out of the way.

[ATTACH]365[/ATTACH]

[ATTACH]364[/ATTACH]

a1gutterman · Post by **a1gutterman** » Mon Jul 30, 2007 12:41 am

Hi Jim,

Have you posted these pic's before? This looks just like the one that I remember seeing: I have spent hours looking for it!

Hi dholtby,

This is the one that I was talking about. It can easily be sized to fit different amounts of blades and even your sanding disks too!

james.miller · Post by **james.miller** » Mon Jul 30, 2007 11:38 pm

Yes I have posted it before but couldn't find it either. There is 1.5" between each blade holder. The wedge shaped side piece is 5" tall, 1&5/8" wide at the top and 1/8" wide at the bottom.

reible · Post by **reible** » Tue Jul 31, 2007 1:39 am

The "missing post":
http://www.shopsmith.net/forums/showpos ... stcount=21

Just got to know where to look.

Ed
