Binding table height adjustment

pgroebuck · Post by **pgroebuck** » Tue Feb 09, 2010 1:01 am

The table on my 500 binds when I try to raise/lower it. As a result, I'm unable to lift the table out of the carriage to inspect the adjusting mechanism. Any advice on how to deal with this?

JPG · Post by **JPG** » Tue Feb 09, 2010 1:32 am

pgroebuck wrote:The table on my 500 binds when I try to raise/lower it. As a result, I'm unable to lift the table out of the carriage to inspect the adjusting mechanism. Any advice on how to deal with this?

Remove the table height crank/handle including the wingnut spacer etc. Push the square rod all the way out the back side. from underneath, push the pinion gears out. One of the pinion gear teeth may be broken causing the gear to jam in the rack(post). Support the table while doing this(the gears are what holds it up)!

fjimp · Post by **fjimp** » Tue Feb 09, 2010 4:25 pm

I purchased a 510 that was literally frozen. I dissembled as suggested. Then cleaned and lubricated with Johnson's original Paste Wax. Everything works perfectly. If waxed frequently everything works more smoothly. Jim

pgroebuck · Post by **pgroebuck** » Mon Feb 15, 2010 11:31 am

Pulled out the square rod but the pinion gears will not push out. One will rotate freely for about 1/8 turn, but I can't get it to come out. I've tried lightly tapping it on the inside but no luck. Is there something I'm missing?
Thanks

JPG · Post by **JPG** » Mon Feb 15, 2010 12:48 pm

pgroebuck wrote:Pulled out the square rod but the pinion gears will not push out. One will rotate freely for about 1/8 turn, but I can't get it to come out. I've tried lightly tapping it on the inside but no luck. Is there something I'm missing?
Thanks

Raise to vertical and 'look' from the 'inside' to ascertain what is preventing them from pushing out. Hopefully not a broken tooth!

pgroebuck · Post by **pgroebuck** » Tue Feb 23, 2010 12:00 am

That did the trick!
The pinion gears are damaged, and there is some damage to one or two grooves on the lift guides. Can damage to the lift guides be repaired with a little filing?
Thanks

JPG · Post by **JPG** » Tue Feb 23, 2010 2:06 am

pgroebuck wrote:That did the trick!
The pinion gears are damaged, and there is some damage to one or two grooves on the lift guides. Can damage to the lift guides be repaired with a little filing?
Thanks

Probably by filing if not too much is damaged on the high places.

michaeltoc · Post by **michaeltoc** » Tue Feb 23, 2010 6:28 am

pgroebuck wrote:That did the trick!
The pinion gears are damaged, and there is some damage to one or two grooves on the lift guides. Can damage to the lift guides be repaired with a little filing?
Thanks

Perhaps a picture would help assess the damage.

BigSky · Post by **BigSky** » Tue Feb 23, 2010 7:43 am

You don't need to force it. When every thing is right it will just slide in.

pgroebuck · Post by **pgroebuck** » Wed Feb 24, 2010 10:34 pm

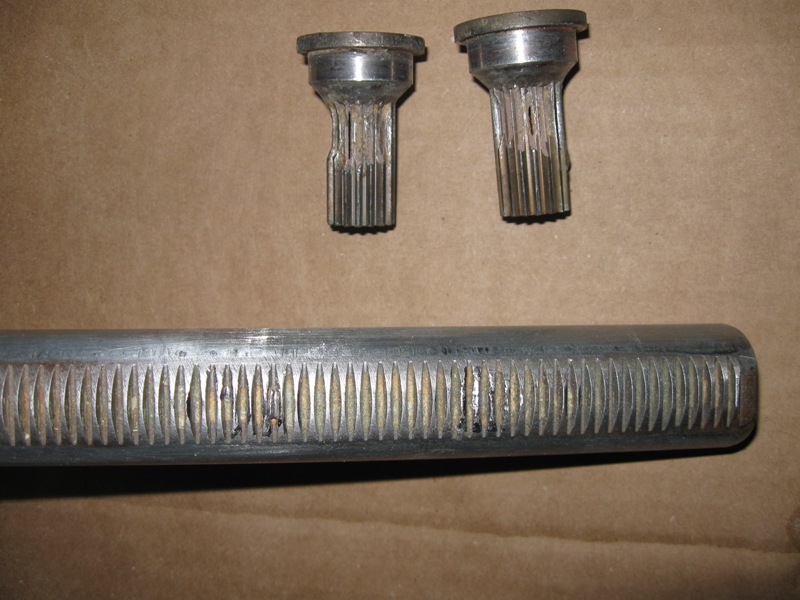

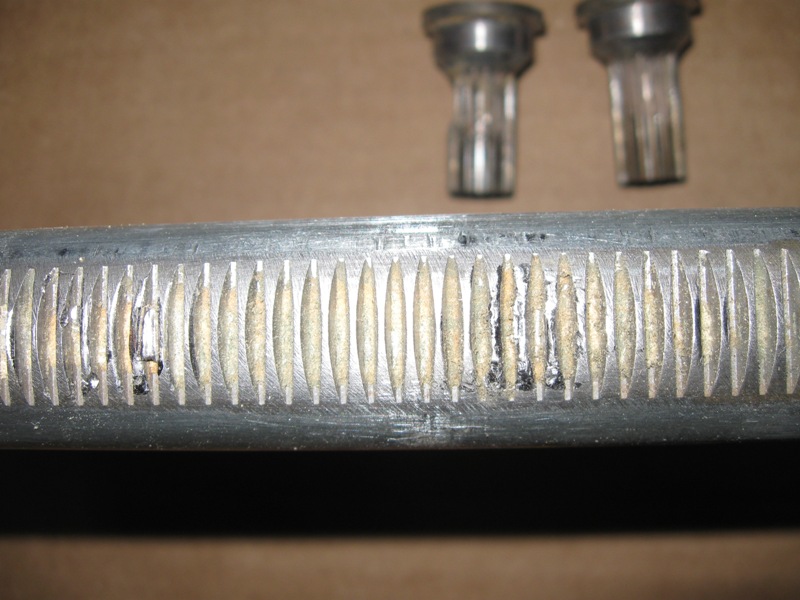

Here are some pictures. Pinions are really shot, so I've ordered new ones. Wish I'd caught this earlier!
Thanks
