After putting up with a clicking noise in my headstock for too long, I have torn the headstock down and have found that the idler sheave can move back and forth .025" between the retaining ring and the spring clip, giving me a "clicking" noise as the shaft rotates.
Dave, in customer service has been very helpful, even going out into the shop to inspect an idler shaft. He said that the idler shaft is supposed to sit "solid" on the shaft.
I've ordered new parts, retaining ring idler sheave, and retaining clip, but the idler shaft itself is on back order.
I've even thought of using blue locktite on the idler sheave when I re-assemble. Has anyone else experienced a problem like this?
Idler sheave
Moderator: admin
Idler Sheave
I have always found the spring clip was very snug againest the idler sheave. I use a lot of different LocTites when assembling a headstock. I would use red (permanent) Loctite for this one as you should not have to disassemble it in the future. I would insure the idler sheave is againest the retaining ring when using LocTite. I use blue Loctite when I believe I may have to disassemble an item.
8iowa wrote:After putting up with a clicking noise in my headstock for too long, I have torn the headstock down and have found that the idler sheave can move back and forth .025" between the retaining ring and the spring clip, giving me a "clicking" noise as the shaft rotates.
Dave, in customer service has been very helpful, even going out into the shop to inspect an idler shaft. He said that the idler shaft is supposed to sit "solid" on the shaft.
I've ordered new parts, retaining ring idler sheave, and retaining clip, but the idler shaft itself is on back order.
I've even thought of using blue locktite on the idler sheave when I re-assemble. Has anyone else experienced a problem like this?
Bill Mayo bill.mayo@verizon.net
Shopsmith owner since 73. Sell, repair and rebuild Shopsmith, Total Shop & Wood Master headstocks, SPTs, attachments, accessories and parts. US Navy 1955-1975 (FTCS/E-8)
Shopsmith owner since 73. Sell, repair and rebuild Shopsmith, Total Shop & Wood Master headstocks, SPTs, attachments, accessories and parts. US Navy 1955-1975 (FTCS/E-8)
-
JPG
- Platinum Member
- Posts: 35600
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
I am curious as to what wore to create the play.(which side of the idler sheave or the retaining clip or ......8iowa wrote:Thanks Bill. I'm going to wait for my new idler sheave to see if it fits more snugly. I've also ordered a new retaining ring (504179) and a sheave clip (504189).
I'll post the results.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
dusty
- Platinum Member
- Posts: 21530
- Joined: Wed Nov 22, 2006 6:52 am
- Location: Tucson (Wildcat Country), Arizona

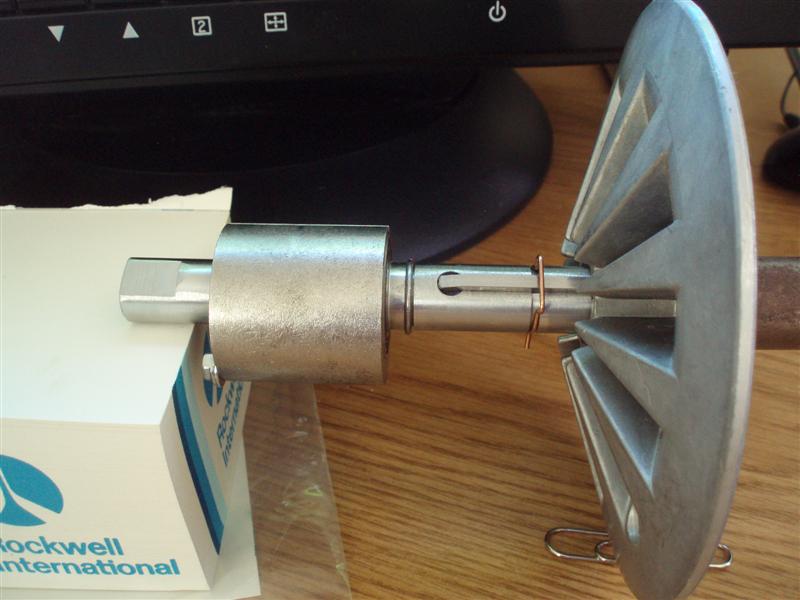

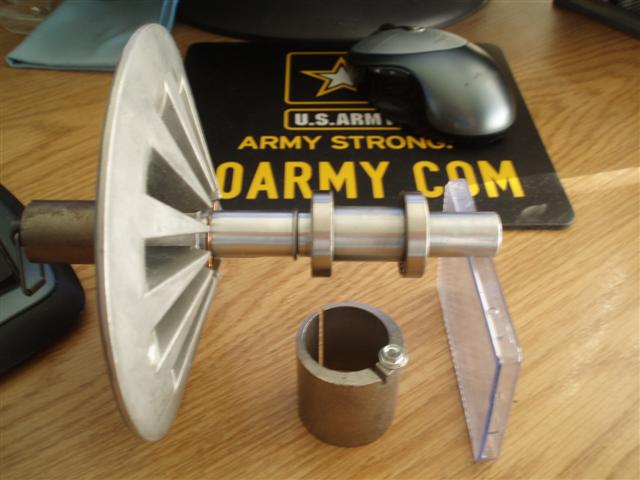

I don't have a spare idler sheave but this image shows where it would fit on the new style idler shaft assembly. In this image you can see where the clip and retaining ring are located. Hope this helps.
[ATTACH]9084[/ATTACH]
[ATTACH]9084[/ATTACH]
