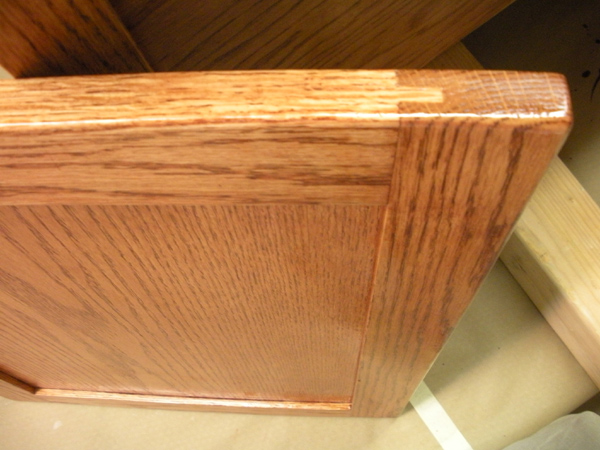

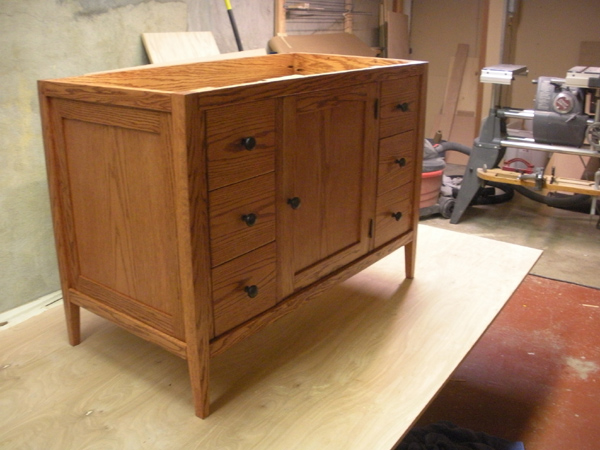

Here's some pics of a vanity for my (soon to be remodeled) bathroom. All completed with my Mark V. Its red oak. (The top will be granite.) I cheated on the right side and didnt make a panel cause its going against a corner wall. The bottom, back, and right side is oak ply. Drawers are pine which were door jams planed down (got them for almost nothing...) I change plans at the end of how the drawer slides were going to work. I was going to use ball bearing slides but didnt like mounting them to the under side of the drawer (2 layers of 1/4 white melamine) So I used rockler hardwood slides which worked out well. I used brass glides cause the rockler slides arent that tight. I should have planed the drawer construction and slides a little better from the beginning... Cherry stain on the oak with 3 coats of satin poly. The drawers are 3 coats of semi-gloss poly.
Next up is a shaker medicine cabinet to match.
Hope u enjoy!
Bathroom Vanity
Moderator: admin
Bathroom Vanity
- Attachments
-
- DSCN1673.JPG (143.51 KiB) Viewed 2259 times
-
- DSCN1681.JPG (141.25 KiB) Viewed 2248 times
-
- DSCN1686.JPG (127.32 KiB) Viewed 2243 times
-
- DSCN1687.JPG (143.71 KiB) Viewed 2241 times
-
- DSCN1674.JPG (178.58 KiB) Viewed 2238 times
GOOD LOOKING bath vanity ya built there.
SS 500(09/1980), DC3300, jointer, bandsaw, belt sander, Strip Sander, drum sanders,molder, dado, biscuit joiner, universal lathe tool rest, Oneway talon chuck, router bits & chucks and a De Walt 735 planer,a #5,#6, block planes. ALL in a 100 square foot shop.
.
.
Bob
.
.
Bob
ddvann79, i'm happy with the sliders but wished I considered them before hand... The drawer sits up high so normal drawer glides dont work. I used brass L brackets as glides. If you didnt use them, the drawer rocks side to side. If I would have planed using them I would have mounted them differently so standard glides would have worked.
