Dixiegmcsm · Post by **Dixiegmcsm** » Sat Jul 09, 2011 10:20 am

That looks nice! I seen a couple set ups on the forum for immersing the entire tube in evaporust but they are bulky and require a lot of materials "plywood, pcv, ect." and it appeared I had to use many gallons of evaporust. I would be investing more in materials than I paid for my whole SS setup! Maybe now that I'm down to some small pits evaporust and a scotch pad may be effective? Thanks

JPG · Post by **JPG** » Sat Jul 09, 2011 3:10 pm

Dixiegmcsm wrote:That looks nice! I seen a couple set ups on the forum for immersing the entire tube in evaporust but they are bulky and require a lot of materials "plywood, pcv, ect." and it appeared I had to use many gallons of evaporust. I would be investing more in materials than I paid for my whole SS setup! Maybe now that I'm down to some small pits evaporust and a scotch pad may be effective? Thanks

Just to keep the 'record' 'straight'!

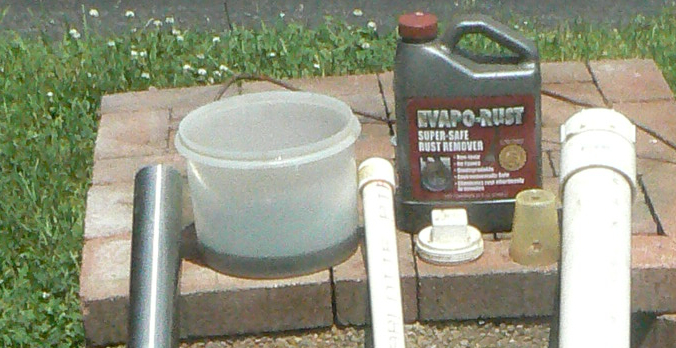

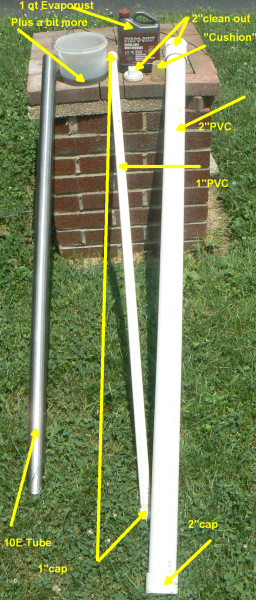

5' 2" pvc 1 end cap 1 cleanout
<5' 1"pvc 2 end caps

< 5 min (each end) polishing by holding paper while tube is spinning slowly.)

[ATTACH]13610[/ATTACH] The small cup prevents the tube banging against the end cap(That end cap is actually a cobbled plug from a coupler and a plastic plug glued on).

[ATTACH]13611[/ATTACH]

I find this method much more 'palatable' than spit shining them. I can get 8 hrs sleep while they are being 'processed'.

Works well on light rust.

The plywood and 'Gallons' was for the electrolysis method.

Gallons of water (enough to submerge)

1/2 cup washing SODA

Battery charger(dc source). 12v to keep it 'safe'.

Sacrificial iron(scraps).

Wires to hook it up.

Recommended for deeply rusted(deeply pitted) tubes only.

Neither method requires much 'sweat equity".

Datsa why I likes dem!

EDIT: 5' not 5"

Dixiegmcsm · Post by **Dixiegmcsm** » Sat Jul 09, 2011 7:11 pm

Thank you jpg40504 for the pics and details. Looks like a good investment and easy to store. You have been a big help. I will check my local harbor freight for larger containers of evaporust. That product is unbelievable I don't know how I have never heard of it till this forum!

dan1999 · Post by **dan1999** » Sat Jul 09, 2011 10:29 pm

That after picture looks real good you sure made it look great.

Dixiegmcsm · Post by **Dixiegmcsm** » Sat Jul 09, 2011 11:17 pm

Thanks dan1999, it's good to hear from my piers that it looks good. I tend to be critical of my work sometimes and beat myself up. I did remedy the rust on the lower tubes since that picture. The rust slowly returned after three weeks and I had to stop it. I will have before and after pics of the belt sander and scroll saw very soon. Then I will have a complete setup with all the extras and actually do some woodworking! I still have an extra bandsaw and jointer to restore, but now the pressures off and I can take my time with them. I really love doing the restorations as much as the woodworking. I have about a 120 hours into it now and don't know what I'll do with myself if I finish! Thanks again for the compliments, it means a lot!

JPG · Post by **JPG** » Sat Jul 09, 2011 11:36 pm

Dixiegmcsm wrote:Thanks dan1999, it's good to hear from my piers that it looks good. I tend to be critical of my work sometimes and beat myself up. I did remedy the rust on the lower tubes since that picture. The rust slowly returned after three weeks and I had to stop it. I will have before and after pics of the belt sander and scroll saw very soon. Then I will have a complete setup with all the extras and actually do some woodworking! I still have an extra bandsaw and jointer to restore, but now the pressures off and I can take my time with them. I really love doing the restorations as much as the woodworking. I have about a 120 hours into it now and don't know what I'll do with myself if I finish! Thanks again for the compliments, it means a lot!

Make Sawdust!!!!!;)

robinson46176 · Post by **robinson46176** » Sun Jul 10, 2011 8:11 am

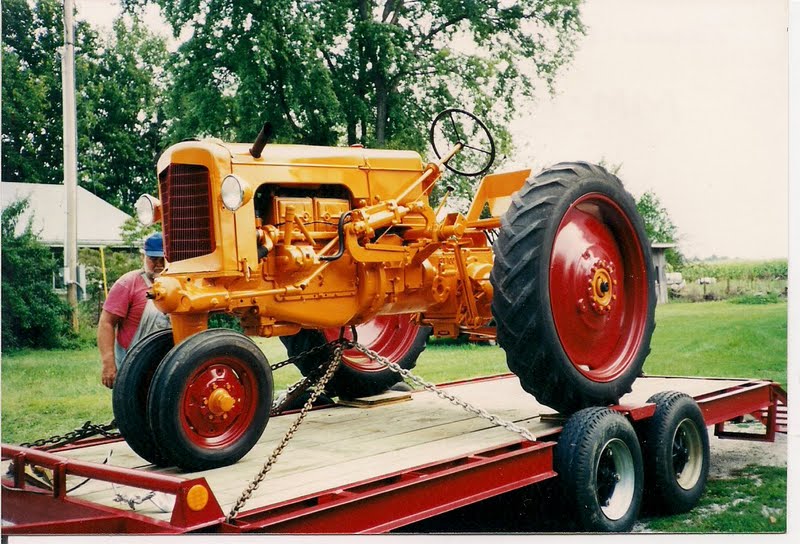

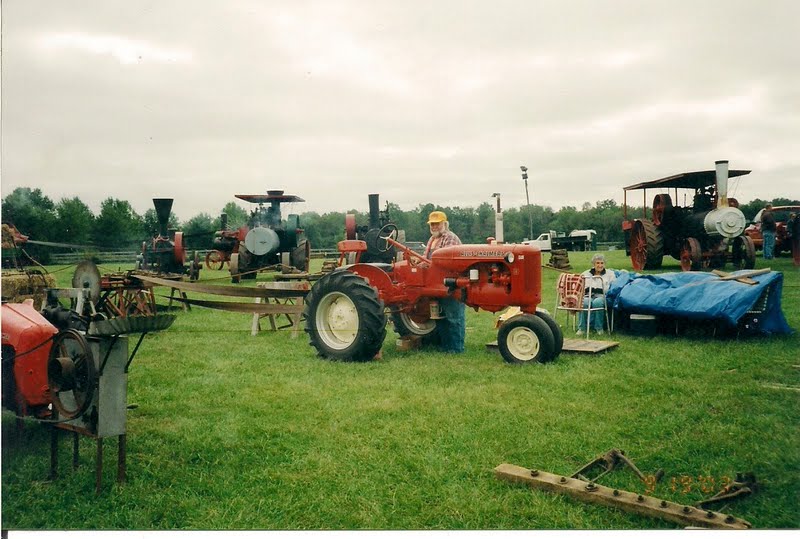

Or buy an antique tractor or two... or three... or...

[ATTACH]13628[/ATTACH]
[ATTACH]13629[/ATTACH]

I have about 10 more waiting... I'm not worried about what to do with my time.

Dixiegmcsm · Post by **Dixiegmcsm** » Sun Jul 10, 2011 8:34 am

Maybe lawn tractors! Code compliance in Cape Coral Florida doesn't allow anything but one boat behind your house! Lol

dusty · Post by **dusty** » Sun Jul 10, 2011 10:50 am

Dixiegmcsm wrote:Maybe lawn tractors! Code compliance in Cape Coral Florida doesn't allow anything but one boat behind your house! Lol

Now why would anyone want a boat in the back yard.

JPG · Post by **JPG** » Sun Jul 10, 2011 12:51 pm

dusty wrote:Now why would anyone want a boat in the back yard.

To put in the canal and tie up to the mini dock that defines the outer limit of your back yard.

P.S. No overnight RV parking without a permit either. NO OCCUPYING it while parking it overnight(with permit). That includes parking in driveways. On the grass!:eek:NEVER!!! Permits are VERY short term.

Been there(Cape Coral), done that! Nice place otherwise!:)
