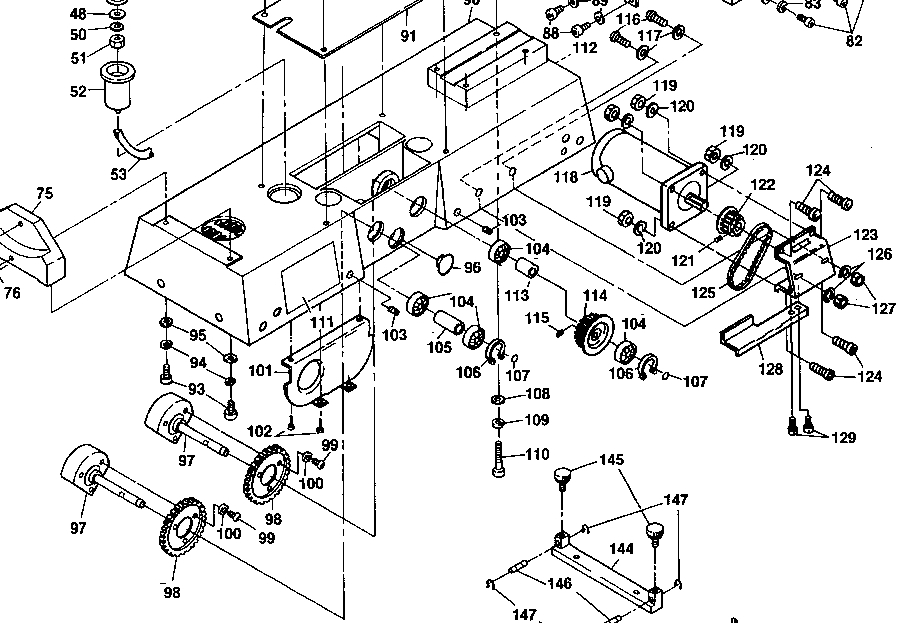

[attach]25466[/attach]
The numbers are different, but should be sufficient with the saw in view.

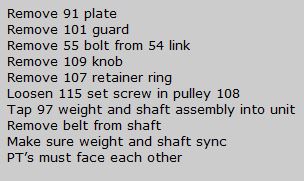

[attach]25467[/attach]
Maybe!;)
20 inch free standing scroll saw
Moderator: admin
-
JPG
- Platinum Member
- Posts: 35431
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Scroll Saw belt replacement
- Attachments
-
- scroll saw stand alone 4.jpg (217.36 KiB) Viewed 1573 times
-
- scroll saw stand alone 3.JPG (23.43 KiB) Viewed 1571 times
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
JPG
- Platinum Member
- Posts: 35431
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
PTS refers to the points of the counterweights.beatnik wrote:Maybe PT's means pulley teeth ? So the ridge on the pulleys are on opposite sides to keep the belt from falling off ? Maybe I'm seeing it totally wrong.
I see the pulleys that way.
I am confused however. Did the belt change to an o-ring from what appears to be a cogged belt?
╔═══╗
