After you do the straight edge thing most of your bearing problems will be resolved. To adjust the upper wheel, grasp the top with one hand and the bottom with the other. Then push the top and pull the bottom. What you are doing is straightening the tension arm back to it's original place. DO THIS TWISTING GENTLY!!!!!!! Too much is bad.
The arm has gotten in bad shape (twisted) from leaving tension on a blade for too long of a time. It is best to not over tighten blades and to relieve tension once you are through sawing. At one time we were cautioned by Nick Engler that the more often we do the bending of the arm, it will lose it's stability. So hopefully you only have to do this once. Relieving tension when the bandsaw is not in use is the best procedure to preserve the tension arm.
Bandsaw blues...
Moderator: admin
I knew it was something along these lines in solving the problem. And, yes, there was a "reminder" in the adjusting instructions, about loosening the tension after each use so as not to "set" the blade and wheel...this tire is showing an impreesion in the original tire material, where the blade has "set". I'm attempting to upgrade it with urethane tires, but first have to get the "bugs" worked out...again, these suggestions have been very helpful in me making my adjustments, and I thank everyone for the info...
I can't get back to the saw until a couple of days from now, but at least with the information I've gathered here I now have a "fighting-chance" at working through the problems...
I can't get back to the saw until a couple of days from now, but at least with the information I've gathered here I now have a "fighting-chance" at working through the problems...
Blues revisited...
It is July 20th, 2013...and it's 11:48 p.m...and I have just finished my rebuild of my band saw. I will attempt some picture during the "test-run" tomorrow.
I replaced the tires, bought and placed, a "new" 1/2" band saw blade, tensioned everything and worked mechanisms by hand, rolling over-and-over approximately 25-30 turns, watching for any slight problems...and guess what? the blade is actually following the roller bearings, LIKE IT'S SUPPOSED TO !!!...hurray for me !!!
Like I said, I'll show some pictures tomorrow and I'll want some opinions, okay?
Did anybody else think that replacing the "old" tires with the "new" tires was a real "pain" job????...the old tires were a bitch to get off.
I replaced the tires, bought and placed, a "new" 1/2" band saw blade, tensioned everything and worked mechanisms by hand, rolling over-and-over approximately 25-30 turns, watching for any slight problems...and guess what? the blade is actually following the roller bearings, LIKE IT'S SUPPOSED TO !!!...hurray for me !!!
Like I said, I'll show some pictures tomorrow and I'll want some opinions, okay?
Did anybody else think that replacing the "old" tires with the "new" tires was a real "pain" job????...the old tires were a bitch to get off.
-
JPG
- Platinum Member
- Posts: 35430
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
No I have not done so!:)jtevans wrote:It is July 20th, 2013...and it's 11:48 p.m...and I have just finished my rebuild of my band saw. I will attempt some picture during the "test-run" tomorrow.
I replaced the tires, bought and placed, a "new" 1/2" band saw blade, tensioned everything and worked mechanisms by hand, rolling over-and-over approximately 25-30 turns, watching for any slight problems...and guess what? the blade is actually following the roller bearings, LIKE IT'S SUPPOSED TO !!!...hurray for me !!!
Like I said, I'll show some pictures tomorrow and I'll want some opinions, okay?
Did anybody else think that replacing the "old" tires with the "new" tires was a real "pain" job????...the old tires were a bitch to get off.
I visualize that would indeed be the case!:eek:
THAT is why I have not done so even though considerable cracking etc. is evident on the 'older' one.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
JPG
- Platinum Member
- Posts: 35430
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
charlese wrote:After you do the straight edge thing most of your bearing problems will be resolved. To adjust the upper wheel, grasp the top with one hand and the bottom with the other. Then push the top and pull the bottom. What you are doing is straightening the tension arm back to it's original place. DO THIS TWISTING GENTLY!!!!!!! Too much is bad.
The arm has gotten in bad shape (twisted) from leaving tension on a blade for too long of a time. It is best to not over tighten blades and to relieve tension once you are through sawing. At one time we were cautioned by Nick Engler that the more often we do the bending of the arm, it will lose it's stability. So hopefully you only have to do this once. Relieving tension when the bandsaw is not in use is the best procedure to preserve the tension arm.
A caveat here!
Adjusting(bending) the arm this way runs the risk of warping(bending) the wheel.
Our resident guru(Bill Mayo) recommends applying torque to the arm by placing a pipe over the shaft and pushing up on the end of the pipe while holding the arm in place(pulling down). That will be my method in the future!
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Yes, removing the old tires is a job that I did not enjoy, particularly getting all the little scraps of rubber and glue off. In the end I put a flap sander on the quill, took the wheels off and flap sanded off the glue/rubber bits. As bad as that job was, getting the new orange silicone tires on was a frustrating struggle too. But once the job was done, I too found the blade tracking better in the auto track bearing groove.jtevans wrote:It is July 20th, 2013...and it's 11:48 p.m...and I have just finished my rebuild of my band saw. I will attempt some picture during the "test-run" tomorrow.
I replaced the tires, bought and placed, a "new" 1/2" band saw blade, tensioned everything and worked mechanisms by hand, rolling over-and-over approximately 25-30 turns, watching for any slight problems...and guess what? the blade is actually following the roller bearings, LIKE IT'S SUPPOSED TO !!!...hurray for me !!!
Like I said, I'll show some pictures tomorrow and I'll want some opinions, okay?
Did anybody else think that replacing the "old" tires with the "new" tires was a real "pain" job????...the old tires were a bitch to get off.
Gale's Law: The bigger the woodworking project, the less the mistakes show in any photo taken far enough away to show the entire project!
blues revisited...pictures !!!
I finally got around to snapping a few pictures of my band saw accomplishments...comments accepted !!!
[ATTACH]22250[/ATTACH]
[ATTACH]22251[/ATTACH]
[ATTACH]22252[/ATTACH]
[ATTACH]22253[/ATTACH]
[ATTACH]22250[/ATTACH]
[ATTACH]22251[/ATTACH]
[ATTACH]22252[/ATTACH]
[ATTACH]22253[/ATTACH]
- Attachments
-
- closeup of backup bearing (800x599).jpg (112.55 KiB) Viewed 3383 times
-
- closeup of lower bearing (800x599).jpg (110.29 KiB) Viewed 3385 times
-

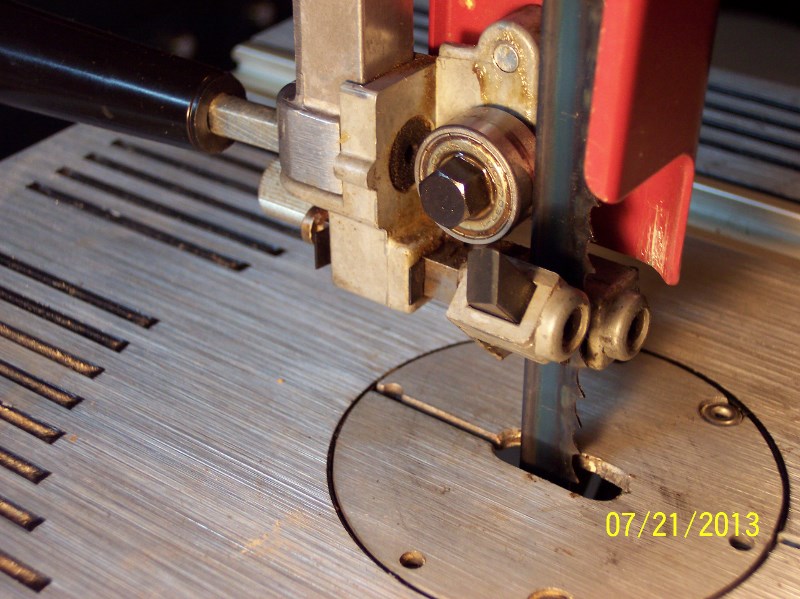

- front bearing closeup (800x599).jpg (140.16 KiB) Viewed 3390 times
-

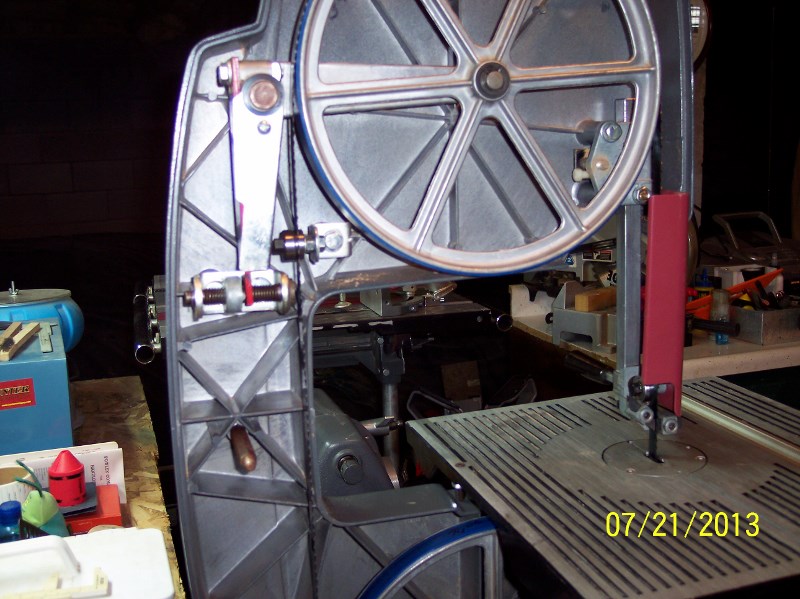

- side view showing blade tracking on two bearings (800x599).jpg (142.54 KiB) Viewed 3387 times
blues revisited...more pictures
More pictures of tire replacement and of band saw adjustments...
[ATTACH]22254[/ATTACH]
[ATTACH]22255[/ATTACH]
[ATTACH]22256[/ATTACH]
[ATTACH]22257[/ATTACH]
[ATTACH]22254[/ATTACH]
[ATTACH]22255[/ATTACH]
[ATTACH]22256[/ATTACH]
[ATTACH]22257[/ATTACH]
- Attachments
-

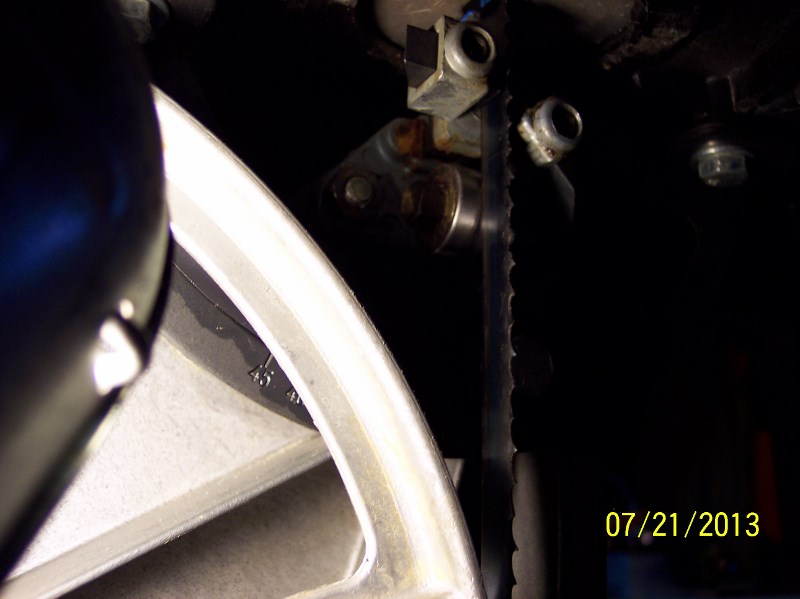

- view of bearing on bottom with blade tracking (800x599) (2).jpg (135.42 KiB) Viewed 3386 times
-

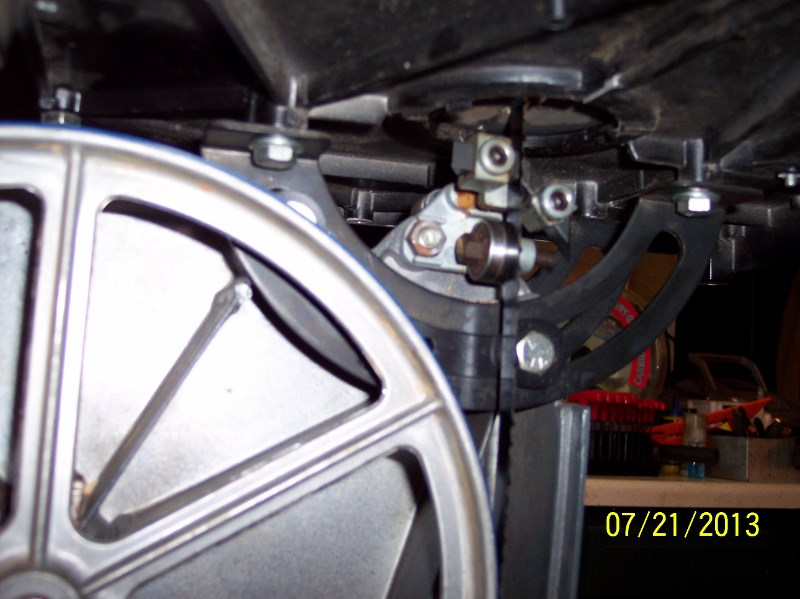

- undertable perspective of roller bearing (800x599) (800x599).jpg (80.06 KiB) Viewed 3385 times
-

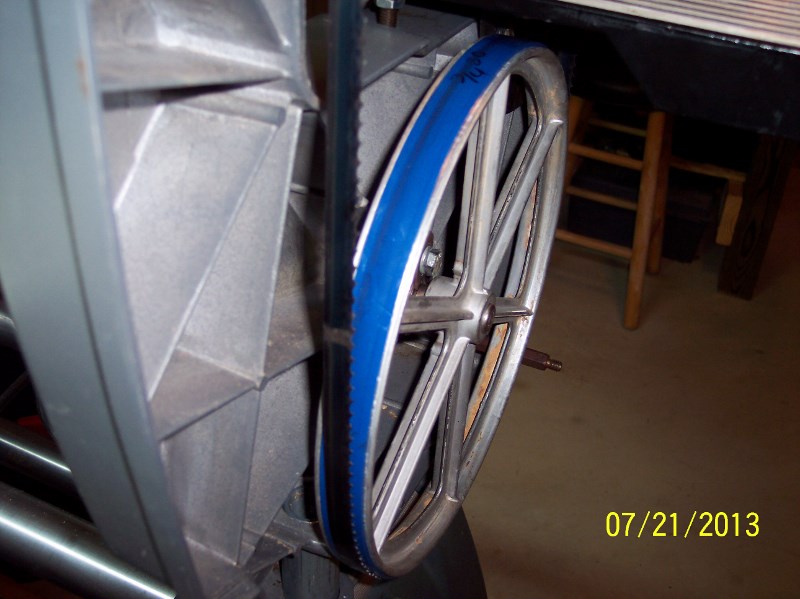

- tracking of new blade on lower tire (800x599).jpg (105.03 KiB) Viewed 3389 times
-
- blade tracking on bearing at cutting level (800x599) (2).jpg (119.79 KiB) Viewed 3384 times
-
JPG
- Platinum Member
- Posts: 35430
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
It looks good from the camera angle, but the upper guide backup bearing should barely CLEAR the back of the blade, and only contact it under cutting pressure.
Interesting tire 'color'.
Interesting tire 'color'.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
tire color...
Tires are from a company that supposedly makes these "exclusively", found the link on Ebay. I'm attaching a copy of the ad where I bought them...JPG40504 wrote:It looks good from the camera angle, but the upper guide backup bearing should barely CLEAR the back of the blade, and only contact it under cutting pressure.
Interesting tire 'color'.
Questions?? Tech help?? Call our store 908-241-2885 or email we can make any size tires so email or call and we will list what you need.
Brand new set of 2 BLUE MAX Heavy duty urethane band saw tires to fit Shopsmith and Magna band saws.
Our Blue Max Brand Urethane Band Saw Tires are the newest and most advanced band saw tires available.
After years of testing we developed our own formula to make Blue Max urethane specifically for band saw tire use. Blue Max tires will outperform and outlast the standard conveyor belt orange urethane everybody used in the past to make band saw tires. We have formulated the Blue Max urethane to last year’s longer and the surface finish of Blue Max urethane was designed to repel even more saw dust then the orange conveyor belt urethane that was not specifically designed for use as band saw tires. Blue max tires are not affected by freezing temps for those of you who may run your band saw in an unheated garage or shed.
Blue Max band saw tires are a registered trademark of the Band Saw Tire Warehouse and only available from us.
Made in the USA. LIFETIME WARRANTY!!!
Consistent .095 thicknesses across the entire width of the tire for precise blade tracking...
Update your band saw with a set of new urethane tires. No messy glue needed.
No need to damage your wheels with a screwdriver trying to stretch them on.. We include a custom installation tool and instructions with every set so you can mount the tires without removal of the wheels from you band saw and without damaging your wheels.
Our free lifetime warranty is the best in the industry. If your set of Blue Max band saw tires ever just send them back to Band Saw Tire Warehouse for a free replacement. Regardless if you purchased them from us or one of our many distributors. We are the ONLY mfg. making Blue Max tires so no receipt or proof of purchase is needed. Include a return address and size or make and model saw they were originally made for and 2.95 return postage. Thanks for purchasing BLUE MAX tires.
