Extend your quill far enough so the spindle is free of the drive sleeve and see if the drive sleeve has the roughness. If the drive sleeve spins smoothly, It's the spindle bearings and these are very simple to replace. Mike

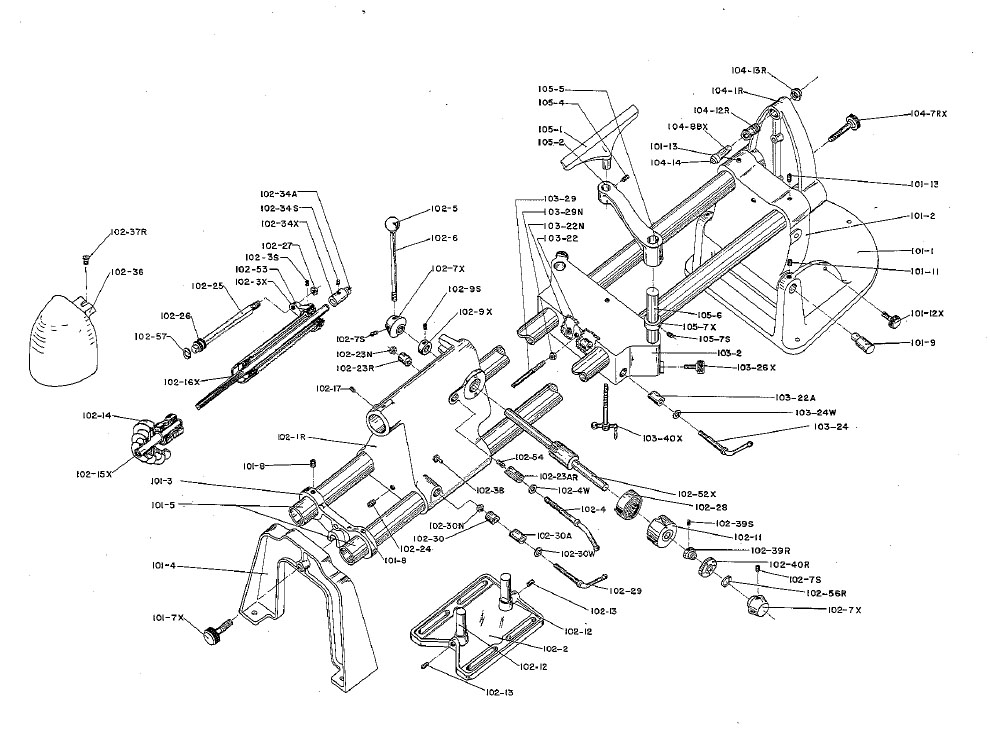

Thanks Mike. Let me count the bearings based on the exploded view linked in mickeyd's restoration post. There are 2 bearings in the drive shaft assembly 102-15x. There is 1 bearing in the gauge collar assembly 102-3x and 2 bearings in the spindle and quill assembly 102-16x. Did I count correctly?

Let's start with the drive shaft assembly 102-15x. I studied mickeyd's post and pictures but I'm still unsure. With the quill removed do I just tap that assembly out from the inside with a hammer and hardwood dowel or some such thing?

exploded view 10er.jpg (155.14 KiB) Viewed 3509 times

[JPG]

102-3x??? Don't think so!

The drive sleeve assembly is retained by a set screw that holds the spacer between the two bearings. I do not recall any other means of securing it. Pushing from the inside is likely required to get the assembly out the rear. Crud will resist removal.

[tomsalwasser]

102-3x??? Don't think so!

Oh good! One less bearing to buy Thanks JP

[oldiron]

Tom, The headstock only has 4 bearings. Two on the spindle and two on the drive sleeve.

Remove the allen screw which retains the drive sleeve assembly and using a large wood dowel from the inside, drive out the drive sleeve.

Just a quick note, If the drive sleeve bearings spin freely and smoothly, I wouldn't change them unless you feel confident with the procedure required.

The spindle bearings are very easy to change. You just need a solid vise and some plain washers as Skip shows in his video...

Mike

[tomsalwasser]

Just a quick note, If the drive sleeve bearings spin freely and smoothly, I wouldn't change them unless you feel confident with the procedure required. Mike

Thanks Mike. Removal of the drive shaft bearings (102-15X) now seems doable, but how about re-installation? Do they need to be pressed in place?

[JPG]

Just a quick note, If the drive sleeve bearings spin freely and smoothly, I wouldn't change them unless you feel confident with the procedure required. Mike

Thanks Mike. Removal of the drive shaft bearings (102-15X) now seems doable, but how about re-installation? Do they need to be pressed in place?

Yep, gently with pressure only to the inner race. Easy access!!!

[oldiron]

Tom, As JPG mentioned, The drive sleeve needs to be carefully pressed back into the headstock casting. You only need to tap on the outer bearing race to press it back in.

I also apply a very small amount of Indian Head type gasket sealer to the outside of both bearings races upon installation which will prevent any possible bearing spin inside the headstock bore.

Keep in mind, The drive sleeve bearings are basically "slip fit" back into the headstock.

Mike
