Outfeed table advice

Create a review for a woodworking tool that you are familiar with (Shopsmith brand or Non-Shopsmith) or just post your opinion on a specific tool. Head to head comparisons welcome too.

Moderator: admin

Post Reply
User avatar
JPG
Platinum Member
Posts: 35429
Joined: Wed Dec 10, 2008 7:42 pm
Location: Lexington, Ky (TAMECAT territory)

Post by JPG »

anmius wrote:I built my own and the design I chose is shown on ebay with the parts. I am very pleased with it and it does all I need (including an 8 foot board). It does take a couple of minutes to tweak but works fine Do an ebay search for this item number: 320526117164

This be quicker!:D http://cgi.ebay.com/Outfeed-Table-Compatible-w-all-Shopsmith-Models-/320526117164?cmd=ViewItem&pt=LH_DefaultDomain_0&hash=item4aa0d8692c
╔═══╗
╟JPG ╢
╚═══╝

Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Top
ldh
Gold Member
Posts: 430
Joined: Sun Sep 10, 2006 6:09 pm
Location: Phoenix, AZ

Post by ldh »

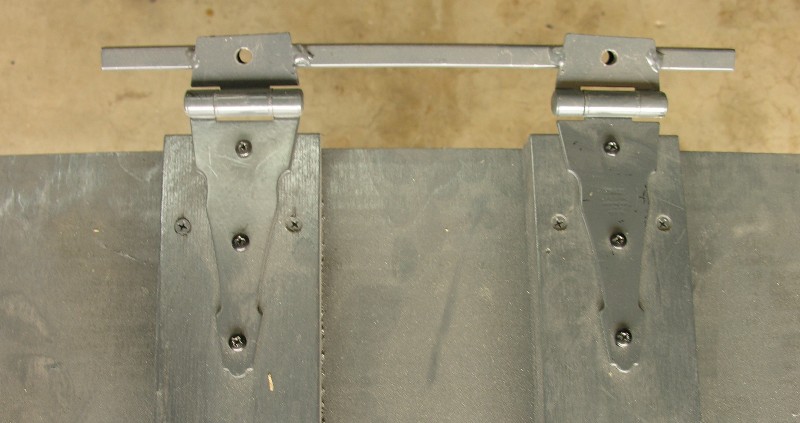

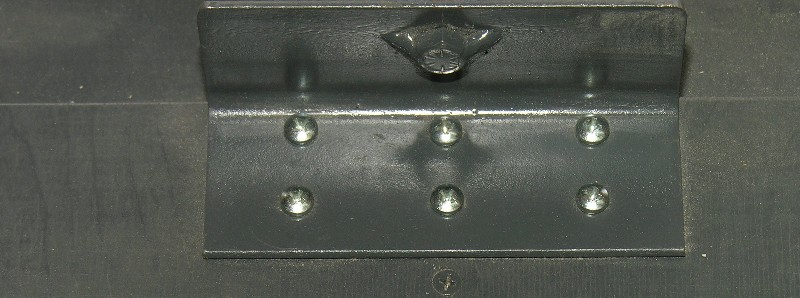

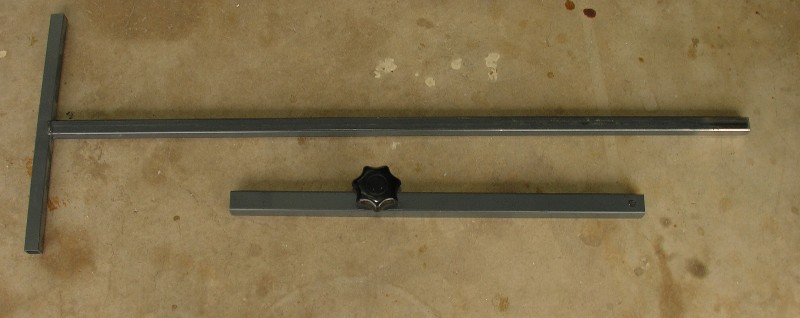

For the folks that want to build their own out-feed (Mark V 500) table I just found some of the component pics of one I built.

ldh

[ATTACH]8849[/ATTACH]

[ATTACH]8850[/ATTACH]

[ATTACH]8851[/ATTACH]

[ATTACH]8852[/ATTACH]
Attachments
Top
User avatar
wlhayesmfs
Platinum Member
Posts: 667
Joined: Fri Jul 21, 2006 10:50 am
Location: Broken Arrow OK

Post by wlhayesmfs »

Has anyone purchased this hardware kit and built it to see if it does what he says it does? Would love to hear from anyone that did one way or the other.
Thanks
Bill :)
Broken Arrow OK
MKV, 510, MKVll, 50th Anniversary 520 with Jointech saw train, Bandsaw, scroll saw, joiner, 6" Sander,Stand Alone Pin Router and Router Table, Strip Sander, Jigsaw & (4) ER's plus Jigsaw for ER. DC SS RAS
Top
ldh
Gold Member
Posts: 430
Joined: Sun Sep 10, 2006 6:09 pm
Location: Phoenix, AZ

Post by ldh »

Out-feed table pics.

ldh

[ATTACH]8853[/ATTACH]

[ATTACH]8854[/ATTACH]

[ATTACH]8855[/ATTACH]

[ATTACH]8856[/ATTACH]
Attachments
Top
User avatar
anmius
Gold Member
Posts: 432
Joined: Tue Apr 10, 2007 2:16 pm
Location: NC Mountains

Post by anmius »

wlhayesmfs wrote:Has anyone purchased this hardware kit and built it to see if it does what he says it does? Would love to hear from anyone that did one way or the other.
Thanks

Yes, I have. Just remember what you are buying is a "bag of bolts" and some plans. Yes, it does mount to the 500 (or 505/510/520) and doesn't sit on the floor. Yes, it can be adjusted to a varying height of the table but it has to be done manually, it doesn't follow the table up and down. And it will tip with the table but not for the whole range (I normally don't rip a mitered edge). And the plans don't call for slots to allow for the miter bar (which could be added if you wish). But since I only use it for ripping, I don't use the miter bar. For me it was a quick and inexpensive solution since I already had the wood needed (MDO).

Worth the price for me.
