rpd wrote:Another one bites the dust. Just finished this Point presser/clapper for my daughter. She sews most of her own clothes. This tool is used for pressing seams in dressmaking/tailoring.
[ATTACH]23594[/ATTACH]
I first thought it was a very speedy squirrel.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
No washer/dryer planned. I made this one smaller than the plans, 20" high x 16" wide so I could use 1x8 for the doors. I liked the grain on the board I used for the doors, I rotated the piece for the second door to give a pseudo book matched look.
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
[quote="JPG40504"]I first thought it was a very speedy squirrel.]
You never can tell where those crafty little critters will turn up.
This was made from an unknown hardwood I rescued from a pallet. No finish, but I sanded it to 400 grit with my new random orbit sander. Very smooth.
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,

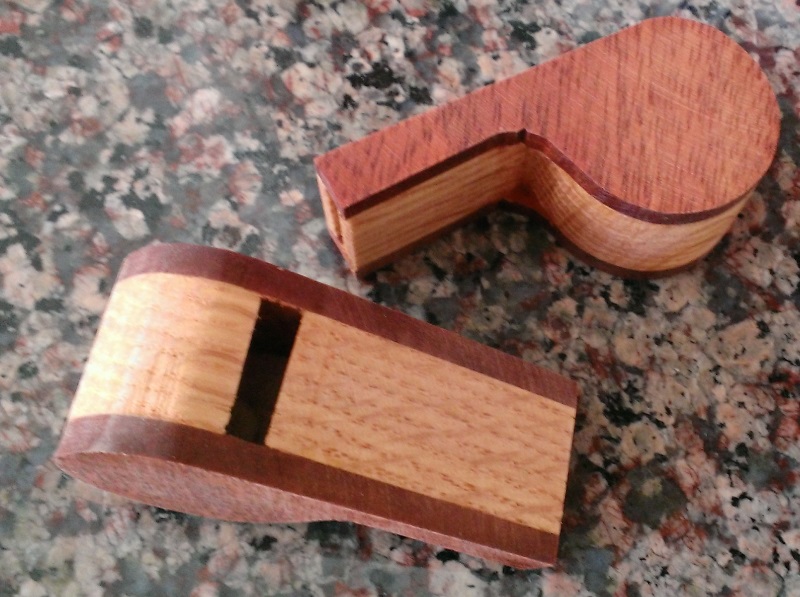

Inspired by WWMM and woodgears.ca. I made a bunch of whistles for extended family. This photo shows nearly complete. Red oak for the center (left over from building my son's crib a few years ago), bloodwood for the sides (was hardwood floor that had nails blow out on the tounges).
Attachments
Mark 7, Pro Planer, Jointer, Bandsaw w/Kreg, Biscuit Joiner, Belt Sander, Jig Saw, Ringmaster, DC3300, Overarm Pin Router, Incra Ultimate setup

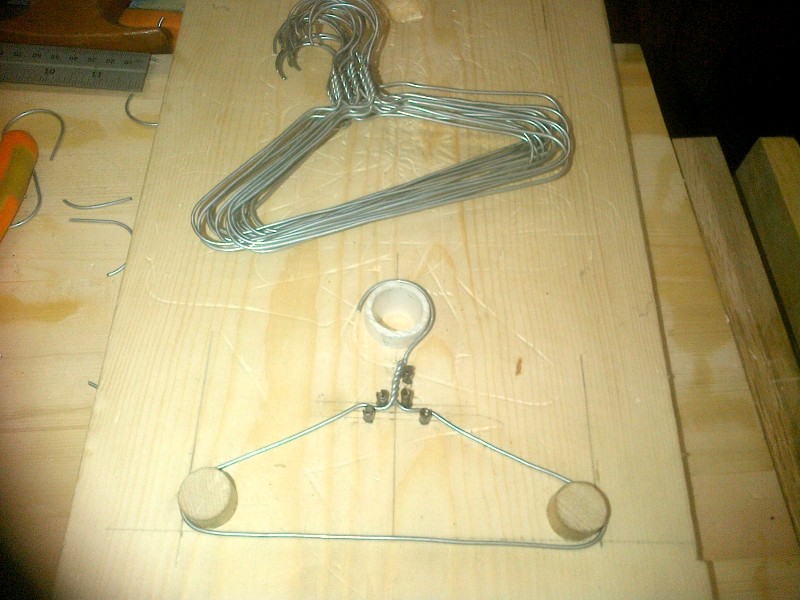

And here is the jig I made and 20 finished hangers (14 gauge galvanized wire) .
[ATTACH]23644[/ATTACH]
Attachments
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
And here is the jig I made and 20 finished hangers (14 gauge galvanized wire) .
[ATTACH]23644[/ATTACH]
Uh Oh! I see a self made normal sized(for me) wire hanger jig in my future!:D
Wire source???
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
JPG40504 wrote:Uh Oh! I see a self made normal sized(for me) wire hanger jig in my future!:D
Wire source???
I got the wire from Canadian Tire , but I think any hardware/big box store should have it.
I don't think 14 gauge would be strong enough for a full sized hanger.
For the jig I used 3/4" dowel, 3/4" pvc pipe (just over 1" od., I cut a slot so it would fit in a 1" hole.), and roll pins. The jig pictured was the fourth iteration. It took a bit of fine tuning to get the roll pins in the right spots.
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,

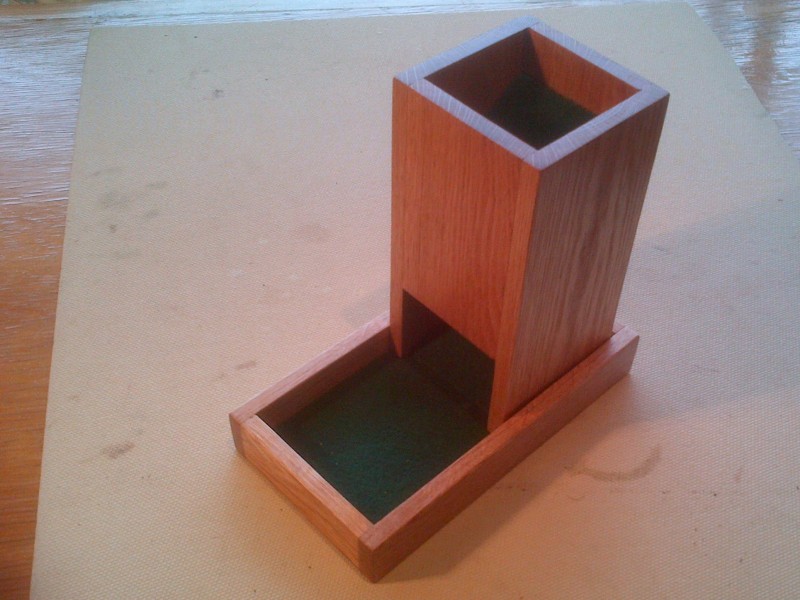

Inspired by one of Heath's projects, Heathicus - Dice Tower, I made this dice tower for my daughters partner (son outlaw?).
[ATTACH]23759[/ATTACH]

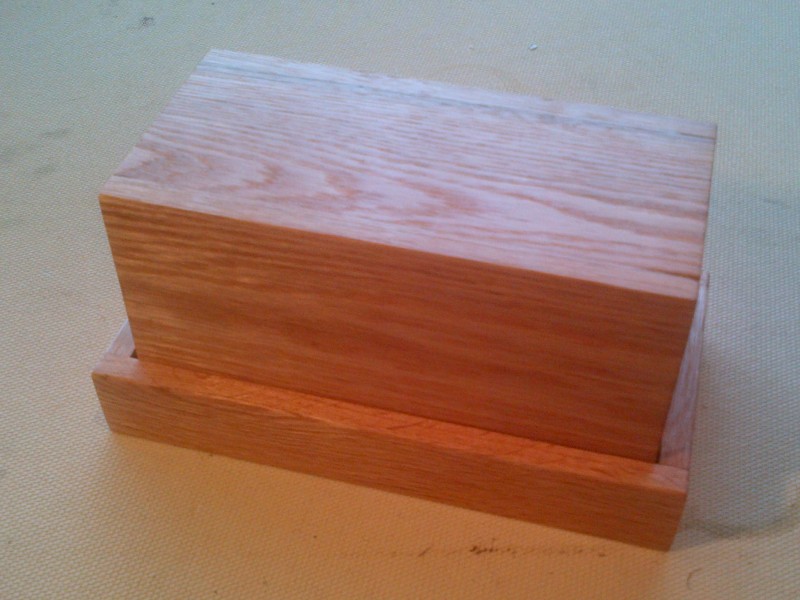

and nested for storage.
[ATTACH]23760[/ATTACH]
The tower is 3 1/4 x 3 1/4 /x 6 1/2, oak (salvaged from a pallet), finished with Deft - Danish Oil Finish.
Just one belated Christmas present to go now, a firewood box. will post when finished.
Attachments
dice tower 1.JPG (97.13 KiB) Viewed 6095 times
dice tower 2.jpg (90.28 KiB) Viewed 6095 times
Ron Dyck
==================================================================
10ER #23430, 10ER #84609, 10ER #94987,two SS A-34 jigsaws for 10ER.
1959 Mark 5 #356595 Greenie, SS Magna Jointer, SS planer, SS bandsaw, SS scroll saw (gray), DC3300,
I guess this qualifies as a Christmas project. When we were at our son and daughter-in-law's home Thanksgiving/Christmas I found one's vision while watching their TV was obstructed by the sound bar that ran across the front. Their flat screen sits on a coffee table against a wall. They both were bothered by it too, but needed the right stand to put the flat screen on and hadn't found anything that worked well or wasn't highly priced. So, when I got home I made the following stand.
Although it's just a box, it was a good exercise in basic woodworking skills. I used a high quality pine. I know from experience that 1/2" stock looks better than 3/4" and makes a better looking dovetail. So I used my SS planer to plane the stock. I left the top 3/4" thick after biscuit joining two boards using my SS biscuit cutter. I then cut a rabbit 3/8" by 1/2" deep on all the edges of the top to fit into the sides creating a lid. No bottom was needed, although I lined the edges with felt to protect their coffee table.
The box was sealed with shellack then painted to match their coffee table in gloss black (using a latex enamel). The box is 22" long x7.5" high x12" deep.
[ATTACH]23765[/ATTACH]

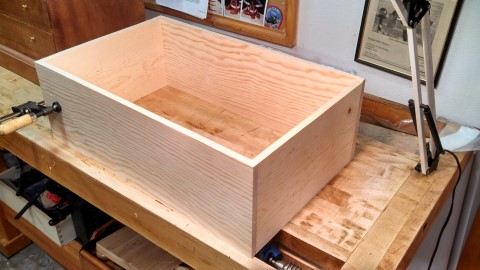

Prepared stock, planed to 1/2"
[ATTACH]23766[/ATTACH]

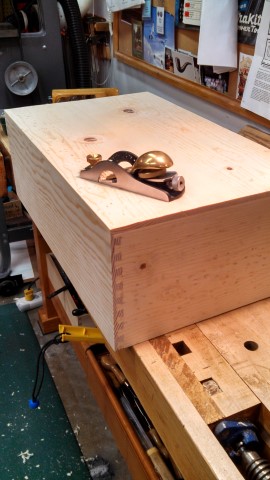

Dovetails cut, and top fitted to box and hand planed smooth
[ATTACH]23767[/ATTACH]

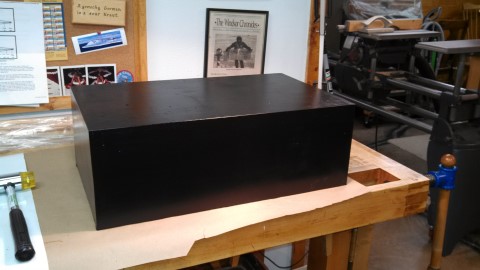

Finished box after being sealed and painted with 3 coats of gloss black enamel
[ATTACH]23768[/ATTACH]

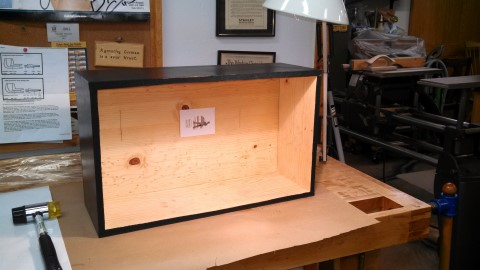

Label attached
[ATTACH]23769[/ATTACH]
To be delievered.

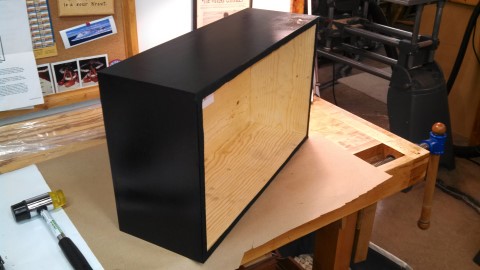

Edges finished with felt
Attachments
IMG_20140105_140056_625 (Mobile).jpg (69.6 KiB) Viewed 6060 times
IMG_20140107_152642_698 (Mobile).jpg (68.55 KiB) Viewed 6061 times
IMG_20140114_091000_350 (Mobile).jpg (57.59 KiB) Viewed 6061 times
IMG_20140114_091027_069 (Mobile).jpg (60.21 KiB) Viewed 6060 times
IMG_20140114_091053_623 (Mobile).jpg (60.32 KiB) Viewed 6060 times
"... and it was after long searching that I found the carpenter's chest, which was indeed a very useful prize to me, and much more valuable than a ship loading of gold." Daniel Defoe, Robinson Crusoe, 1719
