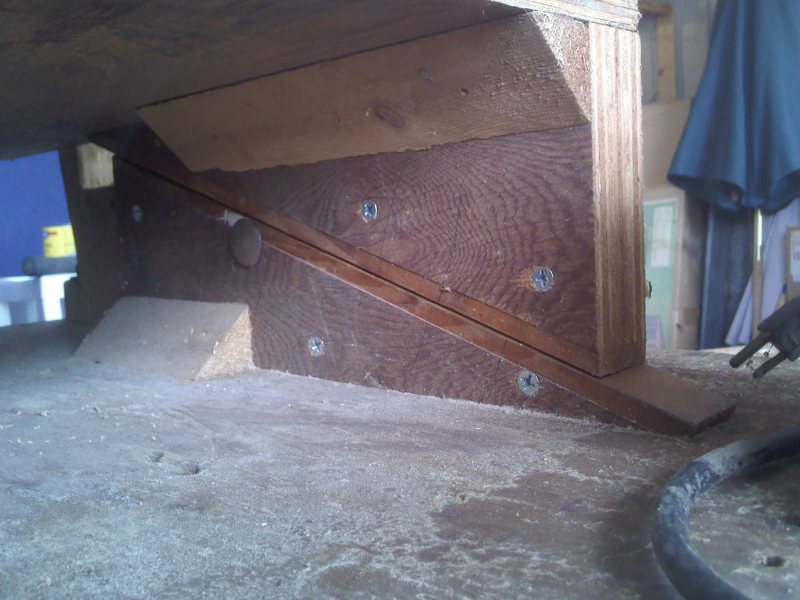

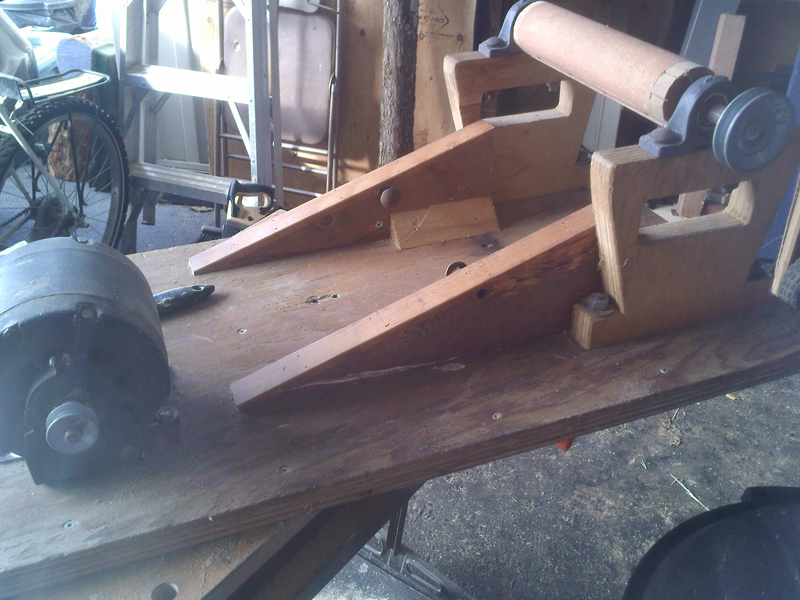

Saw this on my way to church, thought it said $10. On my way home, it had a $5 tag on it. It's mine! I was planning on building a thickness sander form the examples on this forum, but this design seems to be much better than any I've seen so far. I plan to clean it up, and maybe get some UHMW tape for the slides. I did put some JPW on the slides, and it does move quite well. Maybe I'll setup a guage of sorts.
[ATTACH]16703[/ATTACH]
[ATTACH]16704[/ATTACH]
[ATTACH]16705[/ATTACH]
[ATTACH]16706[/ATTACH]
[ATTACH]16707[/ATTACH]
Derek
Garage Sale find O' The Week!
Moderator: admin
-
derekdarling
- Gold Member
- Posts: 318
- Joined: Wed Mar 17, 2010 2:53 pm
- Location: Surrey, BC
Garage Sale find O' The Week!
- Attachments
-
- Sander Frame2.jpg (421.45 KiB) Viewed 2575 times
-
- Sander3.jpg (424.92 KiB) Viewed 2572 times
-
- Sander Inside.jpg (402.49 KiB) Viewed 2571 times
-

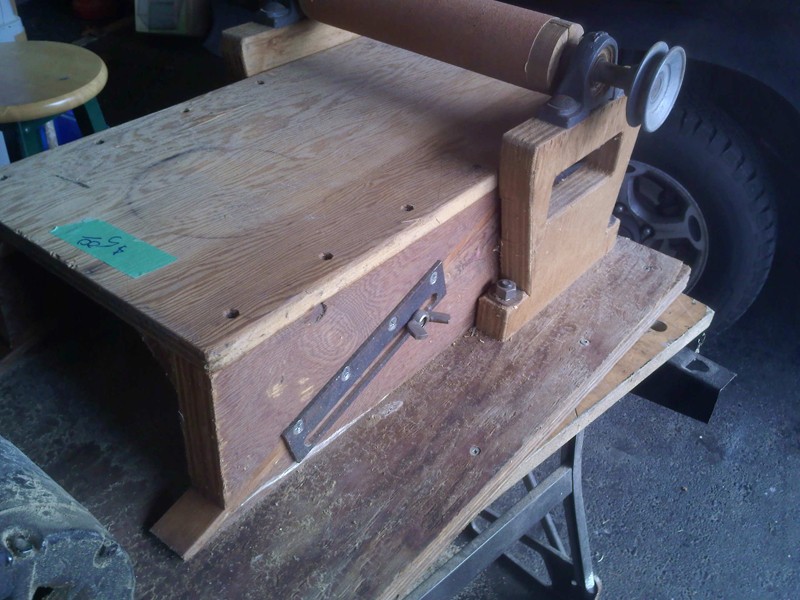

- Sander Price.jpg (468.58 KiB) Viewed 2574 times
-
- Sander Wheel.jpg (396 KiB) Viewed 2571 times
Derek Darling
Surrey, B.C. Canada
10ERs, other stuff, you know.
Surrey, B.C. Canada
10ERs, other stuff, you know.
-
derekdarling
- Gold Member
- Posts: 318
- Joined: Wed Mar 17, 2010 2:53 pm
- Location: Surrey, BC
More Pics

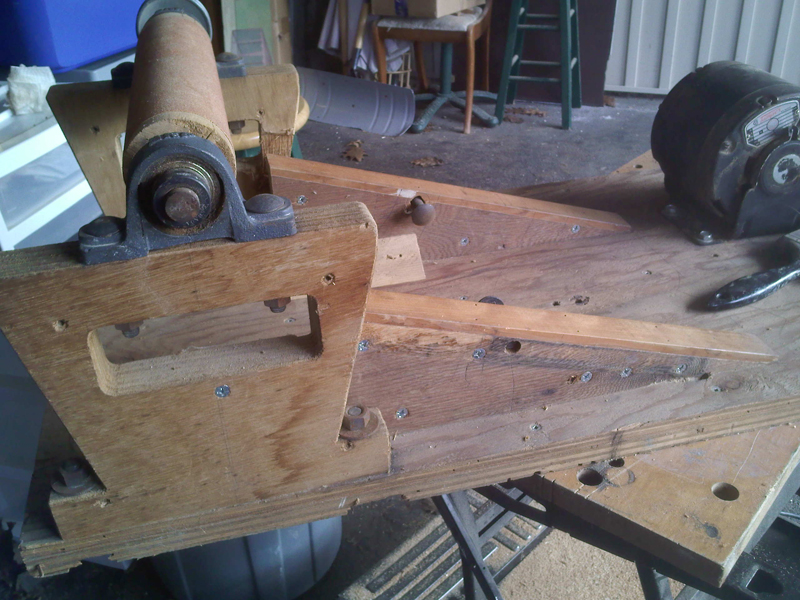

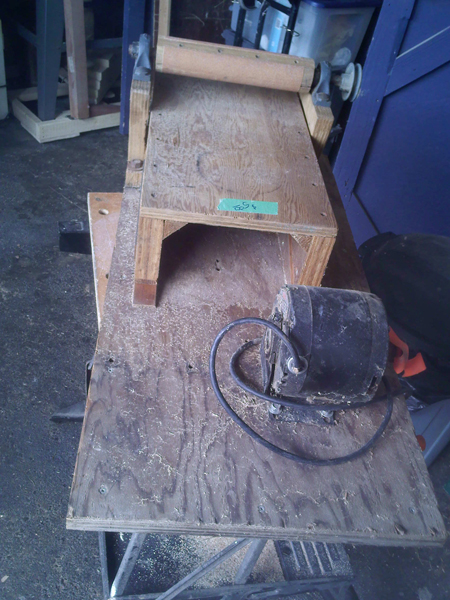

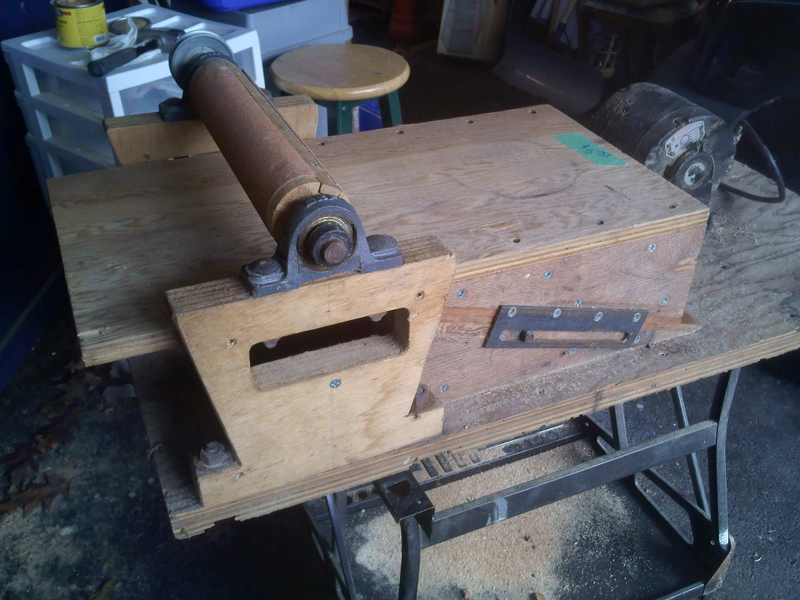

And a few more pics:
[ATTACH]16708[/ATTACH]
[ATTACH]16709[/ATTACH]
[ATTACH]16710[/ATTACH]
[ATTACH]16711[/ATTACH]

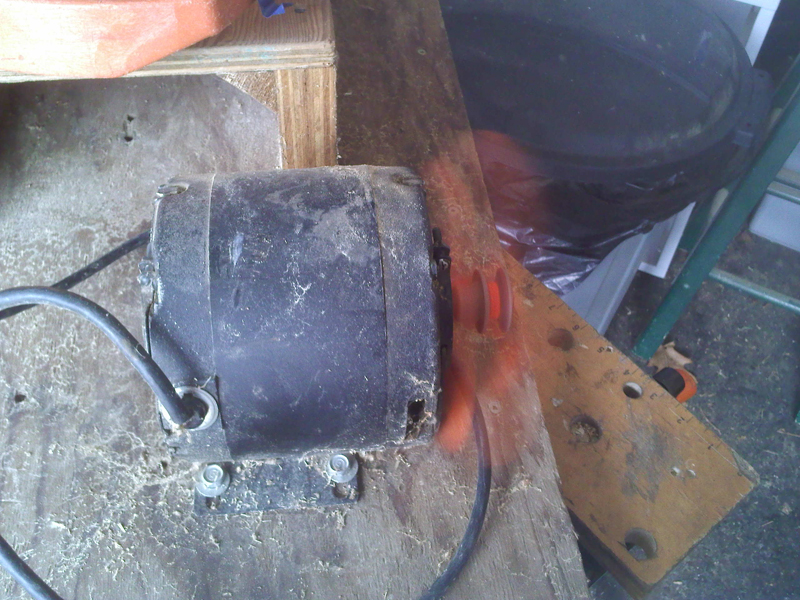

And the motor works! I'll need to find a belt, it is 25" centre to centre, with a 1-1/2" on the motor and 3" on the wheel.
Derek
[ATTACH]16708[/ATTACH]
[ATTACH]16709[/ATTACH]
[ATTACH]16710[/ATTACH]
[ATTACH]16711[/ATTACH]
And the motor works! I'll need to find a belt, it is 25" centre to centre, with a 1-1/2" on the motor and 3" on the wheel.
Derek
- Attachments
-
- Sander Motor2.jpg (466.17 KiB) Viewed 2565 times
-
- Sander Frame.jpg (428.83 KiB) Viewed 2555 times
-
- Sander1.jpg (287.02 KiB) Viewed 2553 times
-
- Sander2.jpg (421.99 KiB) Viewed 2551 times
Derek Darling
Surrey, B.C. Canada
10ERs, other stuff, you know.
Surrey, B.C. Canada
10ERs, other stuff, you know.
-
fredsheldon
- Platinum Member
- Posts: 1175
- Joined: Tue Jan 17, 2012 1:31 pm
- Location: The Woodlands, Texas
Derek, New to woodworking. Does this tool perform the same function as a planer? If so, it cost $745 less than the one I just picked up
Fred Sheldon
The Woodlands, Tx
'52 10ER # 60869 (restored in 2012, used as a dedicated drill press), '52 10ER # 88712 (restored 01/2013), 52 10ER # 71368 (in process of restoring), '83 500 Shorty with OPR installed, '83 520 PowerPro with Lift Assist, 6" Joiner, 6" Belt Sander, 18" Jig Saw, 11" Band Saw, 12" ProPlaner, SS Crosscut Table. SS Dust Collector, Hitachi 1/2" router, Work Sharp 3000 with all attachement, Nova G3 Chuck, Universal Tool Rest, Appalachia Tool Works Sled.
The Woodlands, Tx
'52 10ER # 60869 (restored in 2012, used as a dedicated drill press), '52 10ER # 88712 (restored 01/2013), 52 10ER # 71368 (in process of restoring), '83 500 Shorty with OPR installed, '83 520 PowerPro with Lift Assist, 6" Joiner, 6" Belt Sander, 18" Jig Saw, 11" Band Saw, 12" ProPlaner, SS Crosscut Table. SS Dust Collector, Hitachi 1/2" router, Work Sharp 3000 with all attachement, Nova G3 Chuck, Universal Tool Rest, Appalachia Tool Works Sled.
-
derekdarling
- Gold Member
- Posts: 318
- Joined: Wed Mar 17, 2010 2:53 pm
- Location: Surrey, BC
Hi Fred, it is a thickness sander. The planer would have knives, and I wish I had one of those as well!

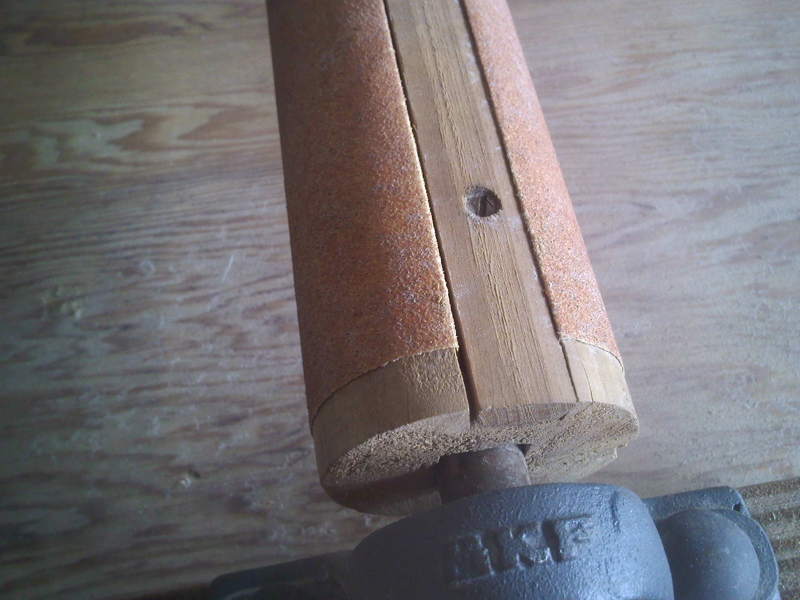

The sanding sheet goes around the wheel, and the table slides up to whatever thickness you wish. I would use it primarily to sand guitar tops prior to jointing and joining the top pieces together. This unit gives me a few inches, so I'll probably use it on any flat piece. By the way, that is Canadian Dollars, all 5 of 'em.
Derek
The sanding sheet goes around the wheel, and the table slides up to whatever thickness you wish. I would use it primarily to sand guitar tops prior to jointing and joining the top pieces together. This unit gives me a few inches, so I'll probably use it on any flat piece. By the way, that is Canadian Dollars, all 5 of 'em.
Derek
Derek Darling
Surrey, B.C. Canada
10ERs, other stuff, you know.
Surrey, B.C. Canada
10ERs, other stuff, you know.
-
judaspre1982
- Platinum Member
- Posts: 1237
- Joined: Tue Jul 08, 2008 10:10 pm
======================================
Last edited by judaspre1982 on Thu Apr 27, 2017 5:14 pm, edited 1 time in total.
That is really cool! I'll have to keep that design in mind.
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
I think it is cool. My wife would be wondering why. I did some quick calculations. I came up with 64.13 inches from the measurements you gave using 3.14 for pie. 64 and an 1/8 would be pretty close. You could just move the motor to adjust to a handy belt size. I wouold be interested in how well it works.
Sunset22
Sunset22
-
JPG
- Platinum Member
- Posts: 35598
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
sunset22 wrote:I think it is cool. My wife would be wondering why. I did some quick calculations. I came up with 64.13 inches from the measurements you gave using 3.14 for pie. 64 and an 1/8 would be pretty close. You could just move the motor to adjust to a handy belt size. I wouold be interested in how well it works.
Sunset22
I came up with 57". (1.5+.75) x pi = 7" + 50" = 57".
3" pulley = 1.5" radius. 1.5" pulley = .75" radius. Circumference = (2r x pi)/2 [belt goes half way around].
Nice score indeed!:)
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
derekdarling
- Gold Member
- Posts: 318
- Joined: Wed Mar 17, 2010 2:53 pm
- Location: Surrey, BC
After cleaning and finishing, I think I'll mount the motor on a bit of a slide so I have some options. 57" sounds about right, though.JPG40504 wrote:I came up with 57". (1.5+.75) x pi = 7" + 50" = 57".
3" pulley = 1.5" radius. 1.5" pulley = .75" radius. Circumference = (2r x pi)/2 [belt goes half way around].
Nice score indeed!:)
I'm also thinking about adding a screw-drive to the table for adjusting.
My 'shop' is my carport and everything gets put on wheels to go in the shed. While we don't have real weather in Vancouver (we have 'climate'), it's still a little cool to spend too much time out there, at least, until mid-april rolls around. Did see daffodils poking through today, though:)
