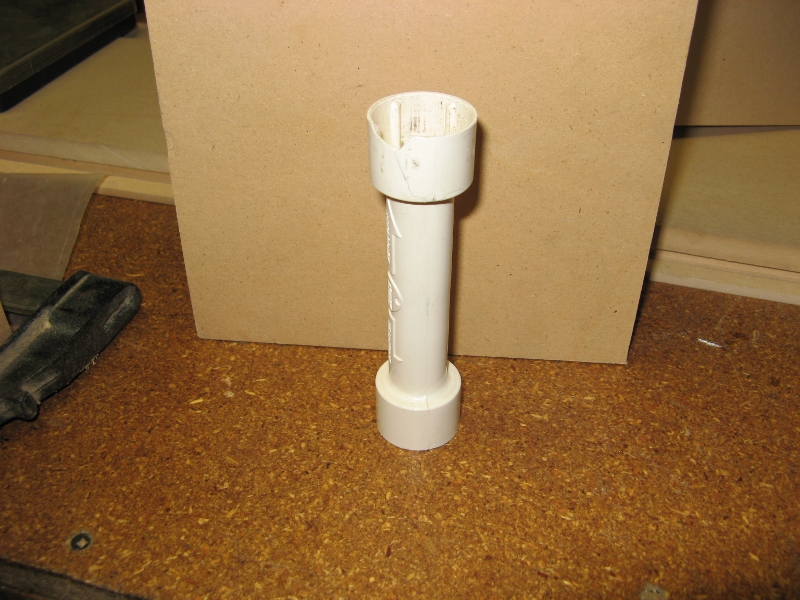

Recently while using the jig saw the power coupler split and a chunk broke out of the side of the coupler I am not sure of the root cause of the failure. But I suspect the coupler was dropped one to many times.

This is my take on repairing the coupler.

[ATTACH]17317[/ATTACH]

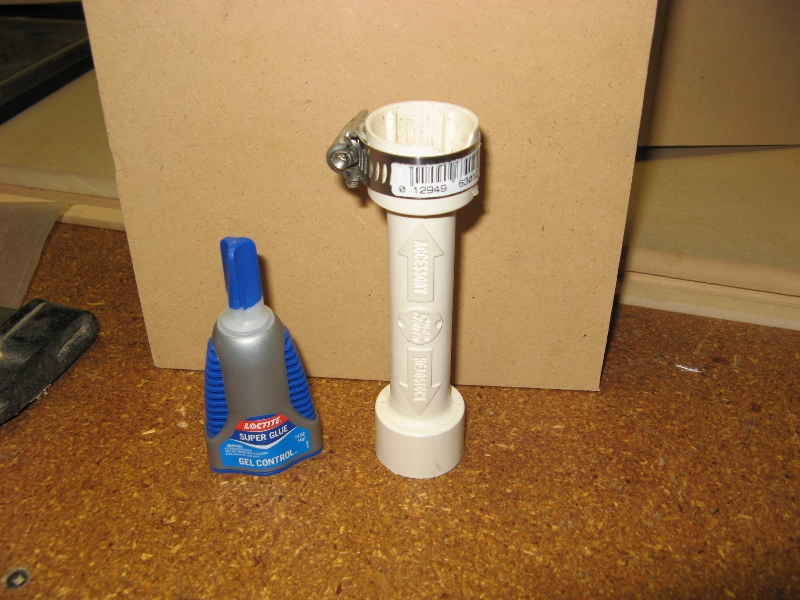

First I used super glue with a hose clamp ( borrowed from the washing machine while SWMBO was at the beauty parlor ) to draw the split tight and hold the original shape during the following step.

[ATTACH]17318[/ATTACH]

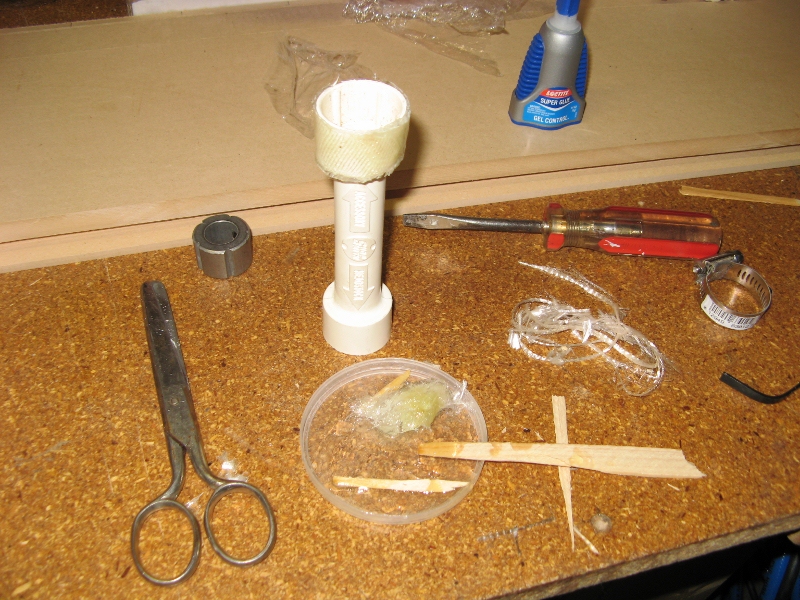

The next step was to clean all surfaces fine chop some fiberglass cloth
(obtained from a garage sale find auto body repair kit). Wrap a coupler adapter in plastic wrap and insert into the coupler.
I think the plastic wrap idea came from forum member “Shipwright“.

[ATTACH]17319[/ATTACH]

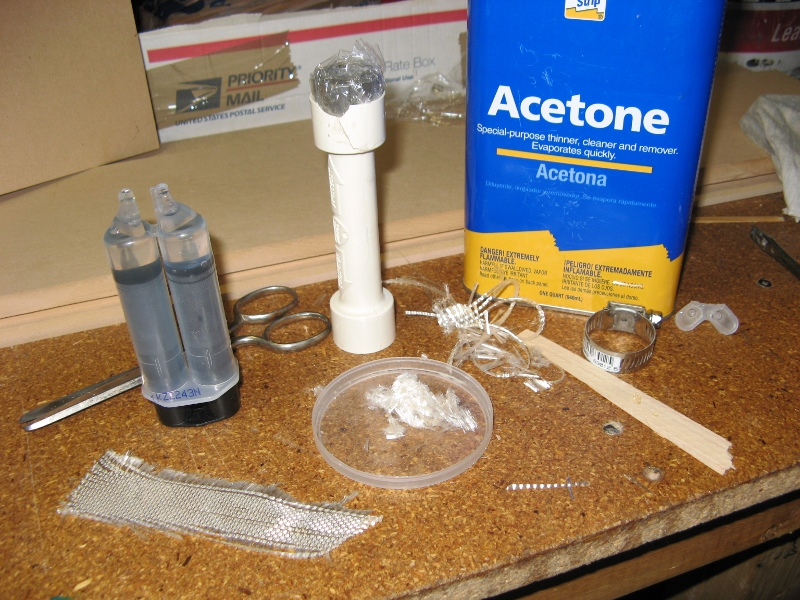

Next was to saturate the chopped cloth with epoxy and fill the void caused by the chip out. This also held the fiberglass cloth that was wrapped around the entire perimeter of the split coupler . Then mixed another dollop of epoxy and saturated the cloth. and slowly rotated the coupler until the epoxy had set up to the point it no longer flowed. Before the epoxy set up completely I trimmed the excess, smoothed and cleaned the messy spots.

[ATTACH]17320[/ATTACH]

The final step was to replace the hose clamp before SHMBO returned.
Fingers crossed so far it has worked fine. Used it on both the band saw and jointer.
