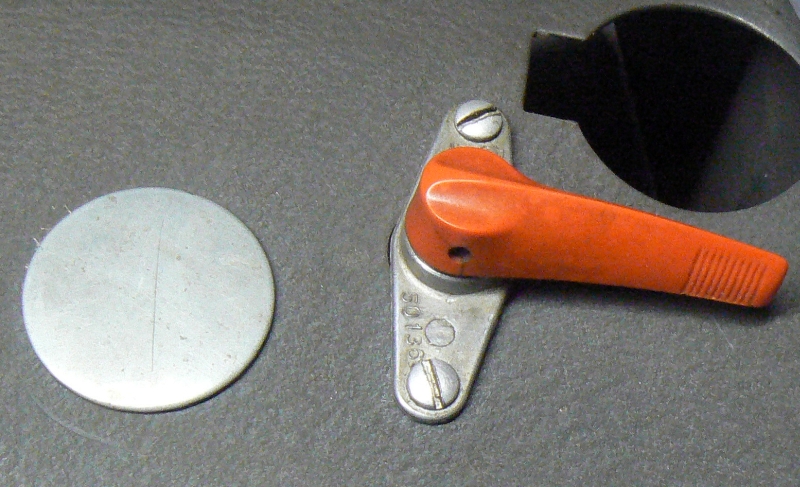

The Mark VII has a release lever for the headstock moving crank mounted to it. That allows manually moving the headstock.
It is attached by two screws and tinnerman clips. The access hole is plugged like earlier Mark 5 of this vintage. This was supposed to allow oiling the floating sheave without removing belt cover.
[ATTACH]19465[/ATTACH]
The inside-note the tinnerman clips, and the hole plug 'fingers'.
[ATTACH]19466[/ATTACH]

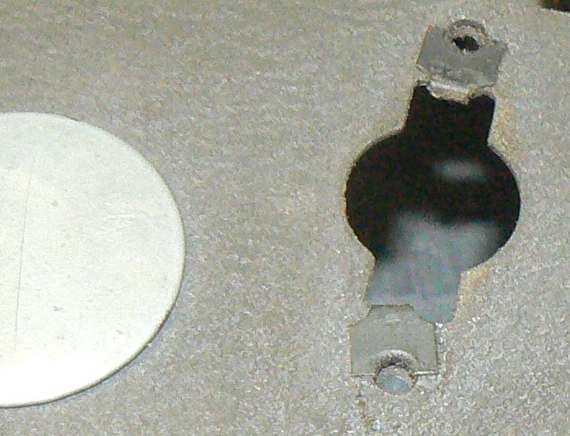

The tinnerman clips drop into the holes making them a bit difficult to remove.
[ATTACH]19467[/ATTACH]

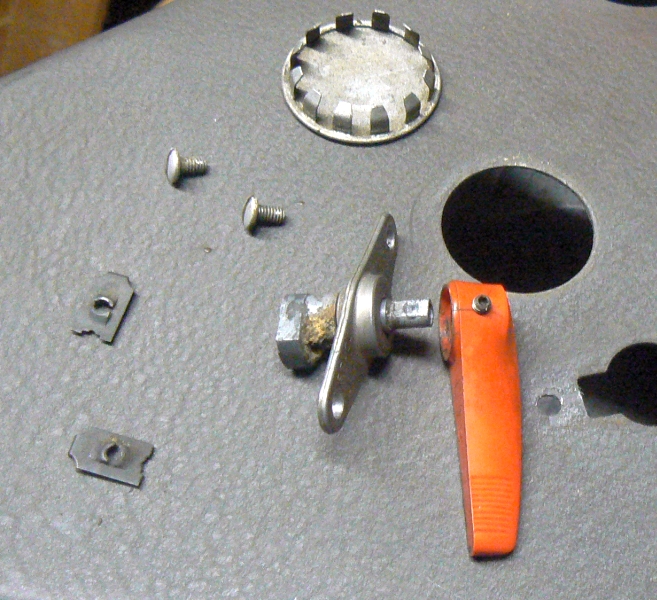

That's all there is!
[ATTACH]19468[/ATTACH]

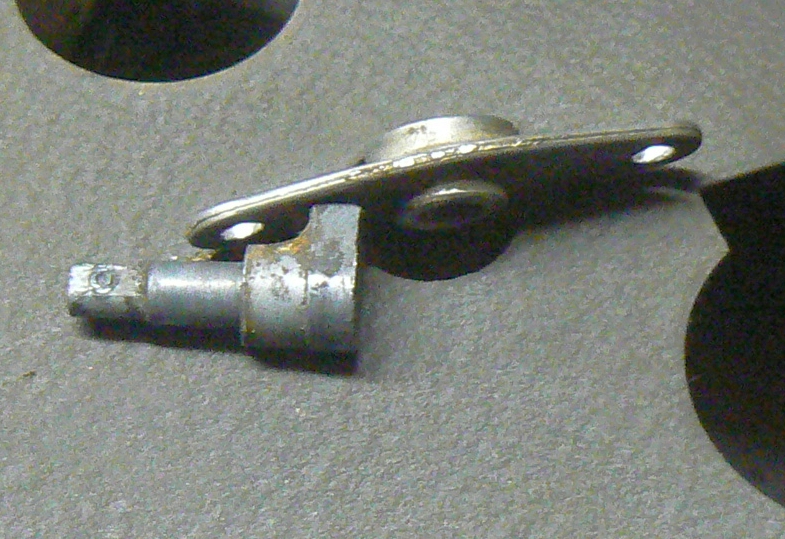

Notice the 'mount' is tapered to match the belt cover slope.
[ATTACH]19469[/ATTACH]
Mark VII Belt Cover breakdown
Moderator: admin
-
JPG
- Platinum Member
- Posts: 35438
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Mark VII Belt Cover breakdown
- Attachments
-
- before.jpg (350.74 KiB) Viewed 1051 times
-
- before inside.jpg (473.27 KiB) Viewed 1051 times
-
- t clips.jpg (226.2 KiB) Viewed 1051 times
-
- apart.jpg (367.21 KiB) Viewed 1050 times
-
- tapered.jpg (390.03 KiB) Viewed 1056 times
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
JPG
- Platinum Member
- Posts: 35438
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)

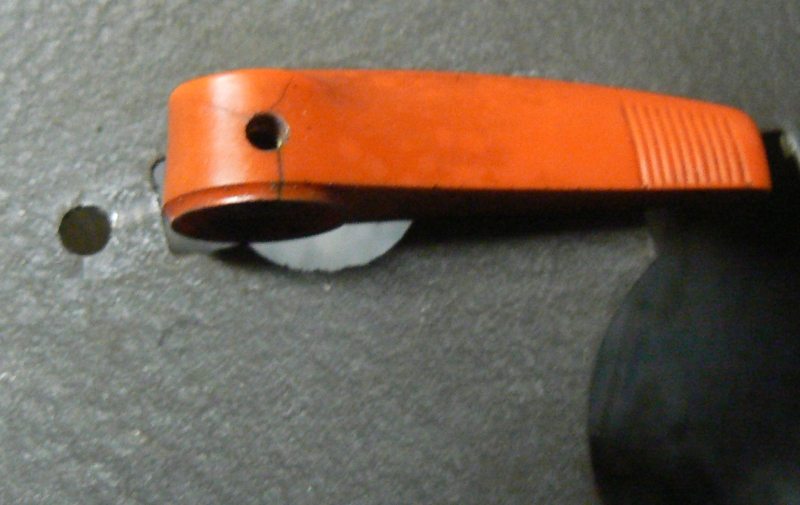

The knob is cracked.
[ATTACH]19470[/ATTACH]

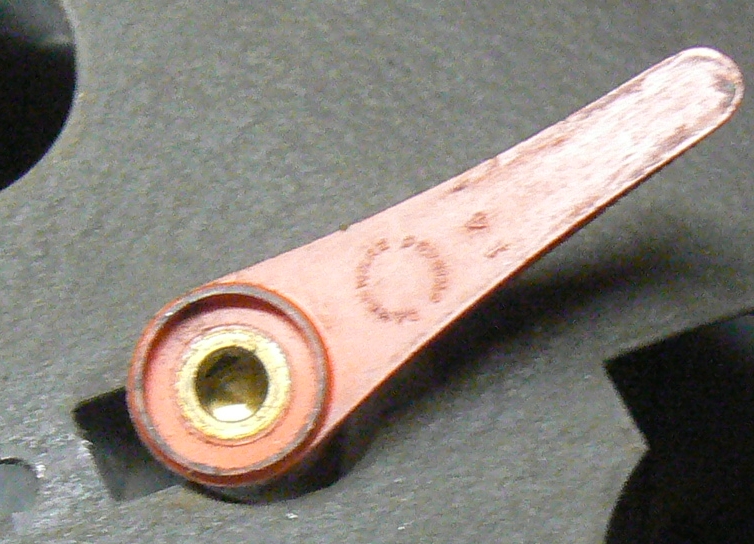

The brass insert makes that less of a concern.
[ATTACH]19471[/ATTACH]
I will 'seep' some thin CA into the cracks anyway.
This thread is linked to from http://www.shopsmith.net/forums/showthr ... ht=journey
[ATTACH]19470[/ATTACH]
The brass insert makes that less of a concern.
[ATTACH]19471[/ATTACH]
I will 'seep' some thin CA into the cracks anyway.
This thread is linked to from http://www.shopsmith.net/forums/showthr ... ht=journey
