A few parts remain attached to the headstock.

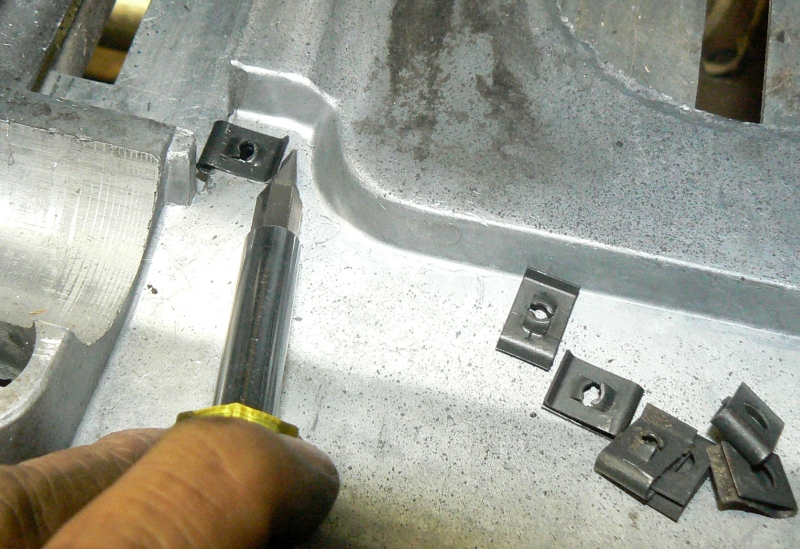

The tinnerman clips are all too easy to remove.
[ATTACH]19534[/ATTACH]

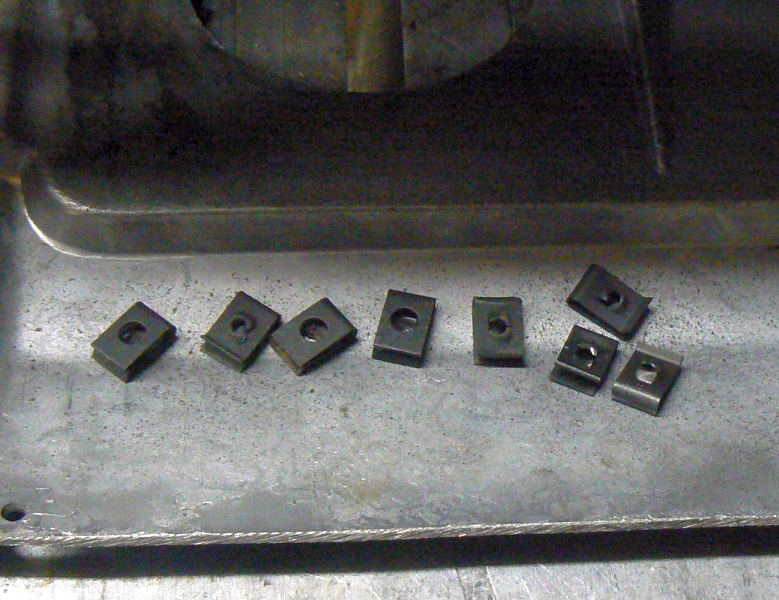

There are 8(one more than Mark 5/V since two are on the vac blower end).
[ATTACH]19535[/ATTACH]

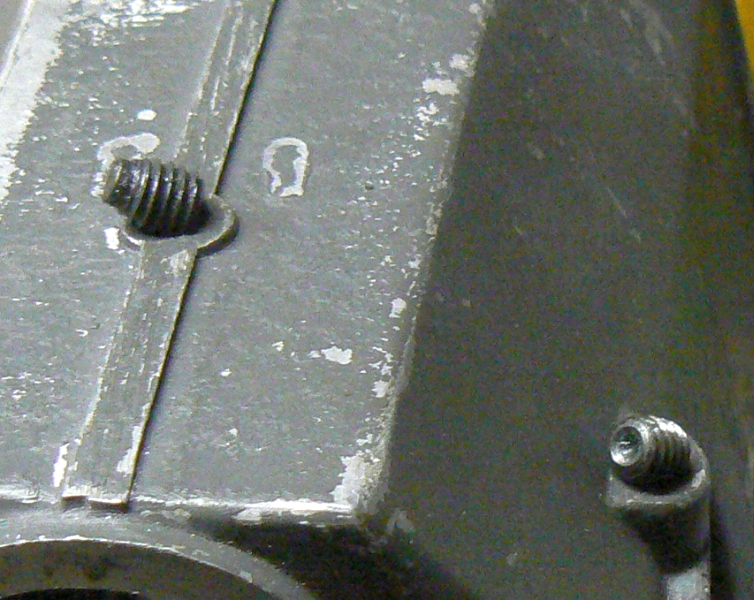

Last there are the set screws.
[ATTACH]19536[/ATTACH]
The headstock is now completely disassembled. I will be cleaning up all the pieces and prepping for painting etc. I do not intend to document that effort since it is already well covered in other threads. Eventually the base will be 'attacked'.
The Motor will be 'addressed' next.
This thread is linked to from http://www.shopsmith.net/forums/showthr ... ht=journey
Mark VII Headstock Misc Breakdown
