Belt Sander

mgbbob · Post by **mgbbob** » Thu Jan 10, 2013 9:36 am

[ATTACH]19890[/ATTACH]

Hi folks,

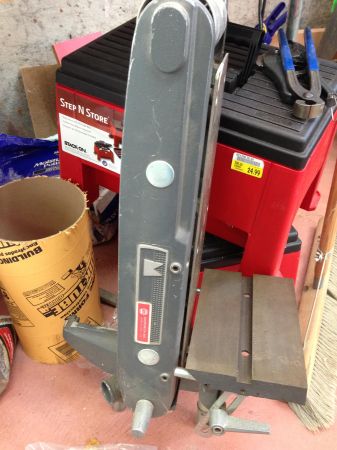

Looking at this belt sander. The owner says it is a model 4480. I don't see the posts to connect to the Mark V. Any ideas out there?

Bob

SDSSmith · Post by **SDSSmith** » Thu Jan 10, 2013 9:50 am

They may be there as it is hard to tell if they are there with the angle the picture was taken from.

nutball · Post by **nutball** » Thu Jan 10, 2013 11:25 am

Looks like that might be the bottom of one post immediately below the dust port. As SDSSmith said, it's hard to tell.

mgbbob · Post by **mgbbob** » Thu Jan 10, 2013 11:41 am

I am wondering if what I am looking at is the auxilary base for mounting for a power station connection.

JPG · Post by **JPG** » Thu Jan 10, 2013 12:36 pm

[ATTACH]19892[/ATTACH]

Short straight posts.

mgbbob · Post by **mgbbob** » Thu Jan 10, 2013 1:53 pm

I think you are saying I am good to go. I am having a hard time visulizing the set up.

JPG · Post by **JPG** » Thu Jan 10, 2013 2:36 pm

mgbbob wrote:I think you are saying I am good to go. I am having a hard time visulizing the set up.

I think yer pix may have short jointer tubes.

Hope this helps! https://forum.shopsmith.com/viewtopic.php?p=94224&postcount=9

The 'correct' tubes are available.

mgbbob · Post by **mgbbob** » Thu Jan 10, 2013 3:16 pm

Ok. thanks for the pictures. That helps.

anmius · Post by **anmius** » Thu Jan 10, 2013 4:12 pm

Here is some more help if you still need it:

http://www.shopsmith.com/academy/beltsand/index.htm

mgbbob · Post by **mgbbob** » Fri Jan 11, 2013 7:53 am

I went to visit last night and found all in order and came home with a new (used) belt sander. I also got to meet another Shopsmith owner. He had three (one up on me). Great guy. We all need to talk more!:)

I am feeling pretty good today. The fleet includes two Mark V's, a jointer, belt sander, and band saw. Life is SWEEEEEEEEEEEEEEET.
