parts missing in the Quill Feed assembly?

cllib · Post by **cllib** » Tue Jan 29, 2013 12:47 am

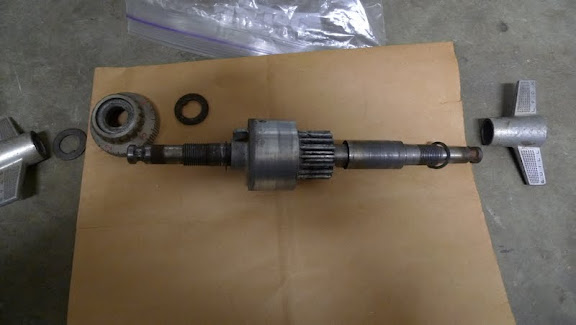

Is there supposed to be a spherical washer on the right hand side?

Is the "1" a Spherical washer?
Is there a retaining ring at this location "2"?

The washer is deformed.

JPG · Post by **JPG** » Tue Jan 29, 2013 3:03 am

cllib wrote:Is there supposed to be a spherical washer on the right hand side? YES

Is the "1" a Spherical washer? NO
Is there a retaining ring at this location "2"? NO

The washer is deformed. NO

The washer is a 'spring/wave washer. It allows the quill lock to hold against the return spring, yet allow adjusting the quill when it is snug, but, not tight.

Start here, click on the link at the bottom for links to the rest of the reassembly.

http://www.shopsmith.net/forums/showthr ... assembling

cllib · Post by **cllib** » Tue Jan 29, 2013 1:59 pm

JPG40504 wrote:The washer is a 'spring/wave washer. It allows the quill lock to hold against the return spring, yet allow adjusting the quill when it is snug, but, not tight.

Start here, click on the link at the bottom for links to the rest of the reassembly.

http://www.shopsmith.net/forums/showthr ... assembling

Thanks for the link.

For the spherical washer, do I have any alternative to buy from local hardware store?

JPG · Post by **JPG** » Wed Jan 30, 2013 2:25 am

[quote="cllib"]Thanks for the link.

For the spherical washer, do I have any alternative to buy from local hardware store? ]

Probably not. I have never seen one other than in a ss.

A couple of 3/4" washers might work. Need to file a notch for the woodruff key to clear.

dusty · Post by **dusty** » Wed Jan 30, 2013 5:05 am

JPG40504 wrote:Probably not. I have never seen one other than in a ss.

A couple of 3/4" washers might work. Need to file a notch for the woodruff key to clear.

Are these sometimes referred to as wavey washers.

JPG · Post by **JPG** » Wed Jan 30, 2013 2:29 pm

dusty wrote:Are these sometimes referred to as wavey washers.

He has one of those.

Tis the 'domed' washer he is 'missing'.

Ya I know, terminology!!!

https://www.google.com/search?q=spherical+washer&ie=utf-8&oe=utf-8&aq=t&rls=org.mozilla:en-US:official&client=firefox-a

https://www.google.com/search?q=wave+washer&hl=en&client=firefox-a&hs=nIz&tbo=u&rls=org.mozilla:en-US:official&tbm=isch&source=univ&sa=X&ei=YHMJUZvIJs6NqQH_tYHgBA&ved=0CFsQsAQ&biw=1139&bih=655

I believe a 'spring' washer is a washer with a single wave.

BTW the motor pan and floor been duly searched? When the quill shaft is 'pulled', 'it' drops into the pan.

Now as for the 'washer' in the quill, . . . . . . Top hat???:D

anmius · Post by **anmius** » Wed Jan 30, 2013 4:50 pm

Do you mean a self aligned domed washer?

http://www.mcmaster.com/#self-aligning-washers/=l9jpb9

JPG · Post by **JPG** » Thu Jan 31, 2013 12:34 am

anmius wrote:Do you mean a self aligned domed washer?

http://www.mcmaster.com/#self-aligning-washers/=l9jpb9

Close, but not quite. The ss washer is less precision. The radius does not extend to the periphery. It is a 'stamped' part.
