The Mark VII extension table has both a horizontal and a 'vertical' rail for attaching the rip fence. More about that below.
[ATTACH]21156[/ATTACH]

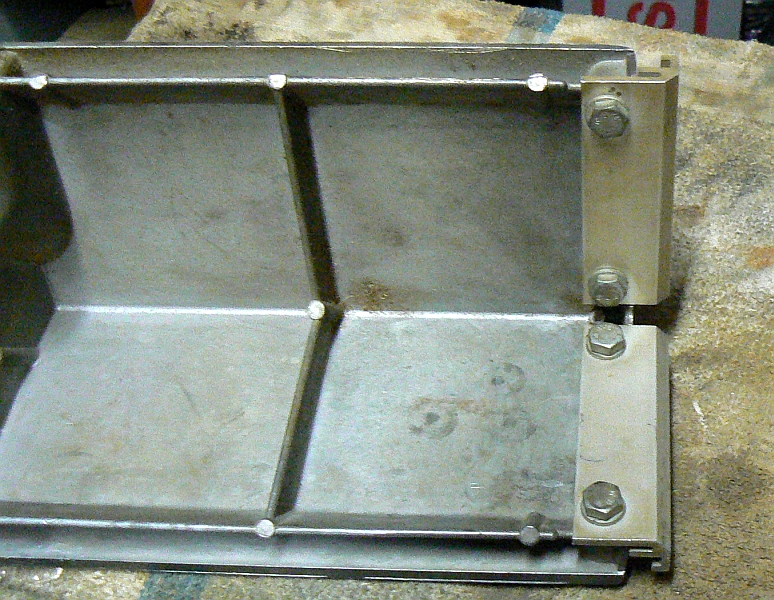

Both short rails are attached with two screws and washers like the main table rail.
[ATTACH]21157[/ATTACH]

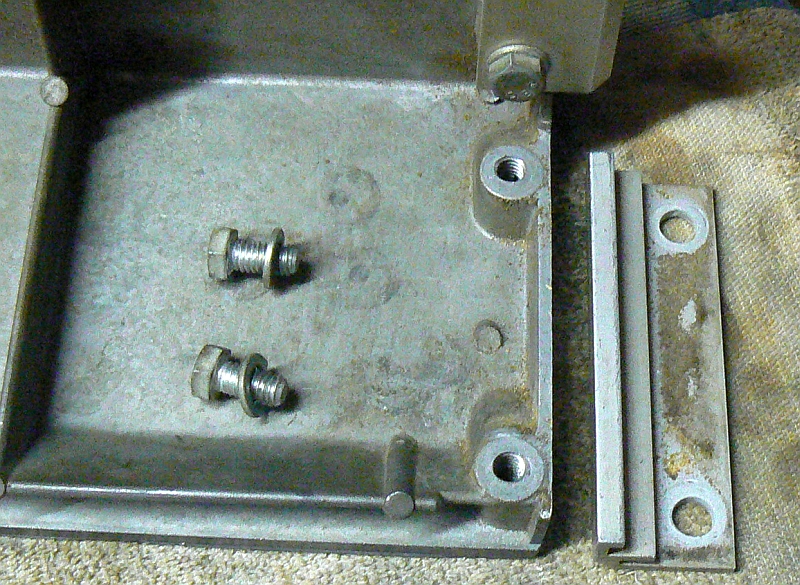

One of them 'off'.
[ATTACH]21158[/ATTACH]

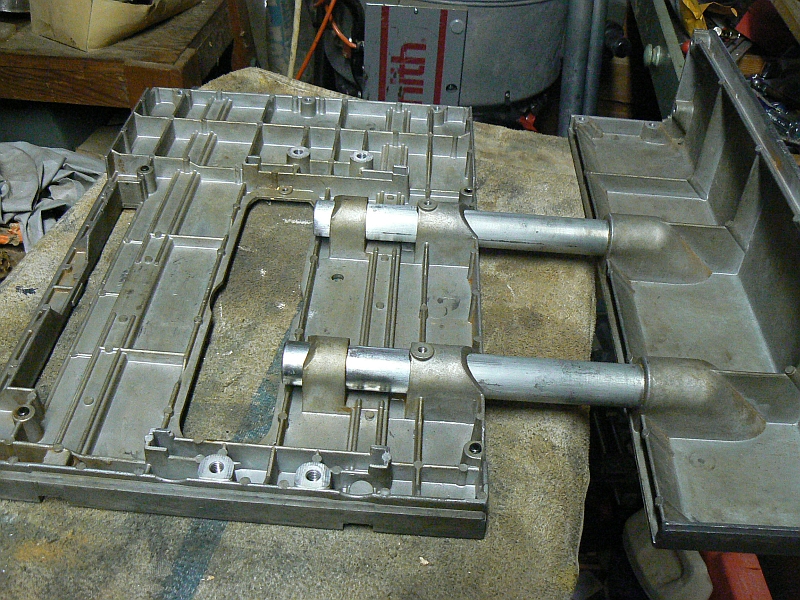

The posts are not 'detachable'.
[ATTACH]21159[/ATTACH]
This thread is linked to from https://forum.shopsmith.com/viewtopic.php?t=11373
Mark VII Extension Table Breakdown
Moderator: admin
-
JPG
- Platinum Member
- Posts: 35438
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Mark VII Extension Table Breakdown
- Attachments
-
- ext table.jpg (352.02 KiB) Viewed 1160 times
-
- rails.jpg (477.21 KiB) Viewed 1165 times
-
- rail off.jpg (496.58 KiB) Viewed 1163 times
-
- posts.jpg (281.34 KiB) Viewed 1157 times
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
JPG
- Platinum Member
- Posts: 35438
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
Now about that extra rail.
The extension table not only mounts like a Mark 5/V/7 extension table to the base end, but also can 'extend' the main table width.

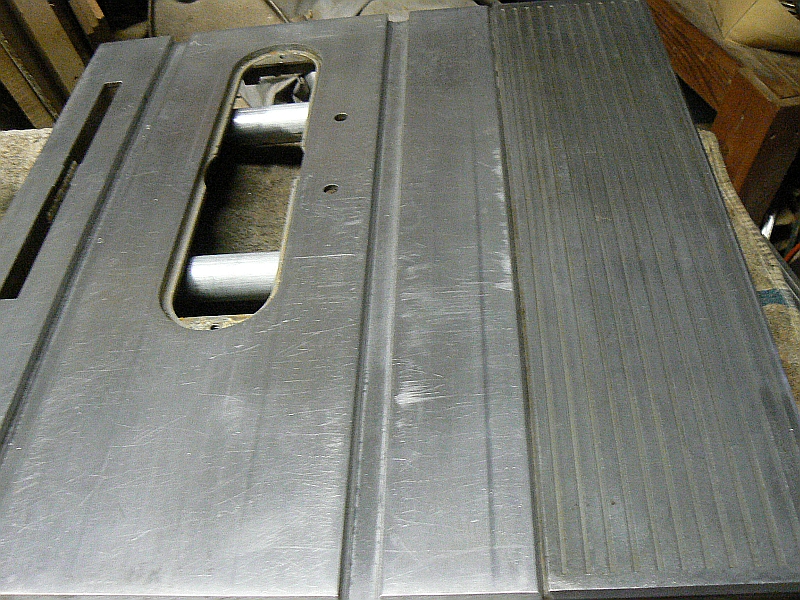

[ATTACH]21162[/ATTACH]

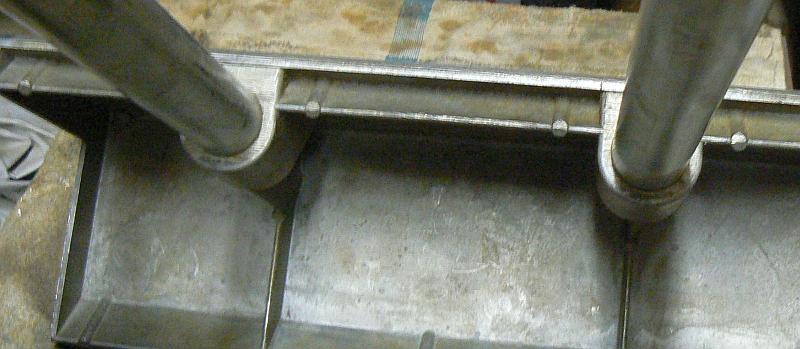

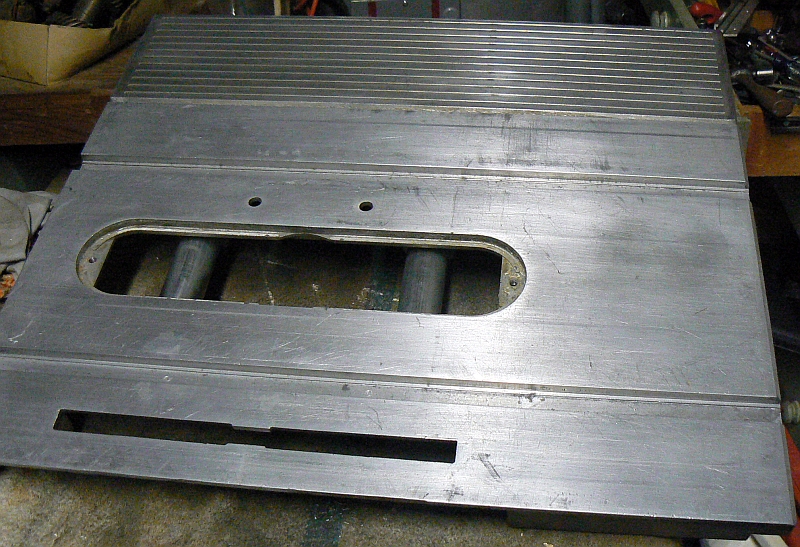

Notice that the extension table post interfere with the saw blade when positioned near the main table. The 'extra' blade slot allows sawing with the tables adjacent.

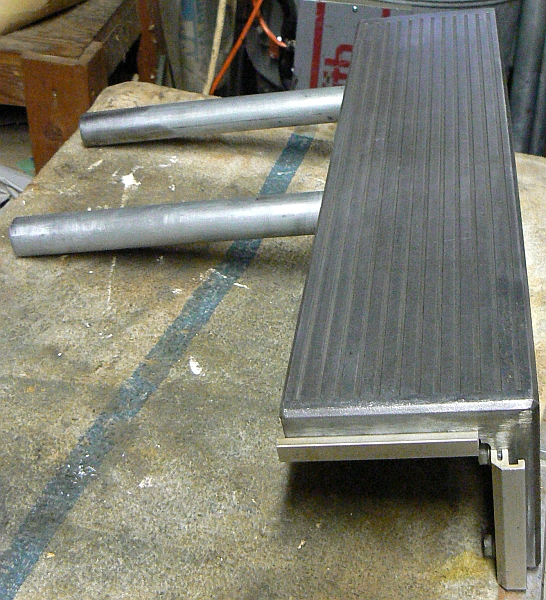

[ATTACH]21163[/ATTACH]
