The Mark VII version more closely resembles the current version than the earlier Mark 5 version. It is however a different size.
There are a couple of 'added' parts. More about them later!
1 exploded.jpg (505.01 KiB) Viewed 2155 times

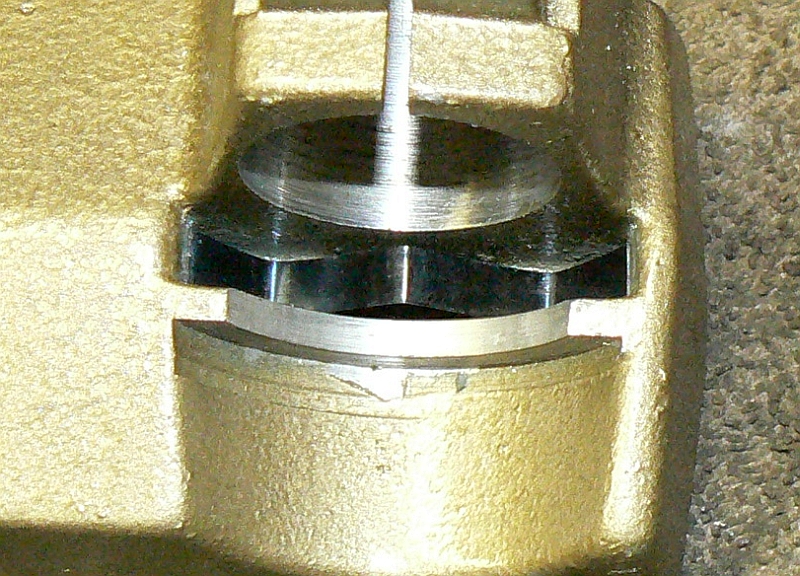

The leaf springs are first to be put into place.
2 spring.jpg (458.34 KiB) Viewed 2155 times

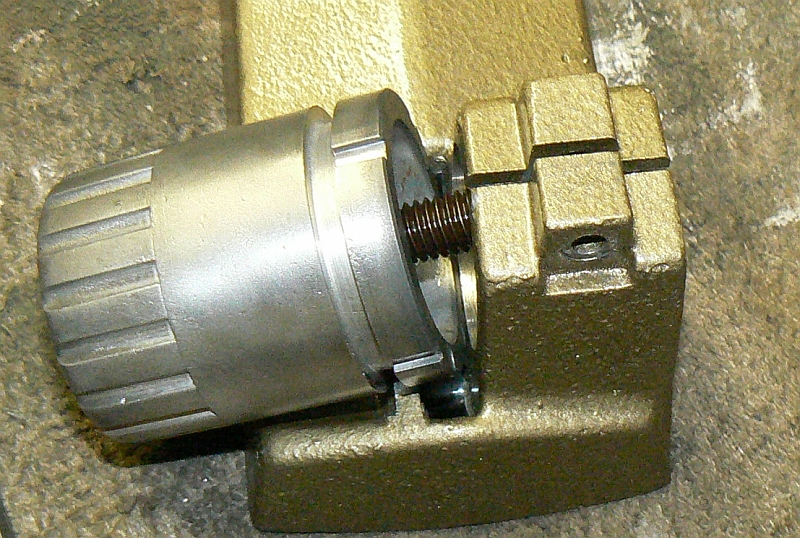

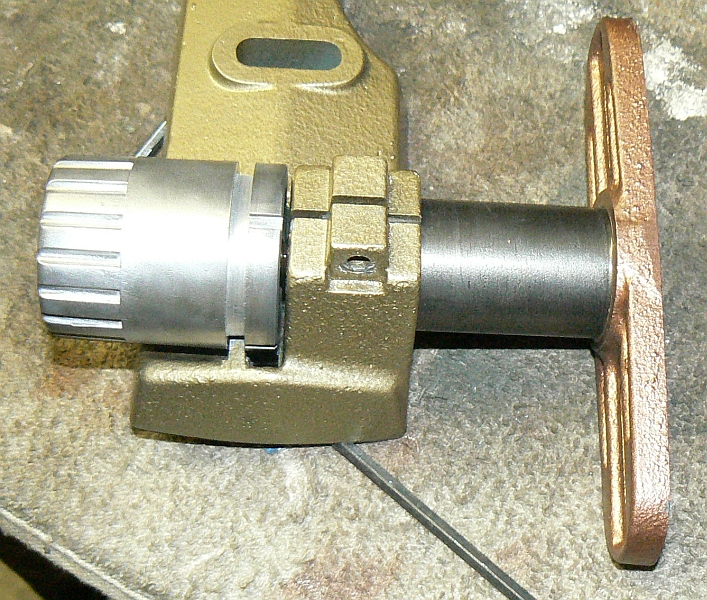

The 'micro adjust' knob is placed next.
3 knob insertion.jpg (449.08 KiB) Viewed 2154 times

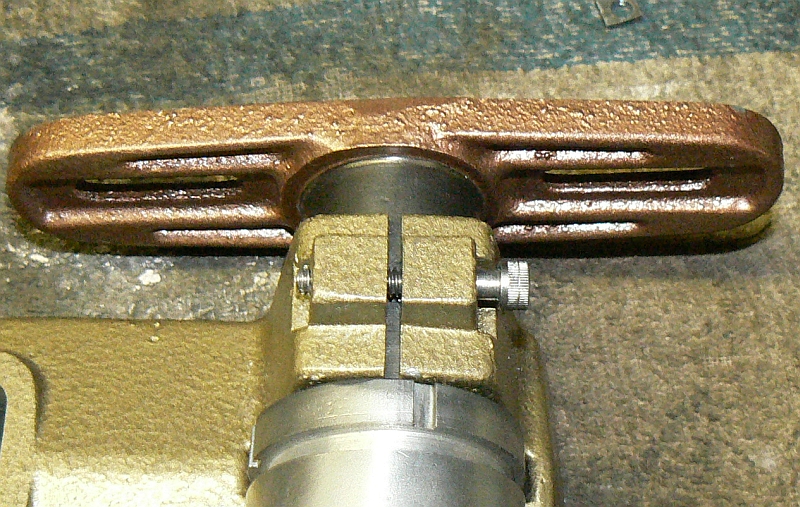

It is threaded into the fence face bracket. It is easier to do this before the fence is added(bracket turns without detenting and is less like a helicopter rotor).
4 bracket.jpg (450.63 KiB) Viewed 2157 times
Next a screw to secure/clamp, but now we consider the 'added' parts and the reason for them.
Last edited by JPG on Sat Feb 25, 2017 9:45 pm, edited 1 time in total.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
The original shaper fence design(Mark 5 vintage) included 1/4-20 screws and nuts to clamp the fences. The casting had a square(half) shaped cavity into which a 1/4-20 square nut nested. This allowed adjusting the screw with the SS tool kit only. With the Mark VII redesign(and later Mark V) the 1/4-20 screw was replaced with a 3/16-24 screw(and hole) that has a smaller square nut. the casting was not changed, so the nut has excessive space and will turn partially when the screw is adjusted. Part of the reason for this change I believe was the 'standardization' of socket head screws socket sizes.

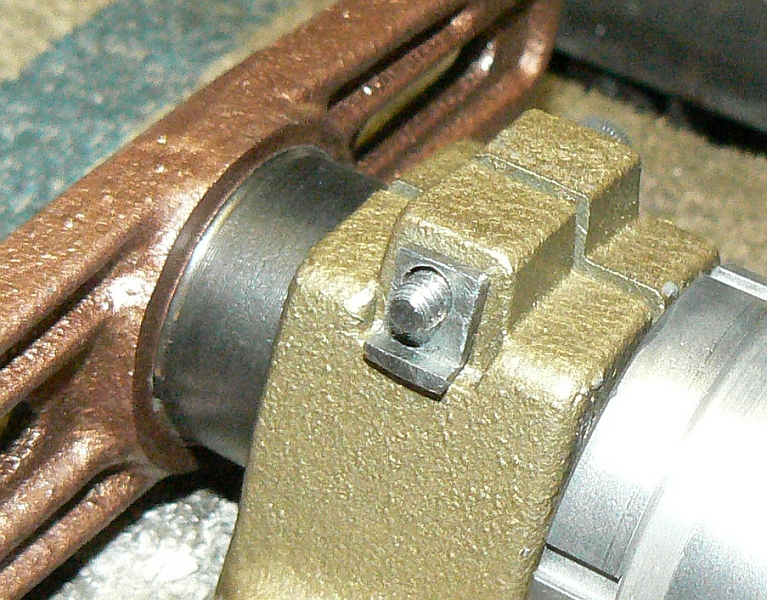

I initially set out to acquire some 3/16-24 nuts with the same outer dimension as 1/4-20 nuts, but ended up making the 'new parts' instead. A simple L shaped piece with a 3/16" hole.
6 new part.jpg (459.54 KiB) Viewed 2152 times

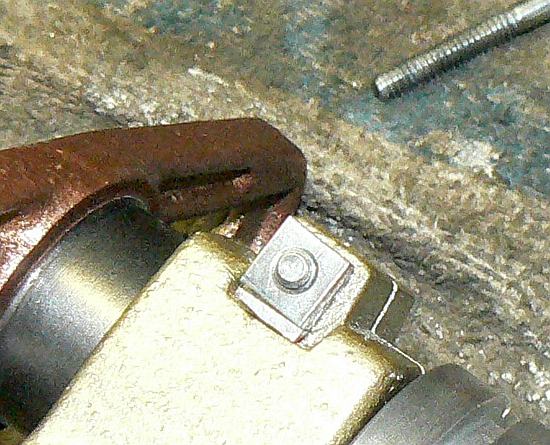

The nut is now restrained from rotating as the original larger nut was.
7 clamp nut.jpg (272.12 KiB) Viewed 1700 times

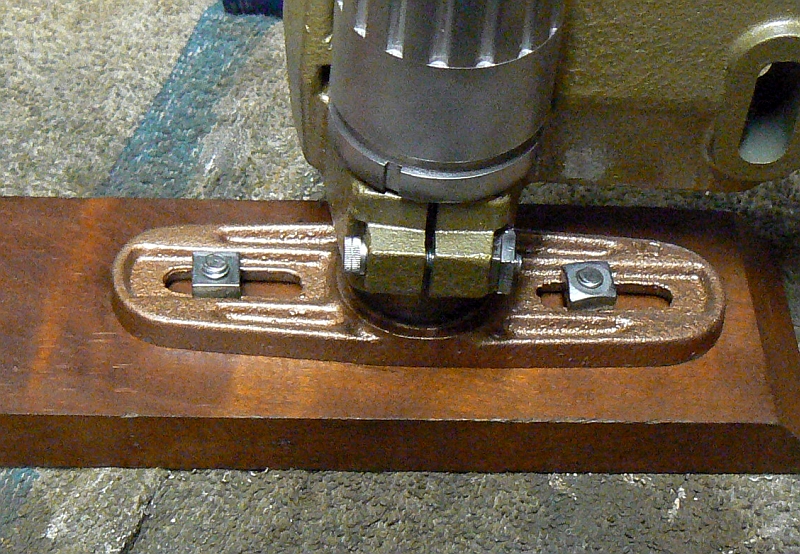

The wooden fence can now be attached. Realize all that has preceded is duplicated for the other side. For you eagle eyed folks, that nut is not on backwards, both sides of that nut are flat.
8 fence.jpg (471.38 KiB) Viewed 2150 times

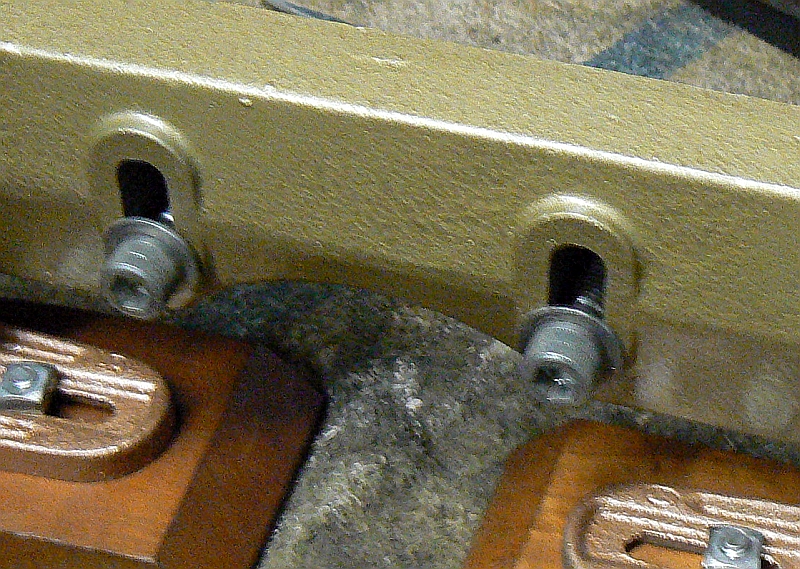

All that is left is the clamping screws.
9 table clamp.jpg (502.87 KiB) Viewed 2144 times

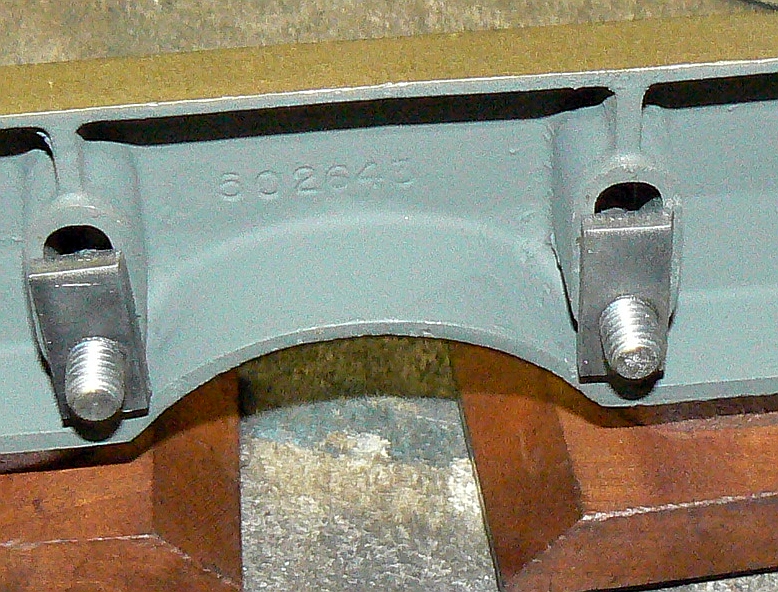

And nut plates
10 bottom.jpg (463.25 KiB) Viewed 2138 times
A little more to come.
Last edited by JPG on Sat Feb 25, 2017 9:54 pm, edited 1 time in total.
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange

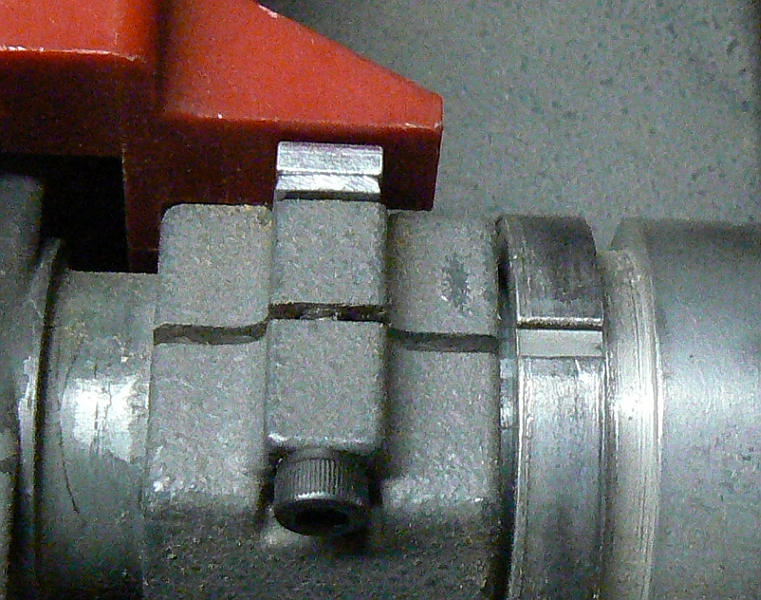

While making the 'new parts', I made a set for my 510 shaper fence. FWIW, the red plastic safety shield will fit the Mark VII version. It would also fit the Mark 5 version except for the larger screws.
12 510 fix.jpg (437.31 KiB) Viewed 2143 times

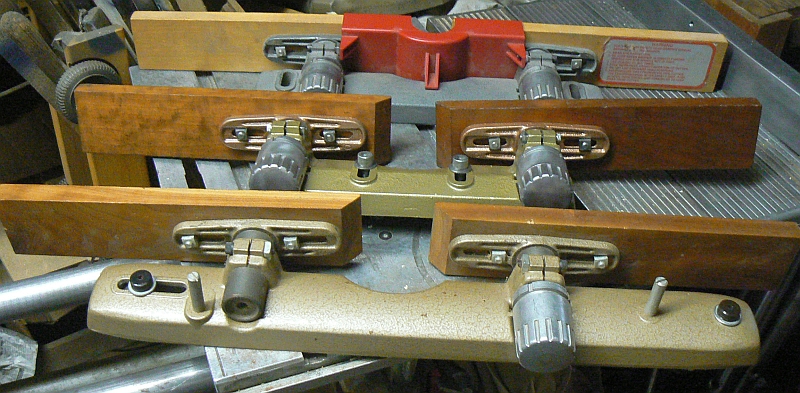

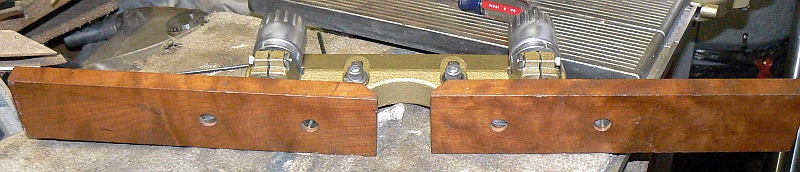

Well tis done! I will include a pix showing all three versions after I take it!
11 done.jpg (170.69 KiB) Viewed 2140 times
all three.jpg (338.63 KiB) Viewed 2118 times
