Have there been different versions of the speed control dial on the Mark 5 machines?
I found a Mark 5 with what looks to be a steel control dial. Instead of letters, it has numbers to indicate speed. It is on a Magna casting.
Will add pictures this afternoon.
I found a Mark 5 with what looks to be a steel control dial. Instead of letters, it has numbers to indicate speed. It is on a Magna casting.
Will add pictures this afternoon.
- JPG
- Platinum Member
- Posts: 34697
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)
How about a pix (front and back).
╔═══╗
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
╟JPG ╢
╚═══╝
Goldie(Bought New SN 377425)/4" jointer/6" beltsander/12" planer/stripsander/bandsaw/powerstation /Scroll saw/Jig saw /Craftsman 10" ras/Craftsman 6" thicknessplaner/ Dayton10"tablesaw(restoredfromneighborstrashpile)/ Mark VII restoration in 'progress'/ 10E[/size](SN E3779) restoration in progress, a 510 on the back burner and a growing pile of items to be eventually returned to useful life. - aka Red Grange
-
- Platinum Member
- Posts: 1237
- Joined: Tue Jul 08, 2008 10:10 pm
=============================================
Last edited by judaspre1982 on Wed Apr 26, 2017 2:36 pm, edited 1 time in total.
- joshh
- Platinum Member
- Posts: 723
- Joined: Tue Jan 08, 2013 8:53 pm
- Location: Dallas / Fort Worth, Texas
Never seen one like that before. Maybe from a clone?
- 1986 Mark V 500 Mini
- 1985 Mark V 510 with reversible motor, bandsaw, jointer, and double-tilt.
I offer quality motor reversal, rebuilding, and rewiring. Contact me at HarbourTools@live.com
- 1985 Mark V 510 with reversible motor, bandsaw, jointer, and double-tilt.
I offer quality motor reversal, rebuilding, and rewiring. Contact me at HarbourTools@live.com
Can you get a closer picture of the speed dial? Could it be hand made?
Heath
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
Central Louisiana
-10ER - SN 13927, Born 1949, Acquired October 2008, Restored November, 2008
-10ER - SN 35630, Born 1950, Acquired April 2009, Restored May 2009, A34 Jigsaw
-Mark V - SN 212052, Born 1986, Acquired Sept 2009, Restored March 2010, Bandsaw
-10ER - SN 39722, Born 1950, Acquired March 2011, awaiting restoration
- JPG
- Platinum Member
- Posts: 34697
- Joined: Wed Dec 10, 2008 7:42 pm
- Location: Lexington, Ky (TAMECAT territory)

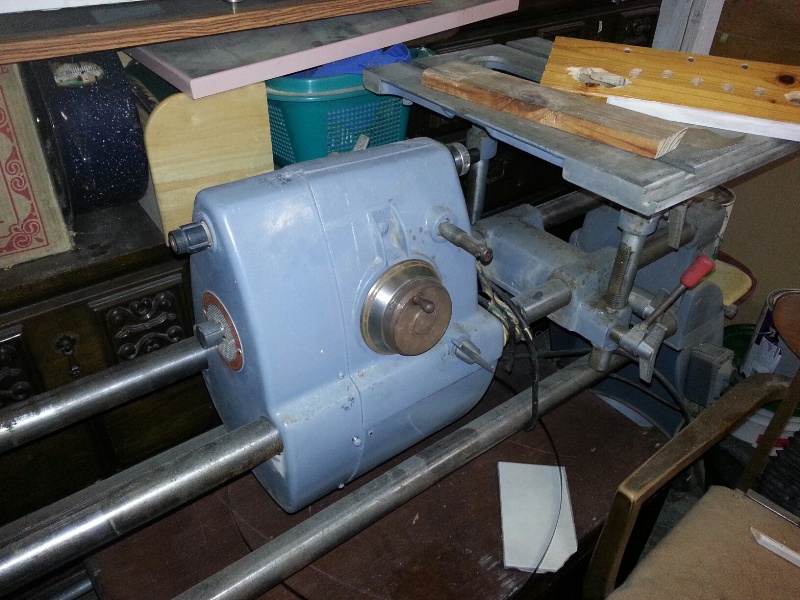

More than the speed control dial is 'different'.
The belt cover and vent plate are from an early greenie("A" headstock).
The top of the headstock looks like an "A" casting.
The area under the power switch 'location' appears to have the push plate(with pointer).
The quill lock bushing is outside, it belongs inside(end only sees the outside).
The rest appears gray. Maybe repainted or not.
The main table is Greenie vintage.
I must raise the ?, what is inside the headstock. Maybe SS stuff, maybe something else(considering the knob etc.).
The quill lock wing nut is not apparent.
Where are the speed markings?
The belt cover and vent plate are from an early greenie("A" headstock).
The top of the headstock looks like an "A" casting.
The area under the power switch 'location' appears to have the push plate(with pointer).
The quill lock bushing is outside, it belongs inside(end only sees the outside).
The rest appears gray. Maybe repainted or not.
The main table is Greenie vintage.
I must raise the ?, what is inside the headstock. Maybe SS stuff, maybe something else(considering the knob etc.).
The quill lock wing nut is not apparent.
Where are the speed markings?
╔═══╗
